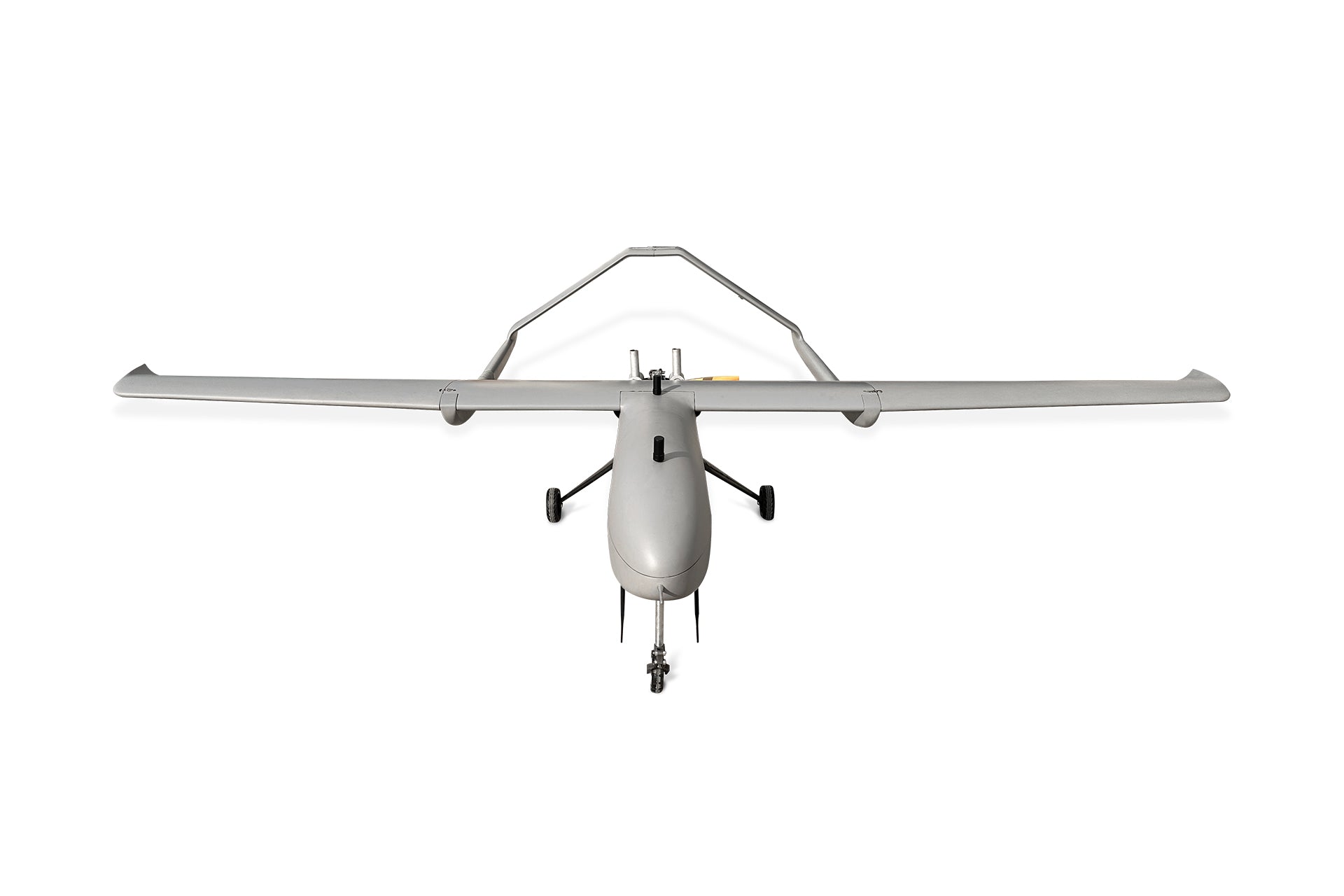

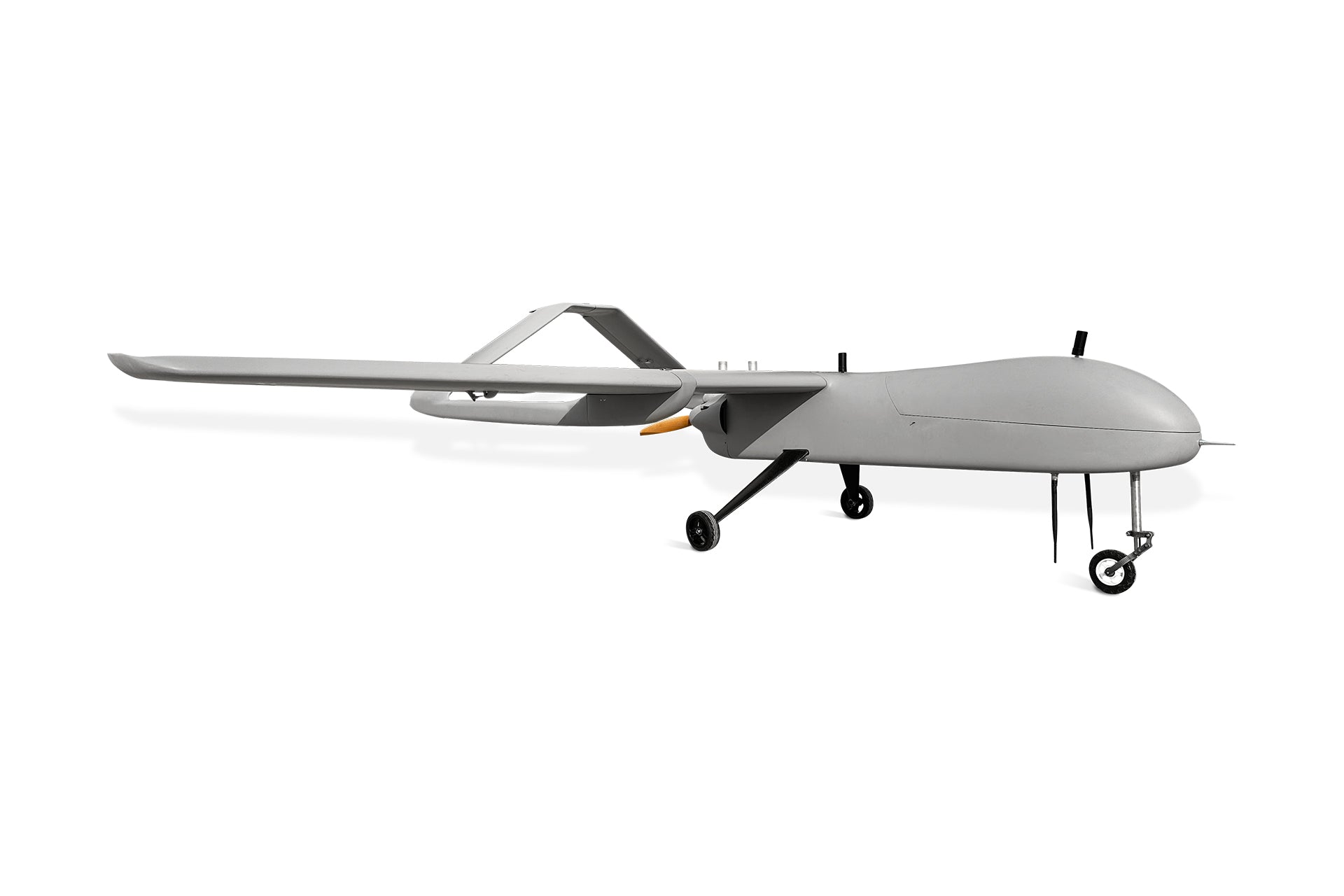

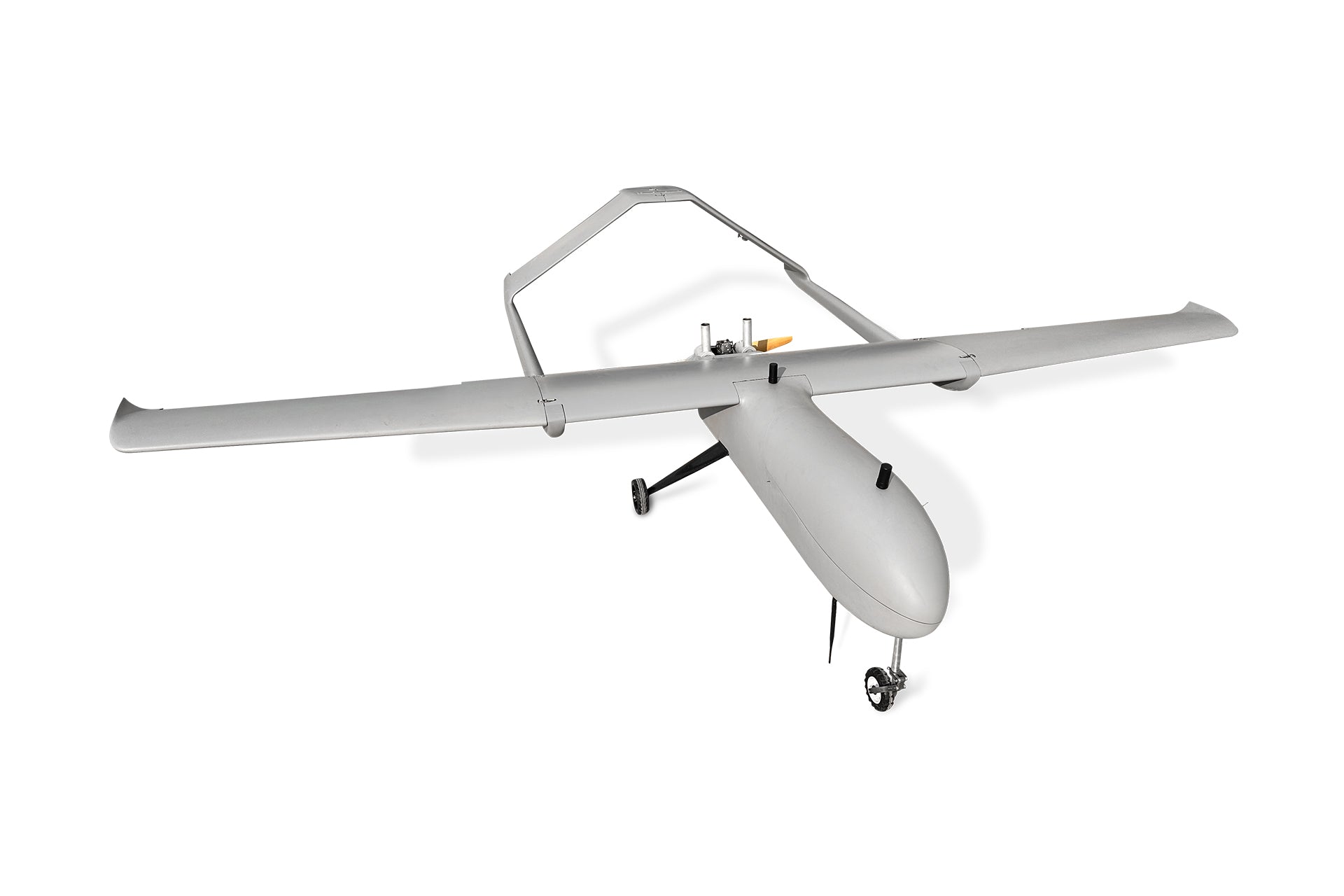

SKYEYE S360 – 3600mm Long-Endurance Fixed Wing UAV for Industrial Applications

The SKYEYE S360 is a professional fixed wing drone designed for long-endurance missions. With a wingspan of 3600mm and a durable carbon fiber/glass fiber airframe, this UAV offers high payload capacity, customizable engine options, and excellent stability for mapping, surveying, and industrial applications.

Key Features

• 3600mm wingspan – Ideal for long-range and high-stability flights
• Carbon fiber & glass fiber construction – Lightweight yet durable for harsh environments
• High payload capacity – Supports professional sensors, cameras, or agricultural equipment
• Engine options – Gasoline or electric propulsion available
• Long endurance – Suitable for aerial surveying, mapping, and GIS applications
• PNP Kit Available – Easy assembly with professional-grade components
• Industrial UAV platform – Designed for professional missions and reliable performance

About SKYEYE S360 Fixed Wing UAV

The SKYEYE S360 combines advanced fixed wing UAV technology with a high-strength composite airframe. Its long 3600mm wingspan provides enhanced lift and flight stability, making it suitable for industrial mapping, surveying, and agricultural operations. The UAV can carry a variety of payloads, including high-resolution cameras, LiDAR, or spraying equipment.

This UAV platform is customizable for both electric and gasoline engines, giving flexibility for different mission requirements. The durable carbon fiber and glass fiber structure ensures reliability even in demanding environments. With its long flight endurance, SKYEYE S360 is perfect for long-range aerial surveys and industrial UAV missions.

Whether you are looking for a professional fixed wing drone for mapping or an industrial UAV for surveying, the SKYEYE S360 delivers performance, reliability, and efficiency in one robust platform.

Recommended Use Cases

• Aerial Mapping & GIS: High precision surveys with cameras or LiDAR payloads
• Agricultural Operations: Spraying, crop monitoring, and data collection
• Industrial Inspection: Pipeline, railway, or powerline inspections
• Long-Endurance Surveying: Remote or large-area aerial missions
• Professional UAV Training: Reliable platform for UAV pilot training programs

Frequently Asked Questions (FAQ)

1. What is the wingspan of the SKYEYE S360?

The SKYEYE S360 has a wingspan of 3600mm, providing excellent lift and flight stability for long-range missions.

2. Can the SKYEYE S360 carry a high payload?

Yes, the UAV supports high payloads suitable for professional cameras, LiDAR sensors, or agricultural spraying equipment.

3. What materials are used for the airframe?

The airframe is constructed from carbon fiber and glass fiber, ensuring durability, lightweight, and resistance to harsh environments.

4. Is it available as a kit?

Yes, the SKYEYE S360 is available as a PNP kit, allowing easy assembly with professional-grade components.

5. What engine options are available?

You can choose between gasoline or electric propulsion, depending on your mission requirements.

6. What is the primary use of this UAV?

The SKYEYE S360 is ideal for mapping, surveying, agriculture, industrial inspection, and long-endurance aerial missions.

7. How long can the drone fly?

Flight endurance depends on payload and engine type, but it is designed for long-range missions, making it suitable for professional aerial surveying and industrial applications.

8. Is this UAV suitable for beginners?

It is a professional-grade fixed wing UAV, so pilot experience is recommended. However, the PNP kit and customizable options make assembly and operation easier for trained users.

PARAMETER
Specifications	Material	carbon fiber
	Wingspan	3600mm
	Length	2488mm
	Payload bay dimensions	560mm*260mm*270mm(L*W*H)
	Wing area	133dm2
	Empty weight	16.5kg
	Payload capacity	8KG
	Maximum takeoff weight	40KG
	Fuel tanks	11L
Performance Characteristics	Cruising speed	30m/s
	Maximum speed	33m/s
	Stall speed	24m/s
	Maximum flight time	6 Hours

SKYEYE S360 3600MM FIXED WING
Name	Specification	KIT	PNP(E)

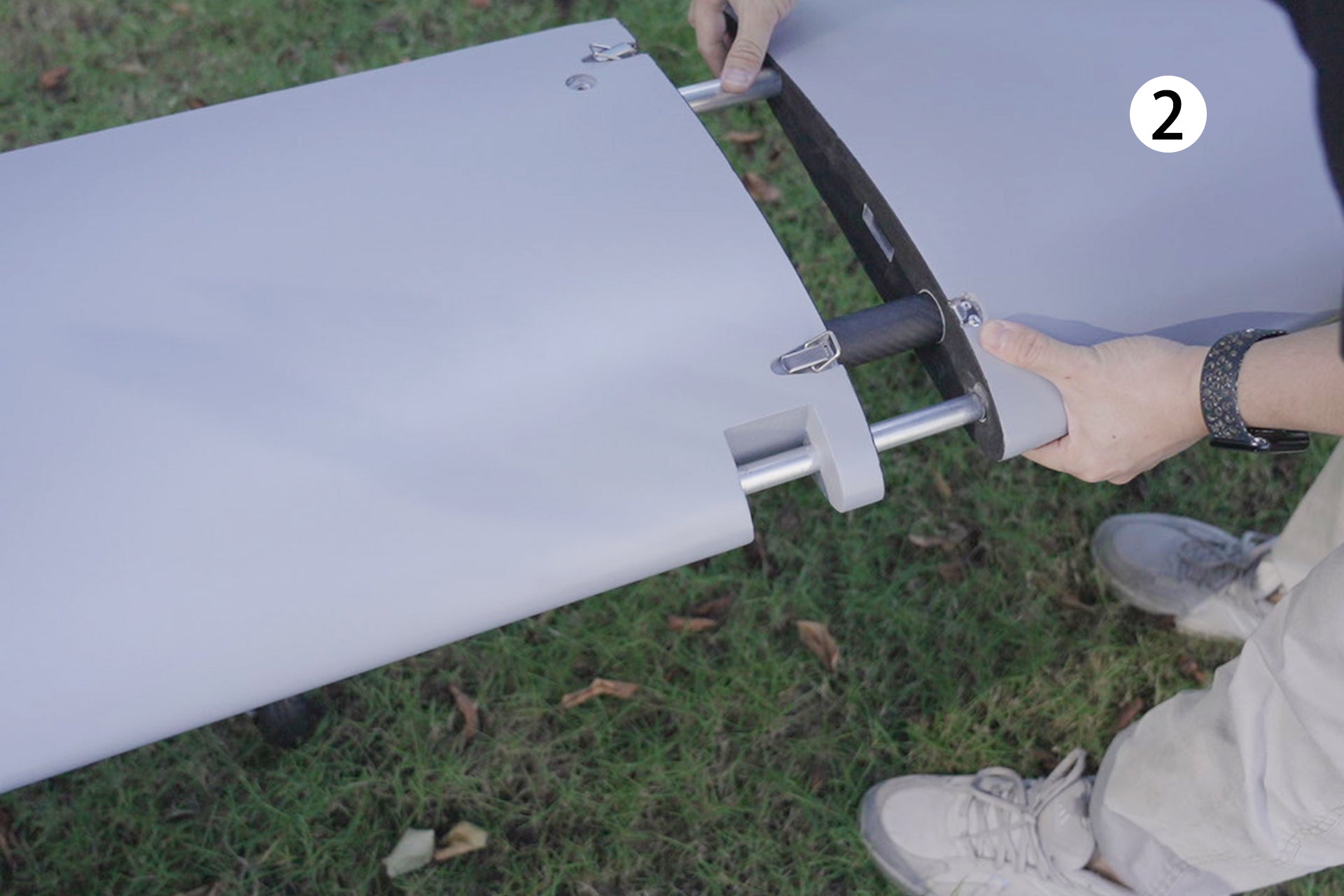

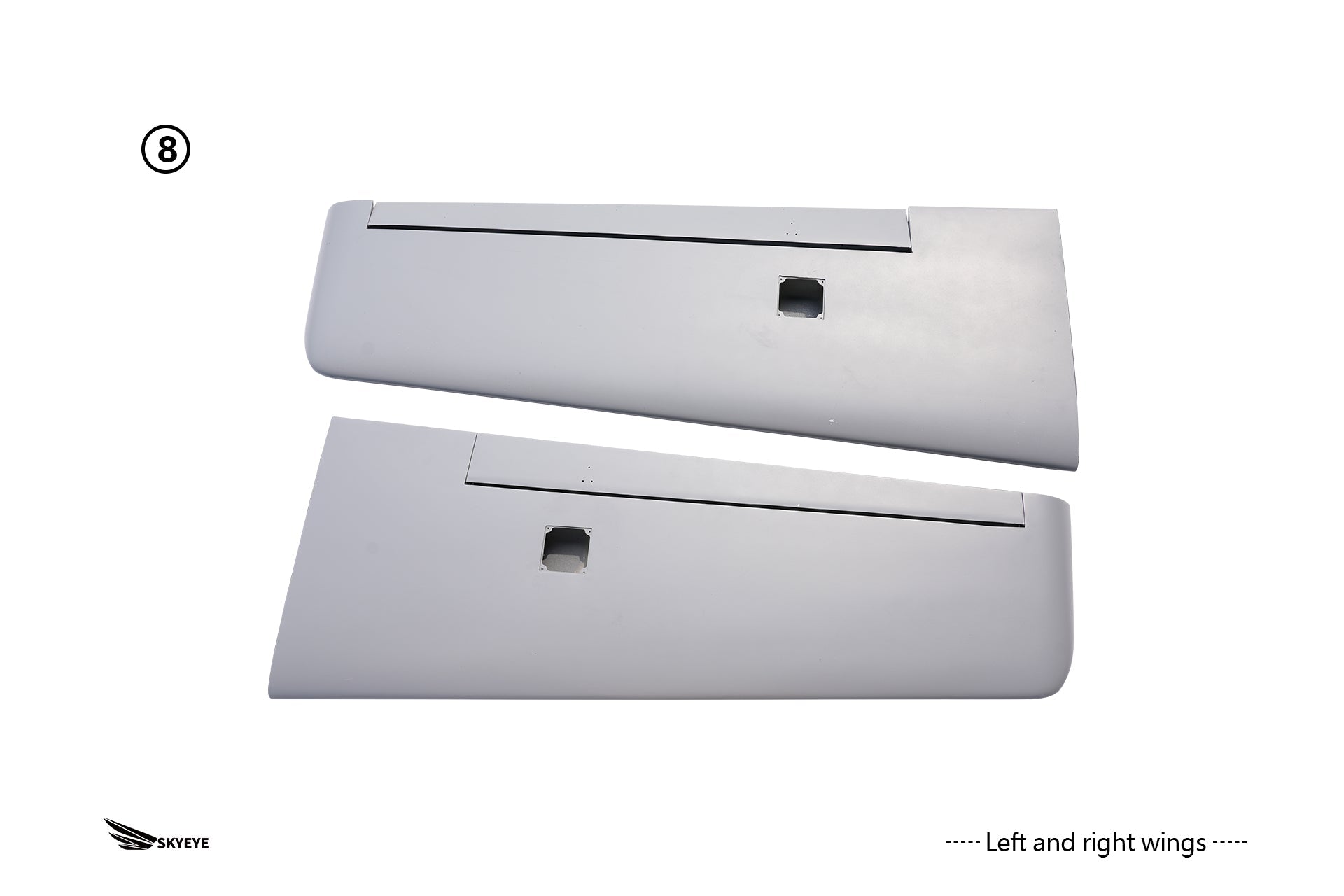

Flying platform	S360 outer wing	2	2

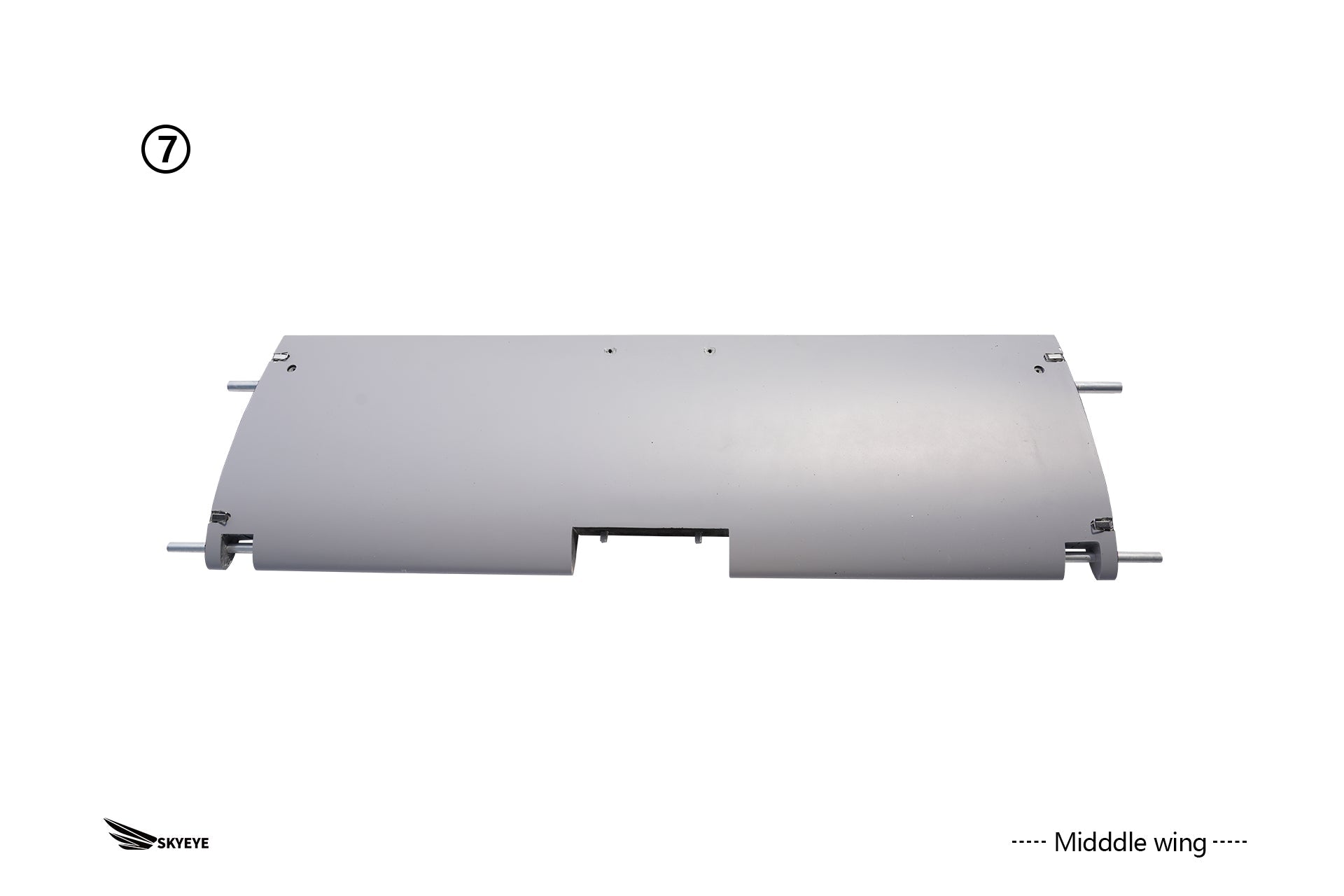

	S360 mid-wing	1	1

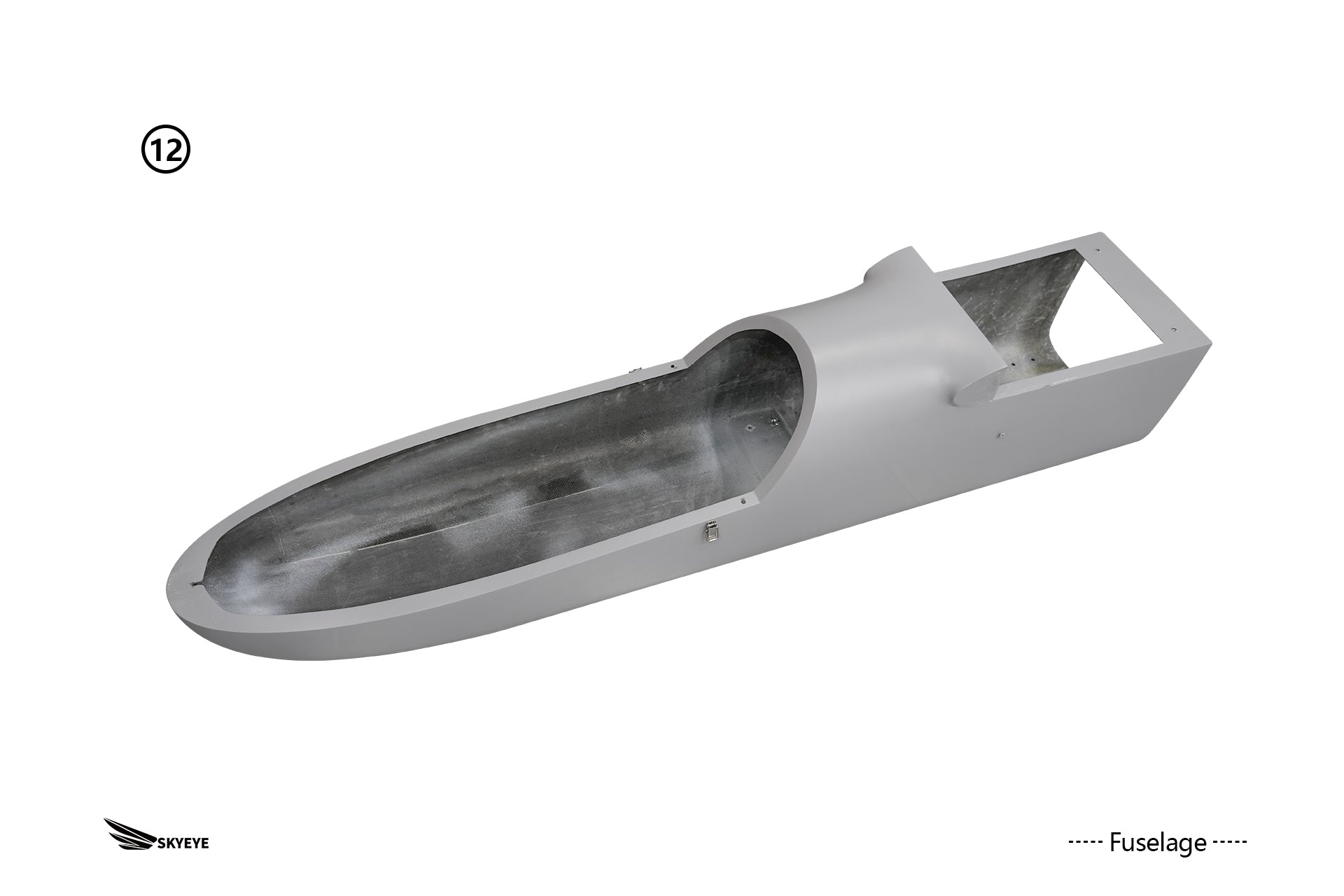

	S360 mainframe	1	1

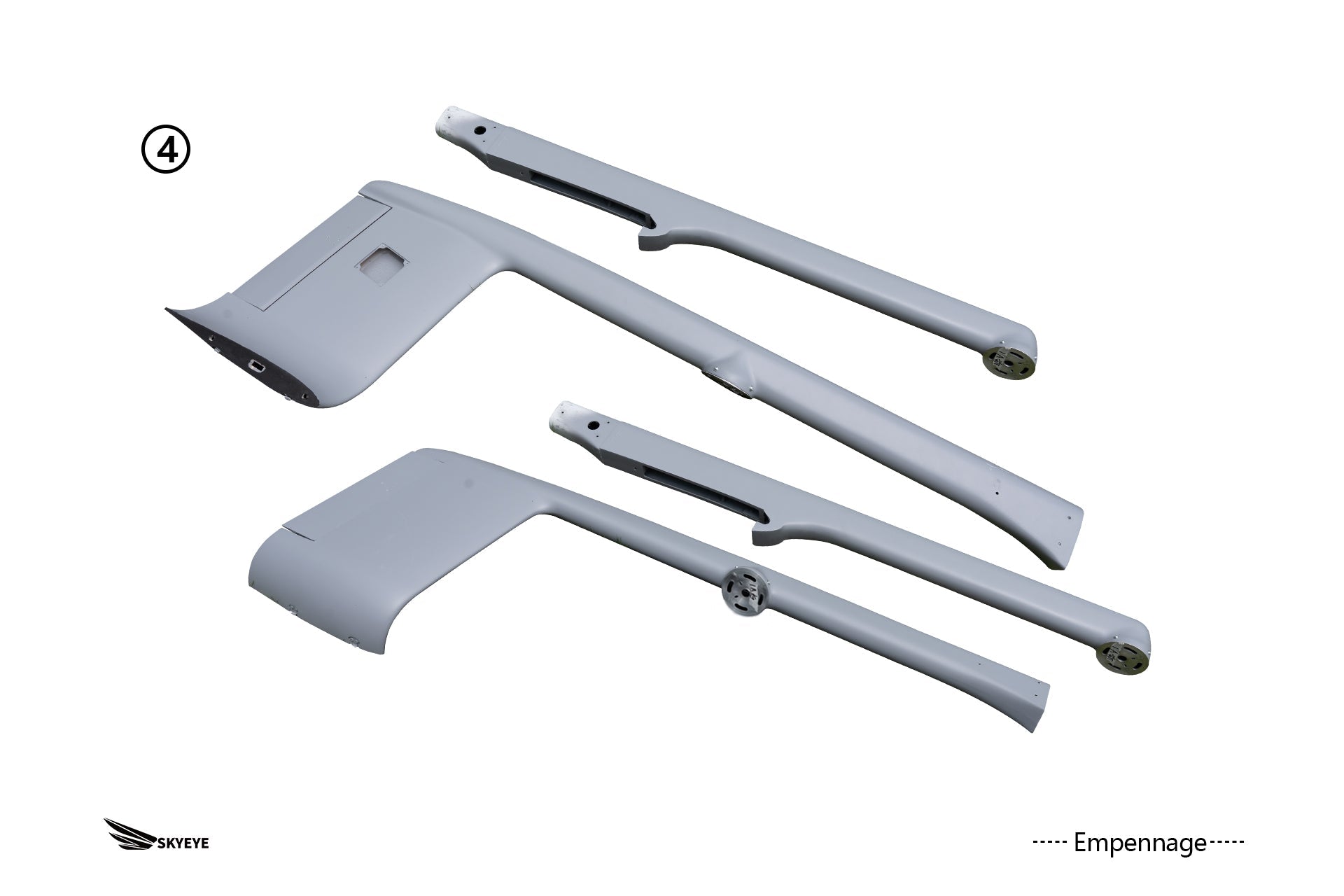

	S360 V-boom	2	2
	S360 landing gear	1	1

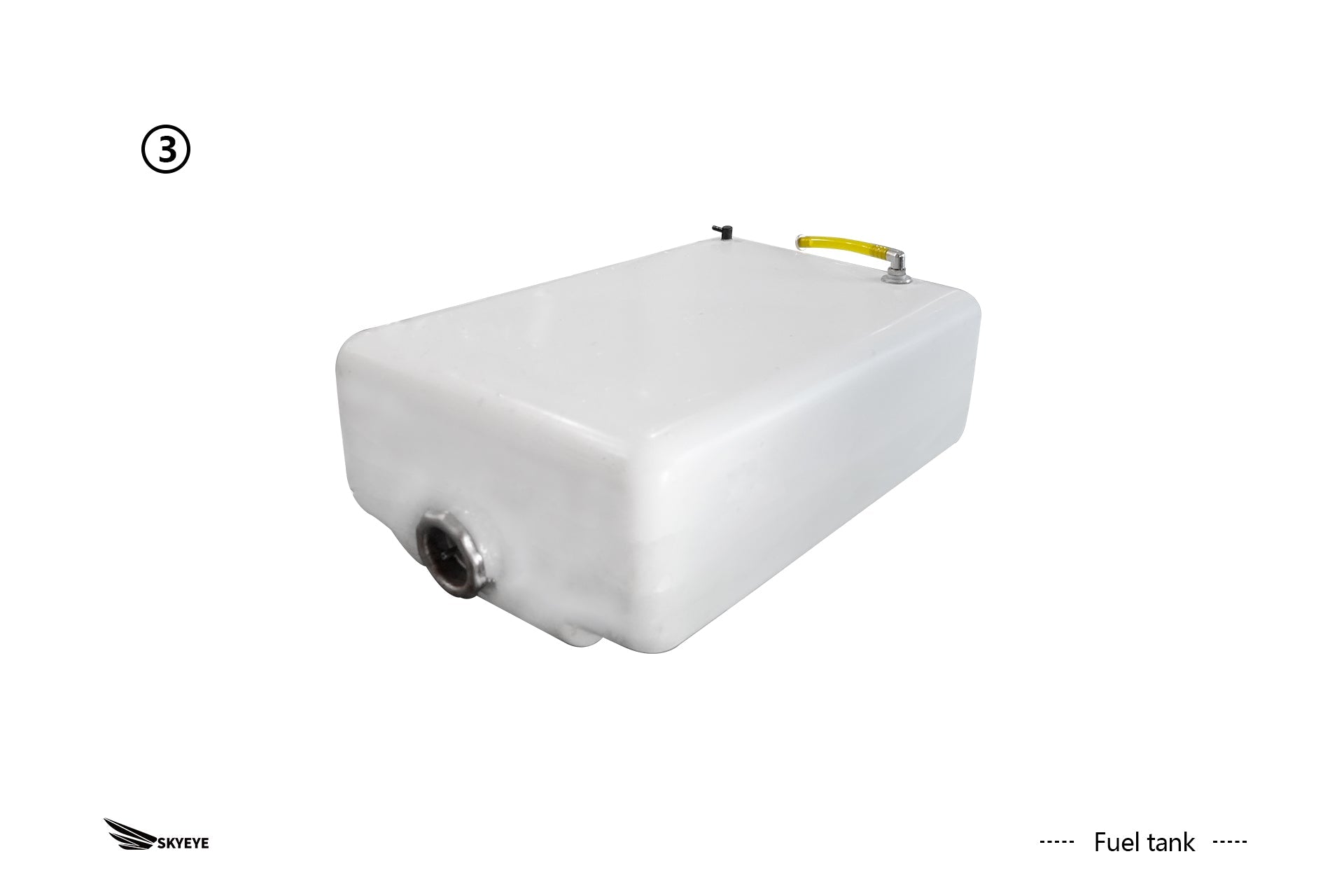

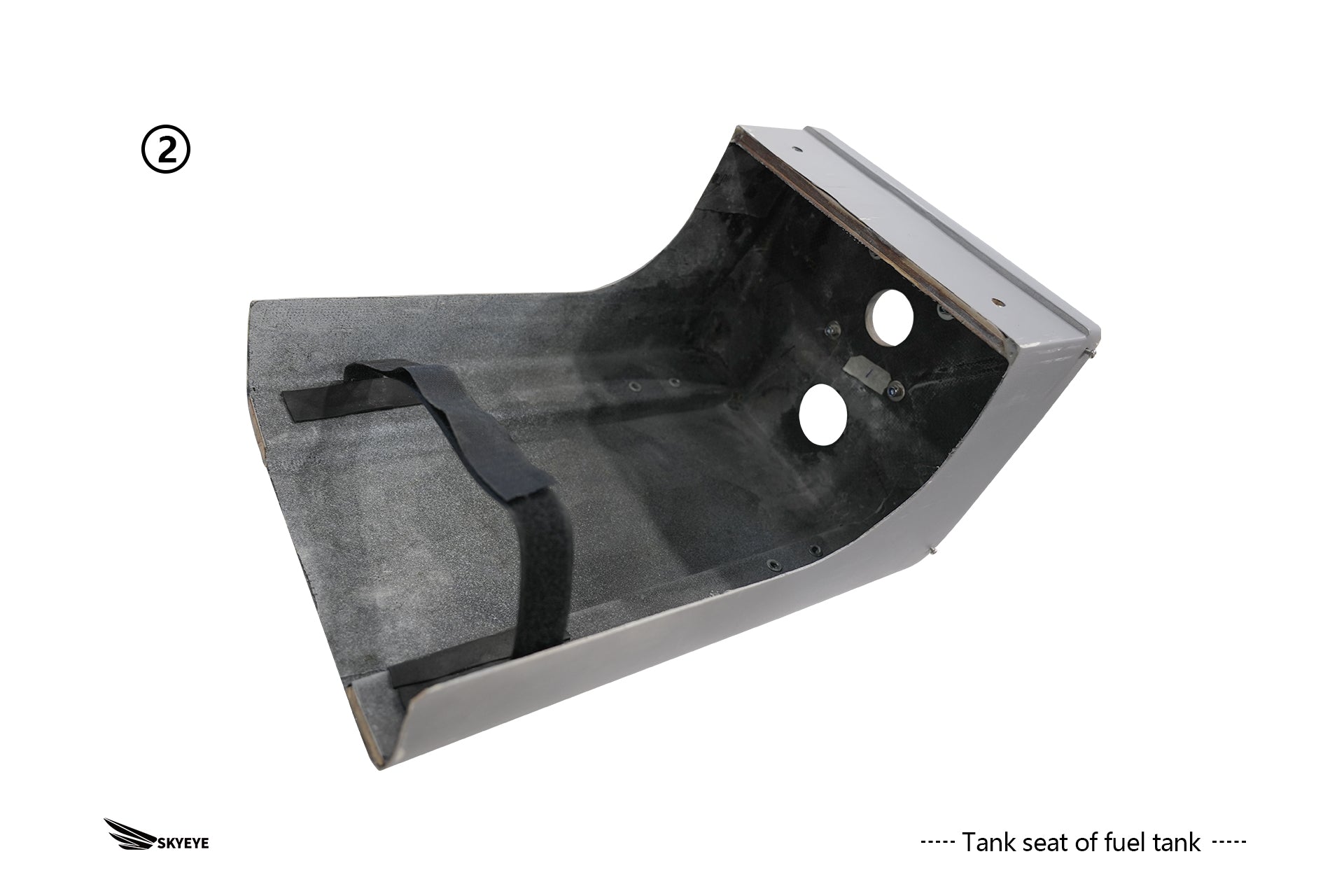

	S360 fuel tank	1	1

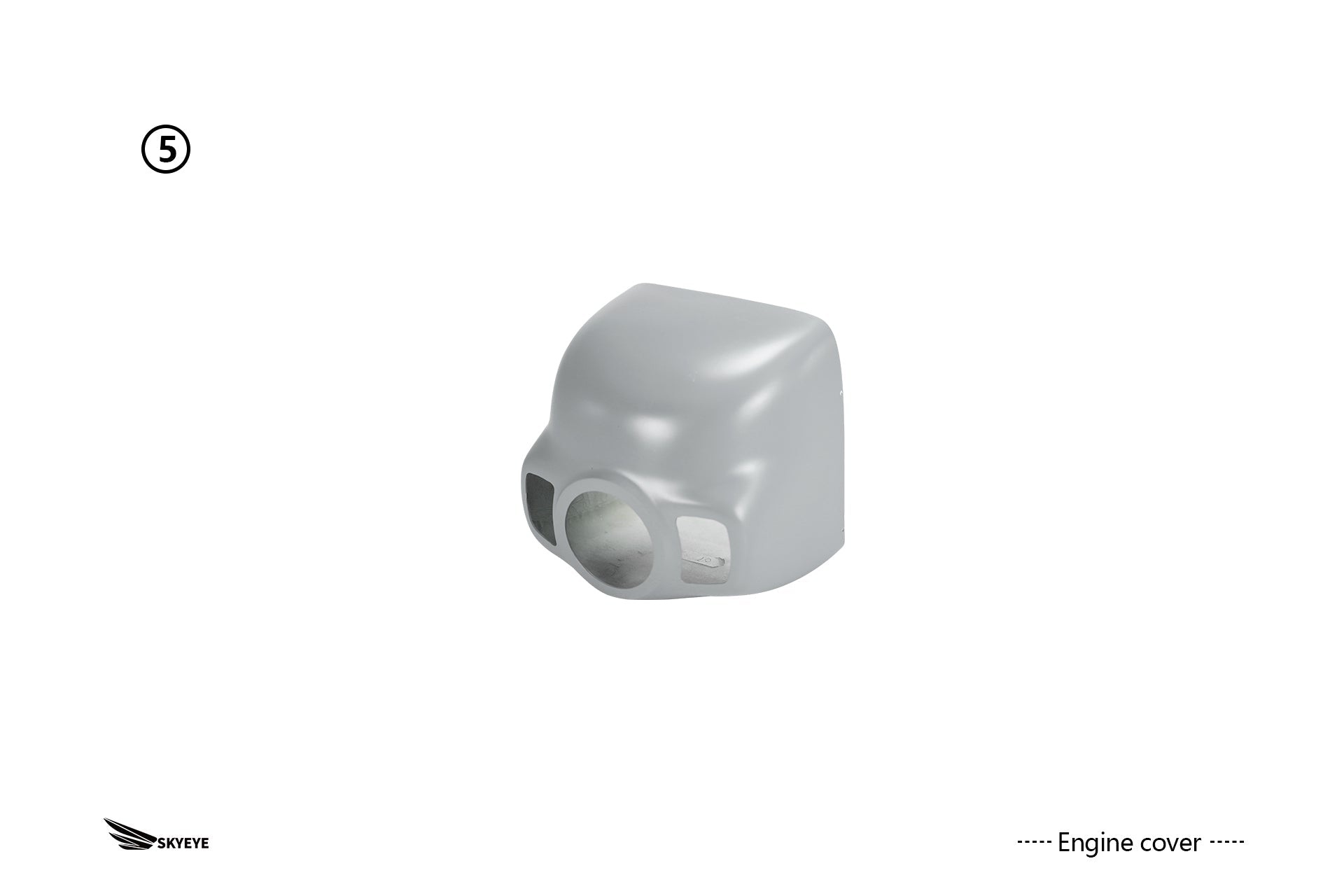

	S360 engine cowling	1	1
Power system(Engine)	Tail thrust engine		1
	Tail thrust propeller		1
	Servos		6
	Pitot tube		1
	Parts kit		1

Battery recommendation: 44.4V(12S)

Made-to-order products: Once a customer submits an order, the product will immediately go into production. Given its customized nature and the immediacy of production, such orders become binding upon confirmation and no refunds will be accepted.
