Little Skyeye UAV SKYV293 UAV Fixed Wing VTOL Drones Engine

SKYV293-CFK

SV293 Industrial VTOL Fixed-Wing Carbon Fiber Drone Frame
The SV293 is a high-performance, 2930mm wingspan industrial VTOL (Vertical Take-Off and Landing) fixed-wing UAV constructed from lightweight, durable full carbon fiber. Engineered for long-range surveillance, mapping, and cargo delivery, it features a generous 560mm×210mm×185mm payload bay with up to 3kg capacity (Max Takeoff Weight: 23kg). Designed for versatile hybrid power setups, the SV293 achieves up to 1.5 hours of endurance with electric propulsion and up to 3 hours with gasoline power at a cruising speed of 23–25 m/s. Available in KIT airframe or PNP(E) motor & servo setup. Recommended battery: 12S 44.4V LiPo.

✉️ Email Inquiry

Tags:

SV293 Industrial VTOL Fixed-Wing Carbon Fiber Drone Platform

Elevate your commercial aerial missions with the SV293 Industrial VTOL Drone. Engineered for demanding survey, mapping, corridor inspection, and security operations, this hybrid vertical take-off and landing platform combines the takeoff flexibility of a multirotor with the long-range efficiency of a fixed-wing aircraft. Built with high-grade carbon fiber, the SV293 delivers unmatched structural rigidity while minimizing empty airframe weight for maximum payload capacity and flight endurance.

Key Product Highlights

Full Carbon Fiber Construction: Lightweight yet ultra-durable airframe designed to withstand harsh operational environments.
Vertical Take-Off & Landing (VTOL): Eliminates the need for runways, launchers, or recovery parachutes, allowing safe operations in confined spaces.
Versatile Power Options: Compatible with pure electric powertrains for zero-emission, quiet missions (up to 1.5h flight time) or gasoline hybrid configurations for extended reach (up to 3h flight time).
Spacious Payload Bay: Features a generous internal bay measuring 560mm × 210mm × 185mm, accommodating high-resolution cameras, LiDAR sensors, or thermal imaging pods up to 3kg.
Aerodynamic High Efficiency: Optimized 2930mm wingspan and 100dm² wing area ensure stable cruising speeds of 23 to 25 m/s with enhanced wind resistance.

Technical Specifications

SPECIFICATION PARAMETERS
Specifications	Materials	Carbon Fiber
	Wingspan	2930 mm
	Length	2030 mm
	Payload Bay Dimensions (LWH)	560 mm * 210 mm * 185 mm
	Wing Area	100 dm²
	Empty Weight	10 kg
	Payload Capacity	3 kg
	Maximum Takeoff Weight (MTOW)	23 kg
	Fuel Tank Capacity	5.5 L
Performance Characteristics	Cruising Speed	23 to 25 m/s
	Maximum Speed	30 m/s
	Stall Speed	18 m/s
	Max Flight Time (Electric)	1.5 Hours
	Max Flight Time (Gasoline)	3 Hours
	Recommended Battery	44.4V (12S LiPo)

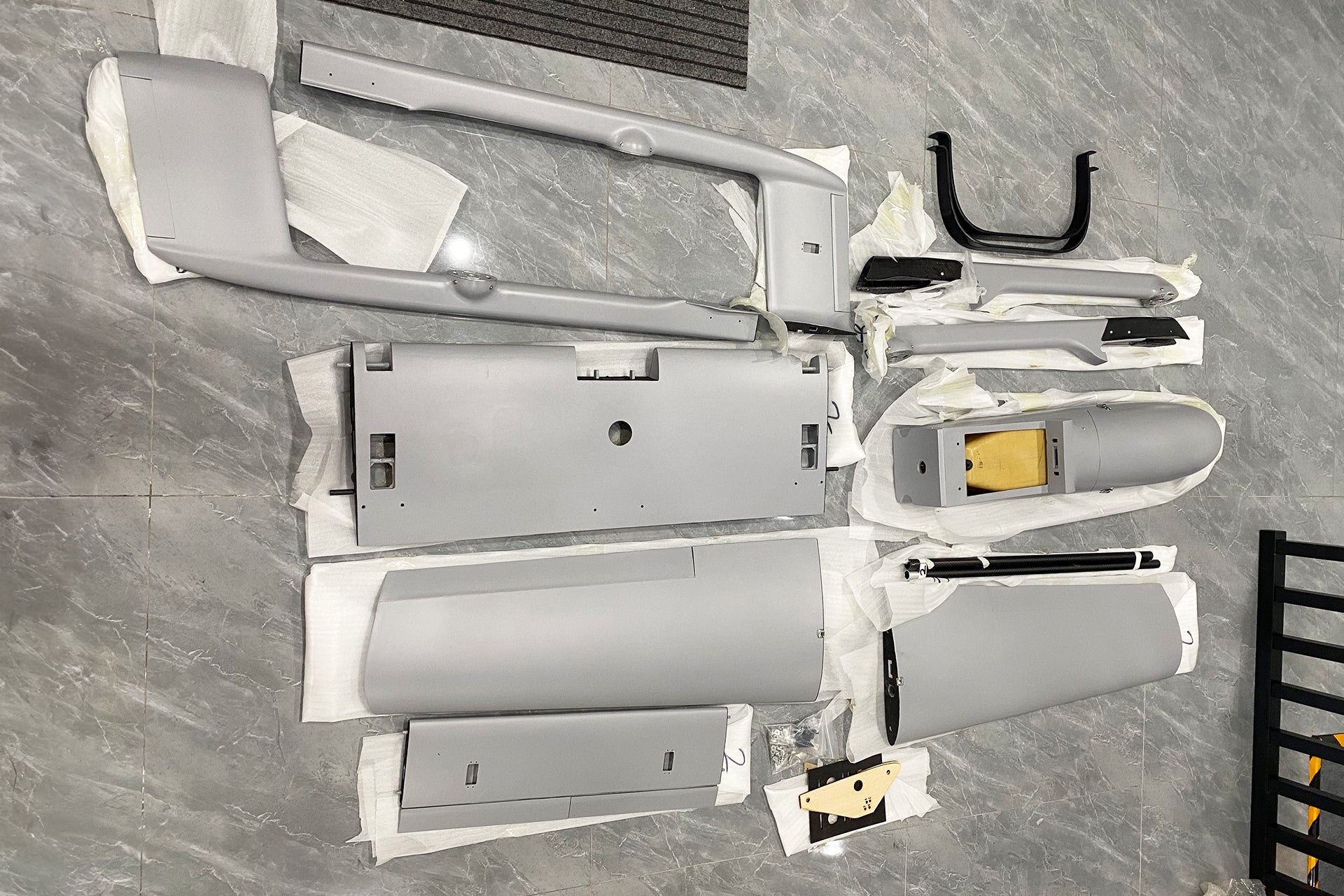

Package Configuration (KIT vs. PNP-E)

Category	Specification Item	KIT Package	PNP (Electric) Package
Flying Platform	SV293 Outer Wing	2 pcs	2 pcs
	SV293 Mid-Wing	1 pc	1 pc
	SV293 Mainframe	1 pc	1 pc
	SV293 Support Mast (incl. Vertical Stabilizer)	2 pcs	2 pcs
	SV293 Landing Gear	2 pcs	2 pcs
	SV293 Horizontal Stabilizer	1 pc	1 pc
	SV293 Fuel Tank	1 pc	1 pc
	SV293 Engine Cowling	1 pc	1 pc
Power System & Electronics	Tailthrust Engine / Motor	—	1 pc
	Tailthrust Propeller	—	1 pc
	VTOL Motor	—	4 pcs
	VTOL ESC	—	4 pcs
	VTOL Propeller	—	2 pairs (4 pcs)
	Servos	—	7 pcs
	Pitot Tube (Airspeed Sensor)	—	1 pc
	Hardware & Cable Package	—	1 pc

Frequently Asked Questions (FAQ)

Q: What is the difference between the KIT and PNP(E) versions?

A: The KIT option includes the full carbon fiber airframe structure, landing gear, fuel tank, and cowling without any electronic components. The PNP(E) option includes the complete airframe plus pre-selected electric propulsion systems (VTOL motors, ESCs, propellers, servos, tailthrust propulsion, and pitot tube).

Q: What payload sensors can the SV293 carry?

A: With a spacious 560×210×185mm payload bay and up to 3kg capacity, the SV293 easily integrates high-resolution mapping cameras, multi-spectral sensors, LiDAR units, and dual-sensor gimbal cameras for thermal and optical surveillance.

Q: What power system and battery do you recommend for electric setup?

A: We recommend using a high-capacity 12S (44.4V) LiPo or Li-ion battery pack, designed to optimize flight stability and provide up to 1.5 hours of continuous flight endurance.

Q: Is the SV293 suitable for operations in remote or tight spaces?

A: Yes, the VTOL capability allows vertical take-off and landing from small clearing areas without requiring runway infrastructure or dedicated launching and landing equipment.
