SKYEYE S360 - 3600mm Long-Endurance Industrial Fixed-Wing UAV Platform

Engineered for demanding aerial missions, the SKYEYE S360 is an enterprise-grade long-endurance fixed-wing UAV built to perform in rugged environments. Featuring an impressive 3600mm wingspan and a lightweight, high-strength full carbon fiber airframe, this heavy-lift drone delivers maximum flight efficiency, operational stability, and an astounding flight endurance of up to 6 hours. Designed specifically for commercial integration, the SKYEYE S360 accommodates heavy payloads up to 8kg, making it the premier platform for large-scale photogrammetry, LiDAR mapping, thermal pipeline inspection, surveillance, and agricultural remote sensing.

Key Features & Commercial Advantages

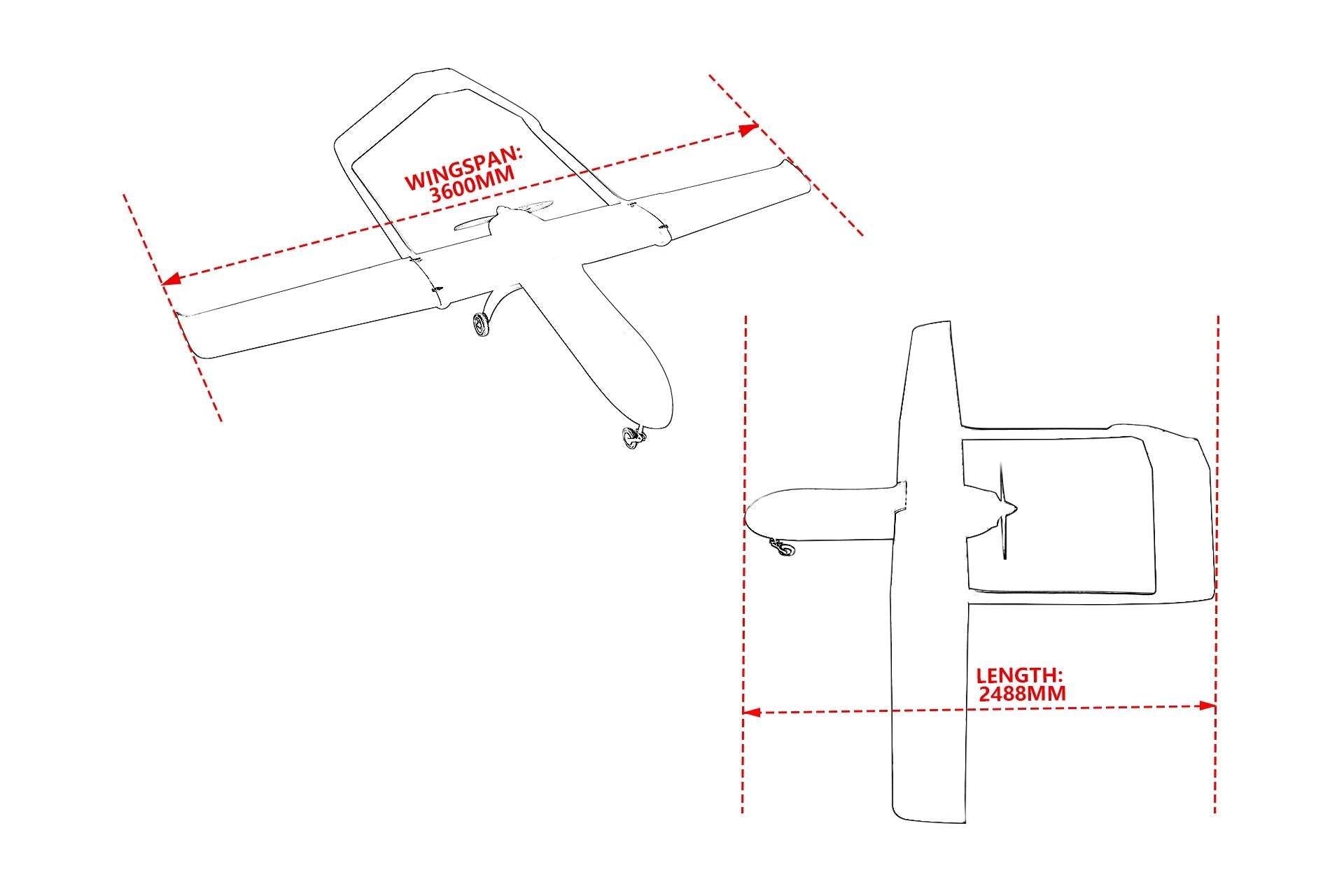

• 3600mm High-Aspect Wingspan: Delivers superior aerodynamic lift, wind resistance, and flight stability for critical long-range missions.
• Full Carbon Fiber Airframe Construction: Ultra-lightweight structure ensuring maximum longevity, structural rigidity, and extreme harsh-weather durability.

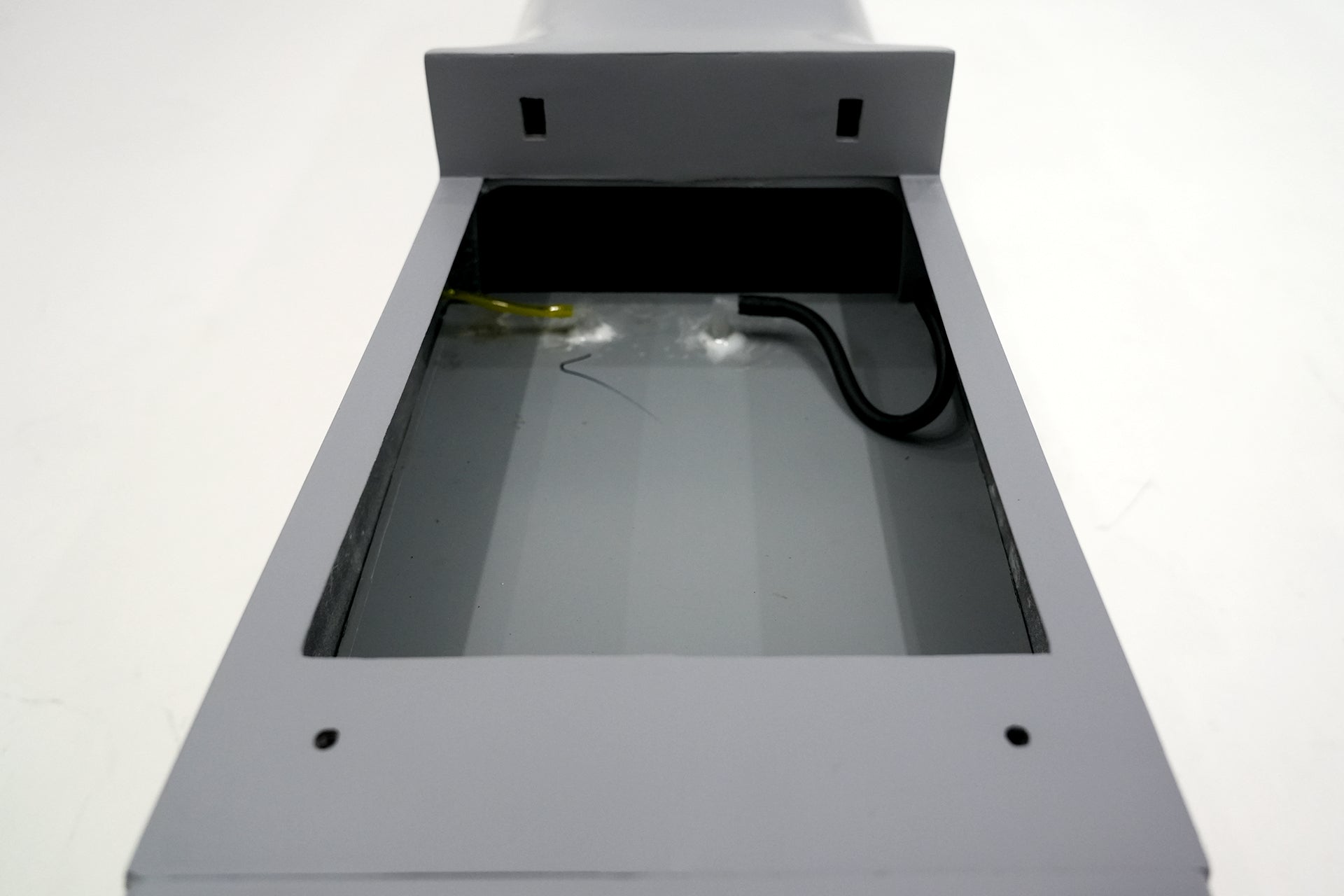

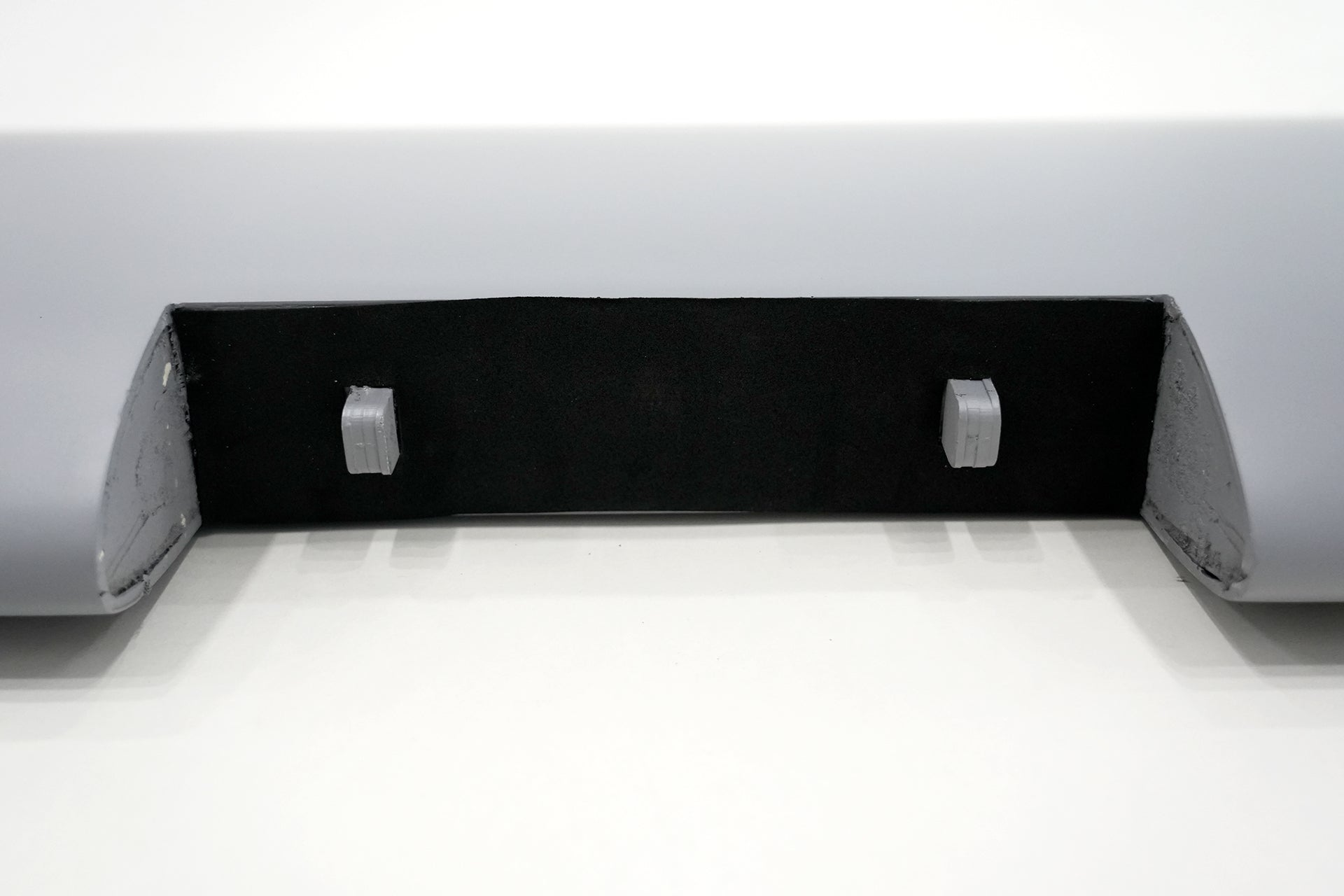

• 8KG Payload Capacity: Spacious internal payload bay (560mm x 260mm x 270mm) easily accommodates multi-sensor camera gimbals, high-resolution LiDAR, oblique photogrammetry setups, and custom survey gear.
• Dual Propulsion Versatility: Fully customizable airframe supporting either high-efficiency electric propulsion (recommended 12S 44.4V setups) or long-range gasoline engines with integrated 11L fuel tanks.
• Exceptional Flight Endurance: Capable of up to 6 hours of continuous airborne operations, dramatically reducing battery swap downtime and mission costs.
• Available in KIT & PNP Configurations: Flexible options ranging from bare airframe kits to Plug-and-Play (PNP) setups with servos, tail thrust propulsion, and pitot tubes included.

Advanced Aerial Mapping & Industrial Performance Platform

The SKYEYE S360 UAV bridges the gap between commercial reliability and operational efficiency. Constructed from high-grade woven carbon fiber, this fixed-wing aerial system minimizes overall structural weight while maximizing payload capacity. With a Maximum Takeoff Weight (MTOW) of 40kg and a spacious internal payload bay, operators can deploy industry-standard mapping cameras, multi-spectral sensors, and tactical surveillance equipment without compromising flight safety or agility.

Capable of maintaining a smooth cruising speed of 30 m/s (108 km/h) and featuring a low stall speed of 24 m/s, the SKYEYE S360 guarantees stable imagery collection and precise flight path adherence. Whether configured as a clean electric setup or powered by a gas engine using the built-in 11L fuel tank capacity, this fixed-wing drone provides the reliability, endurance, and payload power required for enterprise-level operations worldwide.

Recommended Industrial Applications

• Aerial Mapping & Topographic GIS Surveying: Collect ultra-high-resolution photogrammetry and 3D terrain modeling data over expansive survey areas.
• Powerline, Railway & Pipeline Inspection: Long-distance corridor mapping with continuous high-definition electro-optical and thermal optical payloads.
• Precision Agriculture & Forestry Management: Monitor crop health, biomass distribution, and conduct large-scale acreage multispectral mapping.
• Search & Rescue (SAR) & Border Patrol: Extended loitering times for thermal real-time video surveillance and situational monitoring.
• UAV Pilot Training & Academic Research: Robust, standardized aerial platform ideal for enterprise pilot certifications and commercial payload R&D.

Technical Specifications & System Parameters

Package Content Breakdown (KIT vs PNP)

Frequently Asked Questions (FAQ)

1. What is the wingspan and payload capacity of the SKYEYE S360 UAV?

The SKYEYE S360 features a 3600mm wingspan and is capable of carrying up to an 8kg payload within its 560mm x 260mm x 270mm internal equipment bay.

2. How long can the SKYEYE S360 fixed-wing drone fly on a single mission?

Depending on payload weight and the chosen propulsion system (gasoline vs. electric), the SKYEYE S360 offers a maximum flight endurance of up to 6 hours.

3. What power systems and propulsion setups are supported?

The airframe is versatile and supports both gasoline engines (using the included 11L fuel tank) and electric setups (recommended battery: 12S 44.4V).

4. What materials are used in constructing the SKYEYE S360 airframe?

The S360 is built using premium full carbon fiber composites, providing maximum structural rigidity, light takeoff weight, and high impact resistance.

5. What is the difference between the KIT and PNP packages?

The KIT package includes the complete carbon fiber airframe structure, landing gear, and 11L fuel tank. The PNP (Electric) package adds the rear tail thrust motor, matching propeller, 6 digital servos, a pitot tube, and full linkage hardware.

6. What payloads and sensors can be mounted on the SKYEYE S360?

The drone is optimized for high-resolution aerial photogrammetry cameras, LiDAR sensors, multispectral agriculture sensors, dual-sensor EO/IR thermal optical gimbals, and pipeline inspection equipment.

7. What is the cruising speed and flight envelope for the drone?

The S360 operates with a stable cruising speed of 30 m/s (108 km/h), a max speed of 33 m/s, and maintains high flight safety with a stall speed of 24 m/s.
