Product Description

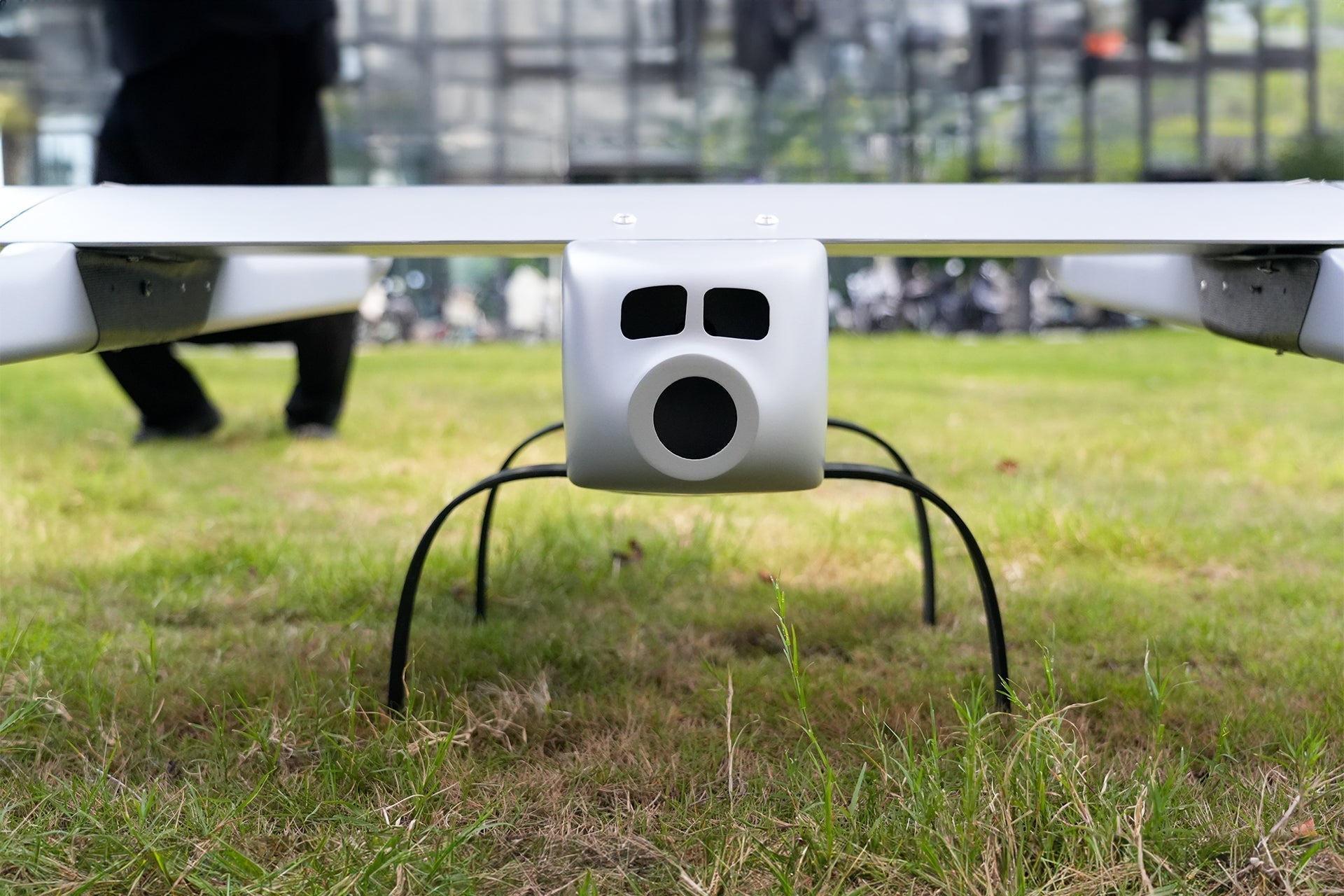

Skyeye SV293 Industrial VTOL Fixed-Wing Glass Fiber Drone Platform
The Skyeye SV293 VTOL is a high-performance vertical take-off and landing fixed-wing drone platform crafted from durable high-strength glass fiber. Engineered for long-range commercial mapping, environmental monitoring, security reconnaissance, and agricultural payload transport, the SV293 delivers multirotor flexibility with fixed-wing distance efficiency without needing a runway.
Key Product Features
- Robust Glass Fiber Structure: Designed for cost-effective, high-durability operational life in rugged field environments.
- Runway-Free VTOL Operations: Seamless vertical takeoff and landing capabilities enable safe deployment in zero-runway or tight terrain environments.
- Extended Range Capacity: Optimized wingspan (2930mm) and high wing area (100dm²) deliver up to 1.5 hours flight time in electric setup or up to 3 hours in hybrid/gasoline configurations.
- Large Payload Capability: Accommodates up to 3kg payload inside its 560mm × 210mm × 185mm internal bay for multispectral cameras, mapping sensors, and thermal gimbals.
Technical Specifications
| PARAMETER SPECIFICATIONS | ||
|---|---|---|
| Specifications | Materials | Glass Fiber |
| Wingspan | 2930 mm | |
| Length | 2030 mm | |
| Payload Bay Dimensions (L*W*H) | 560 mm * 210 mm * 185 mm | |
| Wing Area | 100 dm² | |
| Empty Weight | 10 kg | |
| Payload Capacity | 3 kg | |
| Maximum Takeoff Weight (MTOW) | 23 kg | |
| Flight Time | 1.5 to 3 Hours | |
| Performance Characteristics | Cruising Speed | 23 to 25 m/s |
| Maximum Speed | 30 m/s | |
| Stall Speed | 18 m/s | |
| Max Flight Time (Electric) | 1.5 Hours | |
| Max Flight Time (Gasoline) | 3 Hours | |

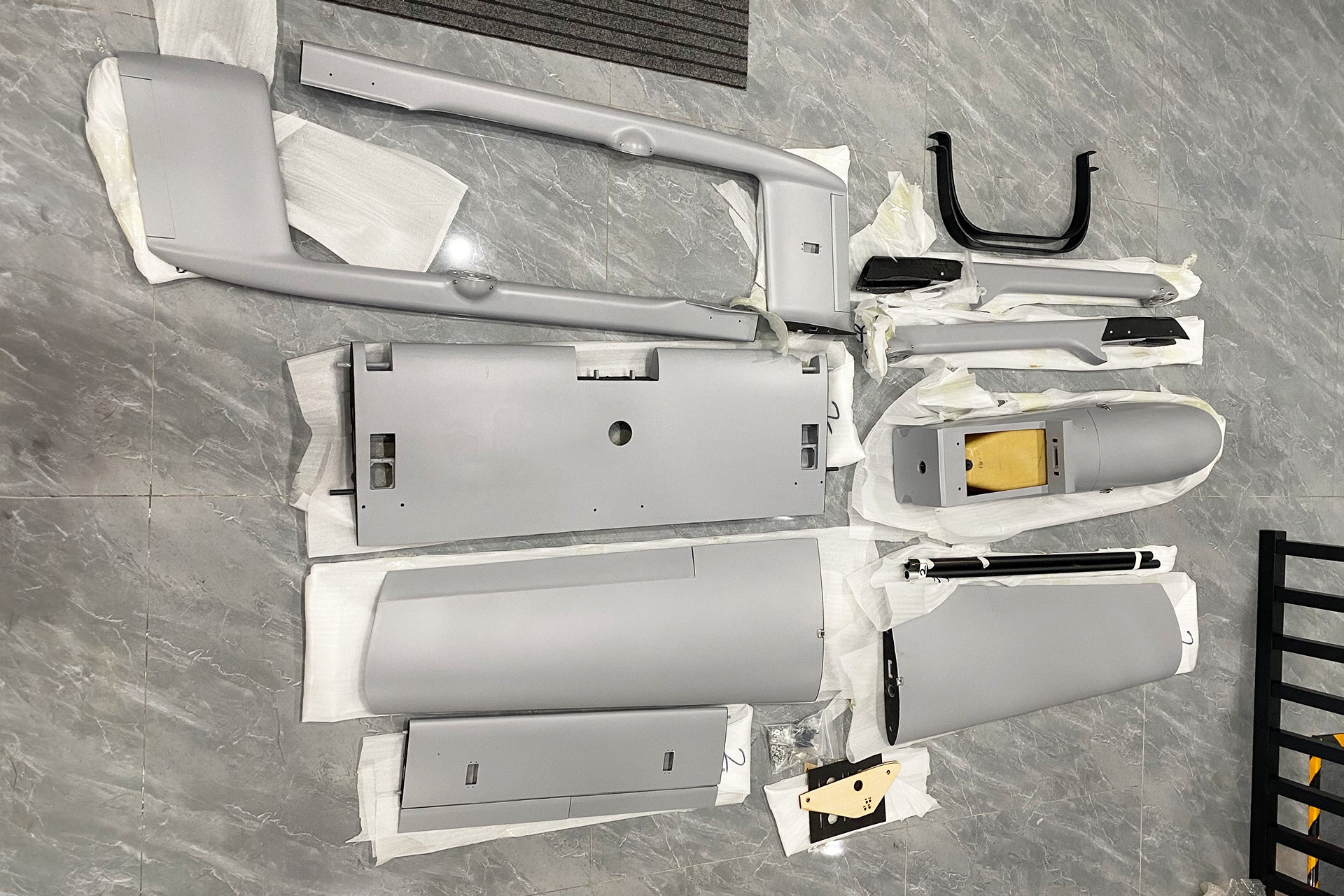

Package Configurations (KIT vs. PNP-M)
| Category | Specification Item | KIT | PNP(M) |
|---|---|---|---|
| Flying Platform | SV293 Outer Wing | 2 pcs | 2 pcs |
| SV293 Mid-Wing | 1 pc | 1 pc | |
| SV293 Mainframe | 1 pc | 1 pc | |
| SV293 Support Mast (incl. Vertical Stabilizer) | 2 pcs | 2 pcs | |
| SV293 Landing Gear | 2 pcs | 2 pcs | |
| SV293 Horizontal Stabilizer | 1 pc | 1 pc | |
| SV293 Fuel Tank | 1 pc | — | |
| SV293 Engine Cowling | 1 pc | 1 pc | |
| Power System (Motor) | Tailthrust Motor | — | 1 pc |
| Tailthrust ESC | — | 1 pc | |
| Tailthrust Propeller Blades | — | 1 pc | |
| VTOL Motor | — | 4 pcs | |
| VTOL ESC | — | 4 pcs | |
| VTOL Propeller Blades | — | 2 pairs | |
| Servos | — | 6 pcs | |
| Pitot Tube | — | 1 pc | |
| Parts Package | — | 1 pc |
Important Ordering & Compliance Information
• Export Compliance & Lead Time: The total lead time for Dual-Use Item Export License application and drone custom production is approximately 45 to 60 days.
• Pricing & Availability: Listed prices and freight charges are for reference. Products are built-to-order without existing shelf stock.
• Recommended Power Configuration: Recommended Battery: 44.4V (12S LiPo / Li-ion).
• Made-to-Order Policy: Once an order is submitted, production begins immediately. Due to custom manufacturing requirements, confirmed orders are legally binding and non-refundable.
