Skyeye UAV Little SRH260 Fixed Wing Drone Motor H-Tail

SRH260-K

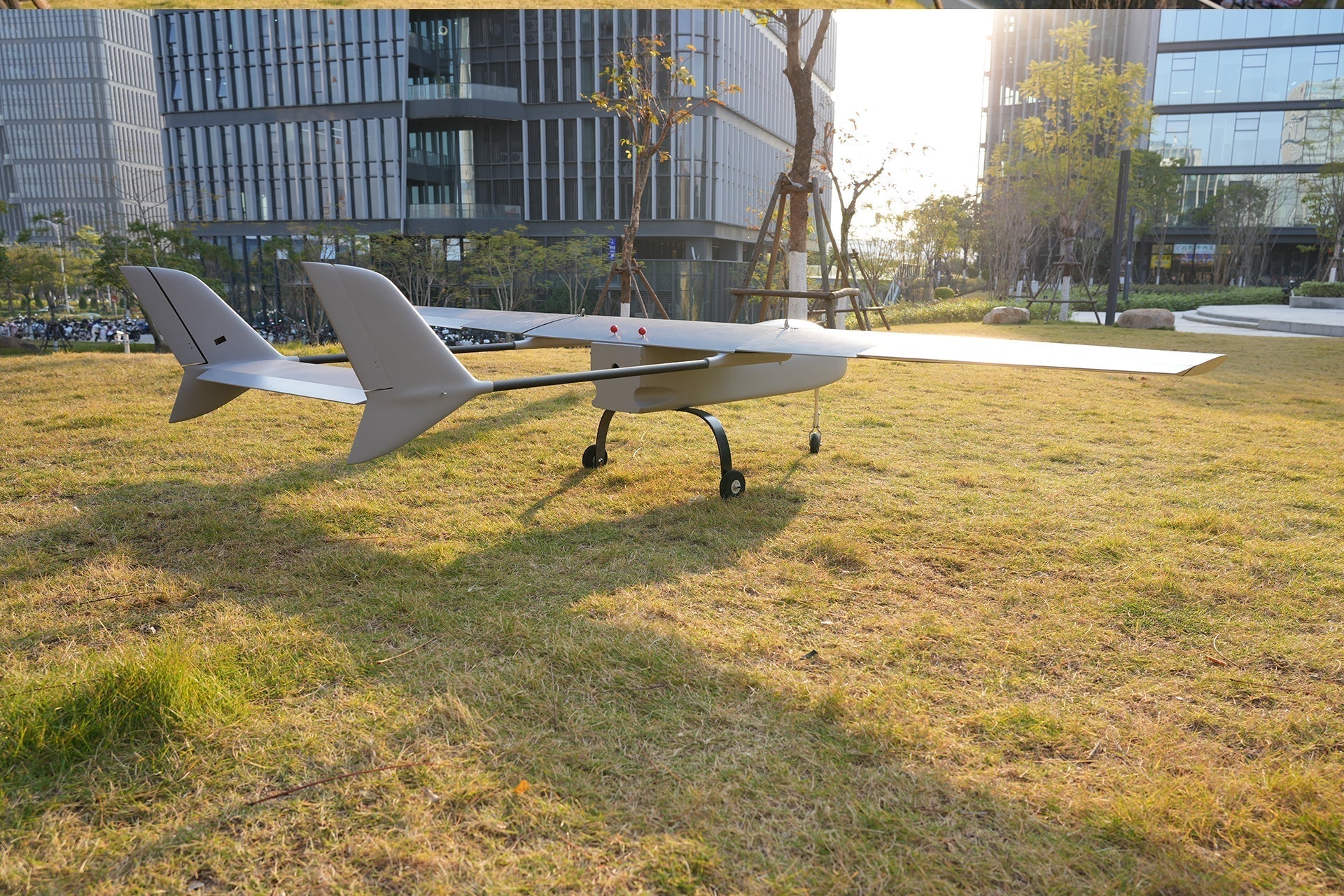

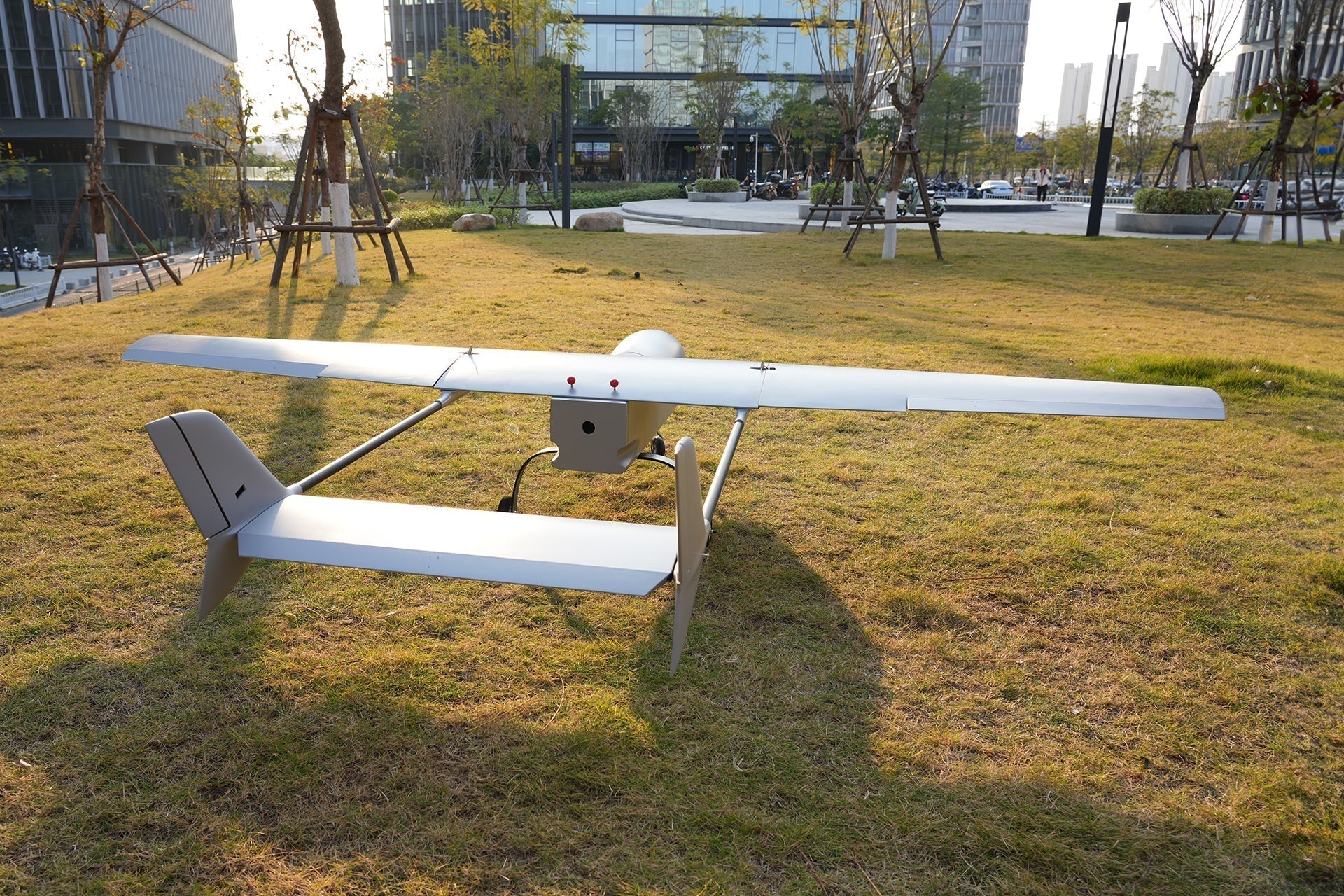

Skyeye SR260 2.6m Industrial Fixed-Wing UAV Platform is a heavy-duty, high-performance fiberglass drone designed for long-range surveillance, aerial mapping, and commercial payload operations. Featuring a massive 2600mm wingspan, 4kg payload capacity (15kg MTOW), and up to 2 hours of flight endurance at a cruising speed of 30m/s, the SR260 delivers unmatched stability and efficiency in harsh environments. Available in modular KIT and power-ready PNP(M) configurations.

✉️ Email Inquiry

Tags:

Skyeye SR260 2.6m Fixed-Wing UAV Platform | Long-Range Industrial Drone

High-Performance Fixed-Wing UAV for Commercial & Industrial Operations

Engineered for demanding industrial missions, the Skyeye SR260 Fixed-Wing UAV is a robust, highly versatile aerial platform built for long-range mapping, surveillance, environmental inspection, and payload delivery. Constructed with premium, high-strength fiberglass, the SR260 combines structural durability with high aerodynamic efficiency to deliver smooth flight and reliable stability even in challenging field environments.

Why Choose the Skyeye SR260 Fixed-Wing Platform?

Long Endurance Flight: Delivers up to 2 hours of continuous flight time, enabling large-scale aerial mapping and long-range missions in a single flight.

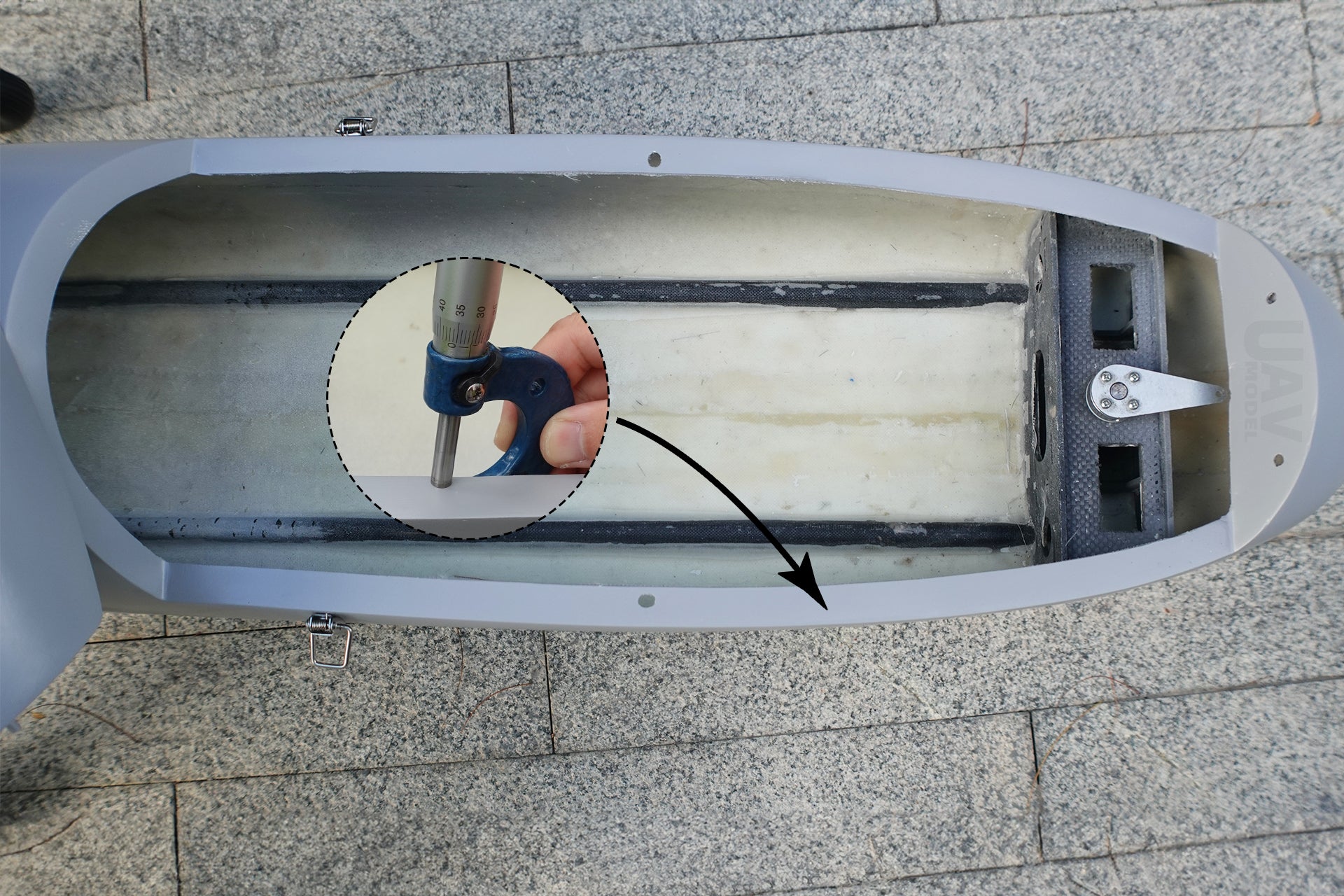

High Payload Capacity (4KG): Features a spacious internal bay (560mm x 220mm x 220mm) to easily integrate high-resolution mapping cameras, multi-spectral sensors, optical gimbals, or LiDAR devices.
High-Strength Fiberglass Frame: Built for rugged operational demands with superior rigidity, long service life, and optimized takeoff performance.
High Cruising Speed & Performance: Cruises effortlessly at 30 m/s (108 km/h) with a maximum speed of 33 m/s, ensuring fast area coverage and stable flight control.
Flexible Assembly Options: Available in a bare-bone KIT version for fully custom DIY builds, or a power-ready PNP(M) configuration including motors, ESCs, servos, and pitot tubes.

Package Contents & Configuration Options (KIT vs PNP)

Skyeye SR260 Fixed-Wing Package List
Category	Item Specification	KIT	PNP (M)

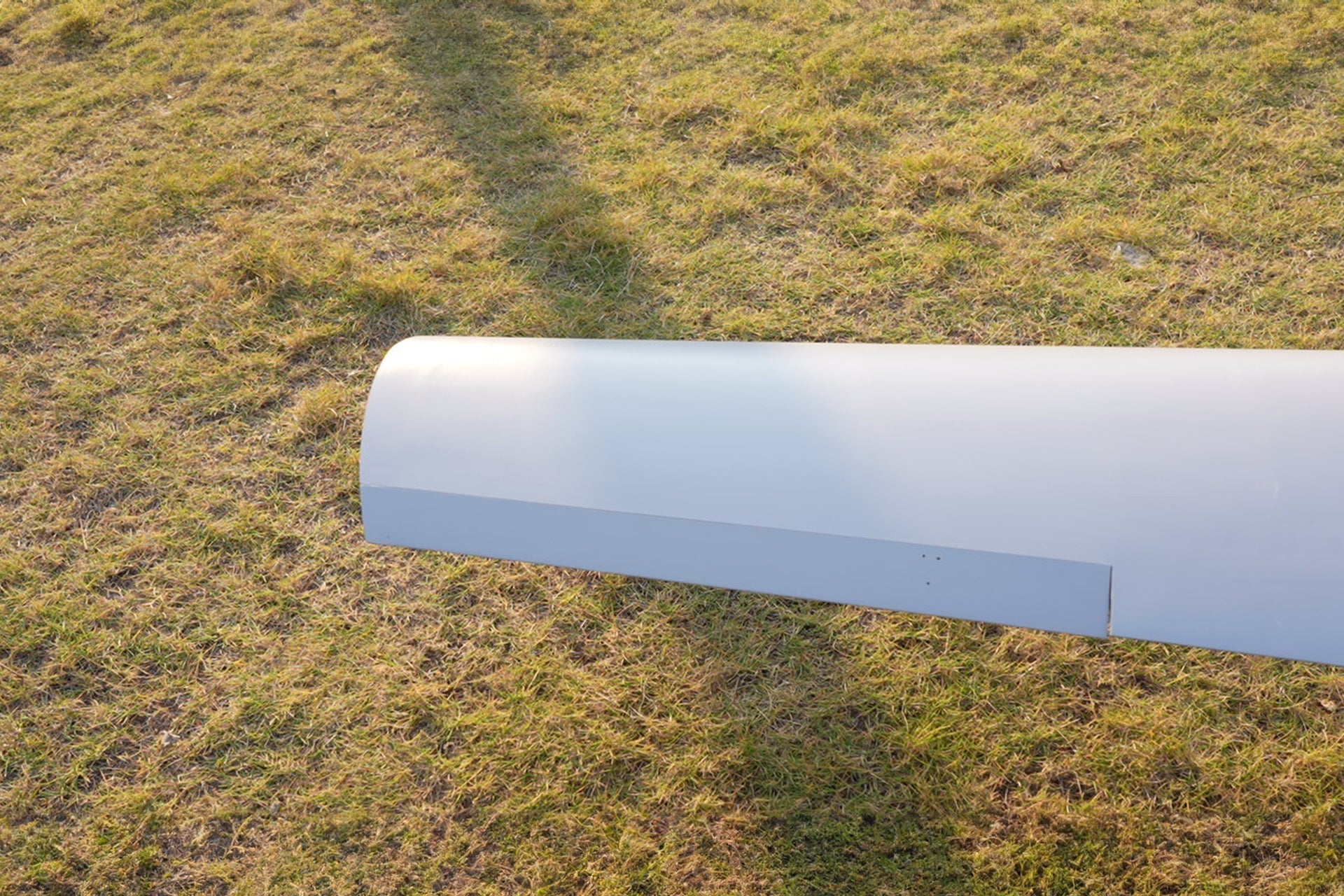

Flying Platform	SR260 Outer Wing	2	2
	SR260 Mid-Wing	1	1
	SR260 Mainframe	1	1

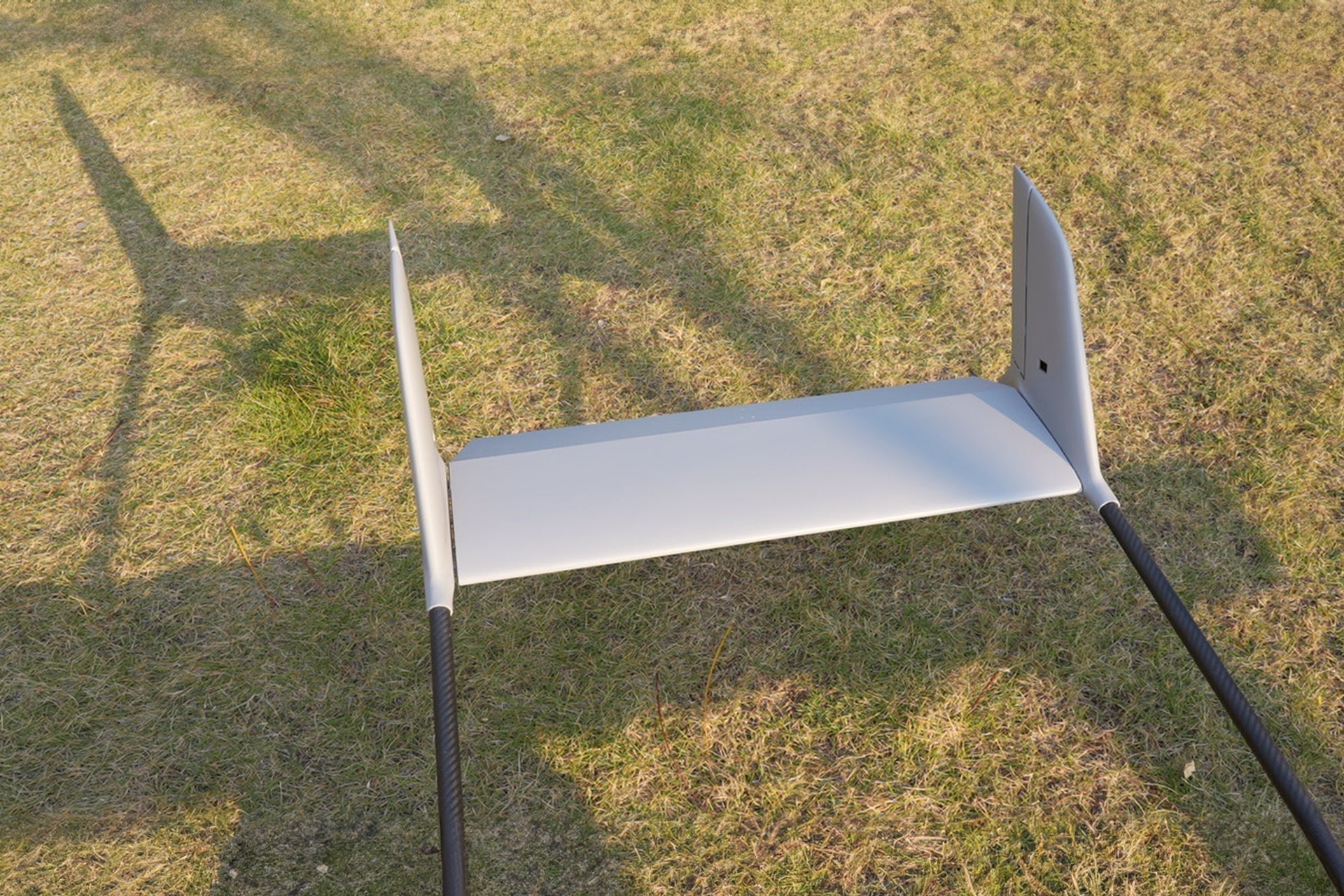

	SR260H Tail Strut	2	2

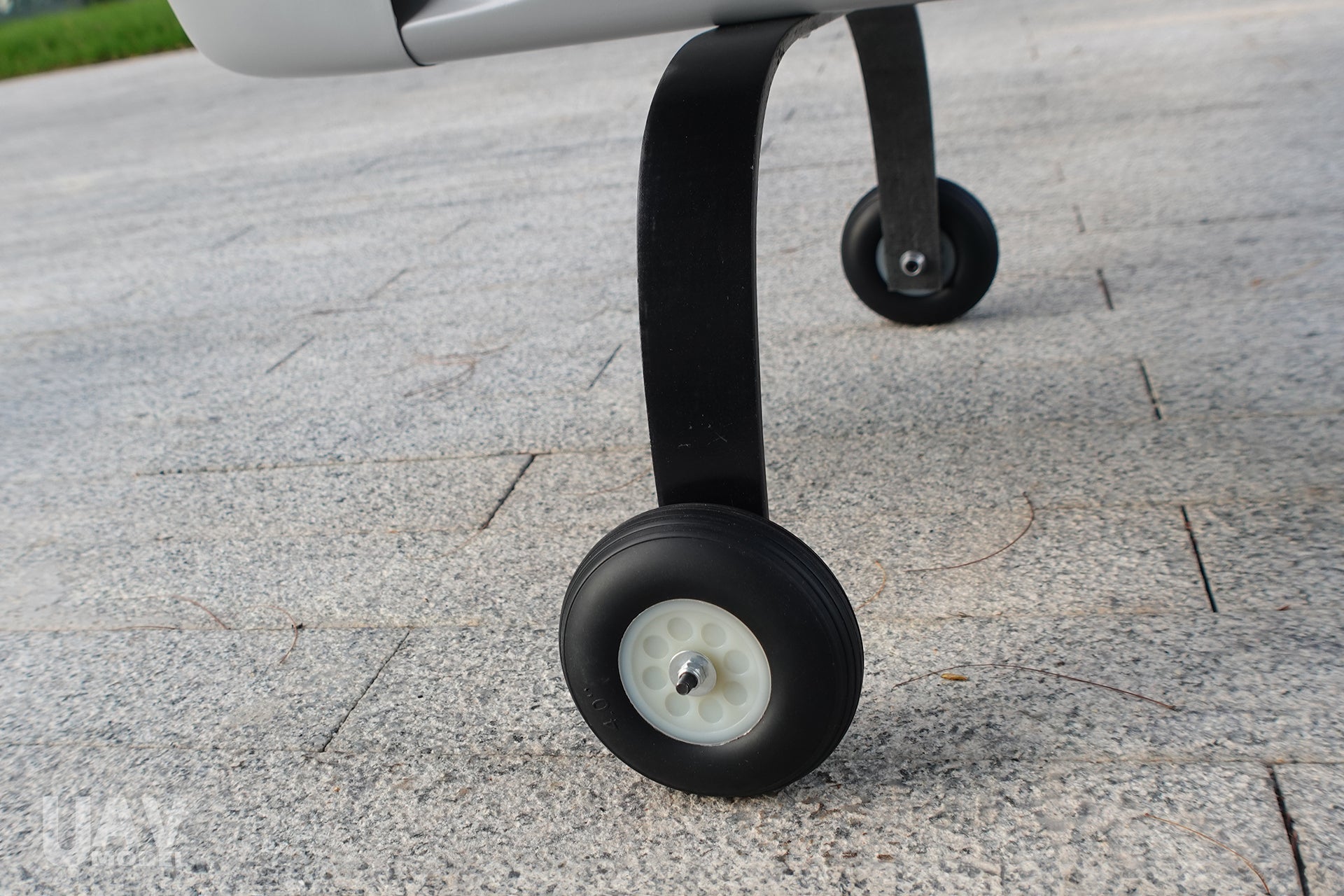

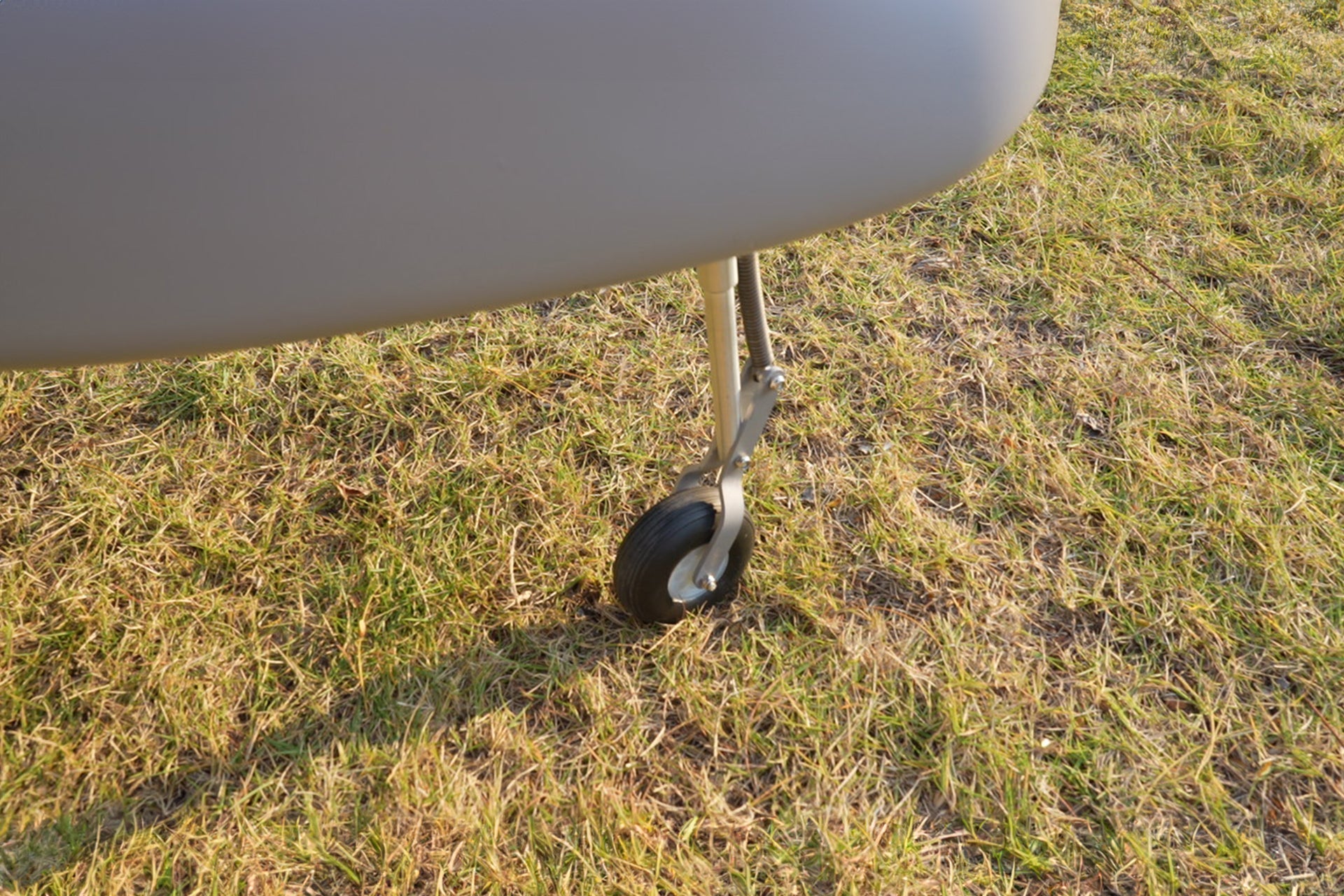

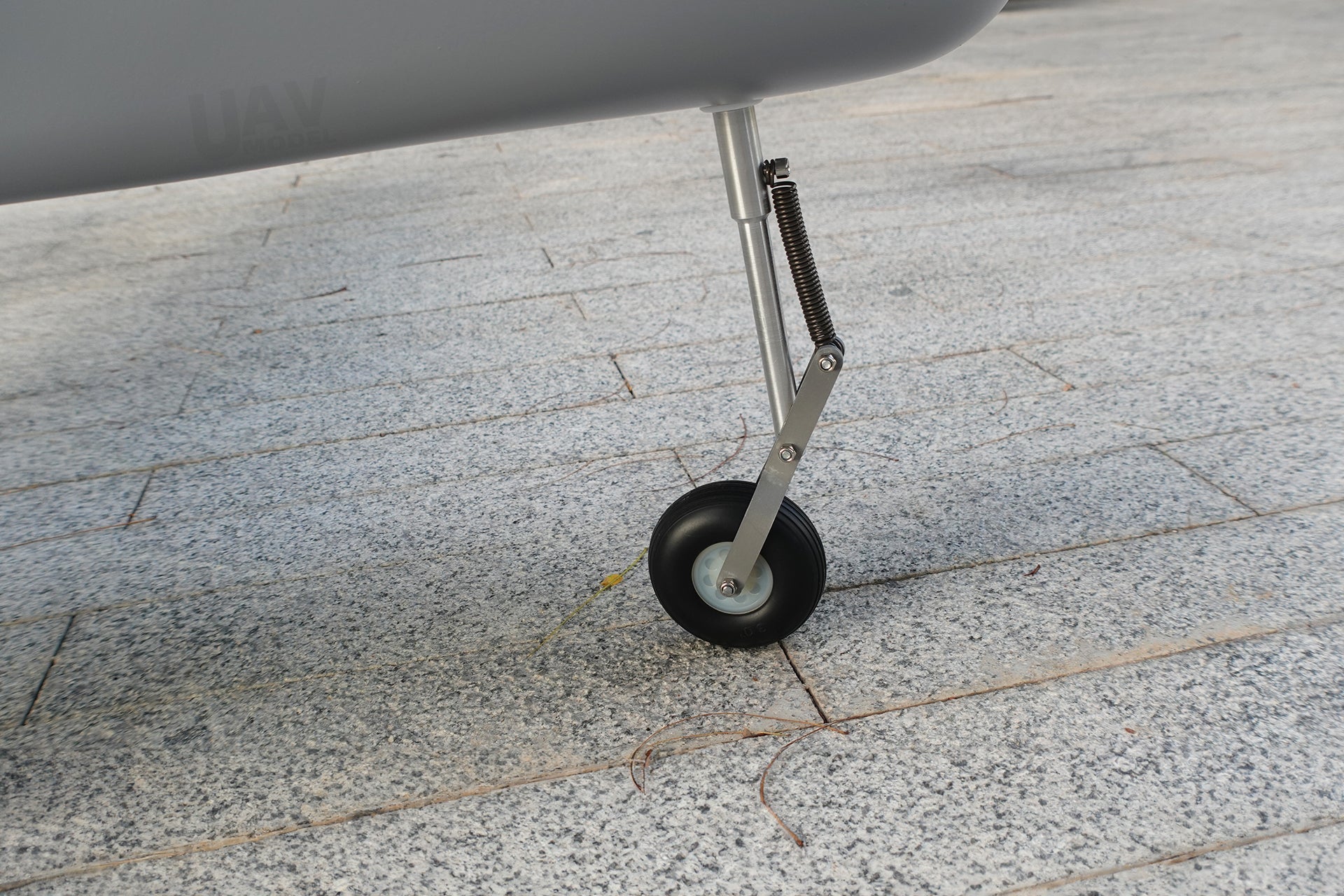

	SR260 Landing Gear	1	1

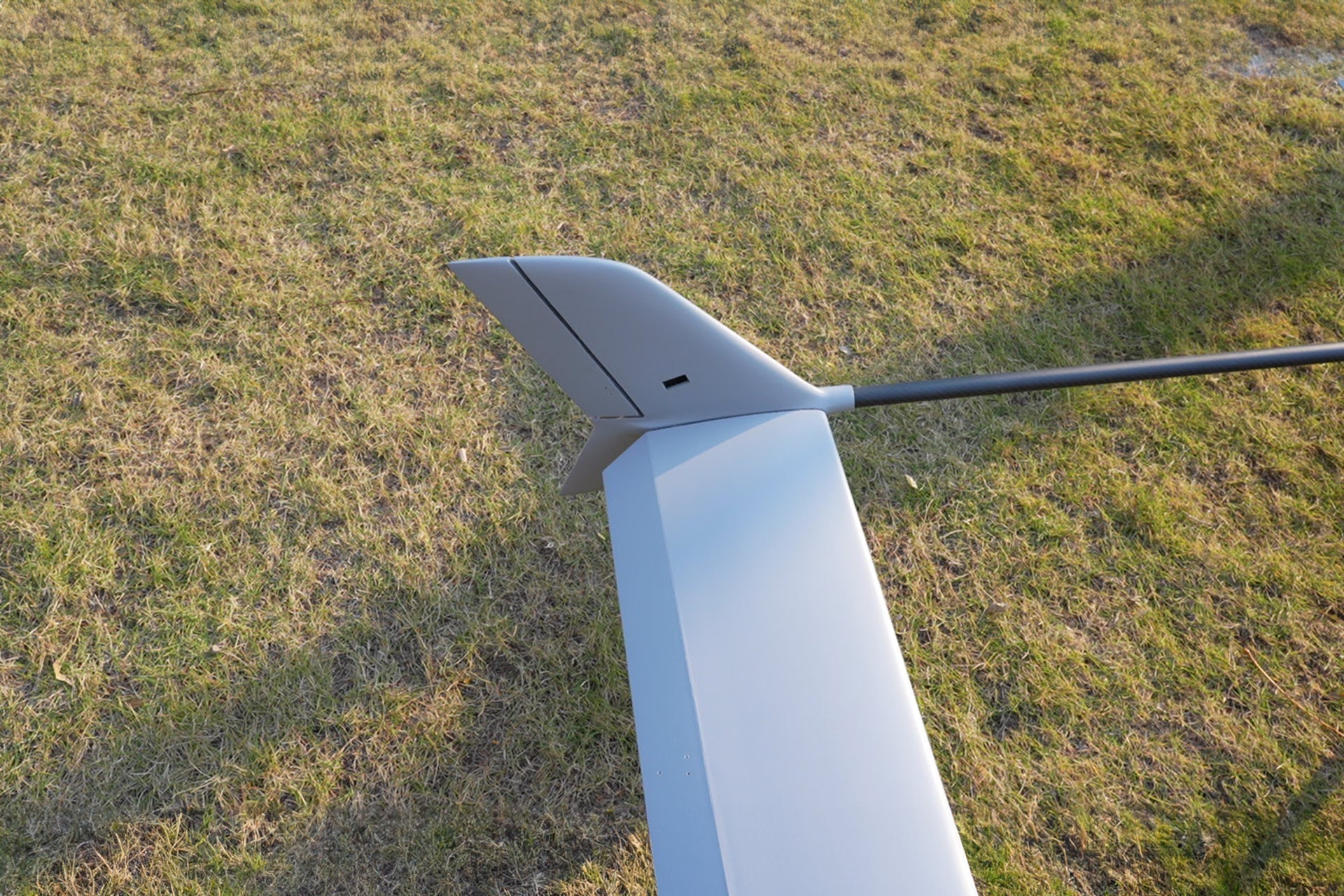

	SR260 Vertical Tail	1	1
	SR260 Flat Tail	1	1
	SR260 Engine Cowling	1	1
Power System & Electronics	Tailthrust Motor	-	1
	Tailthrust ESC	-	1
	Tailthrust Propeller	-	1
	Servos	-	6
	Pitot Tube	-	1
	Hardware / Parts Package	-	1

Technical Specifications & Flight Performance

Skyeye SR260 Specifications
Airframe Specifications	Material	Glass Fiber (Fiberglass)
	Wingspan	2600 mm (2.6 m)
	Length	2050 mm
	Payload Bay Dimensions	560mm * 220mm * 220mm (L * W * H)
	Wing Area	88 dm²
	Empty Weight	8 kg
	Payload Capacity	4 kg
	Maximum Takeoff Weight (MTOW)	15 kg
Performance Characteristics	Cruising Speed	30 m/s (approx. 108 km/h)
	Maximum Speed	33 m/s
	Stall Speed	24 m/s
	Maximum Flight Time	2 Hours

Recommended Electronics & Battery Configuration

For optimal flight stability, maximum thrust, and full 2-hour flight duration, we recommend equipping the SR260 with a high-capacity 22.2V (6S) LiPo or Li-ion battery pack along with an open-source flight controller (e.g., Pixhawk or ArduPilot-compatible systems).

Frequently Asked Questions (FAQ)

Q: What is the main difference between the KIT and PNP configurations?

A: The KIT version consists solely of the fiberglass airframe, wings, tail, and landing gear for customized DIY setup. The PNP (Plug and Play) version includes the complete airframe along with a tailthrust motor, ESC, propeller, 6 servos, pitot tube, and installation hardware.

Q: What payload sensors can the Skyeye SR260 handle?

A: With a 4KG payload capacity and a large 560x220x220mm equipment bay, the SR260 easily holds high-resolution RGB mapping cameras, multi-spectral sensors, thermal gimbals, LiDAR scanners, and long-range video transmitters.

Q: What battery setup provides the best endurance?

A: A 22.2V (6S) high-density LiPo or custom 6S Li-ion battery assembly is recommended. Capacity can be adjusted based on total payload weight to maintain a safe Maximum Takeoff Weight (15KG).

Q: Is the SR260 compatible with automated flight controls?

A: Yes, it is fully compatible with Pixhawk, Cube, ArduPilot, PX4, and other popular industrial auto-pilot units for automated waypoint missions, mapping grid execution, and return-to-launch (RTL) functions.
