Skyeye Giant Eye 6050mm Fixed Wing Drone SG605
Skyeye Giant Eye 6050mm Fixed Wing Drone SG605
Product Description
Giant Eye 6050mm Long-Range Heavy-Lift Industrial Fixed-Wing UAV Platform
Engineered for extreme performance and maximum operational efficiency, the upgraded Giant Eye UAV Platform sets a new standard for industrial fixed-wing drones. Designed for long-range missions, heavy payload delivery, aerial surveying, and disaster response, this high-end UAV platform offers unmatched aerodynamics, durable full-carbon fiber construction, and long flight duration under challenging environments.
Aerodynamic Design & High-Strength Carbon Fiber Airframe
Featuring an impressive 6050mm wingspan, the Giant Eye provides exceptional aerodynamic lift while significantly reducing drag coefficient in long-range operations. Wind tunnel and flight testing confirm superior stability in high-wind conditions compared to conventional smaller platforms.
Manufactured completely from industrial-grade carbon fiber, the airframe strikes a perfect balance between lightweight design and heavy-duty structural integrity. It is built to endure rugged landing environments and demanding operational conditions over prolonged service lifespans.
High-Capacity Payload & Superior Flight Performance
Equipped with a powerful 550CC gasoline engine and an expansive 70L fuel tank, this heavy-lift UAV outperforms standard electric drones in range and mission flexibility. With a Maximum Take-Off Weight (MTOW) of 230KG, it easily handles a mission payload capacity of up to 70KG (or 50-75KG operational range), ideal for carrying advanced sensor suites, LiDAR systems, or logistics cargo.
- Maximum Speed: Up to 230 KM/H with a cruise speed of 125 KM/H.
- Extended Flight Duration: Delivers 6 to 8 hours of continuous operation on a single tank.
- Long-Distance Range: Over 1000 KM cross-country range capabilities.
- Short Runway Requirement: Ground take-off distance required is only 140 meters, expanding usability in remote terrains.
All-Weather Operational Reliability
Built to withstand hostile climates, the Giant Eye UAV operates reliably in extreme temperatures ranging from -20°C to +50°C and features a wind resistance rating of Level 4-5. With a service ceiling reaching up to 3000M, it excels in high-altitude mountain surveys, environmental monitoring, and emergency search & rescue tasks.
Technical Specifications Matrix
| PARAMETER | SPECIFICATION |
|---|---|

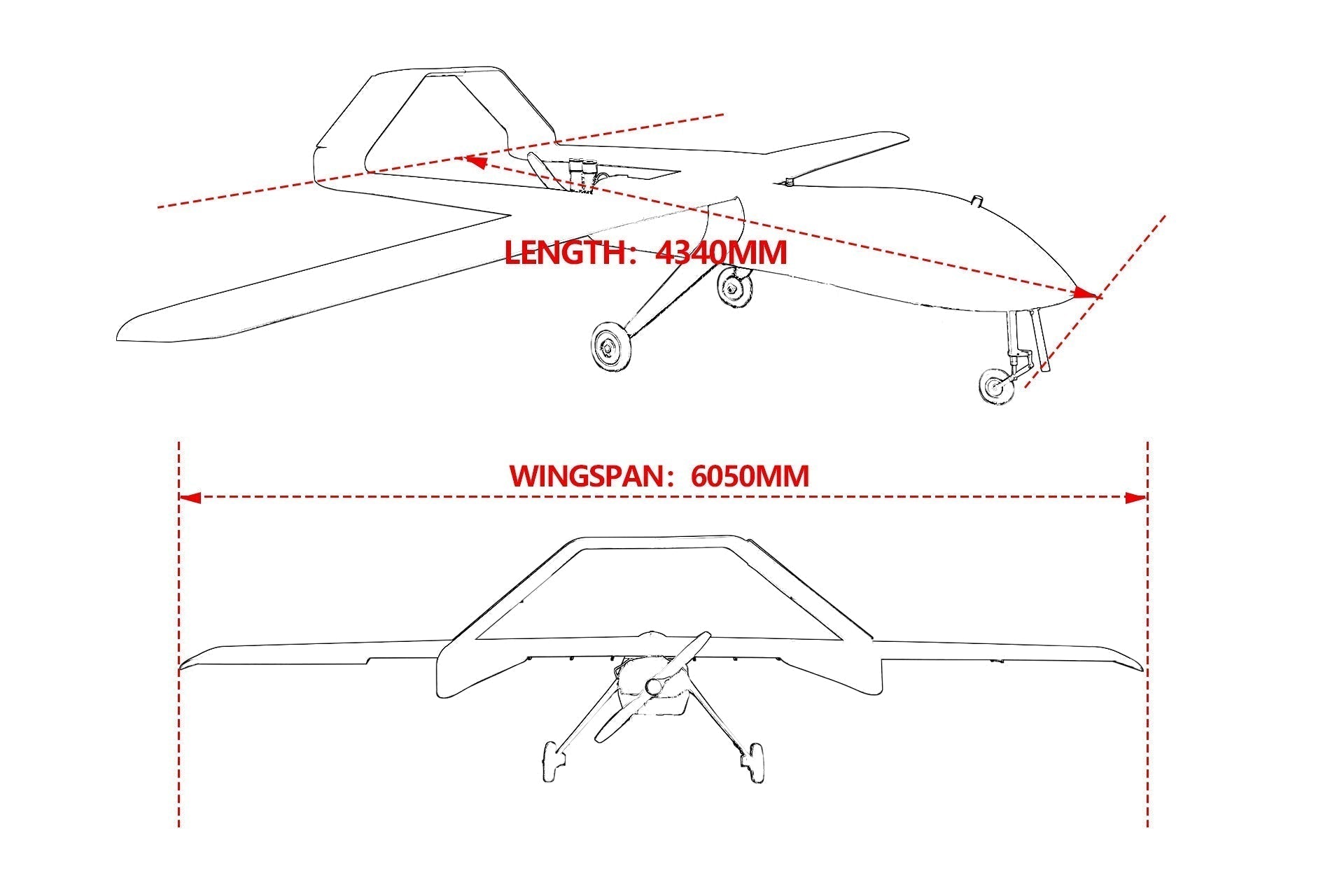

| Wingspan | 6050 MM |
| Overall Length | 4340 MM |
| Airframe Material | Full Carbon Fiber |
| Empty Body Weight | 65 KG |
| Max Take-Off Weight (MTOW) | 230 KG |
| Max Payload Capacity | 70 KG |
| Fuel Tank Volume | 70 L (Gasoline Engine 550CC) |
| Internal Cabin Size | L 1318mm x W 547mm x H 420mm |
| Maximum Airspeed | 230 KM/H |
| Cruising Speed | 125 KM/H |
| Max Flight Range | > 1000 KM |
| Take-off Run Distance | 140 M |
| Control/Operational Radius | 200 M (Base Configuration) |
| Maximum Endurance | 6 - 8 Hours |
| Service Ceiling | 3000 M |
| Wind Resistance | Level 4 - 5 |
| Operating Temperature | -20°C to +50°C |

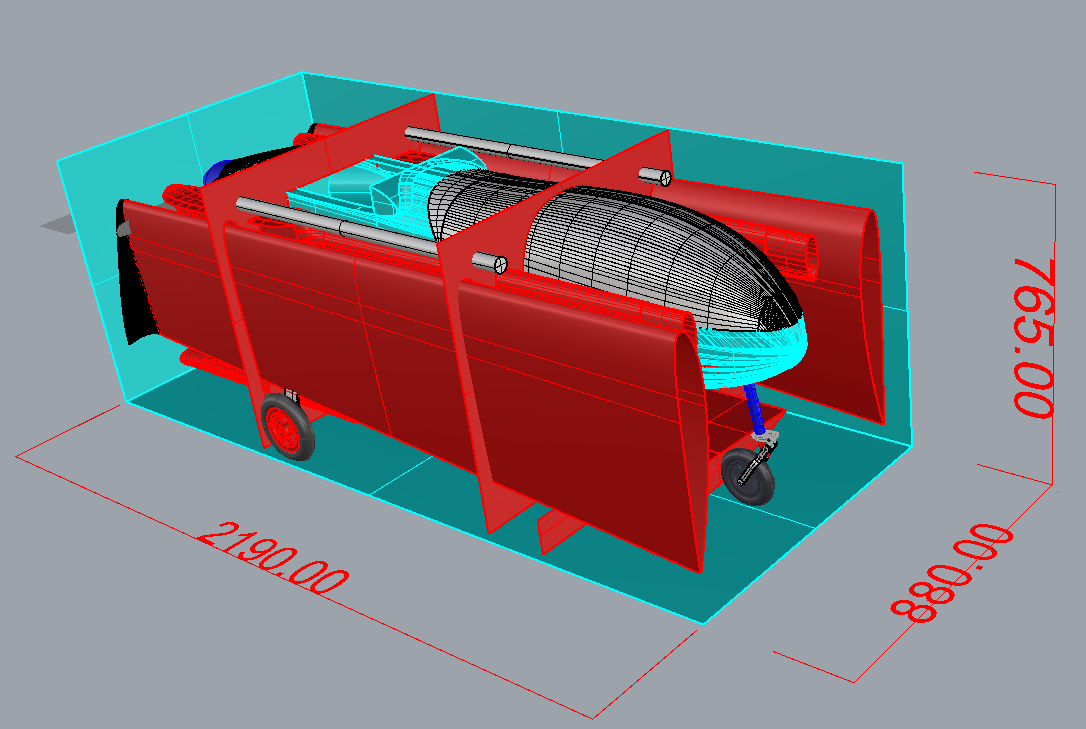

| Transport Packaging Size | 219 cm x 88 cm x 76.5 cm |
Looking for alternative fixed-wing platforms?
We also recommend exploring our 5-meter wingspan series: SKYEYE-S500 and SKYEYE-SS500.
Frequently Asked Questions (FAQ)
Q1: Why choose a gasoline-powered UAV like the Giant Eye over electric models?
A: The Giant Eye uses a 550CC gasoline engine and a 70L fuel tank, which provides significantly higher energy density than lithium batteries. This allows for up to 8 hours of flight endurance and payloads up to 70kg, making it suitable for mission profiles that electric drones simply cannot achieve.
Q2: What are the dimensions of the internal payload compartment?
A: The internal cabin size measures L1318mm x W547mm x H420mm. This spacious layout easily accommodates large optical gimbals, LiDAR mapping equipment, specialized cargo, or custom electronic payloads.
Q3: What runway conditions are required for take-off and landing?
A: Thanks to its optimized aerodynamic lift and high-performance propulsion, the Giant Eye requires a short ground take-off distance of only 140 meters, making it adaptable to unpaved airstrips and remote operational fields.
Q4: Is the airframe modular for transportation?

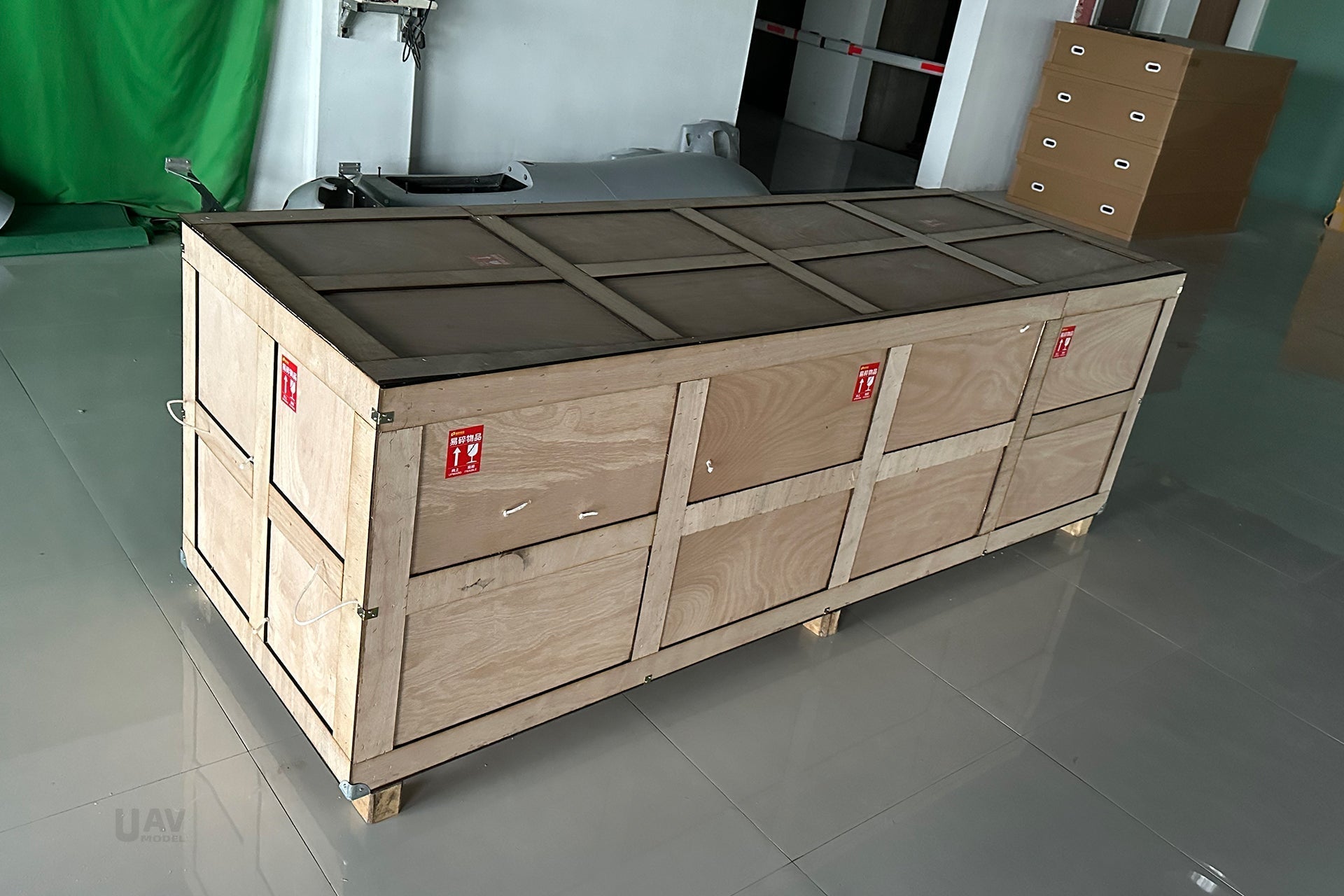

A: Yes, despite its large 6050mm wingspan, the carbon fiber structure is designed to be disassembled efficiently into a shipping box sizing 219 x 88 x 76.5 cm for safe field transport and global logistics.
