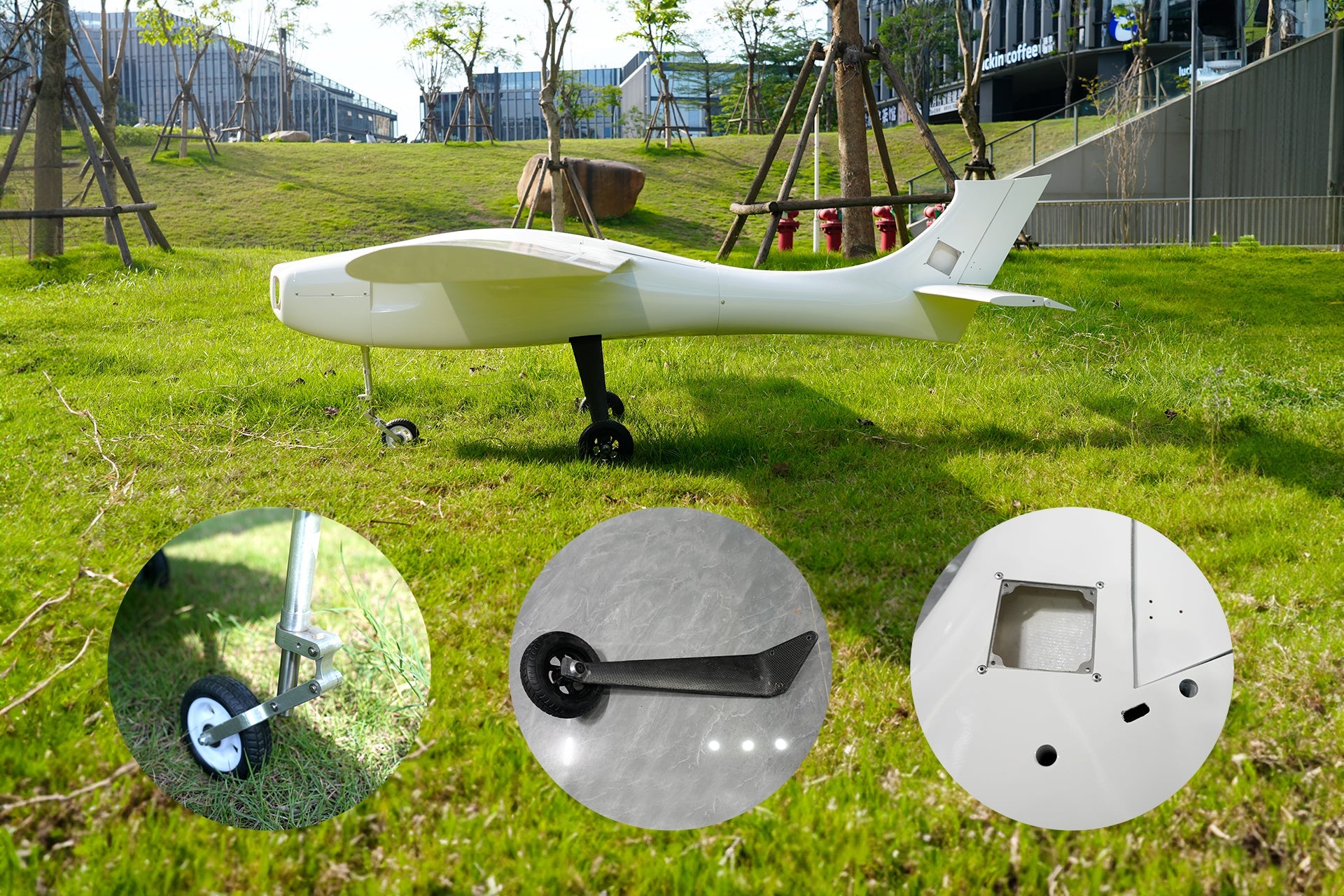

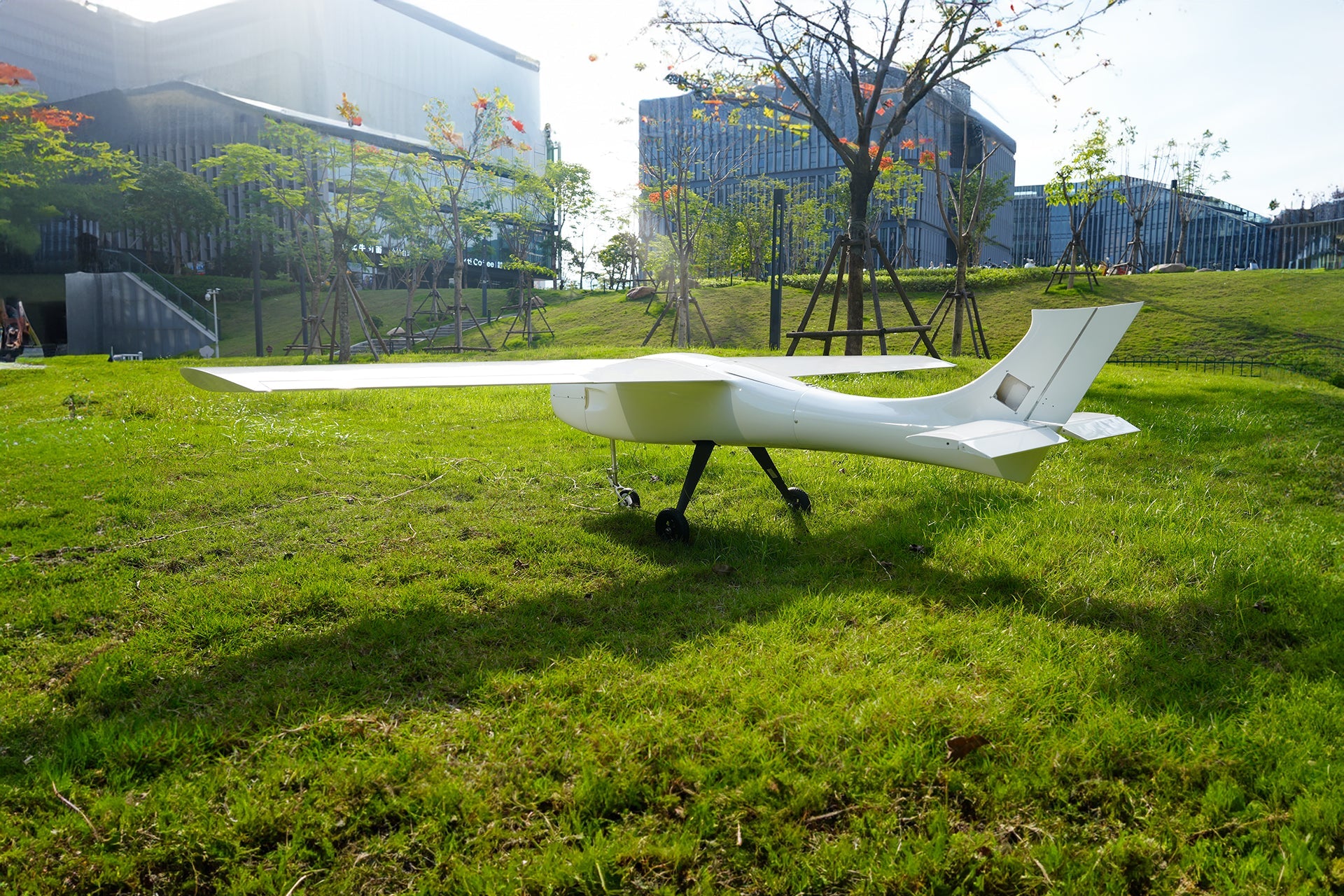

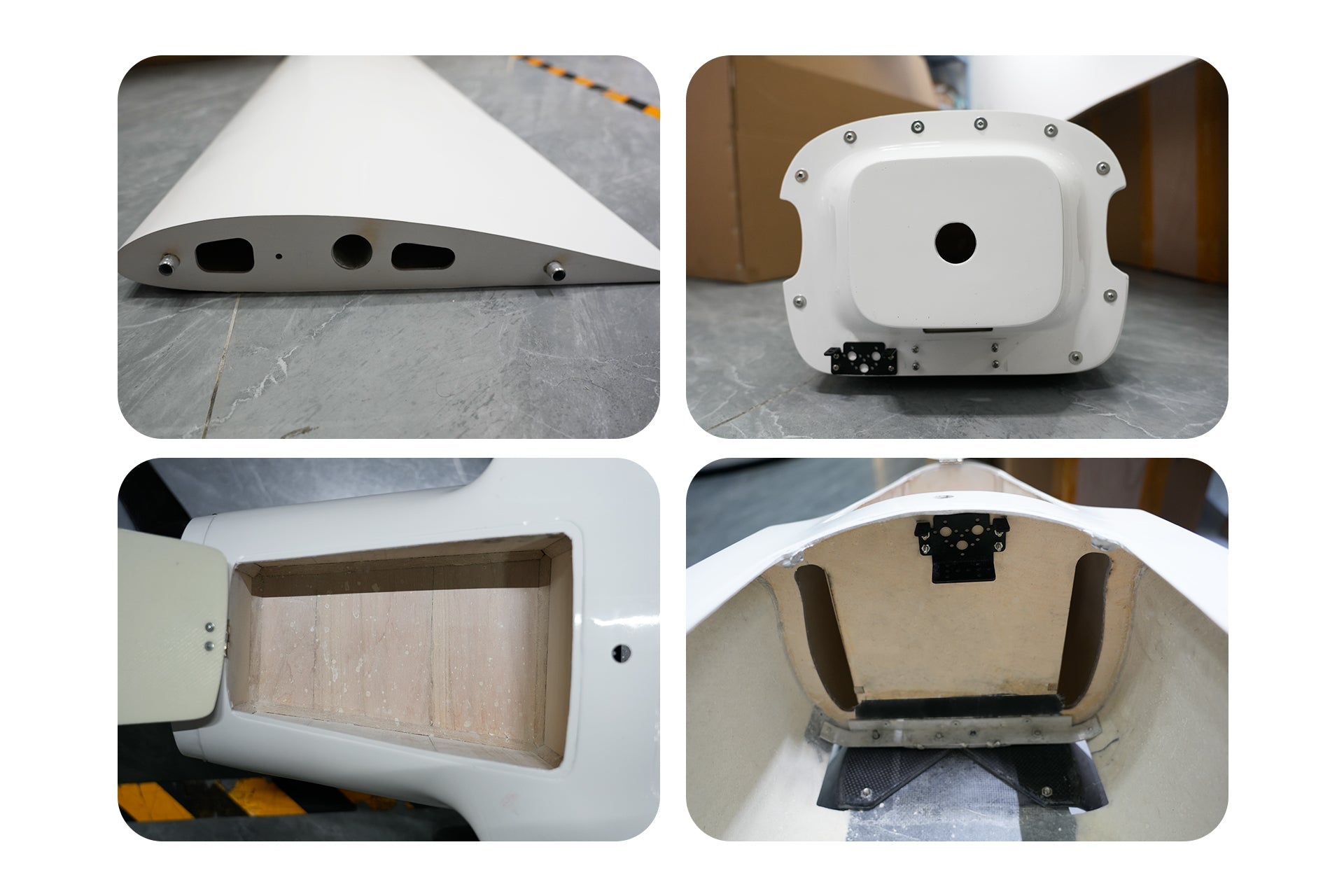

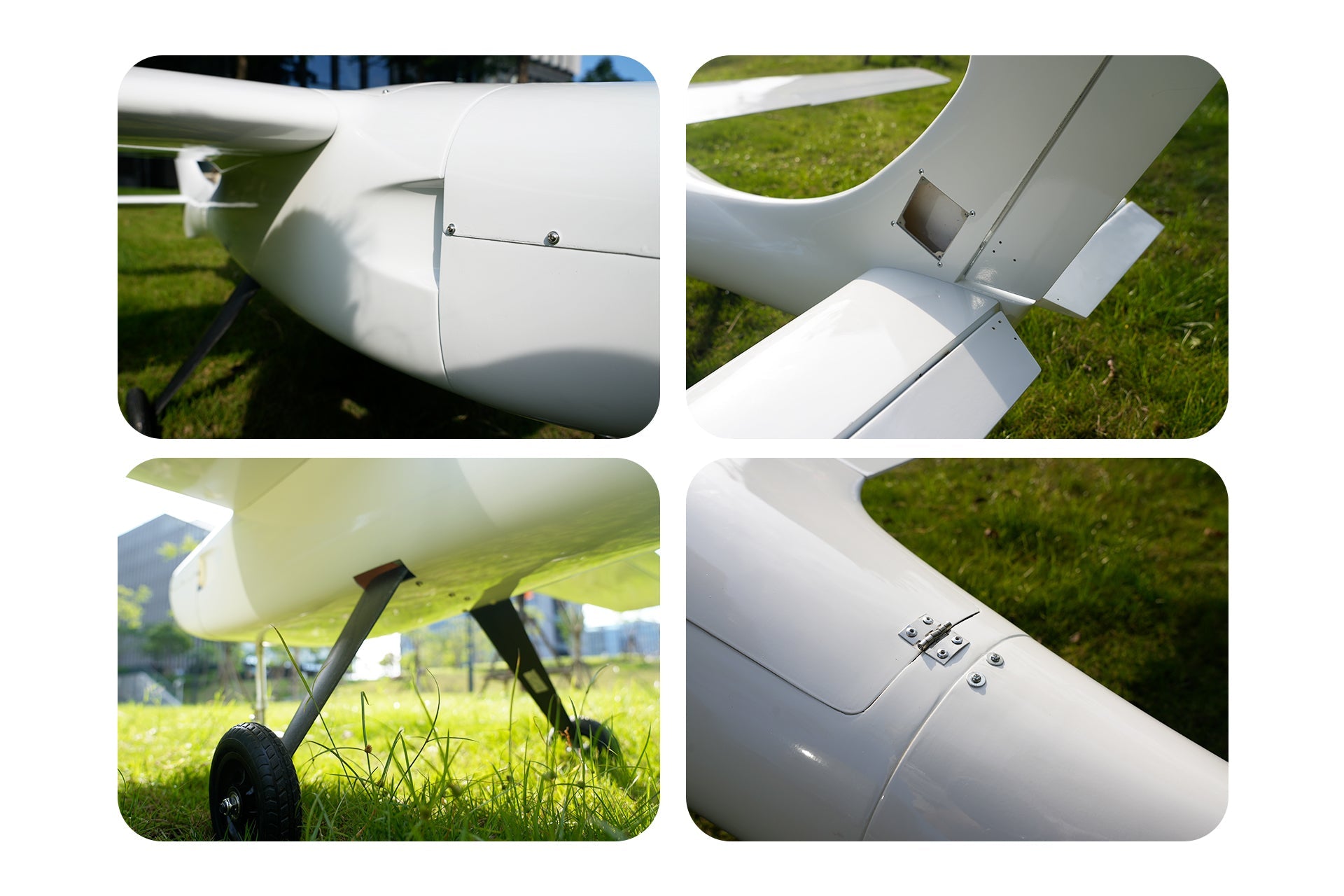

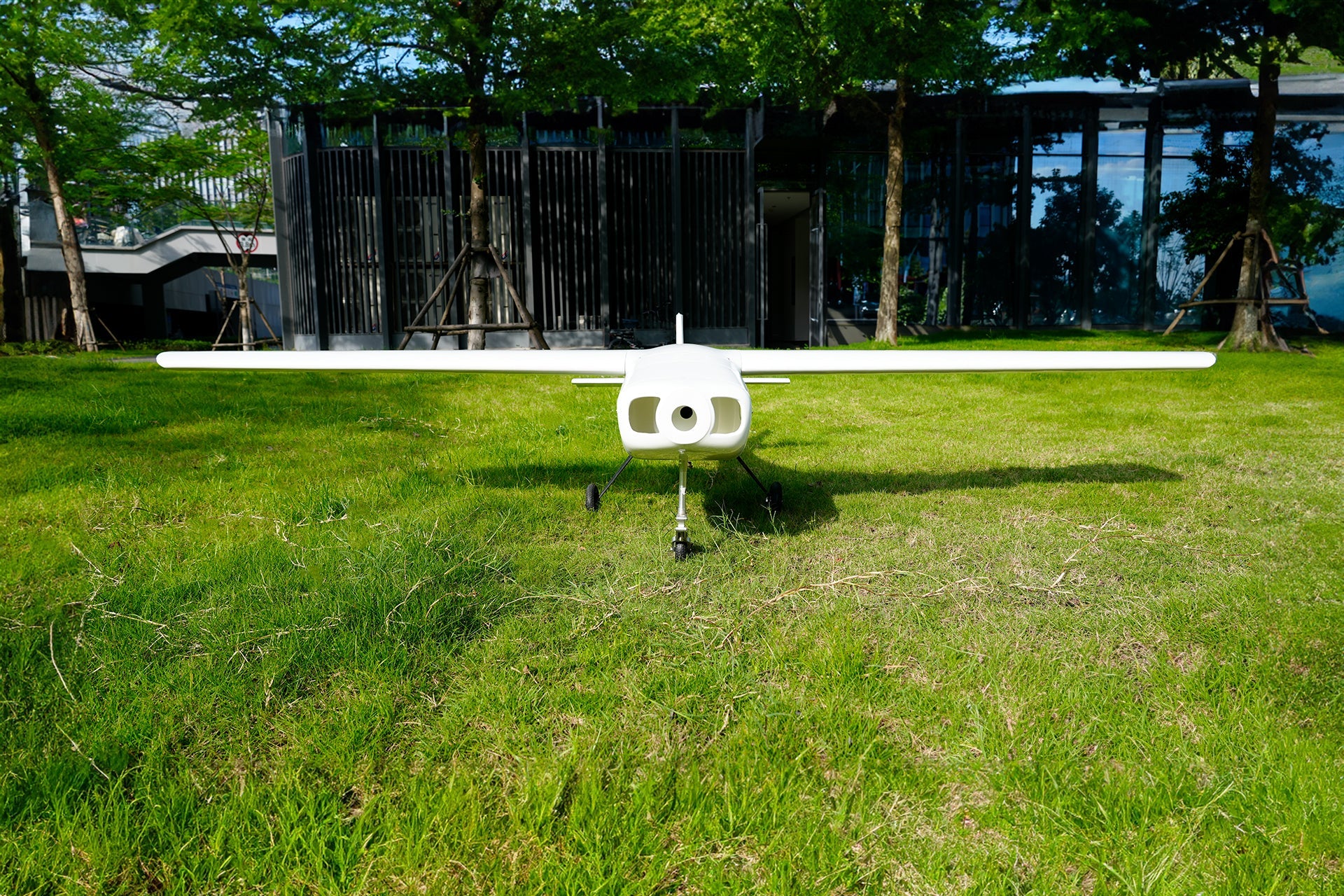

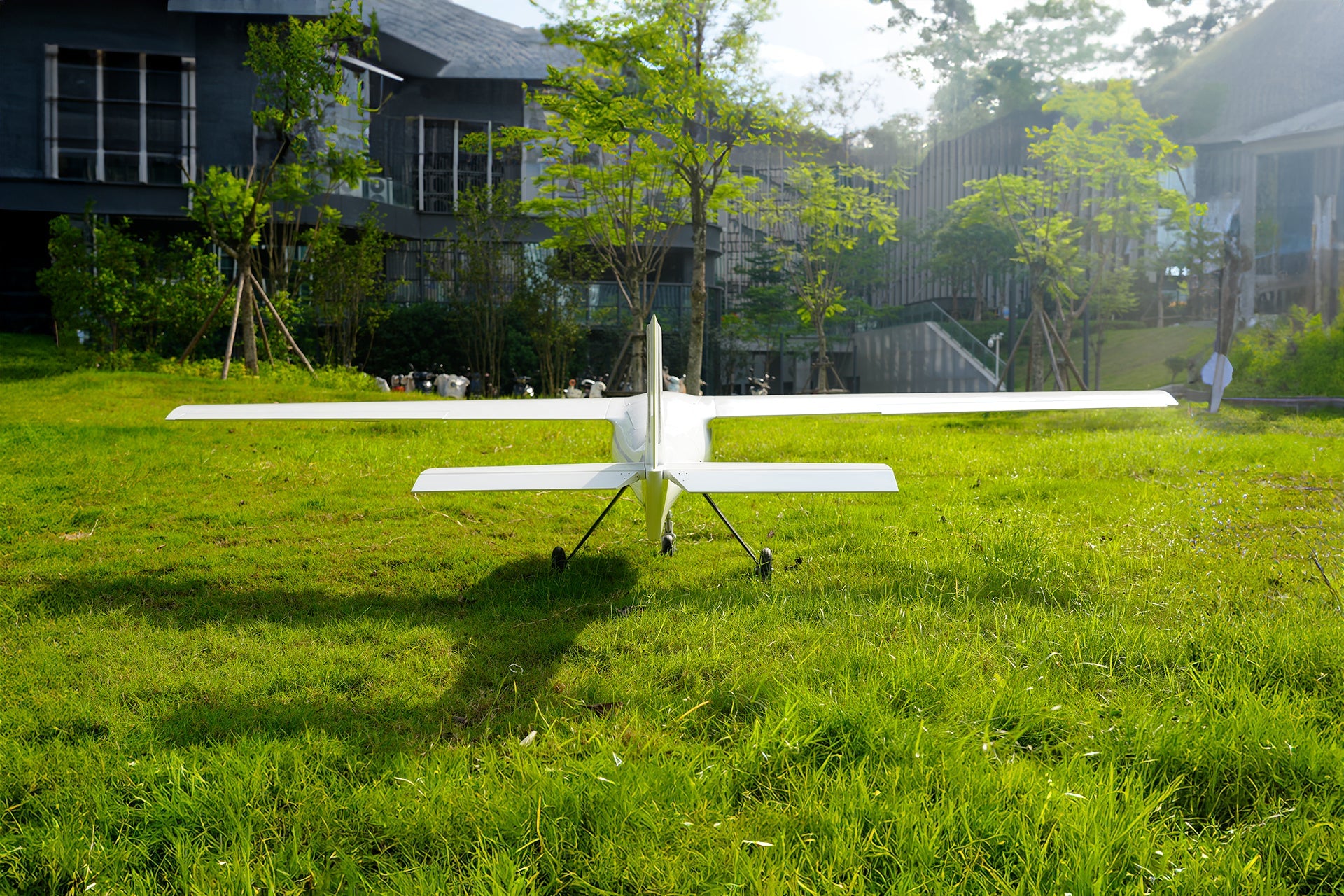

Skyeye Glass fiber 2900mm UAV Fixed Wing Drone
HMGW26-K
Product Description
Skyeye 2900mm Glass Fiber Long-Range Fixed-Wing UAV Platform
The Skyeye 2900mm Glass Fiber UAV is a high-performance industrial-grade fixed-wing aerial platform designed for long-range reconnaissance, aerial mapping, precision agriculture, and payload transport. Constructed with high-density premium fiberglass, this UAV offers exceptional endurance, aerodynamic efficiency, and structural rigidity even in demanding operational environments.
Key Performance Highlights
- Large Payload & High Capacity: Engineered with a generous payload capacity of up to 5kg and a maximum takeoff weight (MTOW) of 25kg, allowing integration of advanced gimbals, multi-spectral cameras, and specialized sensors.
- Optimized Aerodynamics: Featuring a massive 2900mm wingspan and 103.8 dm² wing area for superior lift-to-drag ratio, gentle stall characteristics (60 km/h), and smooth cruising speeds up to 120 km/h.
- Robust Fiberglass Airframe: Superior structural integrity compared to standard foam models, offering resistance to tough field landings and environmental wear.
- Flexible Configuration Options: Choose between the KIT version for fully custom hardware integration or the PNP package complete with engine, servos, propeller, and pitot tube.
Technical Specifications
| CATEGORY | PARAMETER | SPECIFICATION |
|---|---|---|
| Dimensions | Wingspan | 2900mm |
| Length | 1875mm | |
| Wing Area | 103.8 dm² | |
| Weight & Payload | Takeoff Weight (MTOW) | 25kg |
| Payload Capacity | 5kg | |
| Flight Characteristics | Maximum Speed | 120 km/h |
| Stall Speed | 60 km/h | |
| Center of Gravity (C.G) | Backwards 120mm from wing leading edge | |
| Packaging Details | Dimensions | 142 × 50 × 53 cm |
| Package Weight | 13.45 kg |
Package Includes (KIT vs. PNP Configuration)
| PLATFORM / SYSTEM | ITEM DESCRIPTION | KIT | PNP |
|---|---|---|---|
| Flying Platform | HMGW26 Airframe | 1 | 1 |
| HMGW26 Left Wing | 1 | 1 | |
| HMGW26 Right Wing | 1 | 1 | |
| HMGW26 Left Aileron | 1 | 1 | |
| HMGW26 Right Aileron | 1 | 1 | |
| HMGW26 Tail Erection Set | 1 | 1 | |
| HMGW26 Guide Wheel | 1 | 1 | |
| HMGW26 Crude Aluminum Tube | 1 | 1 | |
| HMGW26 Aluminum Tube Bead | 1 | 1 | |
| HMGW26 Engine Hood | 1 | 1 | |
| Power System | Engine | — | 1 |
| Servos | — | 7 | |
| High Power Propeller | — | 1 | |
| Pitot Tube | — | 1 |
Frequently Asked Questions (FAQ)
Q: What is the main difference between the KIT and PNP versions?
A: The KIT version includes the full fiberglass airframe structure and basic hardware assembly (wings, fuselage, tail, landing gear). The PNP (Plug and Play) version includes everything in the KIT plus the matched engine, 7 high-torque servos, high-power propeller, and a pitot tube.
Q: What type of mission is the Skyeye 2900mm best suited for?
A: Thanks to its high 5kg payload capacity and large wing area, it is ideal for long-duration surveillance, aerial mapping, agricultural inspection, research, and carrying heavy electro-optical (EO/IR) sensor gimbals.
Q: Where should the Center of Gravity (C.G) be positioned?
A: For optimal flight balance and control safety, set the C.G exactly 120mm backwards from the leading edge of the wing.
Q: How are oversized shipping costs calculated for this product?
A: If your order exceeds standard automated shipping weight limits during checkout, please contact our support team directly. We will provide optimized bulk freight rates and tailored shipping solutions for your destination.
