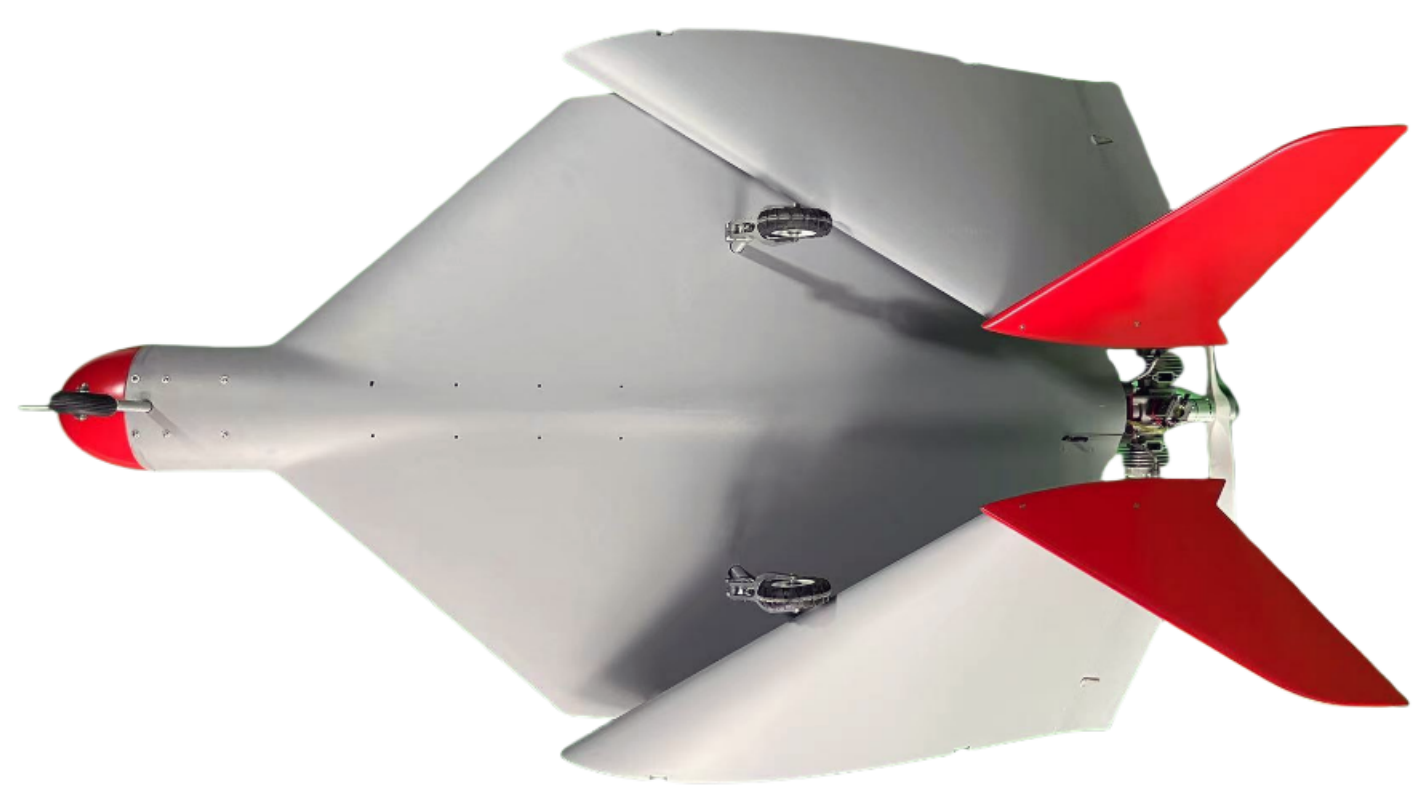

Skyeye Mosquito SM200G Delta Wing Drone with red accents, showcasing a sleek design.

1/17

SM200G-PDF

The Skyeye Mosquito-10 (SM200G) is a heavy-duty, long-range delta fixed-wing autonomous UAV platform engineered for industrial mapping, tactical reconnaissance, and long-endurance surveillance. Powered by a high-efficiency 70cc gas engine with an integrated electric starter, this high-performance drone delivers up to 10 hours of continuous endurance, a maximum flight speed of 150 km/h, and an operational range exceeding 1,000 km. Built with a 2000mm wingspan, a 35 kg MTOW, and a 10 kg payload capacity, it supports advanced triple-redundant flight control systems and vehicle-mounted autonomous takeoff.

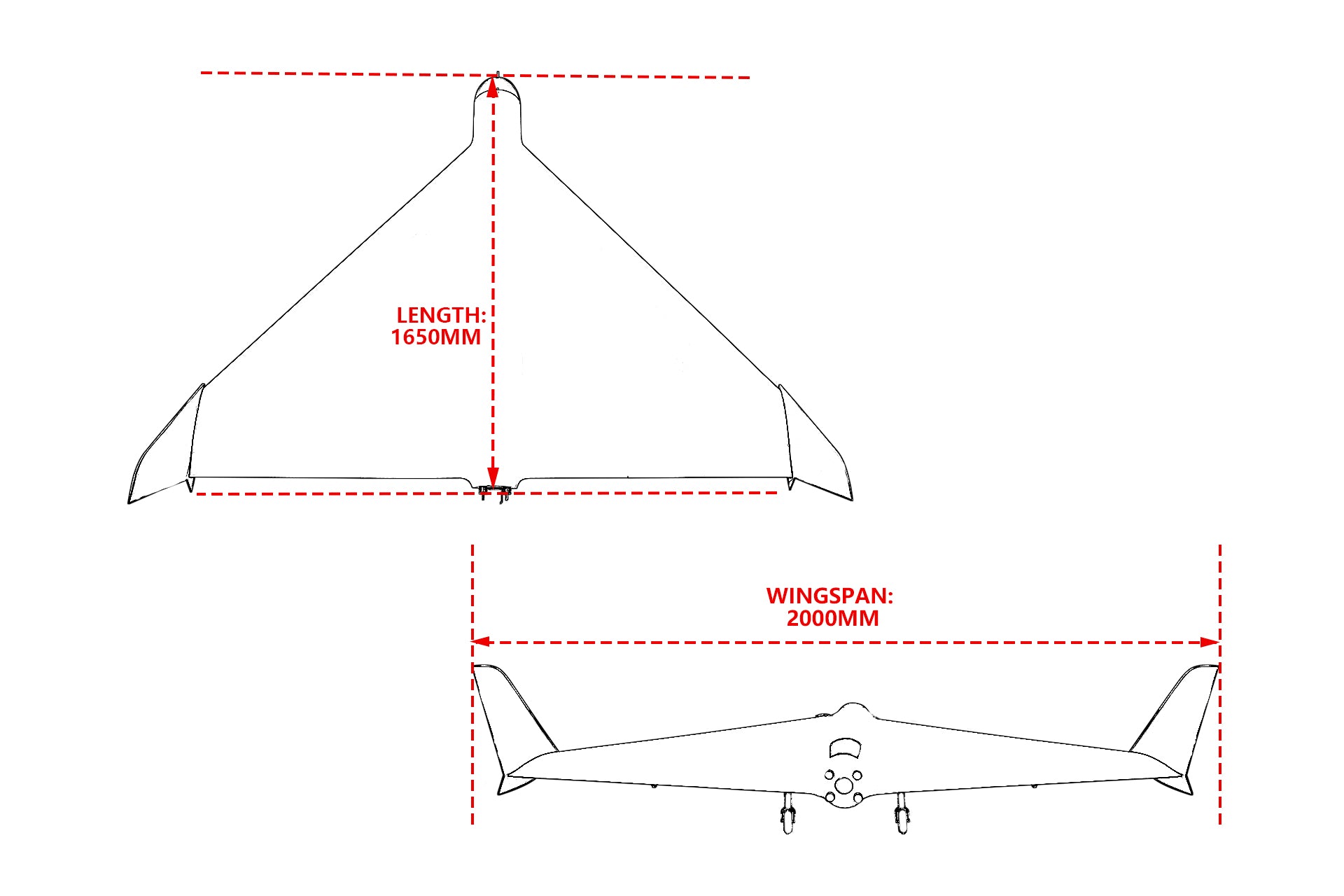

Wingspan / Length: 2000 mm / 1650 mm

Engine & Power: 70 cc Gas Engine (Electric Starter Included) + 16 L Fuel Tank

MTOW / Payload Capacity: 35 kg Max Takeoff Weight / 10 kg Payload

Endurance & Range: Up to 10 Hours Flight Time / > 1000 km Range

Max Speed / Altitude: 150 km/h / 2000 m Operational Altitude

✉️ Email Inquiry

Tags:

Skyeye Mosquito-10 (SM200G) Delta-Wing Autonomous Industrial UAV

The Skyeye Mosquito-10 (SM200G) is a heavy-duty, long-range delta fixed-wing autonomous UAV platform engineered for tactical reconnaissance, wide-area border surveillance, and heavy industrial payload transport. Powered by an upgraded 70cc gas engine with an integrated electric starter, this enterprise-grade aerial platform delivers unprecedented field reliability and mission versatility. Combining superior delta-wing aerodynamics with high fuel efficiency, the Mosquito-10 is built to operate seamlessly in demanding environment conditions where maximum coverage and dependability are non-negotiable.

⚙️ Engine Power

70cc Gas Engine with Electric Starter

⏱️ Extreme Endurance

Up to 10 Hours Flight Time

📦 Payload Capacity

10 kg Heavy Sensor/Cargo Capacity

🌐 Extended Operational Range

> 1000 km Total Distance

Why Choose the Skyeye Mosquito-10 UAV Platform?

Unmatched Endurance & High-Speed Cruise: Outfitted with a high-efficiency 70cc gas engine and a 16L internal fuel tank, the Mosquito-10 achieves up to 10 hours of uninterrupted flight at cruise speeds up to 150 km/h.
High Payload Flexibility: Designed with a 35 kg Maximum Takeoff Weight (MTOW), the aircraft accommodates up to 10 kg of multi-sensor payloads, including optical EO/IR gimbals, LiDAR systems, radar, or custom cargo drop kits.
Triple-Redundant Autonomous Navigation: Advanced flight control avionics enable full mission automation—from vehicle-mounted autonomous takeoff and route loitering to emergency protection protocols and precision landing.
Tactical Mission Loitering: Purpose-built for persistent aerial monitoring, target tracking, and mapping. It executes continuous grid loitering while relaying real-time video feeds to ground control stations.
Rapid Deployment Modular Design: Eliminates the need for bulky launch equipment or catapults. Its compact delta/folding wing structure streamlines field setup and drastically simplifies logistics transport.

Advanced Flight Control & Avionics Systems

Enterprise Avionics Suite: The Mosquito-10 platform features fully integrated formation network control (capable of managing swarms up to 100 aircraft), high-precision positioning modules, and real-time telemetry link synchronization. Equipped with a triple-redundant flight control architecture, dynamic route recording, and automated pre-flight ground station diagnostics, it guarantees maximum operational security and fleet reliability during complex long-range missions.

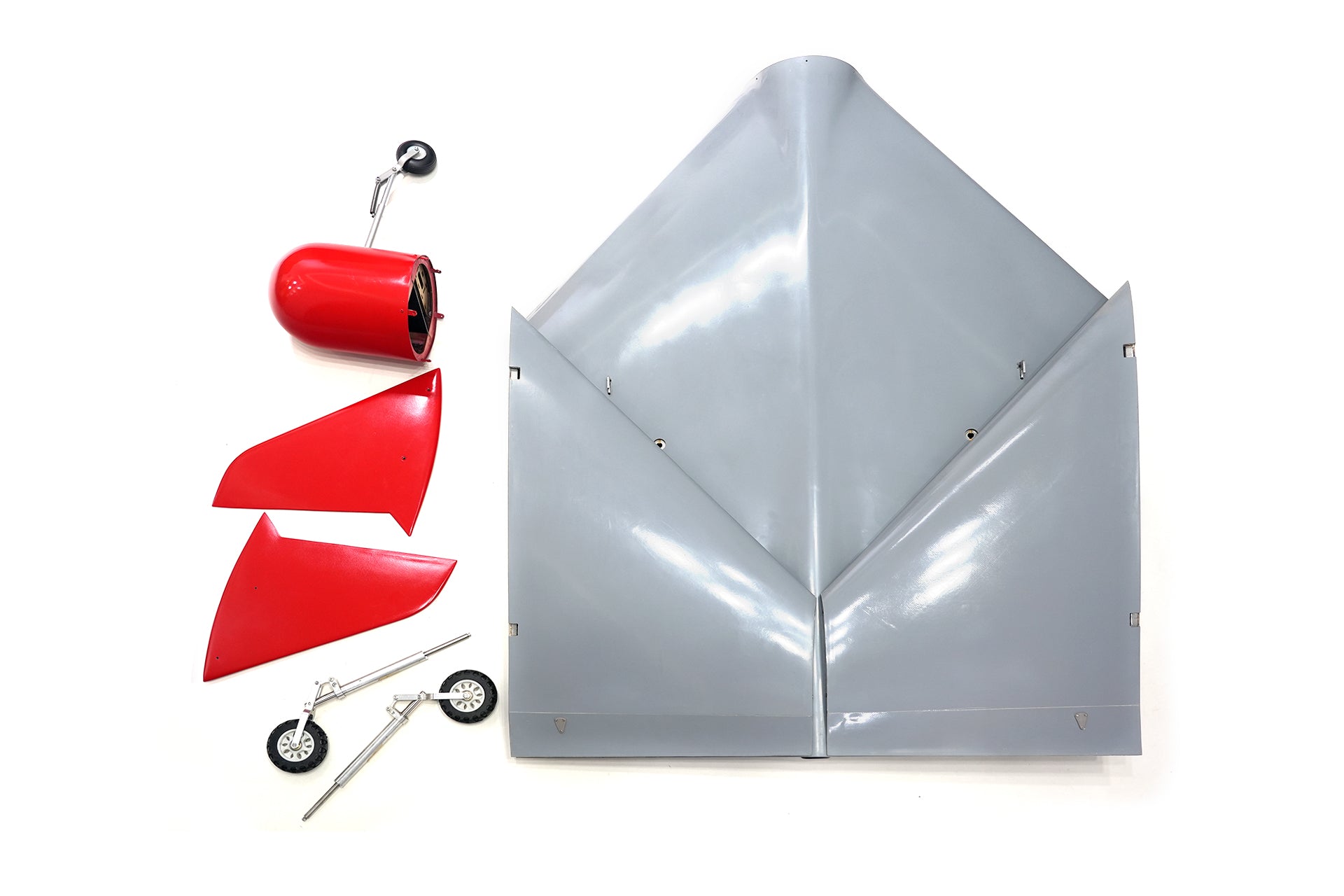

Configuration Matrix: KIT vs PNP

Included Component	Specification Details	KIT Version	PNP Version
Flying Airframe	Mosquito-10 Delta-Wing Airframe & Structural Hardware	✓	✓
Power Engine System	70cc Gas Engine with Integrated Electric Starter	-	✓
Servos	High-Torque Digital Servos (4 pcs)	-	✓
Propeller	High-Efficiency Pusher Propeller (20*12)	-	✓
Fuel & Hardware Kit	16L Fuel Tank, Linkage Accessories & Mounting Hardware	✓	✓

Technical Specifications & Specifications Table

Model Name	Mosquito-10 (SM200G)	Wingspan	2000 mm
Aircraft Length	1650 mm	Engine Type	70 cc Gas Engine (Electric Start)
Fuel Tank Capacity	16 Liters	Max Payload Capacity	10 kg
Max Takeoff Weight (MTOW)	35 kg	Empty Weight	13 kg
Max Altitude	2000 m	Max Flight Endurance	10 Hours
Max Flight Speed	150 km/h	Operational Range	> 1000 km

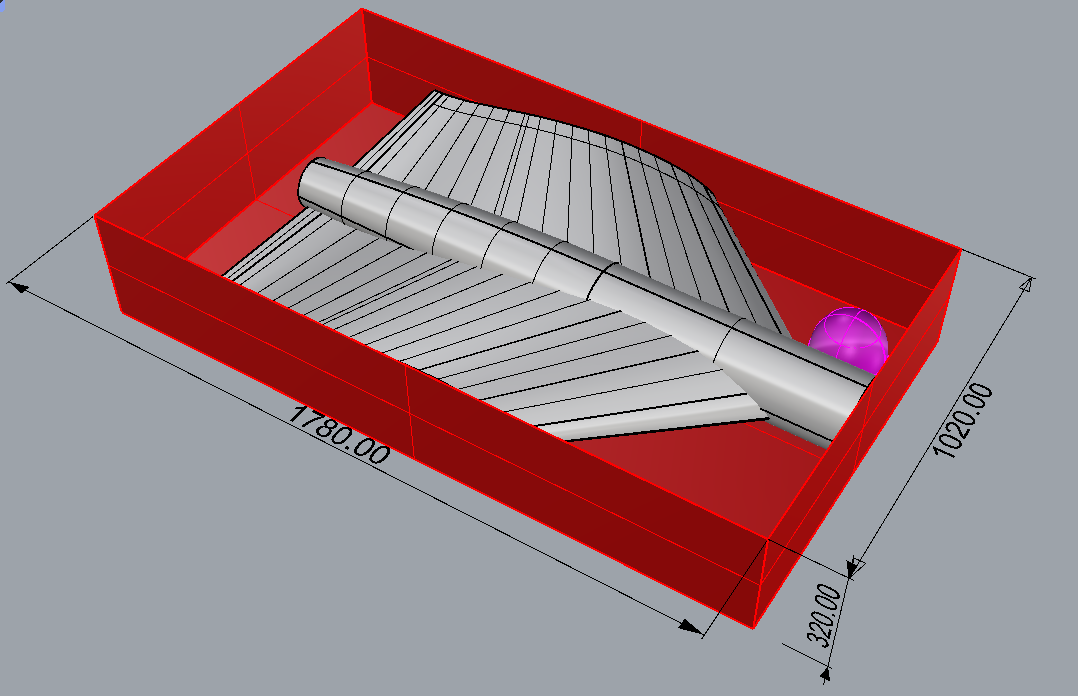

Packaging & Transportation Specifications

Configuration Option	Package Dimensions (L × W × H)	Gross Package Weight
Folding Wing Version	1660 × 1123 × 350 mm	31.3 kg
Delta Wing Version	2060 × 1075 × 275 mm	34.6 kg

Frequently Asked Questions (FAQ)

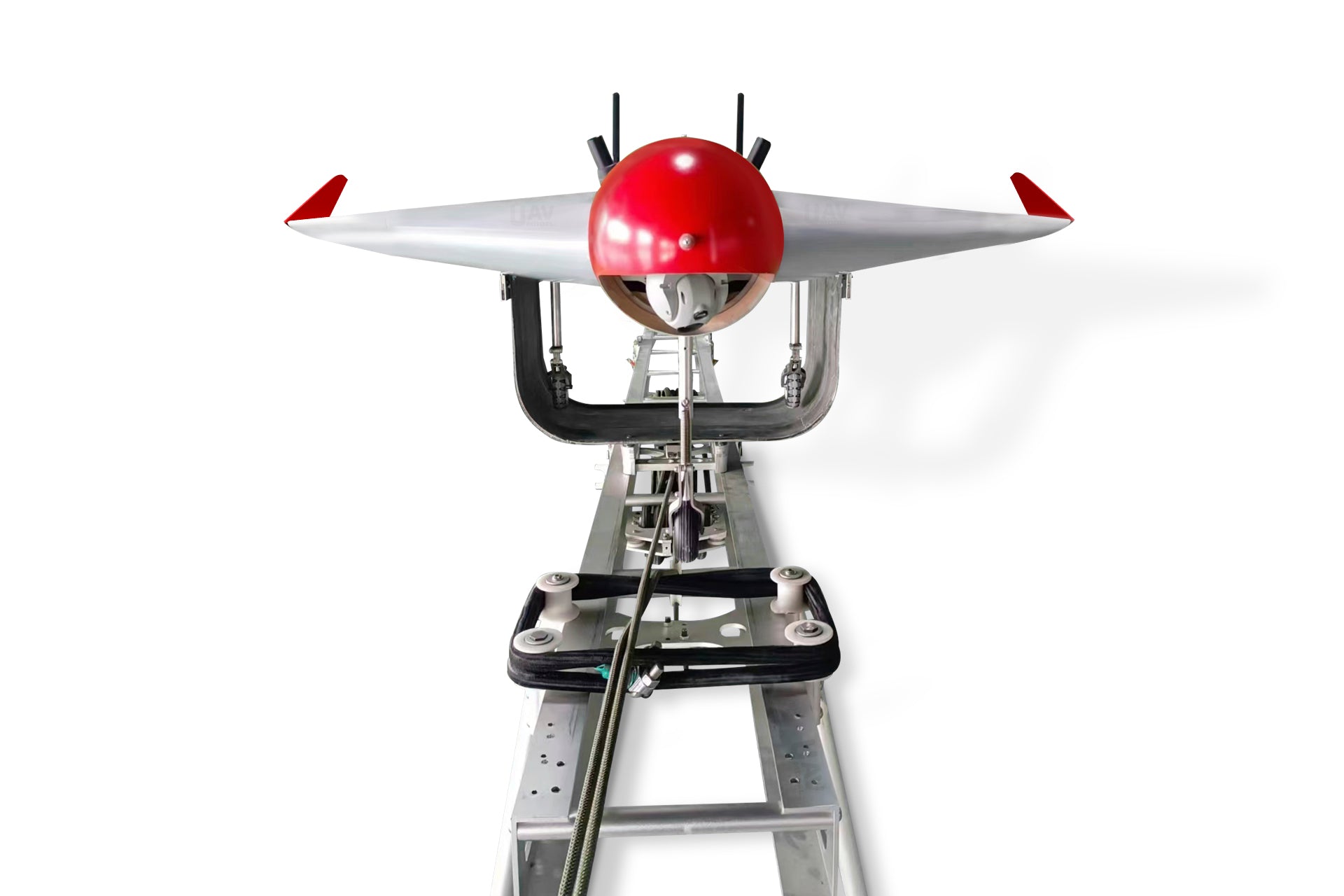

Q: What type of ground deployment method does the Mosquito-10 use?

A: The Mosquito-10 is optimized for portable field deployment. It supports vehicle-mounted autonomous launch, eliminating the need for bulky launch ramps, catapults, or specialized runway equipment.

Q: Can the Mosquito-10 fly autonomously without real-time manual control?

A: Yes. The UAV integrates advanced ground station software and a triple-redundant flight control system, enabling pre-planned autonomous waypoint navigation, automatic mode switching, loitering, and auto-landing sequences.

Q: What payload types are supported by the 10 kg payload bay?

A: The platform easily carries high-resolution EO/IR gimbal cameras, multispectral sensors, LiDAR scanners, mapping cameras, or tactical equipment up to 10 kg.

Q: What is the difference between the KIT and PNP versions?

A: The KIT version contains the airframe, fuel tank, and mechanical assembly hardware. The PNP (Plug and Play) version includes the airframe plus the upgraded 70cc gas engine with electric starter, high-torque digital servos, and the matched 20*12 pusher propeller.
