Product Description

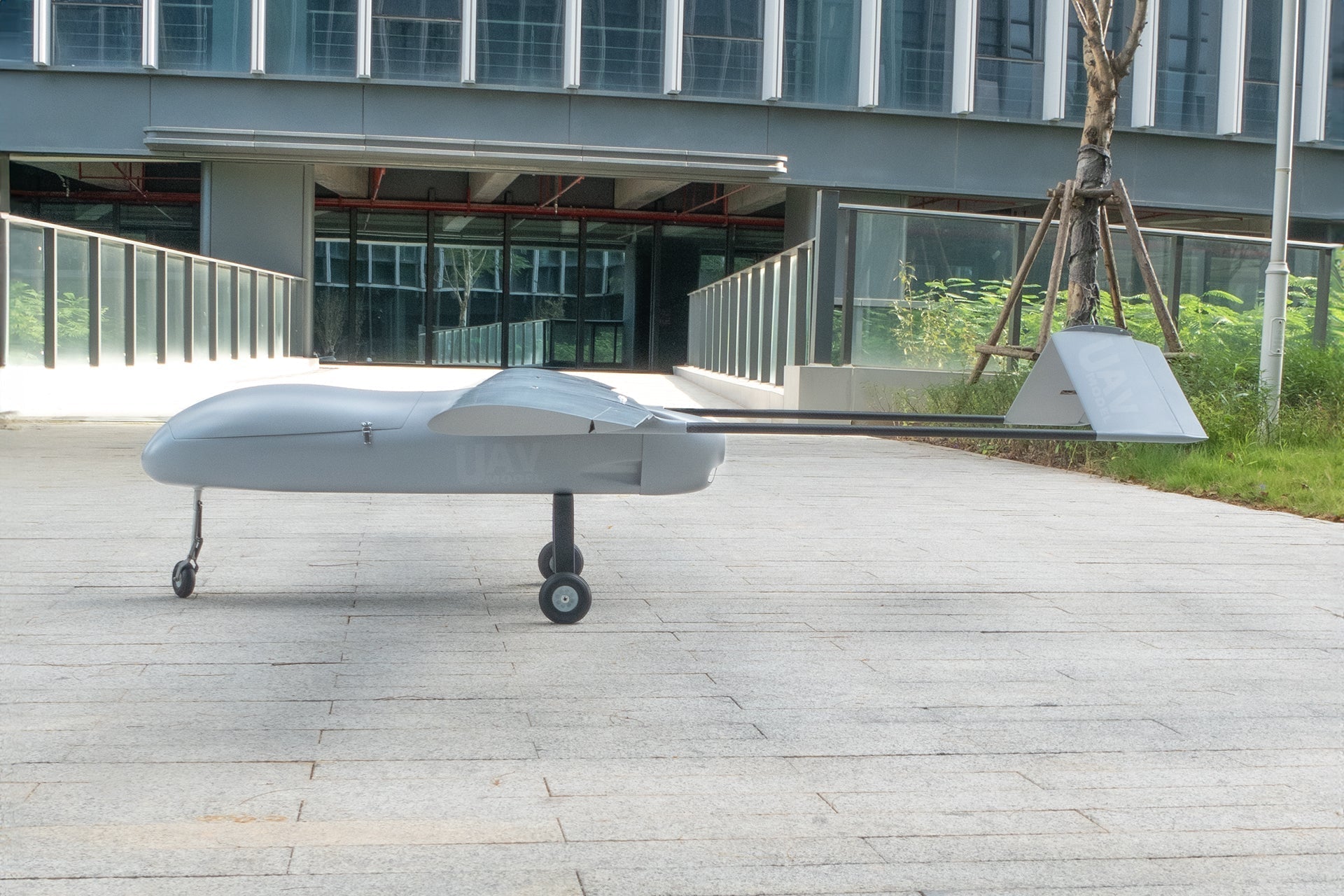

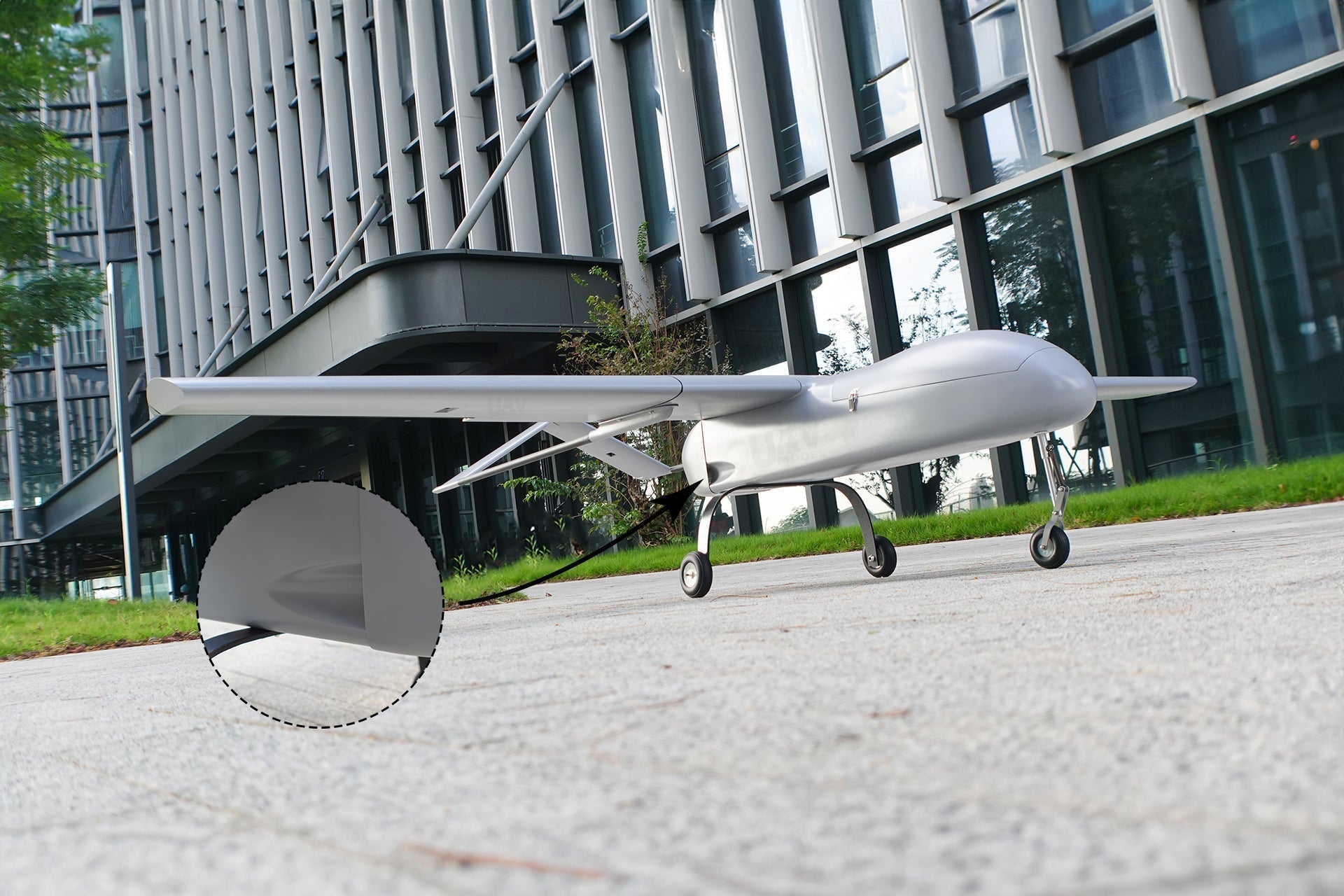

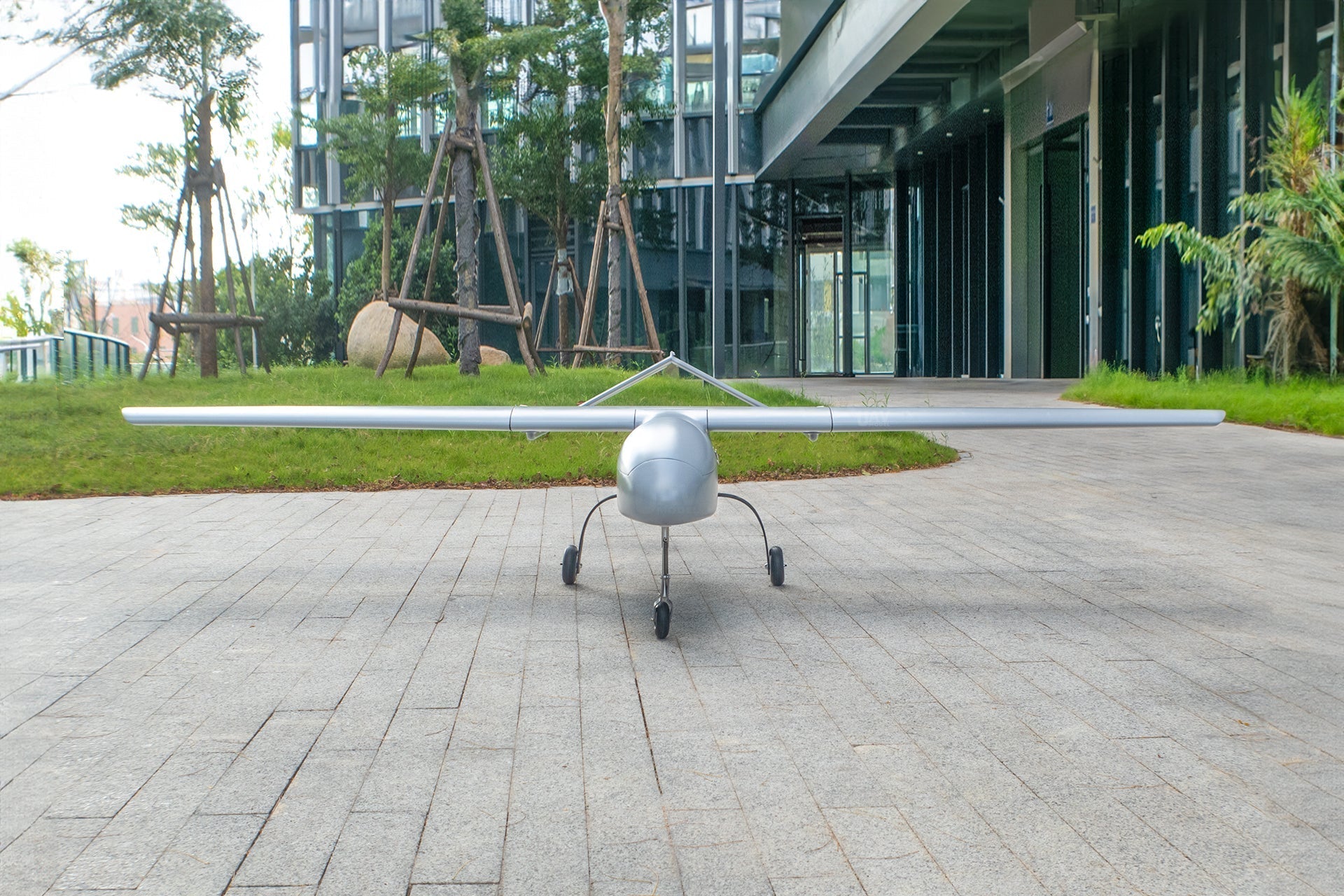

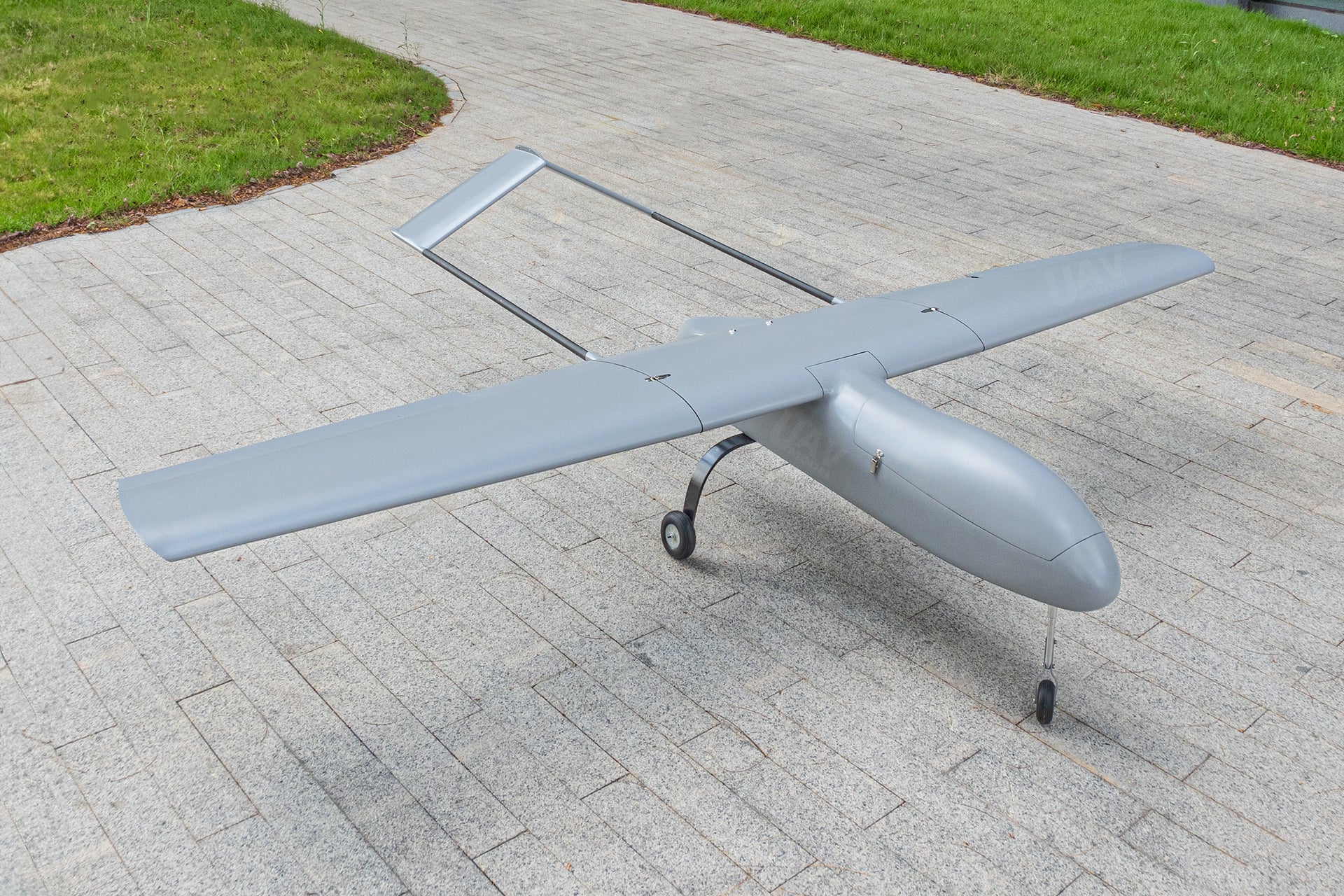

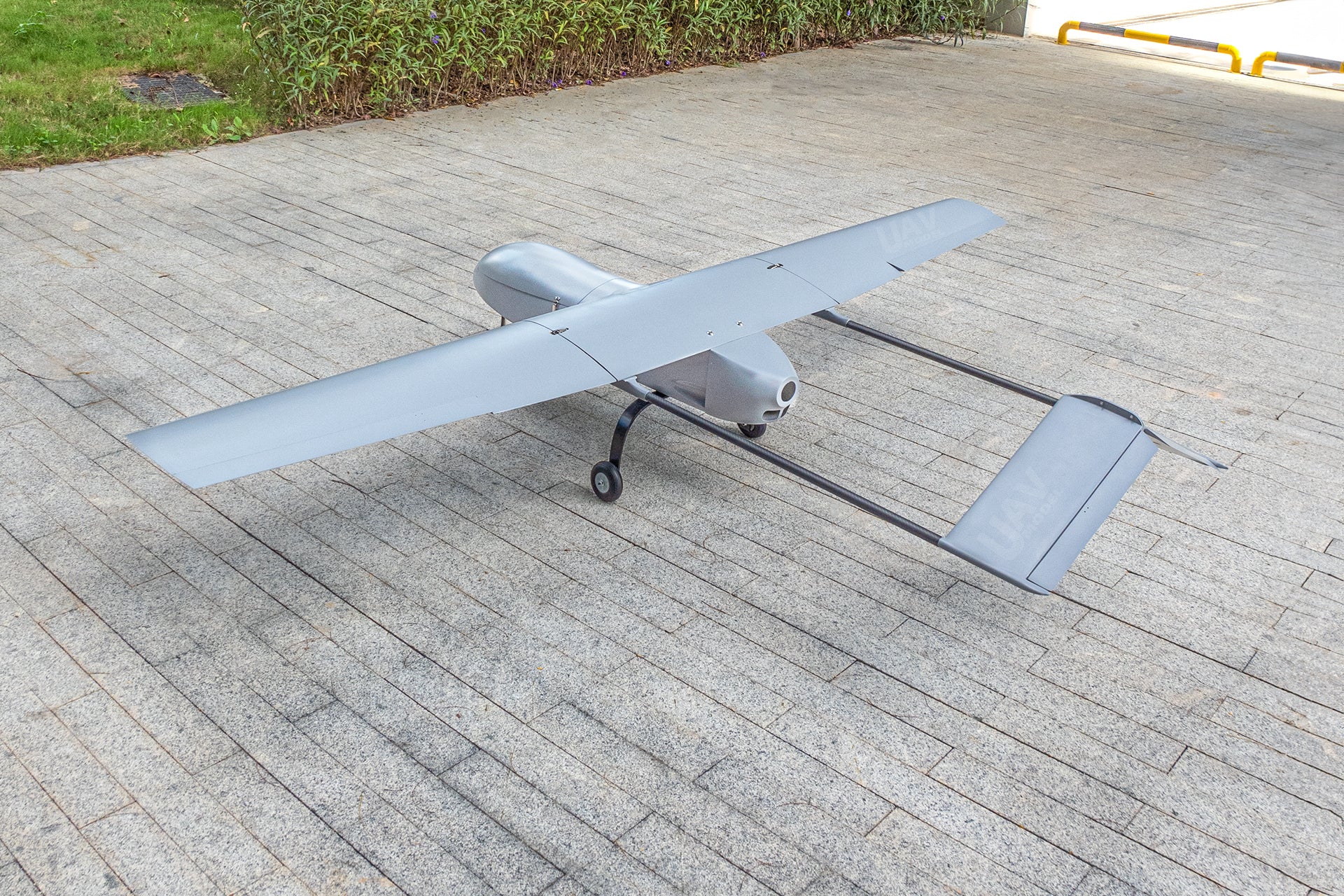

Skyeye SR260 2.6m Long-Range Industrial Fixed-Wing UAV Platform
The Skyeye SR260 is a premium, professional-grade fixed-wing UAV platform designed for long-range aerial missions, environmental mapping, disaster inspection, and payload delivery. Built with high-strength fiberglass composite material, the SR260 combines structural rigidity with lightweight efficiency, allowing for high stability even under challenging environmental conditions.

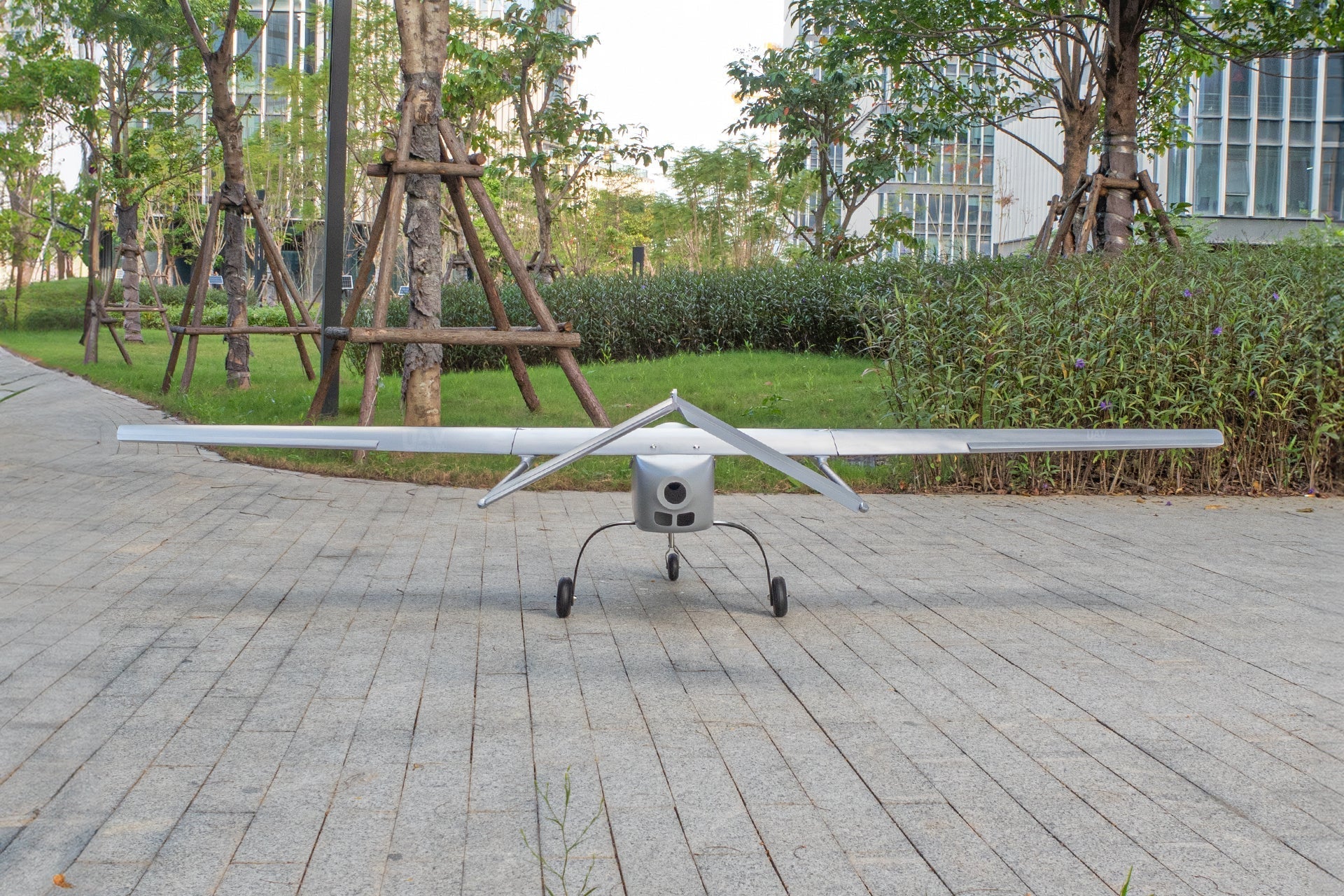

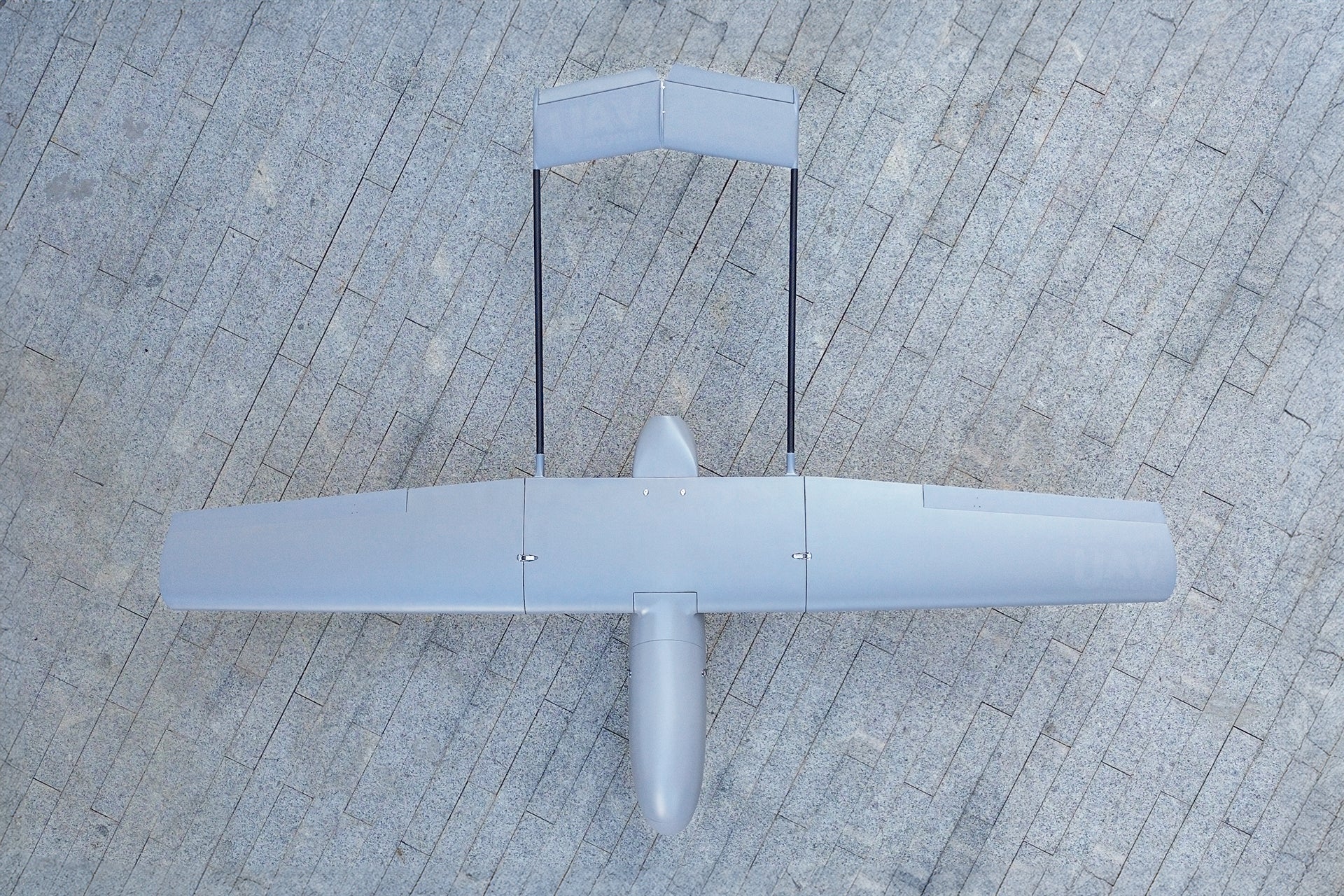

Engineered with a 2600mm wingspan and an aerodynamic V-tail configuration, this aircraft platform provides exceptional lift and low stall speeds. Its massive payload bay (560×220×220mm) accommodates advanced camera gimbals, LiDAR sensors, orthophoto mapping equipment, or custom delivery mechanisms with ease.
Heavy Payload Capacity
Capable of lifting up to 4KG of usable payload with a Maximum Takeoff Weight (MTOW) of 15KG, making it ideal for professional multi-sensor integration.
Extended Flight Endurance
Achieve up to 2 hours of continuous flight time on a single 6S LiPo setup, significantly expanding your operational range per mission.

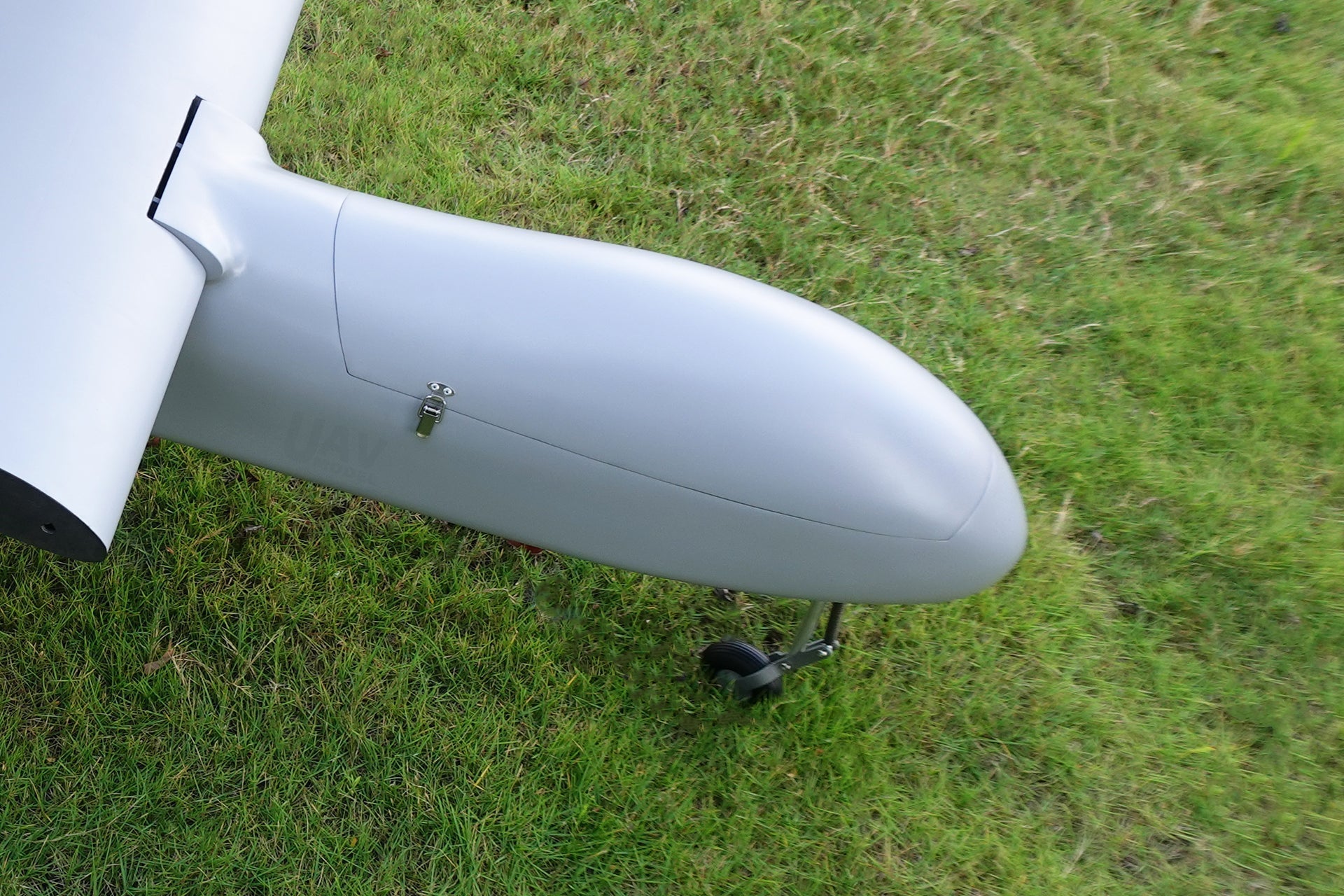

Massive Equipment Bay

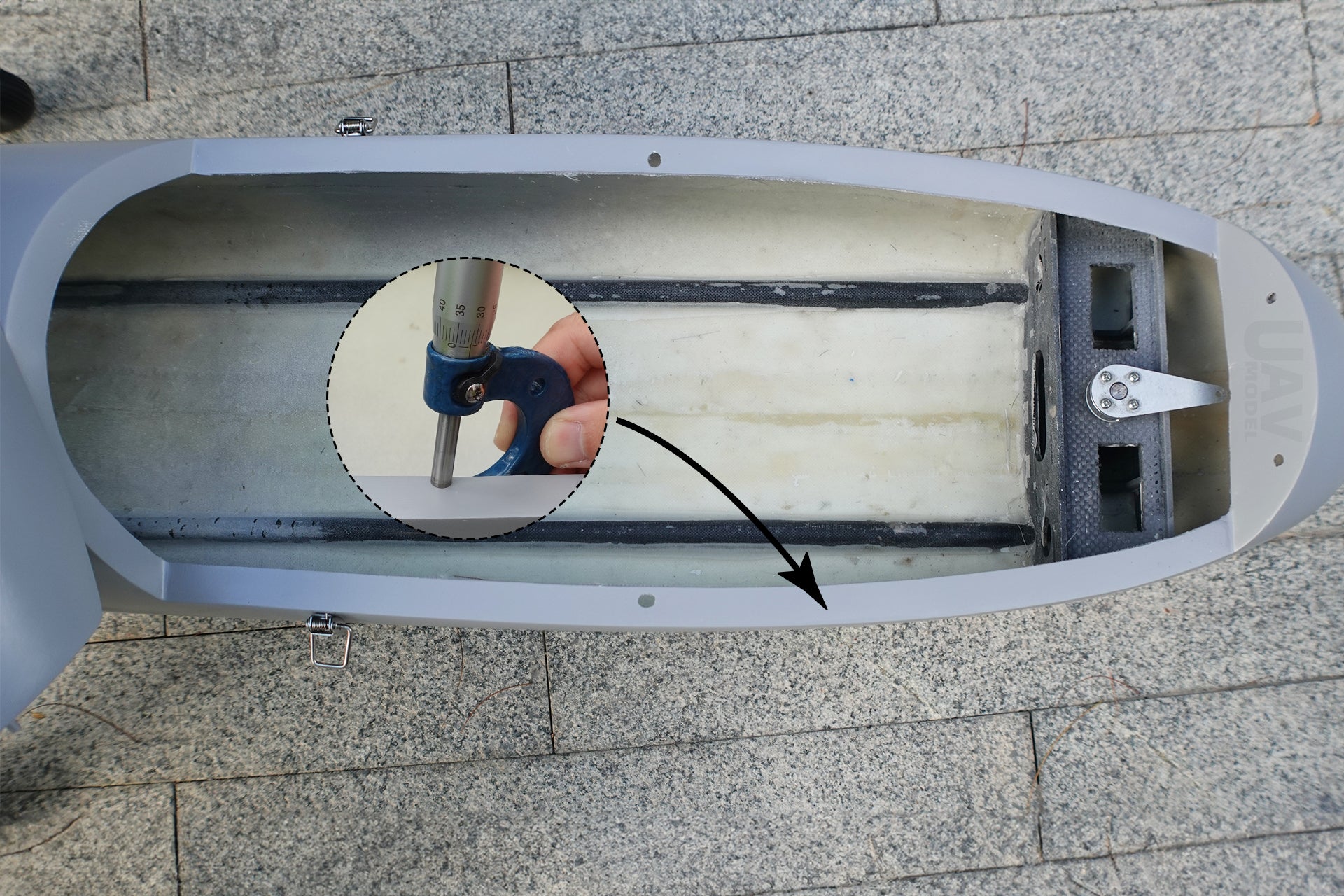

Features a spacious 560mm × 220mm × 220mm internal compartment for easy mounting of flight controllers, RTK/PPK systems, and heavy optics.
Durable Fiberglass Hull
Constructed from lightweight, premium composite fiberglass for long-term resistance against field wear, dampness, and high aerodynamic loads.
Skyeye SR260 Performance & Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Airframe Material | High-Strength Composite Fiberglass |

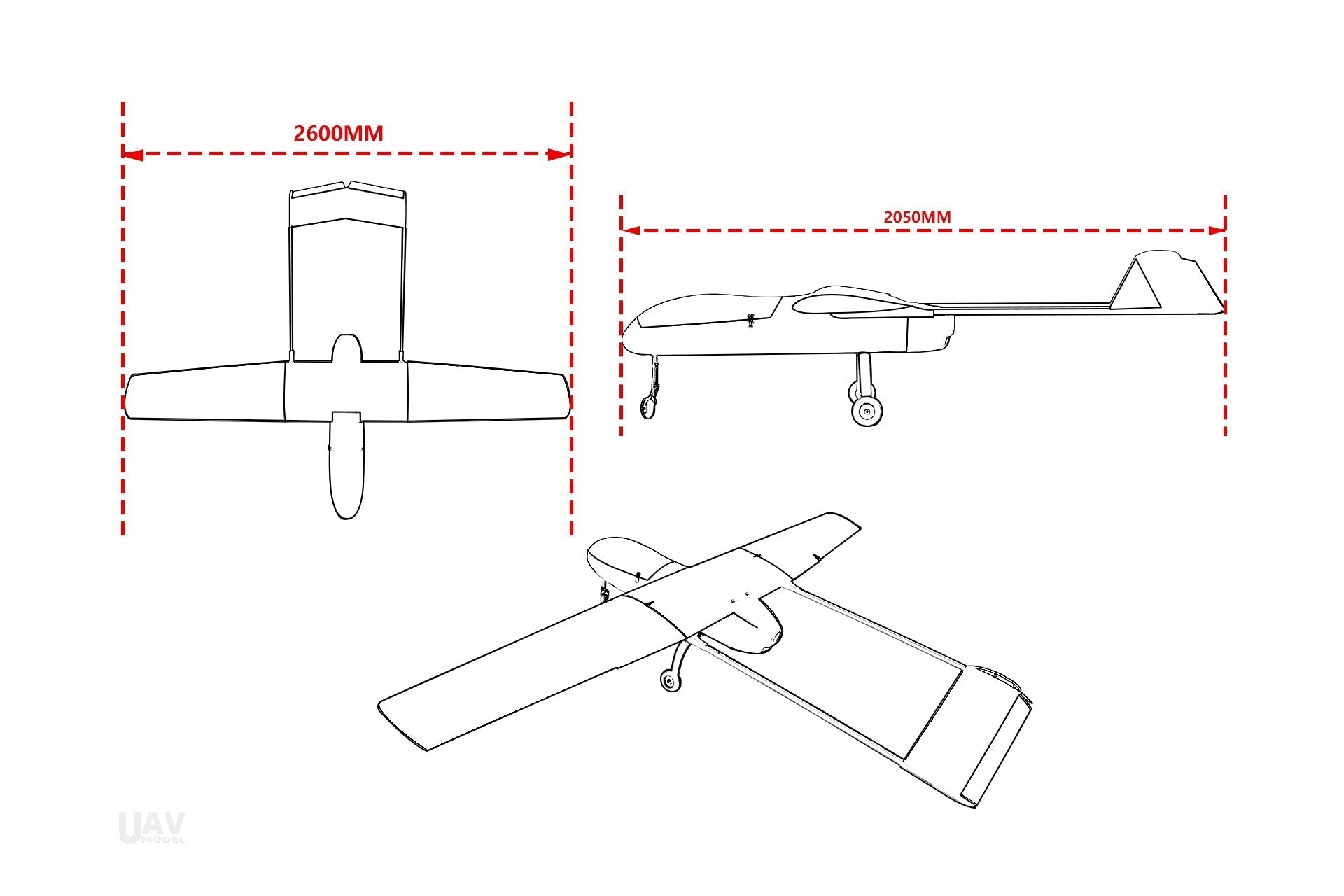

| Wingspan | 2600 mm (2.6 m) |
| Aircraft Length | 2050 mm |
| Wing Area | 88 dm² |
| Payload Bay Dimensions (L×W×H) | 560 mm × 220 mm × 220 mm |
| Empty Weight | 8 kg |
| Maximum Payload Capacity | 4 kg |
| Maximum Takeoff Weight (MTOW) | 15 kg |
| Cruising Speed | 30 m/s (approx. 108 km/h) |
| Maximum Speed | 33 m/s (approx. 118.8 km/h) |
| Stall Speed | 24 m/s (approx. 86.4 km/h) |
| Maximum Flight Time | Up to 2 Hours |
| Recommended Power Supply | 22.2V (6S LiPo / Li-ion Battery) |

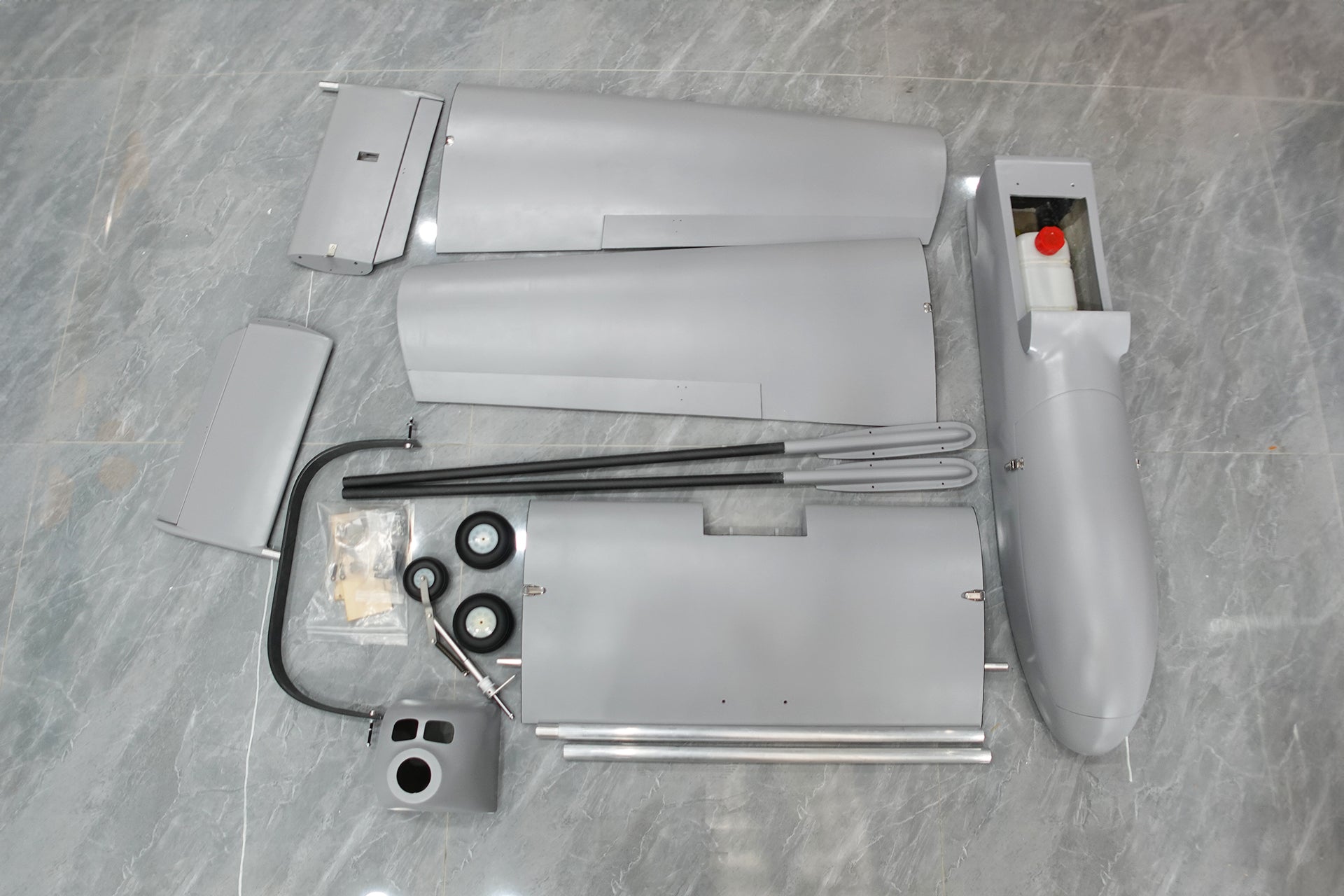

Package Contents: KIT vs. PNP Configuration
| Component Description | KIT Version | PNP(M) Version |
|---|---|---|
| Flying Airframe Platform | ||
| SR260 Outer Wings | 2 Pcs | 2 Pcs |
| SR260 Mid-Wing Section | 1 Pc | 1 Pc |
| SR260 Mainframe Fuselage | 1 Pc | 1 Pc |

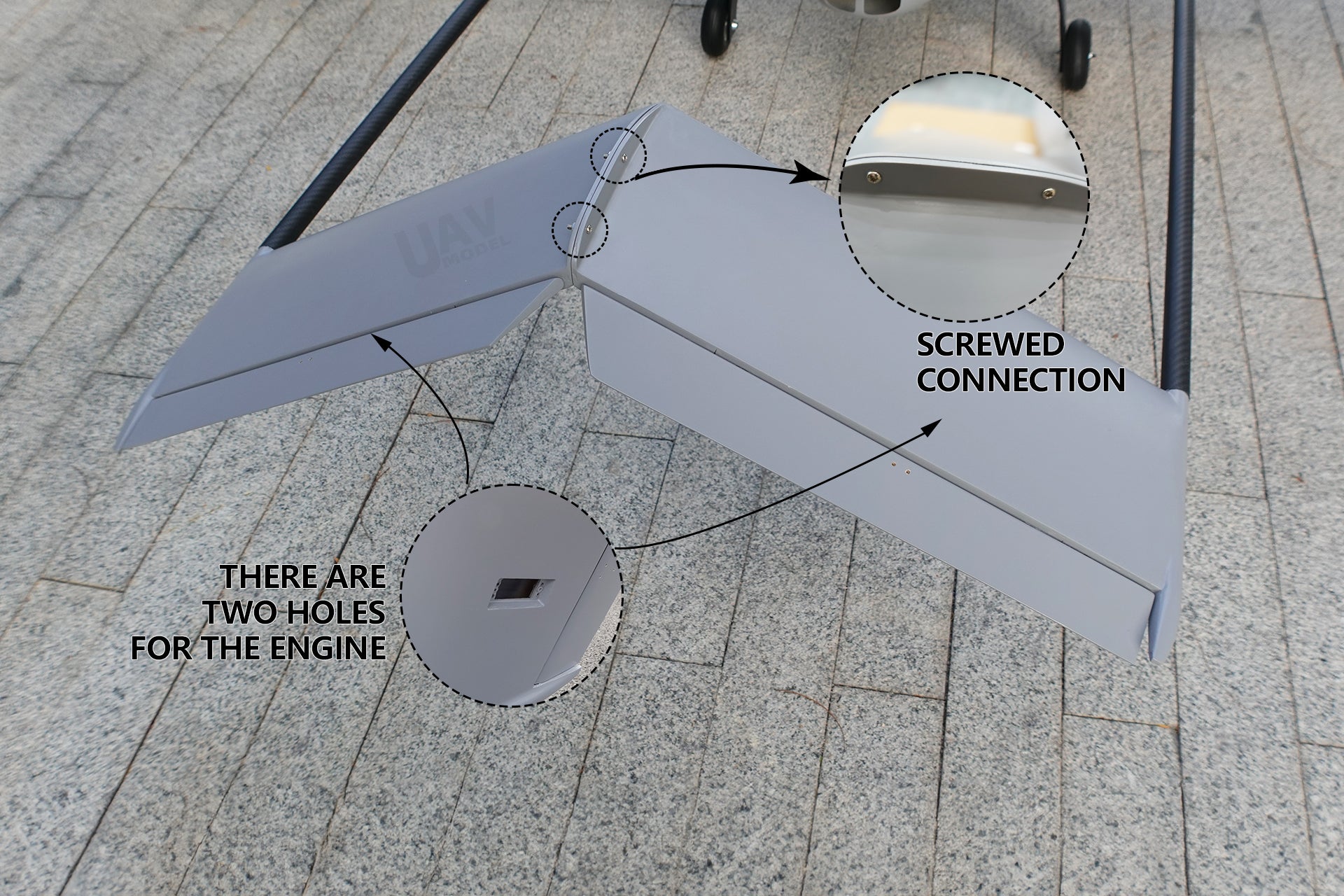

| SR260 V-Tail Surfaces | 2 Pcs | 2 Pcs |

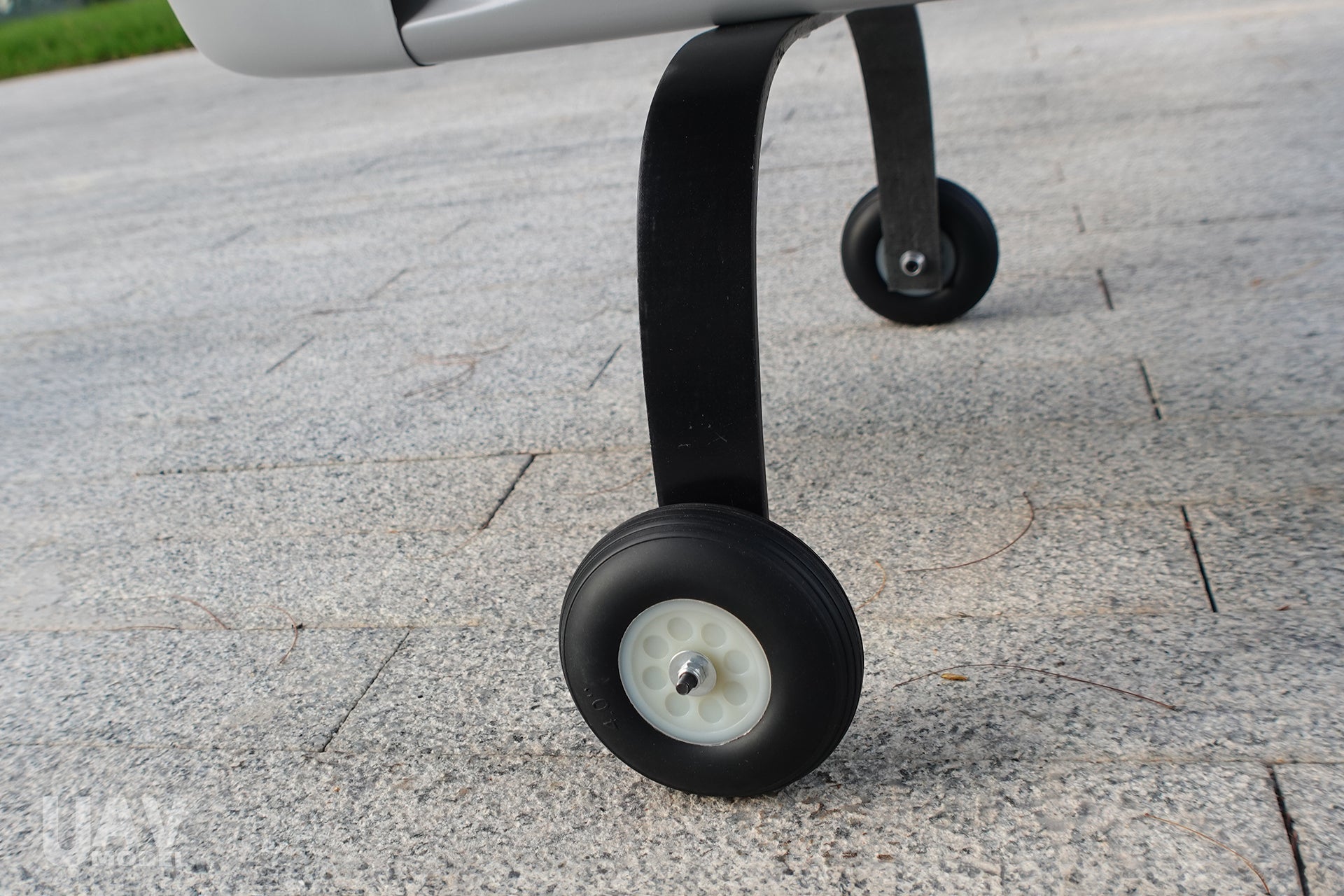

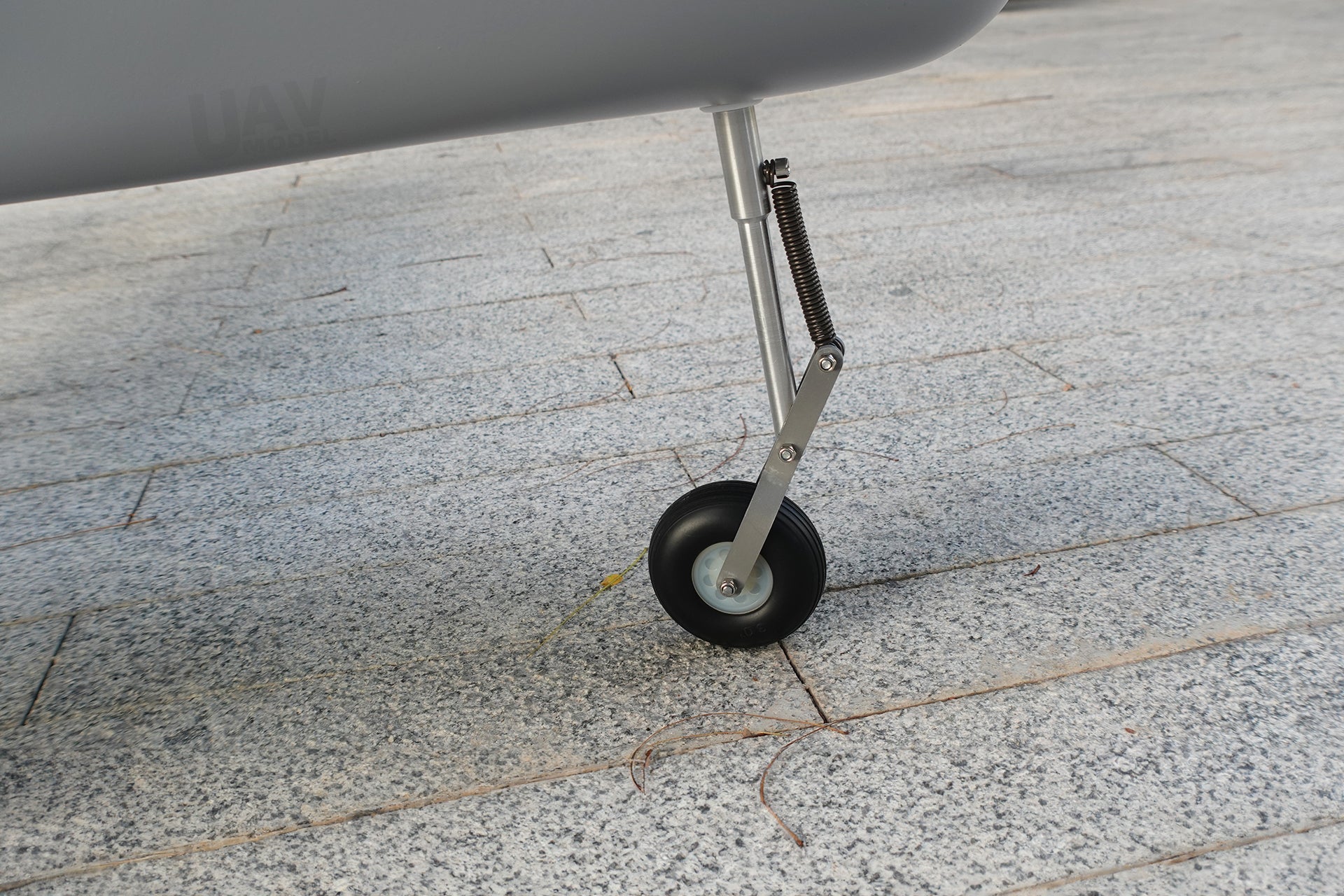

| SR260 Landing Gear Assembly | 1 Set | 1 Set |
| SR260 V-Tail Struts | 2 Pcs | 2 Pcs |
| SR260 Engine Cowling | 1 Pc | 1 Pc |
| Power & Hardware Package | ||
| Tailtrust Motor | — | 1 Pc |
| Tailtrust ESC (Electronic Speed Controller) | — | 1 Pc |
| Tailtrust Pusher Propeller | — | 1 Pc |
| Control Servos | — | 5 Pcs |
| Airspeed Pitot Tube | — | 1 Pc |
| Complete Hardware Parts Package | — | 1 Set |
Frequently Asked Questions (FAQ)
Q1: What payload equipment can be integrated into the Skyeye SR260?
The Skyeye SR260 features a spacious 560×220×220mm payload bay with a maximum lift capacity of 4kg. It easily integrates dual-light gimbal cameras, high-resolution oblique photography mapping sensors, LiDAR systems, multispectral cameras, or emergency delivery packages.
Q2: What is the difference between the KIT and PNP versions?
The KIT version includes the unpowered fiberglass airframe structure and landing gear, ideal for users who wish to customize their own propulsion and control hardware. The PNP(M) version comes pre-equipped with the pusher motor, matching ESC, propeller, 5 control servos, pitot tube, and full hardware assembly package.
Q3: What flight controller systems are compatible with this UAV platform?
The SR260 platform is fully open to open-source and commercial flight control systems, including Pixhawk, Cube Pilot, ArduPilot, PX4, and CUAV systems.
Q4: What battery configuration is recommended for optimal performance?
We recommend using a 22.2V 6S High-Capacity LiPo or 6S Li-ion battery pack tuned to your flight weight requirements to achieve the maximum 2-hour endurance capability.
