¥7,399.00
The Skyeye Mosquito-10 (SM200G) Delta-Wing Autonomous UAV Platform is a high-performance, gasoline-powered, long-endurance drone developed by SkyeyeUAV. Designed for long-range tactical reconnaissance, boundary patrol, and industrial payload transport, this platform combines the aerodynamic efficiency of a delta-wing structure with advanced autonomous flight capabilities. Powered by a 70cc gas engine with an integrated electric starter, the Mosquito-10 excels in long-duration flights, high-speed cruise operations, and extended coverage distances, delivering a highly reliable solution for complex commercial and industrial missions.
Key Features
- Long Endurance & High Speed: Equipped with a 70cc gas engine and a 16L fuel tank, the Mosquito-10 provides up to 10 hours of continuous flight endurance with a maximum speed of 150 km/h and an operational range exceeding 1000 km.
- Heavy Payload Capacity: Designed with a 35 kg Maximum Takeoff Weight (MTOW) and a 13 kg empty weight, it effortlessly carries up to 10 kg of optical sensors, radar, or cargo payloads.
- Fully Autonomous Flight: Integrated with a triple-redundant flight control and navigation system, the Mosquito-10 executes fully autonomous mission cycles—including vehicle-mounted takeoff, waypoints loitering, flight mode transitions, and precision landing.
- Precision Mission Loitering: Engineered for high-precision surveillance, mapping, and long-range monitoring, the platform can hover over targeted grid areas to provide continuous real-time data feedback and enhanced situational awareness.
- Cost-Effective & Portable Deployment: Requires no heavy catapults or launch ramps. Its compact, modular delta/folding wing structure significantly lowers transport overhead and enables quick, efficient field setup.
描述

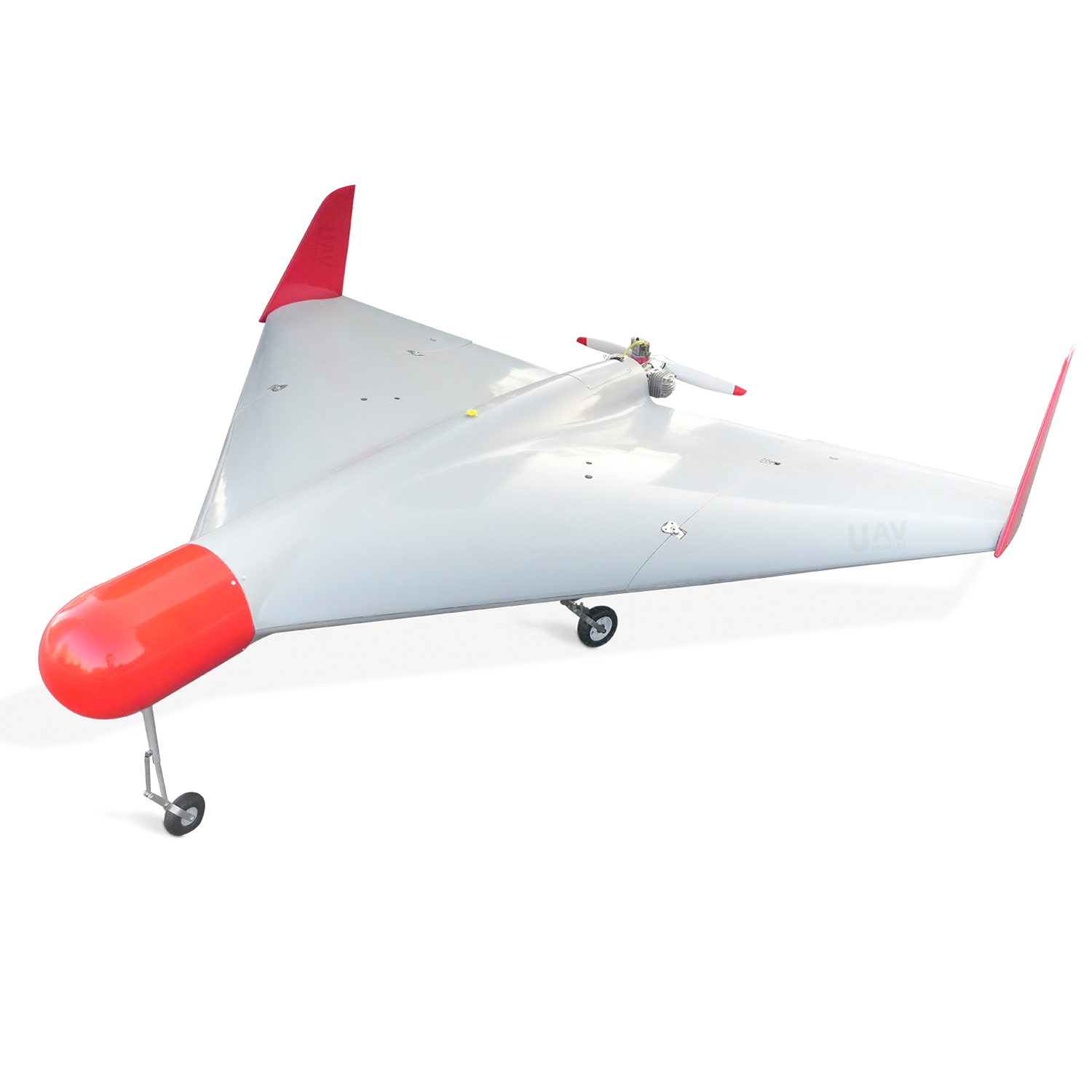

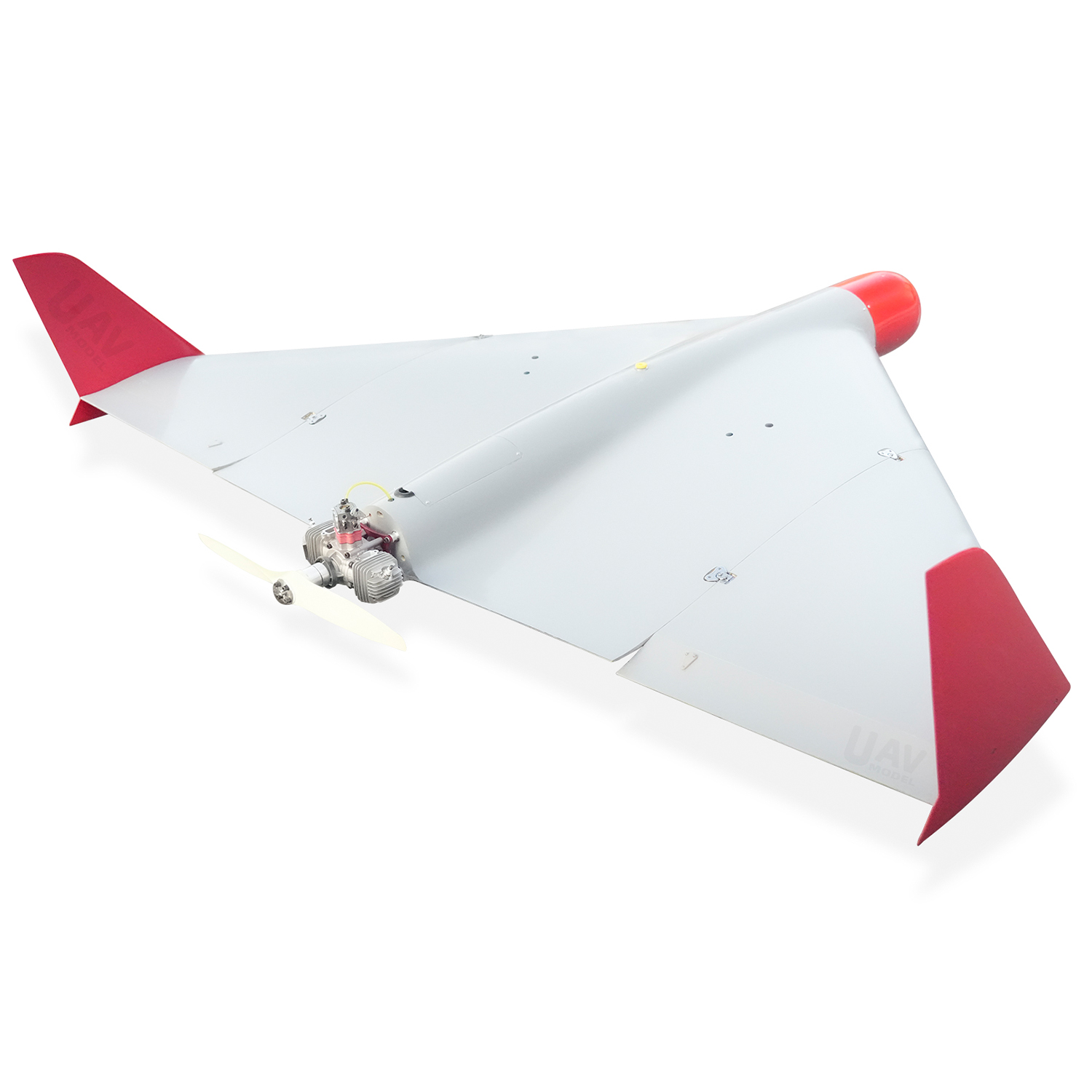

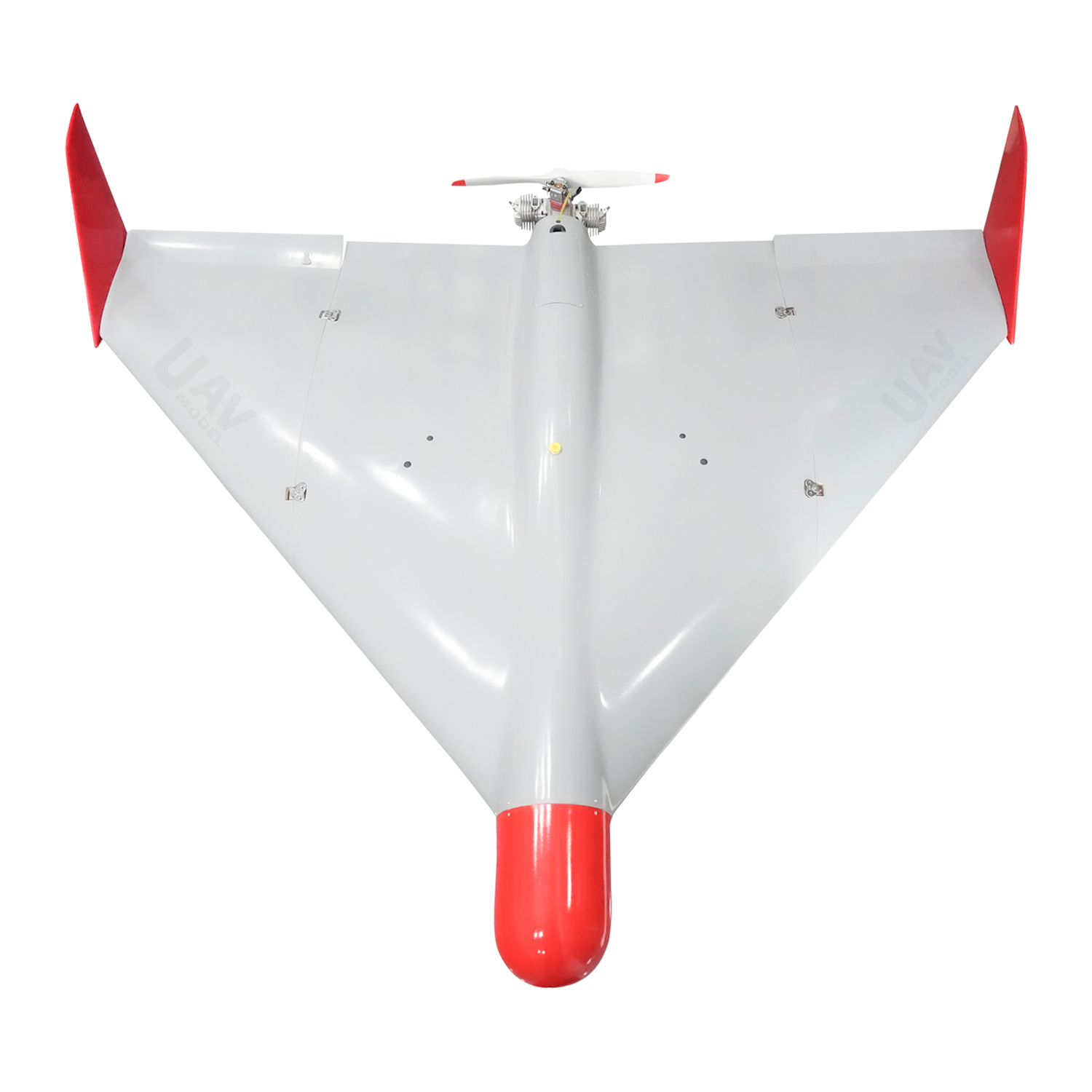

Skyeye Mosquito-10 (SM200G)
Delta Fixed-Wing Autonomous UAV Platform
Model: Mosquito-10 (SM200G)
Web: WWW.SKYEYEUAV.COM
The Skyeye Mosquito-10 (SM200G) is a high-performance delta fixed-wing UAV platform designed for long-range tactical missions, autonomous surveillance, and specialized payload delivery[cite: 2]. Powered by an upgraded 70cc gas engine with electric starter, this industrial drone offers an extraordinary 10-hour flight endurance, speeds up to 150 km/h, and a flight range exceeding 1000 km[cite: 1, 2]. Its modular delta-wing design allows effortless transport and quick field assembly without requiring complex launch systems[cite: 2].
⚙️ Engine: 70cc Gas (Electric Start)[cite: 2]
📦 Payload: 10 kg Payload Capacity[cite: 1, 2]
⏱️ Endurance: 10 Hours Max Flight Time[cite: 1, 2]
🌐 Range: > 1000 km Flight Distance[cite: 1, 2]
System & Flight Control Overview
Engine Upgrade: 70cc Gas Engine with Electric Starter Included
Flight Control Details: Features customizable formation networks (up to 100 aircraft), real-time communication, multiple standby leader-aircraft, high-precision positioning, a triple-redundant navigation system, emergency protection mechanisms, vehicle-mounted autonomous takeoff and landing, flight route recording, and pre-flight inspections via ground station software. Native integration with delta fixed-wing UAV configurations.
Kit / PNP Configuration Matrix
| Item | Specification | KIT | PNP |
|---|---|---|---|
| Flying Platform | Mosquito-10 Fixed-Wing Airframe & Hardware Kit | ✓ | ✓ |
| Power System | 70cc Gas Engine (incl. Electric Starter) | – | ✓ |
| Servo | High-Torque Digital Servos (4 pcs) | – | ✓ |
| Propeller | High-Power Pusher Propeller (20*12) | – | ✓ |
| Build Kit | Hardware, Fuel Tank & Mounting Accessories | ✓ | ✓ |
Technical Specifications & Parameters
| Model Name | Mosquito-10 (SM200G) |
| Wingspan | 2000 mm |
| Aircraft Length | 1650 mm |
| Engine | 70 cc |
| Fuel Tank Capacity | 16 L |
| Payload Capacity | 10 kg |
| Takeoff Weight (MTOW) | 35 kg |
| Empty Weight | 13 kg |
| Flight Altitude | 2000 m |
| Flight Endurance | 10 hours |
| Maximum Flight Speed | 150 km/h |
| Flight Range | > 1000 km |
Packaging Specifications
Folding Wing Configuration
Packing Size: 1660 × 1123 × 350 mm
Gross Weight: 31.3 kg
Delta Wing Configuration
Packing Size: 2060 × 1075 × 275 mm
Gross Weight: 34.6 kg
Key Capabilities & Features
Ultra Long Endurance & High Speed
Provides up to 10 hours flight endurance with speeds up to 150 km/h, achieving long-range operational coverage beyond 1000 km[cite: 1, 2].
Fully Autonomous Mission Execution
Advanced flight control avionics enable complete autonomous flight—from vehicle-mounted takeoff to waypoint navigation, mode switching, and landing[cite: 2].
Precision Target Loitering
Engineered for tactical reconnaissance and long-range surveillance missions, featuring high-precision target loitering capabilities[cite: 2].
Cost-Effective & Portable Deployment
Eliminates requirements for heavy launching equipment. Features a compact modular delta/folding wing structure for quick field setup and logistics[cite: 2].
Export License Compliance: The estimated lead time for Dual-Use Item Export License application and drone production is 45 to 60 days.
Custom Logistics: For orders exceeding standard website shipping weight thresholds, please consult sales customer service for customized freight solutions.
Made-to-Order Terms: Production begins immediately upon order confirmation. Due to customization, orders become legally binding with no cancellations or refunds.
