¥5,300.00
The SKY360 3600mm H-Tail UAV Platform is a highly versatile airframe tailored for professional use. With a wingspan of 3600mm and length of 2450mm, it boasts exceptional aerodynamic capabilities. Its H-Tail design adds to its stability and control, making it suitable for various aerial tasks such as surveillance, mapping, and scientific research. Rather than pre-equipped models, the SKY360 3600mm comes as an empty airframe, providing the opportunity for customization. It can be powered by engines between 50-80cc, making it suitable for specific needs. The airframe is optimized for both short-field operations with a takeoff distance of just 50 meters, as well as long-endurance missions. Professionals have the option to select between electric or gasoline power packages, which must be purchased separately. The UAV airframe is designed to accommodate advanced ignition systems and carburetors, ensuring reliable and efficient operation. Overall, the SKY360
The page shows the price of the KIT (excluding any power equipment).
| Specification | Price |
| KIT | $5,300.00 |
| PNP | $9,399.00 |
| Power Pack | $4,099.00 |
Specifications:
- Wingspan: 3600
- Length: 2488mm
- Internal cabin: 560x260x270mm
- Wing Area: 133 dm²
- Max. Payload: 8 kg
- Empty Weight: 11.5 kg
- Max.Takeoff Weight: 28 kg
- Max. Flight Time: 4.5 hours
- Minimum Speed: 45 km/h
- Fuel tank: 11.5 liters
Description

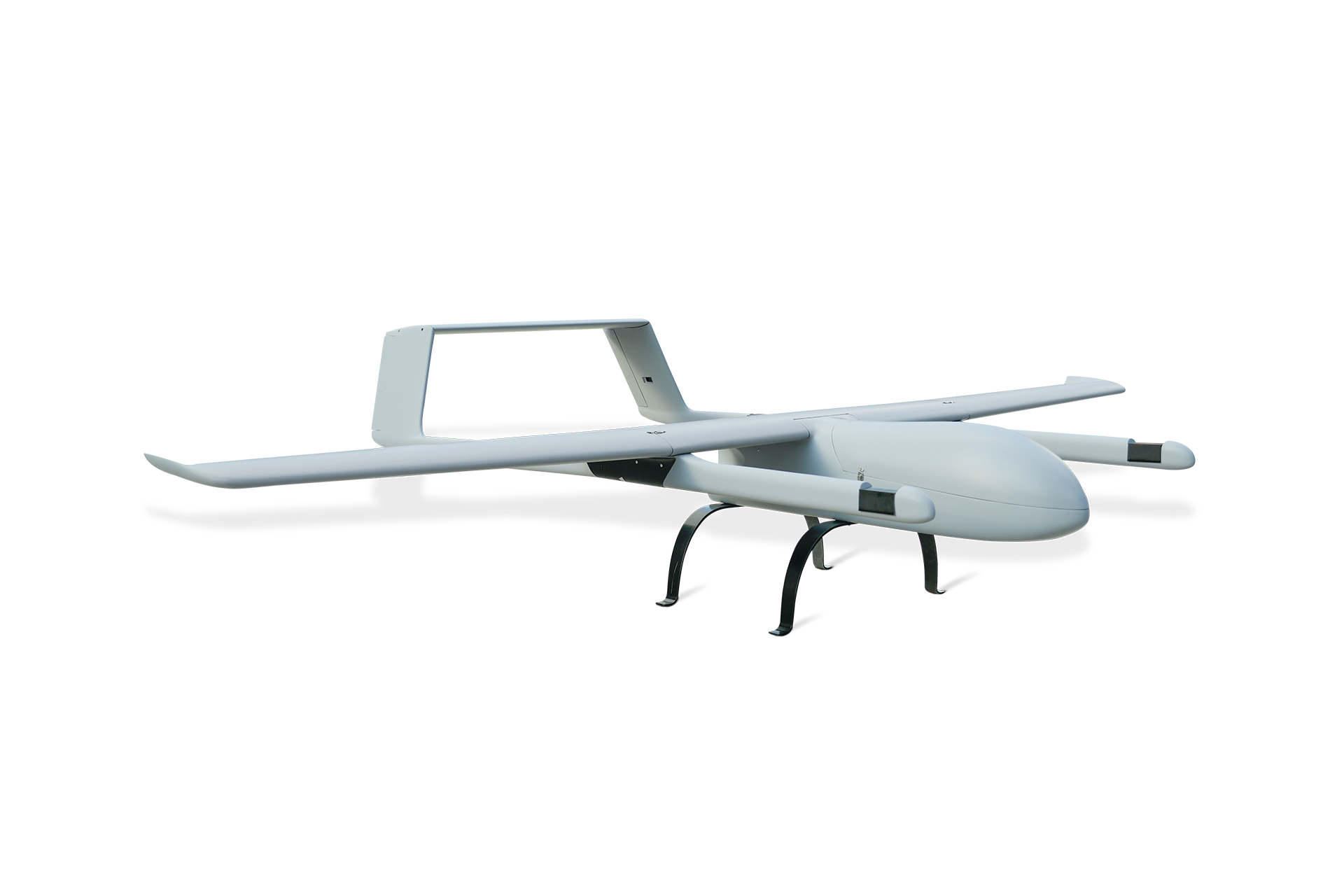

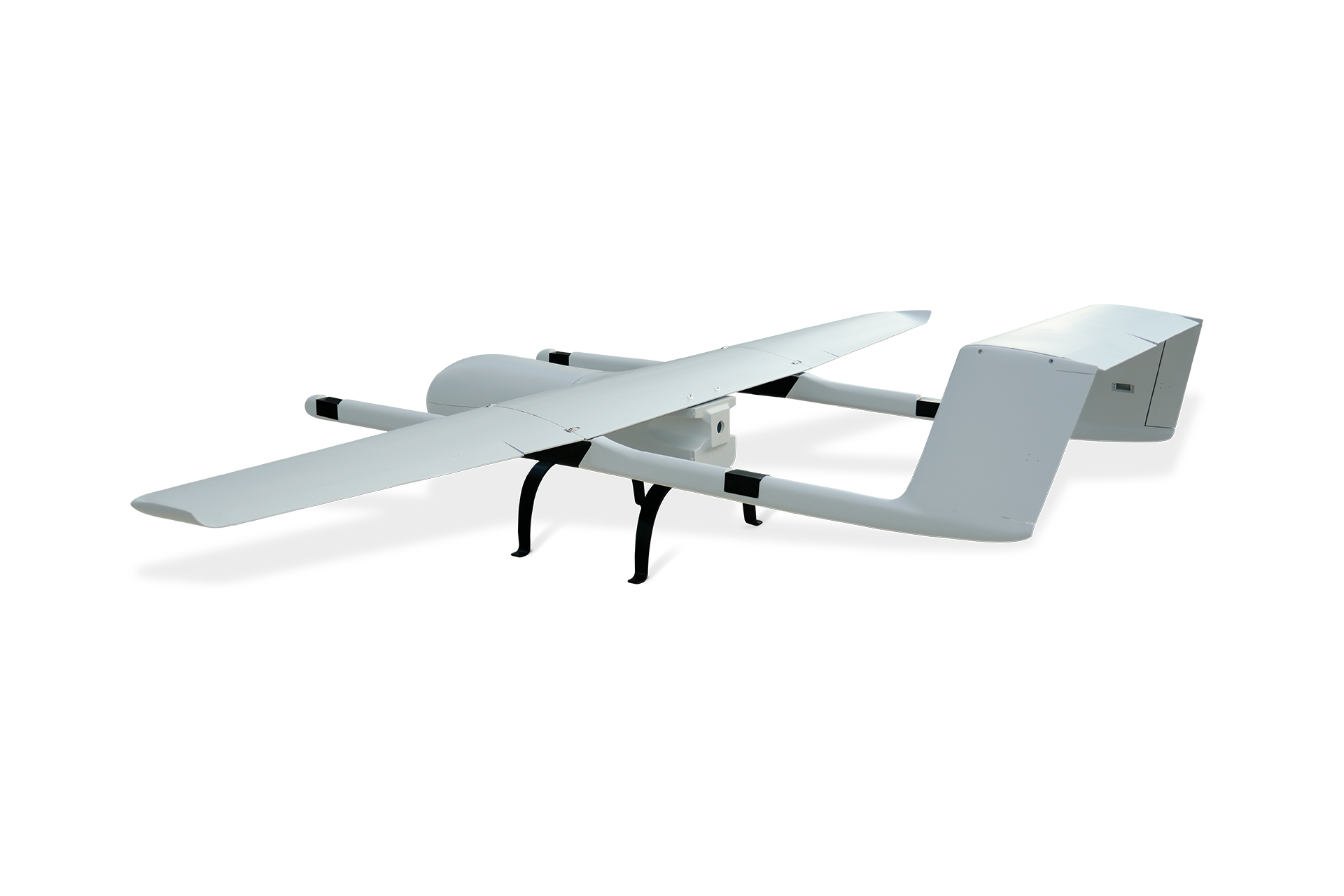

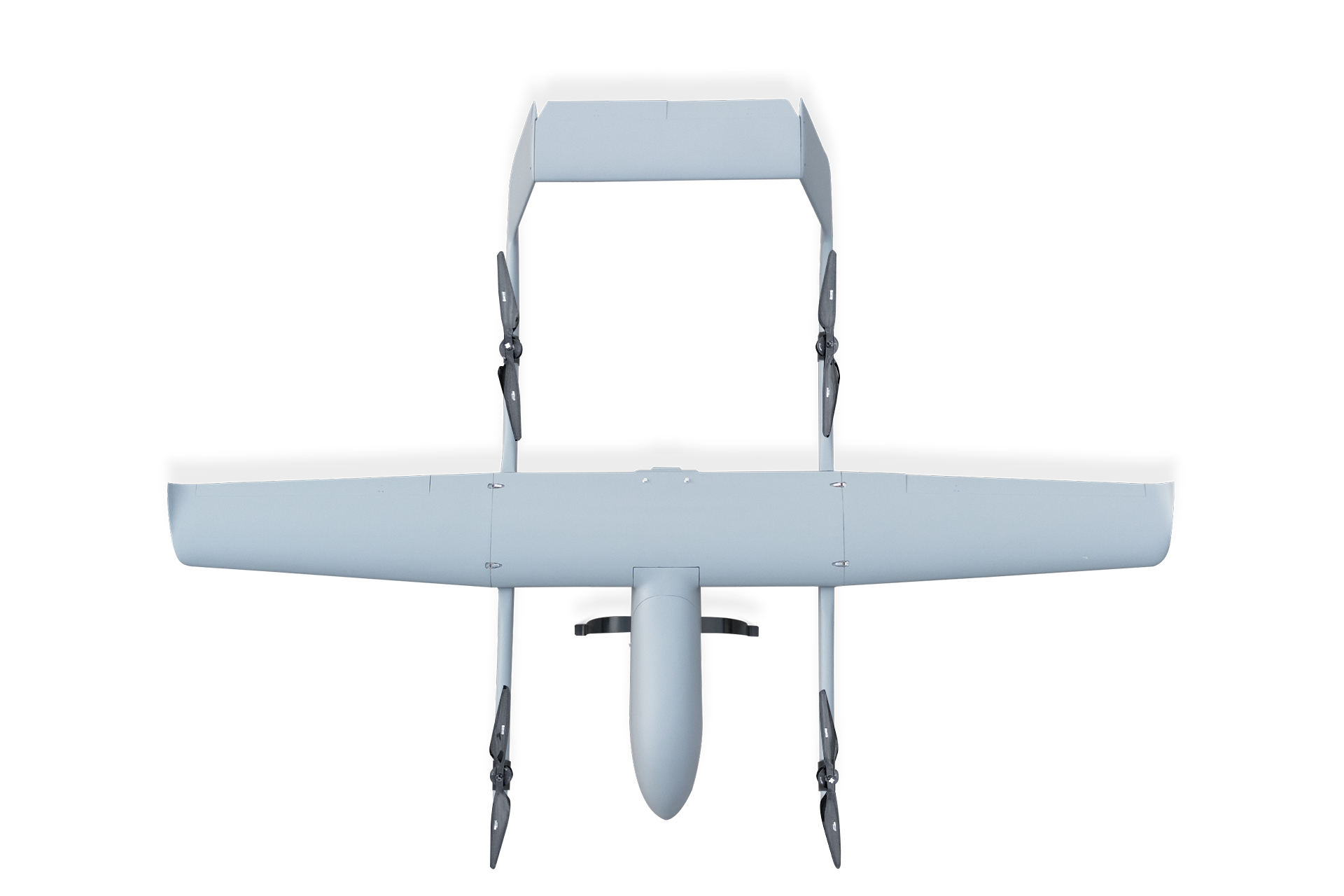

The Skyeye SVH360 is an advanced aircraft with VTOL capabilities, making it capable of vertical take-off, hovering, and landing. This platform is ideal for larger UAS projects, including those involving universities or commercial use. With its versatile payload configurations, the Skyeye SVH360 offers extended flight times for a variety of purposes.
| Skyeye SVH360VTOL | ||||
| Name | Specification | KIT | PNP(E) | PNP(M) |
| Flying platform | SVH360 outer wing | 2 | 2 | 2 |
| SVH360 mid-wing | 1 | 1 | 1 | |
| SVH360 mainframe | 1 | 1 | 1 | |
| SVH360 support mast (including vertical stabilizer) | 2 | 2 | 2 | |
| SVH360 landing gear | 2 | 2 | 2 | |
| SVH360 horizontal stabilizer | 1 | 1 | 1 | |
| SVH360 fuel tank | 1 | 1 | ||
| SVH360 engine cowling | 1 | 1 | 1 | |
| Power system(Engine) | Tailthrust engine | 1 | ||
| Tailthrust propeller blades | 1 | |||
| VTOL motor | 4 | |||
| VTOL ESC | 4 | |||
| VTOL propeller blades | 2 | |||
| Servos | 7 | |||
| Pitot | 1 | |||
| Parts package | 1 | |||
| Power system(Motor) | Tailthrust motor | 1 | ||
| Tailthrust ESC | 1 | |||
| Tailthrust propeller blades | 1 | |||
| VTOL motor | 4 | |||
| VTOL ESC | 4 | |||
| VTOL propeller blades | 2 | |||
| Servos | 6 | |||
| Pitot | 1 | |||
| Parts package | 1 | |||
| PARAMETER | ||
| Specifications | Material | Glass fiber |
| Wingspan | 3600mm | |
| Length | 2420mm | |
| Payload bay dimensions | 560mm*260mm*270mm(L*W*H) | |
| Wing area | 132dm2 | |
| Empty weight | 16kg | |
| Payload capacity | 8KG | |
| Maximum takeoff weight | 40KG | |
| Fuel tanks | 8L | |
| Performance Characteristics | Cruising speed | 30m/s |
| Maximum speed | 35m/s | |
| Stall speed | 24m/s | |
| Maximum flight time | 6 Hours | |
Information Updated version:202507211447
You can also use aluminum box packaging, please consult our sales for details.
Customized aluminum box, contact customer service before customization, product price is an aluminum box price;
The aluminum box is a custom product, the order will be made after payment, and no refund will be accepted.
Made-to-order products: Once a customer submits an order, the product will immediately go into production. Given its customized nature and the immediacy of production, such orders become binding upon confirmation and no refunds will be accepted.
