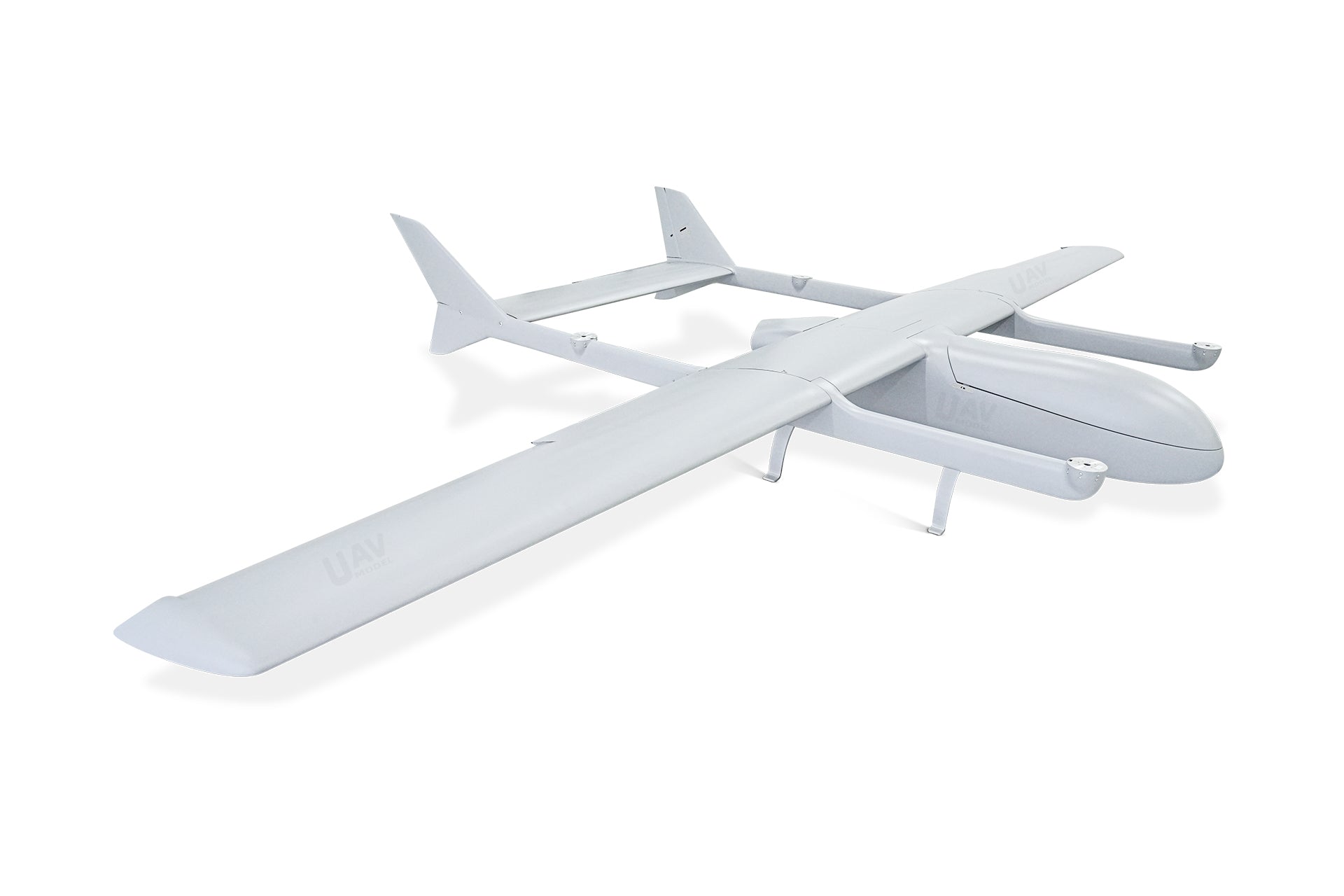

Skyeye UAV Large SVC600 VTOL drone engine with white fixed-wing design and dual tail booms.

1/16

Skyeye 6000mm Long Range VTOL UAV Platform | 25kg Payload Heavy Lift Drone

SVC600-KR

The Skyeye 6000mm Long Range VTOL UAV Platform is an industrial heavy-lift fixed-wing drone engineered for long-range surveillance, mapping, and emergency cargo missions. Built with high-strength carbon fiber composite materials, it offers a massive 25kg payload capacity, a 27L fuel tank, a 600km operational range, and up to 7 hours of maximum flight time. Featuring a 6000mm wingspan, a large 920x340x350mm equipment bay, and rapid 15-minute field deployment, the Skyeye 6000mm is available in KIT or PNP configurations to meet demanding industrial and BVLOS flight operations.

✉️ Email Inquiry

Tags:

Skyeye 6000mm Long Range VTOL UAV Platform: Heavy-Lift Industrial Cargo & Surveillance Drone

25kg Payload Capacity | 600km Operational Range | Up to 7-Hour Extended Endurance

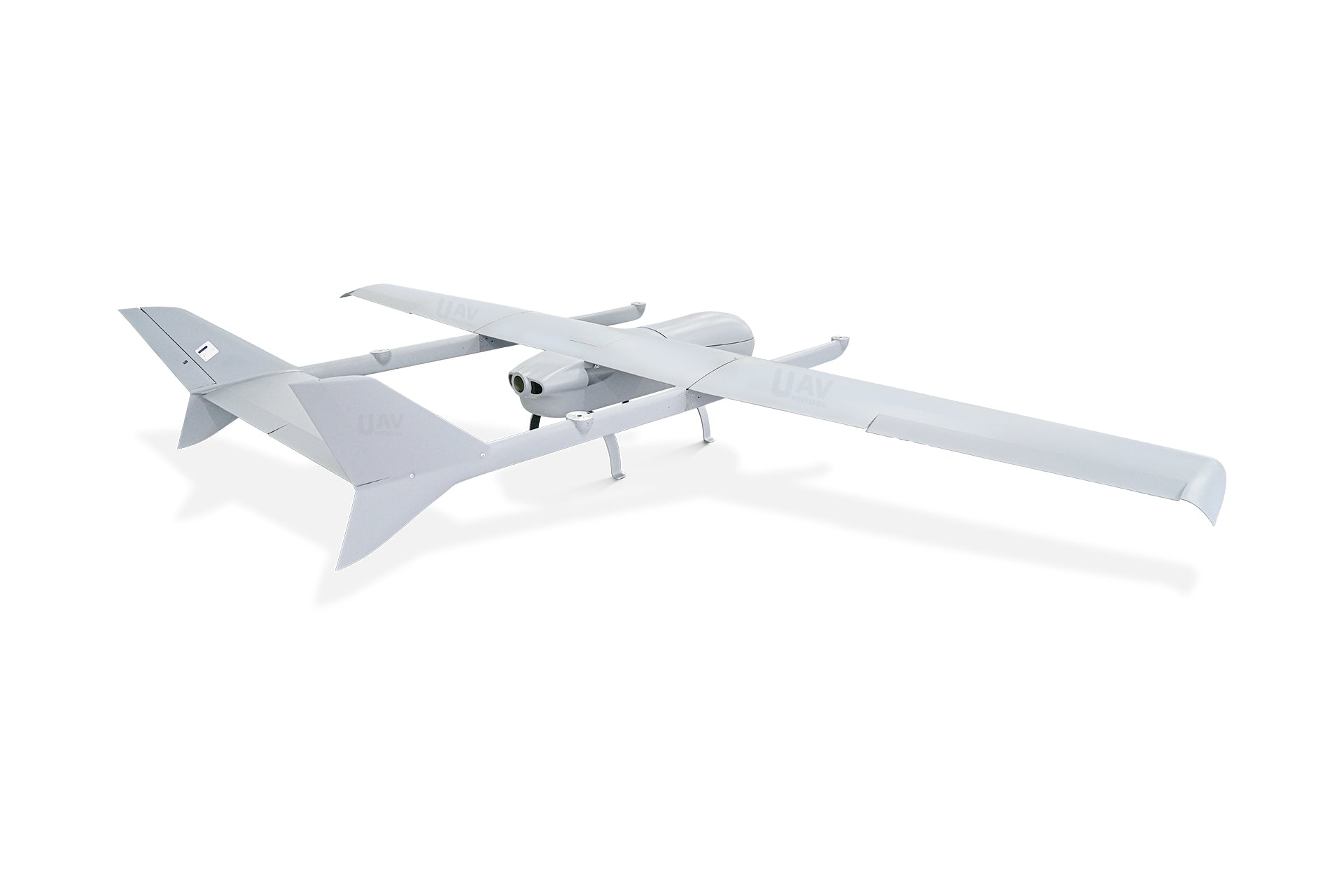

The Skyeye 6000mm Long Range VTOL UAV Platform represents the pinnacle of industrial fixed-wing vertical takeoff and landing (VTOL) engineering. Designed for long-range beyond visual line-of-sight (BVLOS) missions, this heavy-lift aerial workhorse combines the operational flexibility of a multirotor with the speed, efficiency, and range of a fixed-wing aircraft. Engineered with high-rigidity carbon fiber composite materials, the Skyeye 6000mm delivers unprecedented reliability for large-scale mapping, coastal surveillance, cargo delivery, and critical infrastructure inspection.

25kg Smart Heavy-Payload System

Featuring a massive 920mm x 340mm x 350mm dedicated equipment cabin, allowing integration of dual-sensor gimbals, LiDAR, hyperspectral cameras, or emergency logistics containers.

600km Extended Operational Range

Equipped with a high-capacity 27L fuel system and optimized aerodynamic airframe for maximum distance coverage and continuous long-distance missions.

Up to 7-Hour Maximum Endurance

Proven endurance capability engineered for relentless field operations, reducing operational downtime and maximizing area coverage per flight.

Core Engineering Innovations & Aerodynamic Architecture

Mission-Ready Carbon Fiber Airframe: Manufactured with premium carbon fiber to maximize structural strength while maintaining an ultra-light empty weight of 33kg. Built to withstand demanding environmental conditions.
Oversized 920mm³ Equipment Bay: Features integrated vibration damping mounts and an IP54-rated protective enclosure, shielding sensitive sensors and avionics from flight vibrations and weather elements.

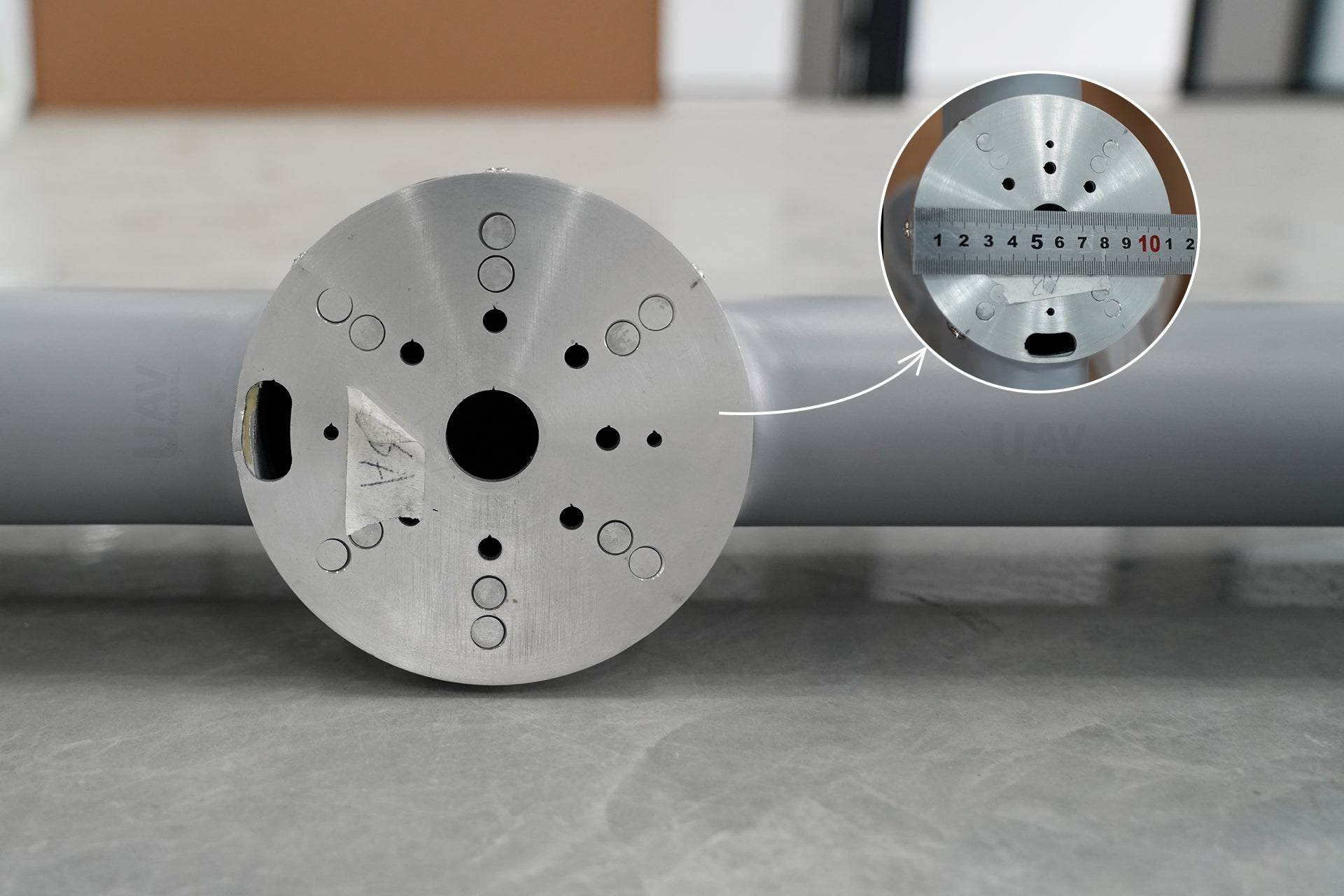

5° Offset VTOL Motor Configuration: Precision-angled motor mounts provide enhanced anti-torque performance and exceptional flight stability during critical vertical takeoff, landing, and hover-to-cruise transitions.

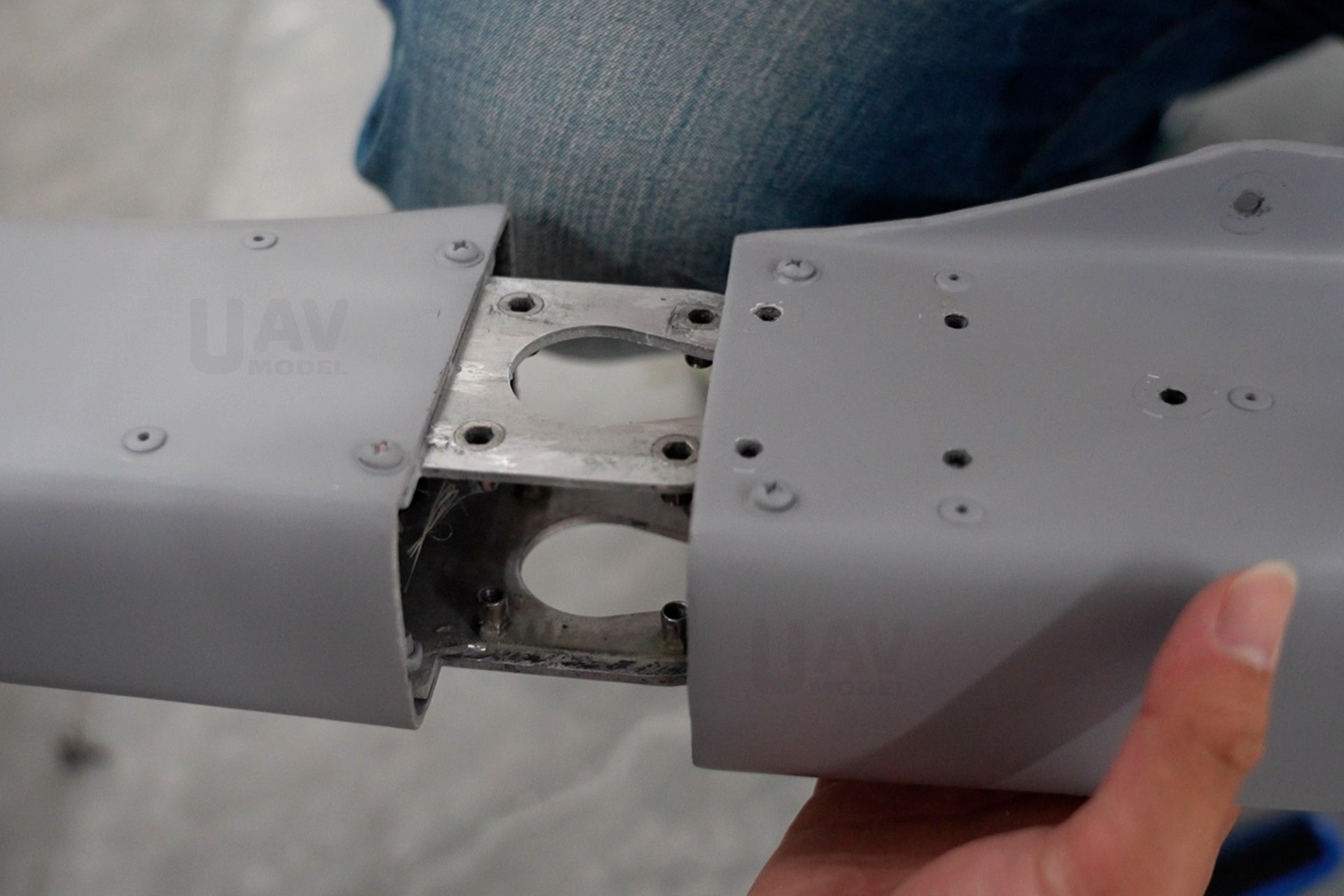

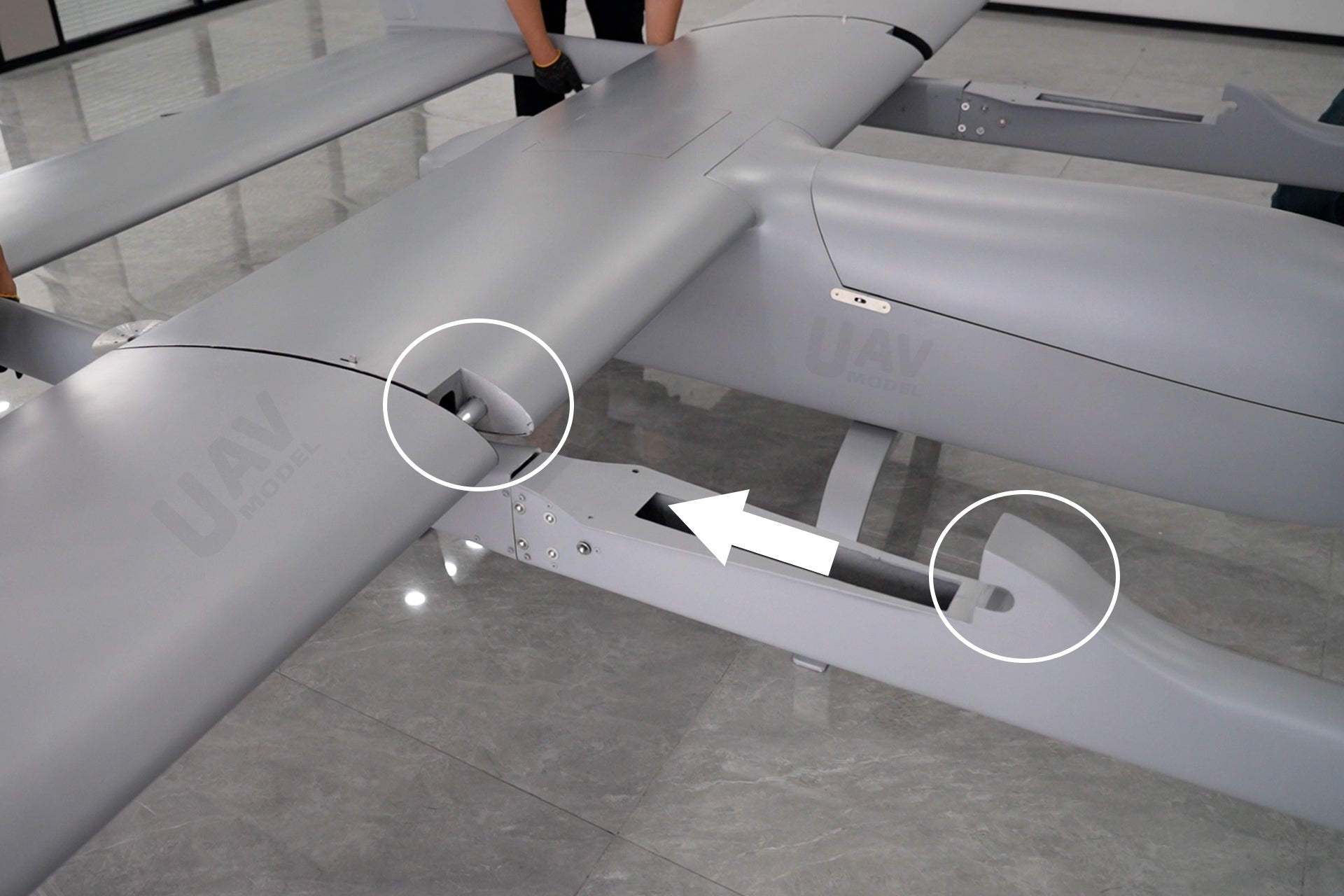

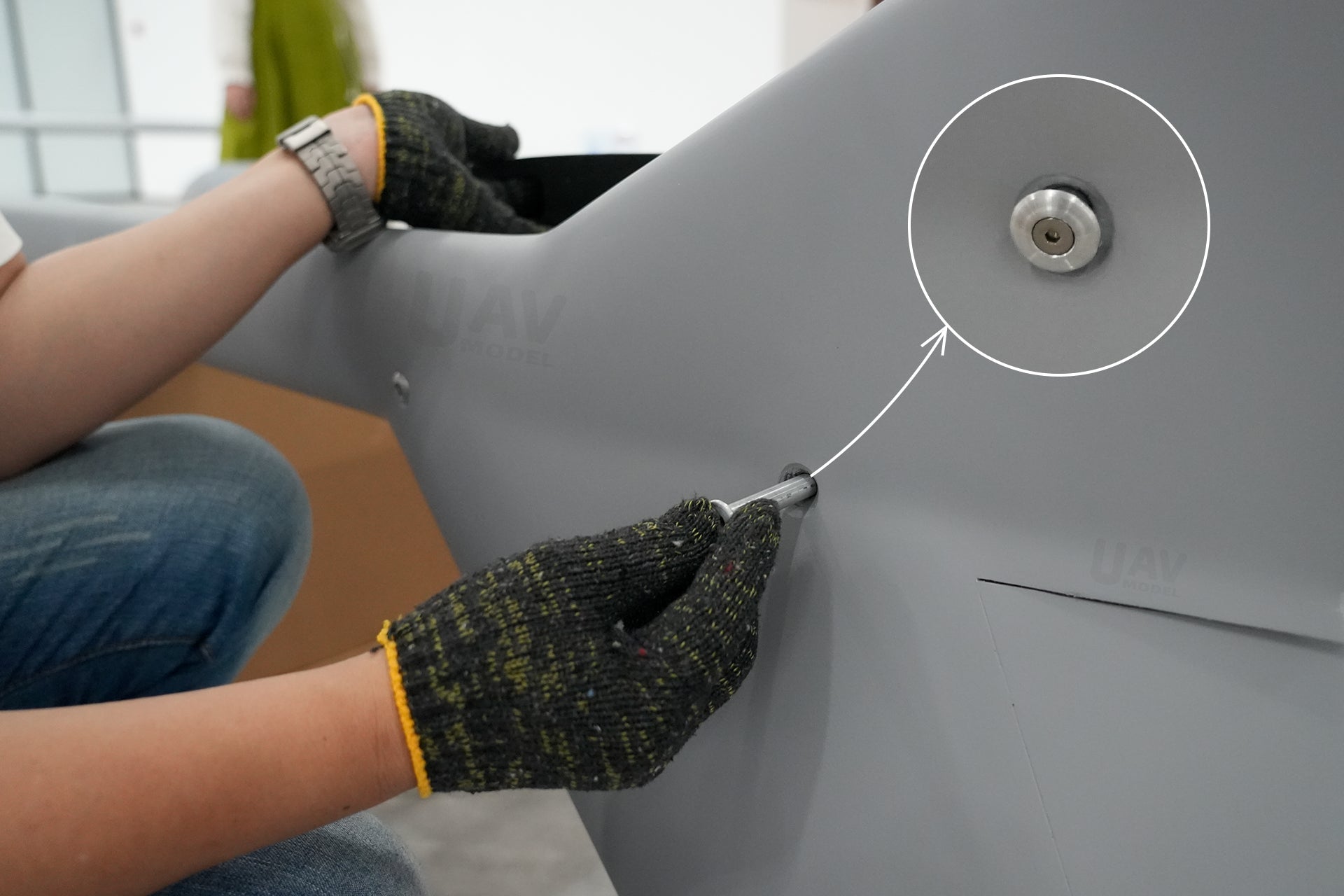

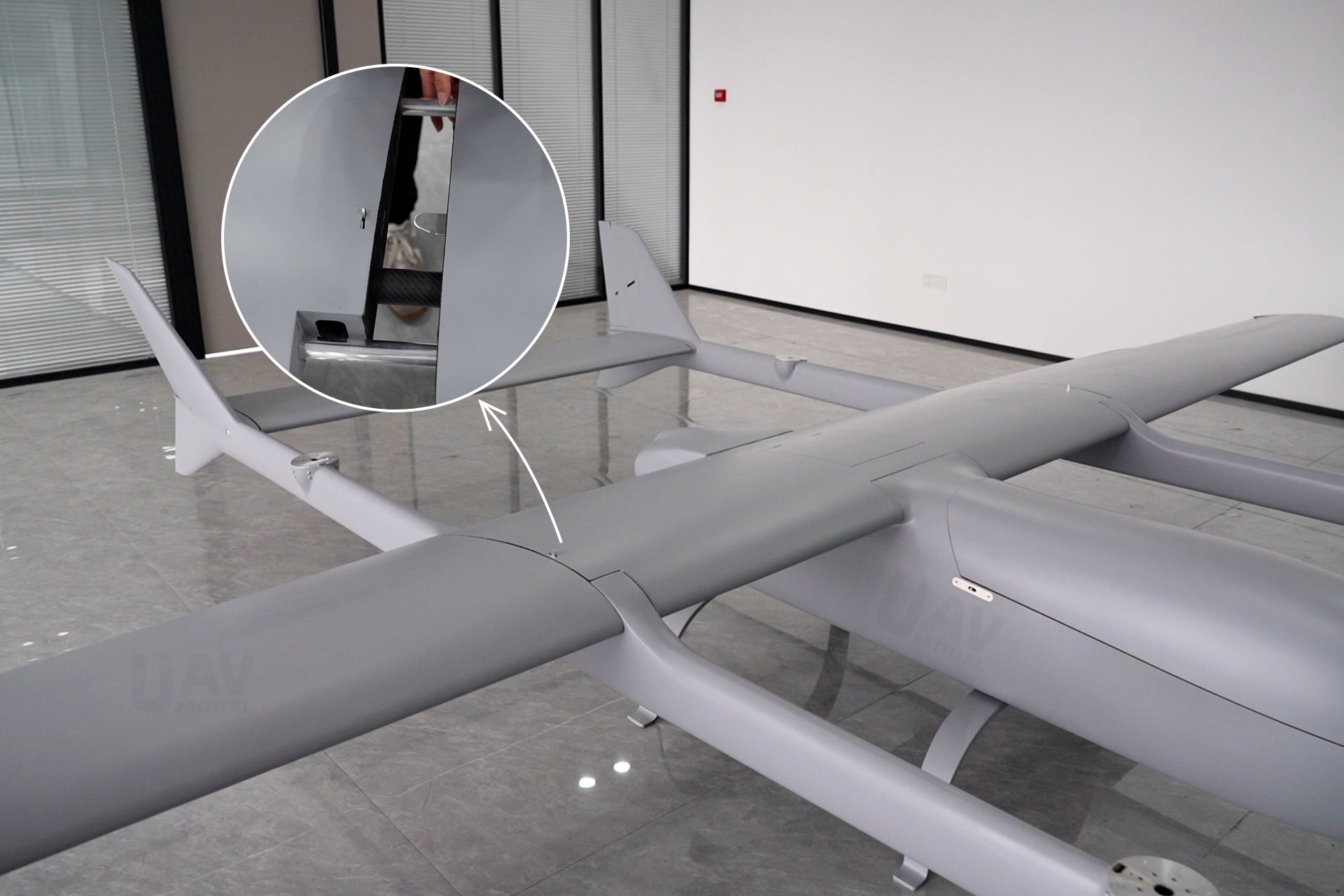

Quick-Deploy Modular Architecture: The 6000mm wingspan features a quick-assembly design that allows a two-person crew to field-assemble the drone in under 15 minutes without specialized tools.
BVLOS & SATCOM Capability: Pre-configured for advanced long-range datalinks and satellite communication systems, enabling real-time telemetric monitoring across extreme distances.

Industrial & Military-Grade Applications

Large-Scale Aerial Mapping & Surveying: Cover over 5,000 hectares in a single sortie with high-density LiDAR or photogrammetry payloads.
Border Patrol & Maritime Offshore Surveillance: Patrol up to a 600km radius for continuous coastal monitoring, search and rescue, and security operations.
Critical Infrastructure & Energy Inspection: Execute multi-hour continuous inspections for oil and gas pipelines, high-voltage power lines, and forestry management.
Emergency Logistics & Medical Payload Delivery: Transport urgent 25kg medical or emergency supplies to remote, disaster-stricken, or off-grid locations without requiring a runway.

Technical Specifications

SKYEYE 6000MM UAV SPECIFICATIONS
Material	Carbon Fiber Composite

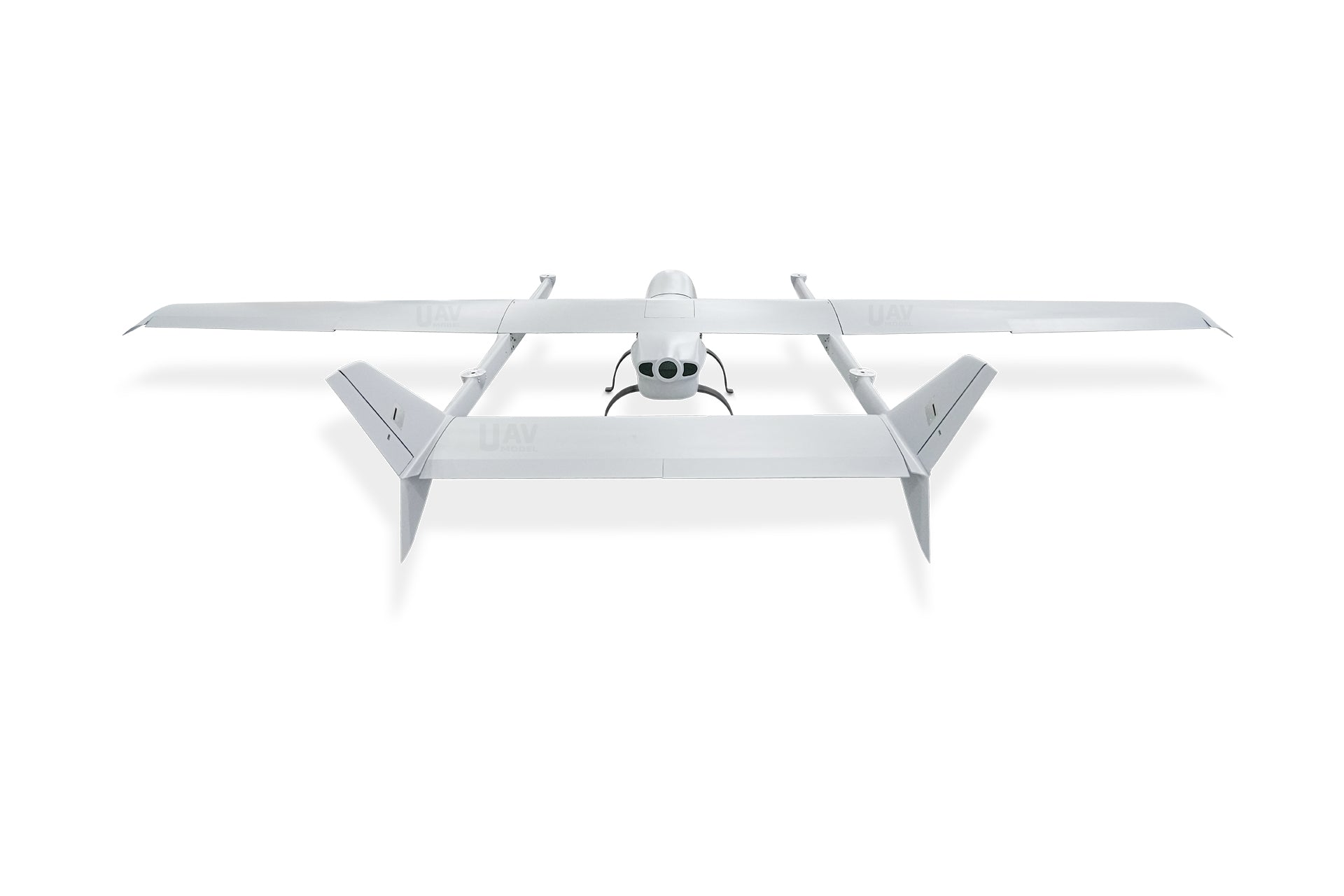

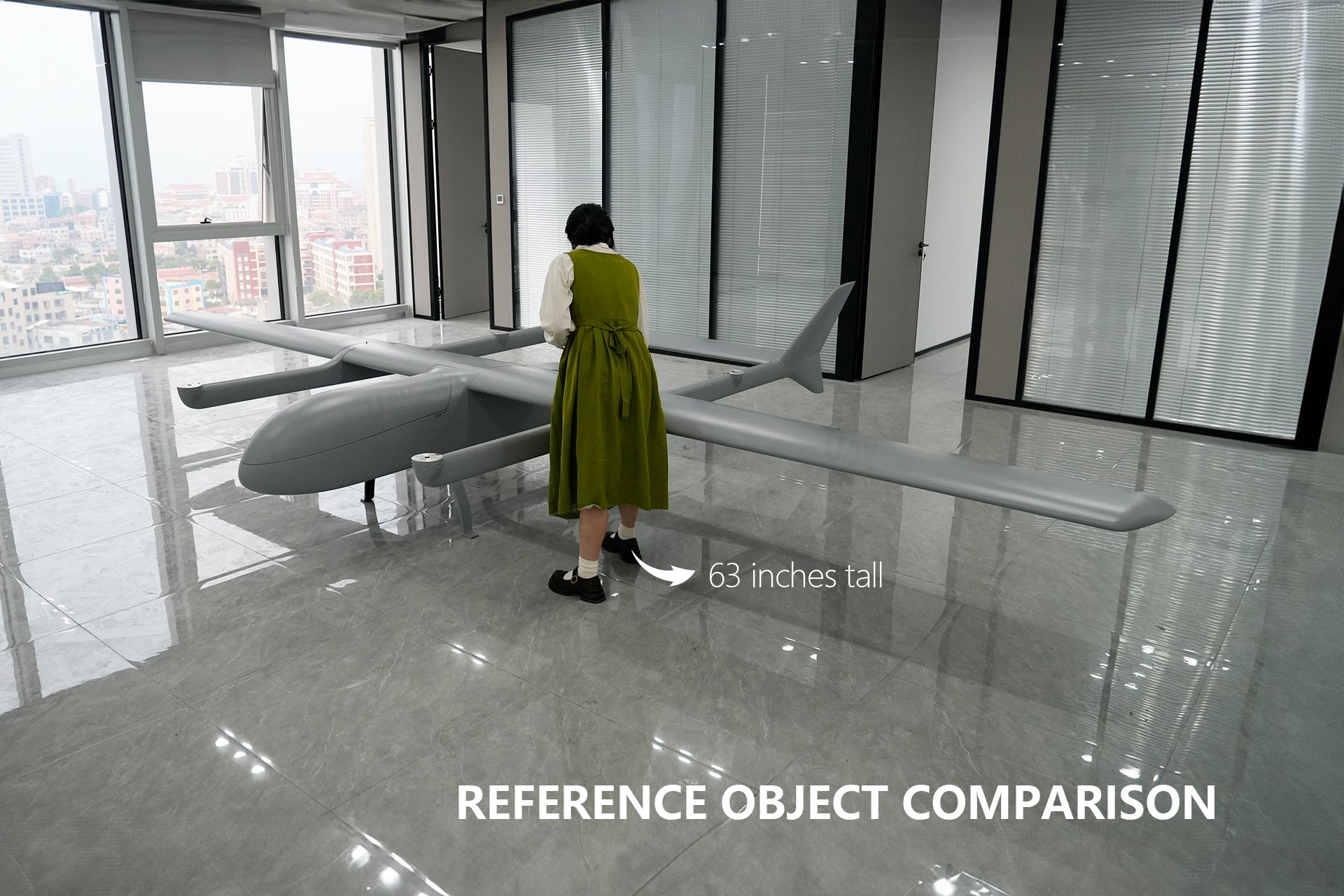

Wingspan	6000 mm
Length	3500 mm
Payload Bay Dimensions (L x W x H)	920 mm x 340 mm x 350 mm
Wing Area	312 dm²
Empty Weight	33 kg
Payload Capacity	25 kg
Maximum Takeoff Weight (MTOW)	110 kg
Fuel Tank Capacity	27 L
Cruising Speed	35 m/s
Maximum Speed	40 m/s
Stall Speed	24 m/s
Maximum Flight Time	Up to 7 Hours

Package Configuration Options (KIT vs. PNP)

Component Name	Specification Detail	KIT Quantity	PNP(E) Quantity
Flying Platform	SV600 Outer Wing	2	2
Flying Platform	SV600 Mid-Wing	1	1
Flying Platform	SV600 Mainframe	1	1
Flying Platform	SV600 Support Strut (incl. Vertical Stabilizer)	2	2
Flying Platform	SV600 Landing Gear	2	2
Flying Platform	SV600 Horizontal Stabilizer	1	1
Flying Platform	SV600 Fuel Tank	1	1
Flying Platform	SV600 Engine Cowling	1	1
Power System	Tail Thruster Engine	-	1
Power System	Tail Thruster Propeller	-	1
Power System	VTOL Motor	-	4
Power System	VTOL ESC	-	4
Power System	VTOL Propeller	-	2 (Pairs)
Power System	Servos	-	7
Power System	Pitometer (Airspeed Indicator)	-	1
Power System	Parts Packaging & Accessories	-	1

Power & Battery Setup Recommendation:

We recommend using 17x 6S 8000mAh or 10000mAh LiPo/LiIon batteries. Connect 4 batteries in series to form a 24S configuration. A total of 4 battery sets supply independent power to the 4 VTOL motors, while the remaining battery powers the pusher engine, avionics, and onboard electronic systems.

Note on Logistics: If your total order weight exceeds standard carrier thresholds, please contact our customer support team for customized freight optimization.

Frequently Asked Questions (FAQ)

Q: What makes the Skyeye 6000mm VTOL superior to standard fixed-wing drones?

A: The Skyeye 6000mm integrates vertical takeoff and landing (VTOL) capabilities with a long-range fixed-wing design. This eliminates the need for expensive runways or catapult launchers while providing a massive 25kg payload capacity and up to 7 hours of flight endurance.

Q: What payloads can be integrated into the equipment bay?

A: The generous 920mm x 340mm x 350mm cabin is designed to accommodate multi-sensor payloads including high-resolution RGB mapping cameras, LiDAR systems, hyperspectral sensors, dual thermal EO/IR gimbals, or cargo delivery drop mechanisms.

Q: What is the difference between the KIT and PNP versions?

A: The KIT version includes the complete carbon fiber composite airframe, fuel tank, and landing gear, ideal for custom propulsion integration. The PNP (Plug-and-Play) version comes pre-equipped with the tail thruster engine, VTOL motors, ESCs, propellers, servos, and pitometer.

Q: Can the Skyeye 6000mm operate autonomously over long distances?

A: Yes, when integrated with standard industrial flight controllers (such as Pixhawk/CubePilot or similar flight systems), the Skyeye 6000mm supports fully autonomous takeoff, waypoint navigation, mission execution, and landing via ground control stations.
