Product Description
Skyeye SVH360 VTOL Industrial Long-Range Carbon Fiber UAV Platform
Engineered for mission-critical operations, the Skyeye SVH360 VTOL combines the operational versatility of vertical takeoff and landing with the exceptional speed, efficiency, and range of a fixed-wing platform. Constructed entirely from premium carbon fiber, this industrial-grade UAV eliminates the necessity for traditional runways or specialized launch equipment, delivering unmatched reliability in remote and complex environments. Whether deployed for continuous aerial surveillance, large-scale mapping, or long-distance payload transport, the SVH360 sets a new benchmark for commercial flight performance.
Key Features & Performance Advantages
- Full Carbon Fiber Airframe: Crafted with high-rigidity carbon fiber for superior strength-to-weight ratio, ensuring structural integrity during heavy-payload missions and rough weather conditions.
- Extended Flight Endurance: Featuring an 8L integrated fuel tank and aerodynamic optimization to achieve an outstanding flight duration of up to 5 hours.

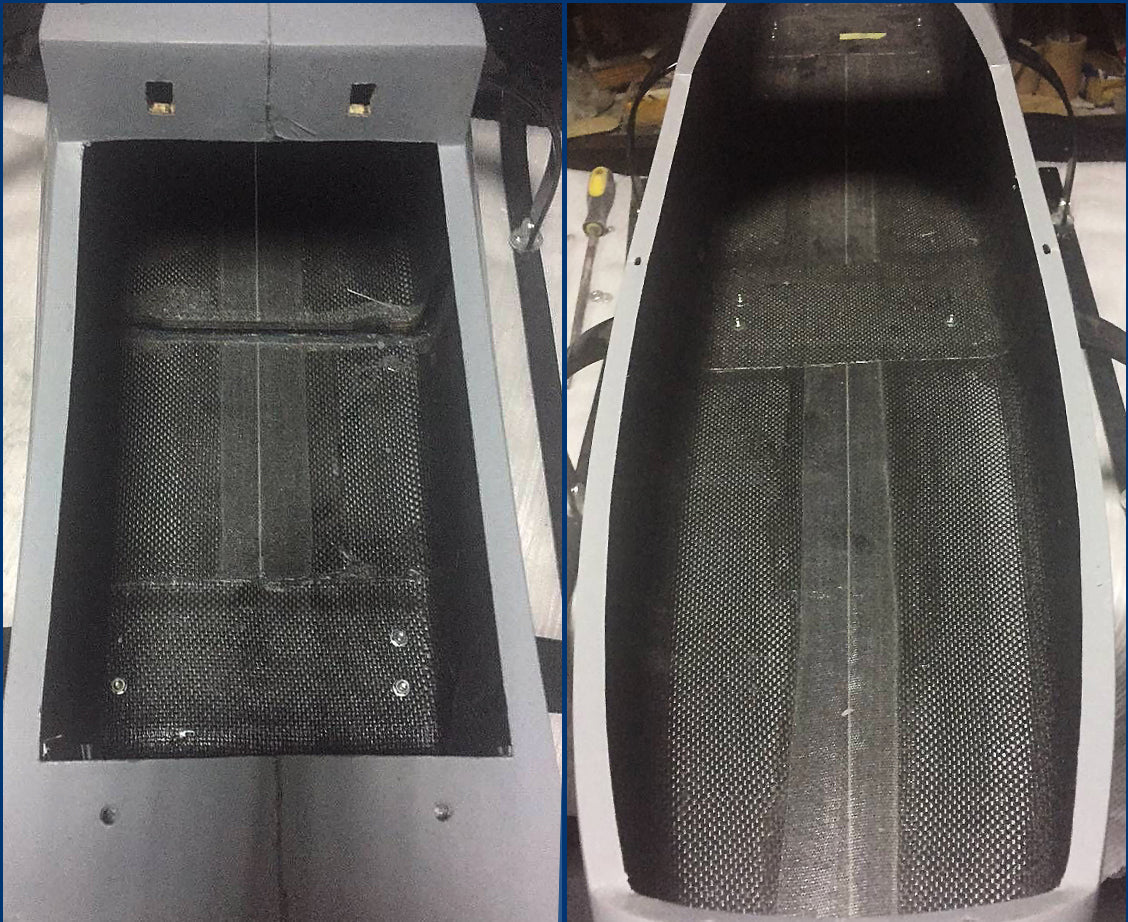

- Spacious Payload Bay: Generous payload chamber (560mm × 260mm × 270mm) accommodates multi-spectral sensors, high-resolution mapping cameras, LiDAR systems, and specialized delivery modules up to 6kg.
- True VTOL Capability: Hybrid vertical takeoff and landing mechanism allows safe operation from tight, unprepared launch sites, significantly broadening operational versatility.
Technical Specifications & Flight Parameters
| SPECIFICATIONS & PERFORMANCE | ||
|---|---|---|
| Airframe Specifications | Material | Carbon Fiber |
| Wingspan | 3600mm | |
| Length | 2420mm | |
| Payload Bay Dimensions | 560mm * 260mm * 270mm (L*W*H) | |
| Wing Area | 132 dm² | |
| Empty Weight | 16kg | |
| Payload Capacity | 6kg | |
| Maximum Takeoff Weight (MTOW) | 40kg | |
| Fuel Tank Capacity | 8L | |
| Flight Characteristics | Cruising Speed | 30m/s |
| Maximum Speed | 35m/s | |
| Stall Speed | 24m/s | |
| Maximum Flight Time | Up to 5 Hours | |
System Configuration & Package Options (KIT vs PNP)
| Skyeye SVH360 VTOL PACKAGE INCLUSIONS | |||
|---|---|---|---|
| Category | Specification Item | KIT | PNP(E) |
| Flying Platform | SVH360 Outer Wing | 2 | 2 |
| SVH360 Mid-Wing | 1 | 1 | |
| SVH360 Mainframe | 1 | 1 | |
| SVH360 Support Mast (incl. Vertical Stabilizer) | 2 | 2 | |

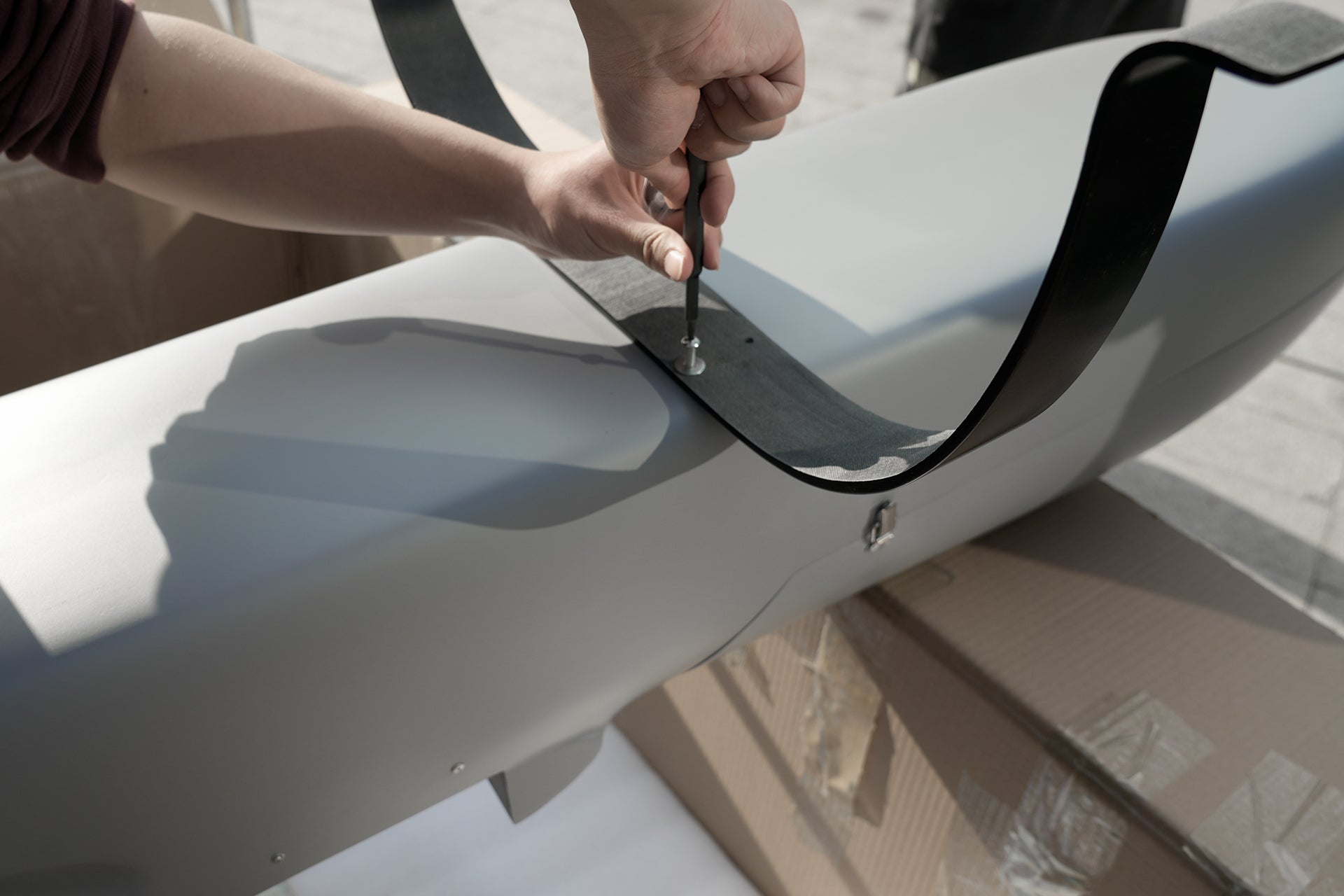

| SVH360 Landing Gear | 2 | 2 | |
| SVH360 Horizontal Stabilizer | 1 | 1 | |
| SVH360 Fuel Tank | 1 | 1 | |
| SVH360 Engine Cowling | 1 | 1 | |
| Power & Propulsion System | Tailthrust Engine | - | 1 |
| Tailthrust Propeller Blades | - | 1 | |
| VTOL Motor | - | 4 | |
| VTOL ESC | - | 4 | |
| VTOL Propeller Blades | - | 2 Pairs | |
| Servos | - | 7 | |
| Pitot Tube | - | 1 | |
| Parts Package | - | 1 | |
Frequently Asked Questions (FAQ)
Q1: What power battery setup is recommended for the Skyeye SVH360 VTOL?
A: We strongly recommend using a 44.4V (12S) LiPo / LiIon battery setup to ensure optimal motor power output and balanced power efficiency during vertical takeoff, transition, and landing phases.
Q2: What is the difference between the KIT and PNP(E) versions?
A: The KIT version includes the complete carbon fiber airframe, fuel tank, and structural mounting hardware, ideal for users who prefer customizing their own power systems. The PNP(E) version includes the full airframe plus the pre-matched propulsion system: tailthrust engine, VTOL motors, ESCs, propellers, servos, and pitot tube.
Q3: What types of payloads can the SVH360 carry?
A: With a maximum payload allowance of 6kg and a spacious internal compartment (560 × 260 × 270 mm), the SVH360 easily integrates orthophoto cameras, dual-sensor gimbal cameras, LiDAR scanners, or custom monitoring electronics.
Q4: Is the airframe fully constructed from carbon fiber?
A: Yes, key structural elements including the main wings, fuselage, tail booms, and landing gear are manufactured from high-grade carbon fiber composite to ensure lightweight rigidity and long lifespan.
