SKYEYE UAV SV360 UAV Fixed Wing VTOL Drones Engine

SKYSV360-KIT

The SkyEye SV360 is a heavy-duty 3600mm carbon fiber VTOL fixed-wing UAV platform designed for long-range industrial and commercial missions. Featuring a high 6kg payload capacity, 40kg MTOW, and up to 6 hours of endurance, it combines vertical takeoff and landing flexibility with long-distance cruising efficiency. Built with a full carbon fiber airframe, 11L fuel tank capacity, and a large 560x260x270mm payload bay, the SV360 is optimized for multi-sensor integration including LiDAR, EO/IR thermal gimbals, and high-resolution mapping cameras in demanding environments without runways.

✉️ Email Inquiry

Tags:

SkyEye SV360 3600mm Carbon Fiber VTOL Fixed-Wing Industrial UAV Platform

The SkyEye SV360 is a high-performance industrial VTOL (Vertical Take-Off and Landing) fixed-wing UAV engineered by SKYEYE UAV to meet the extreme demands of modern commercial flight operations. Combining the extended range and aerodynamic efficiency of a traditional fixed-wing aircraft with the field versatility of a multirotor, the SV360 eliminates the need for expensive runways or complex catapult launch systems.

Constructed entirely from premium industrial-grade carbon fiber, the SkyEye SV360 delivers an ultra-rigid, lightweight airframe built to endure rugged environments, high wind resistance, and continuous operational field deployments.

Long Flight Endurance

Achieve up to 6 hours of continuous flight endurance with an efficient gas power setup and 11L fuel capacity, maximizing area coverage per flight battery/fuel cycle.

High Payload Versatility

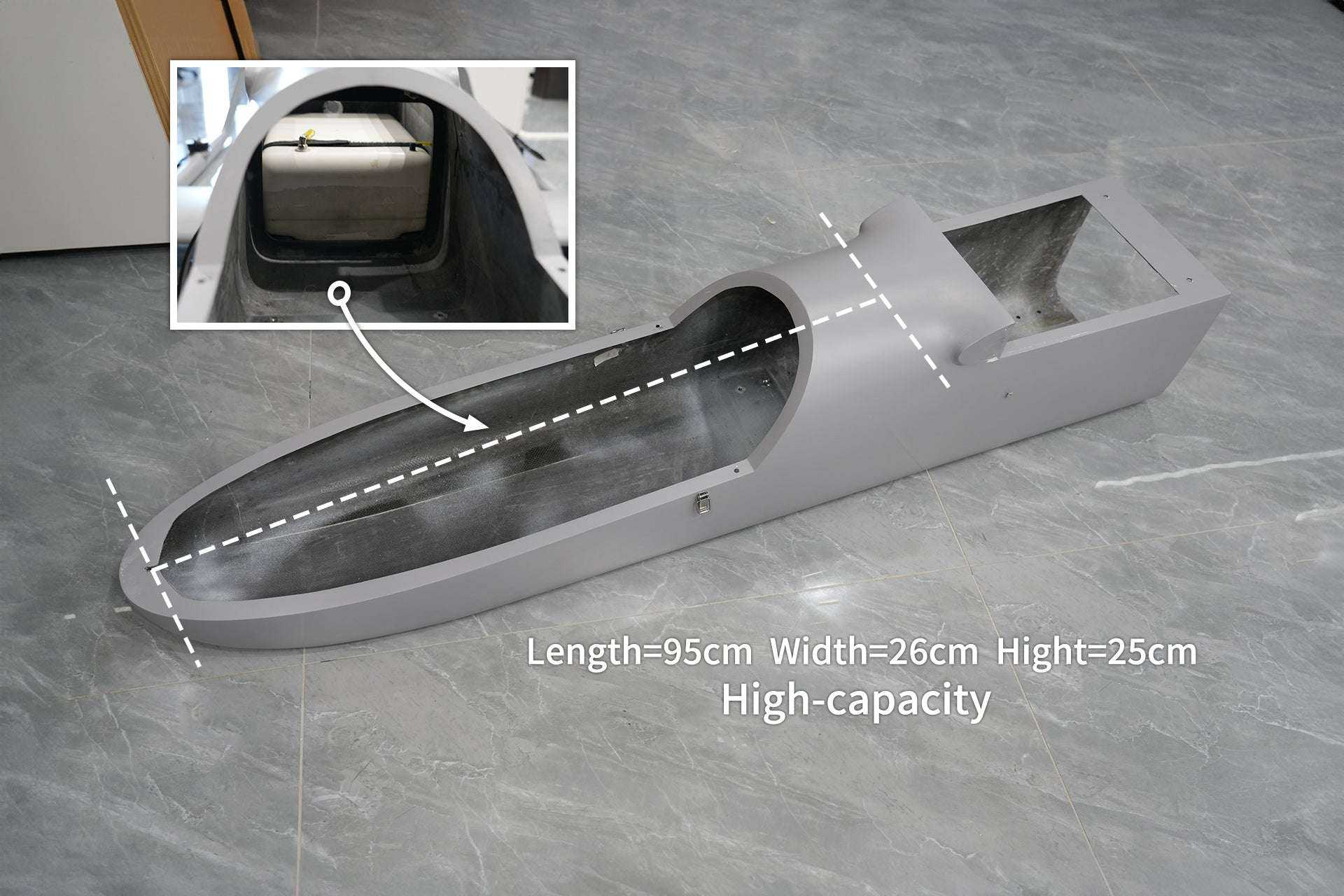

Supports up to 6kg payload capacity inside a spacious 560x260x270mm internal equipment bay, perfect for multi-sensor integration including thermal EO/IR gimbals and LiDAR sensors.

Zero-Runway Adaptability

Vertical takeoff and landing capability allows deployment from tight spaces, mountainous terrain, dense forest clearings, or maritime vessel decks.

SkyEye SV360 VTOL In Action

Heavy-Payload & Extended Range Capabilities for Industrial Missions

Engineered as a flexible professional drone platform, the SkyEye SV360 features a 3600mm wingspan and a maximum takeoff weight (MTOW) of 40kg. Its high cruising speed of 30m/s enables rapid transit across vast survey zones, making it an essential tool for aerial photogrammetry, long-distance powerline and pipeline inspection, boundary patrol, forestry monitoring, and search & rescue operations.

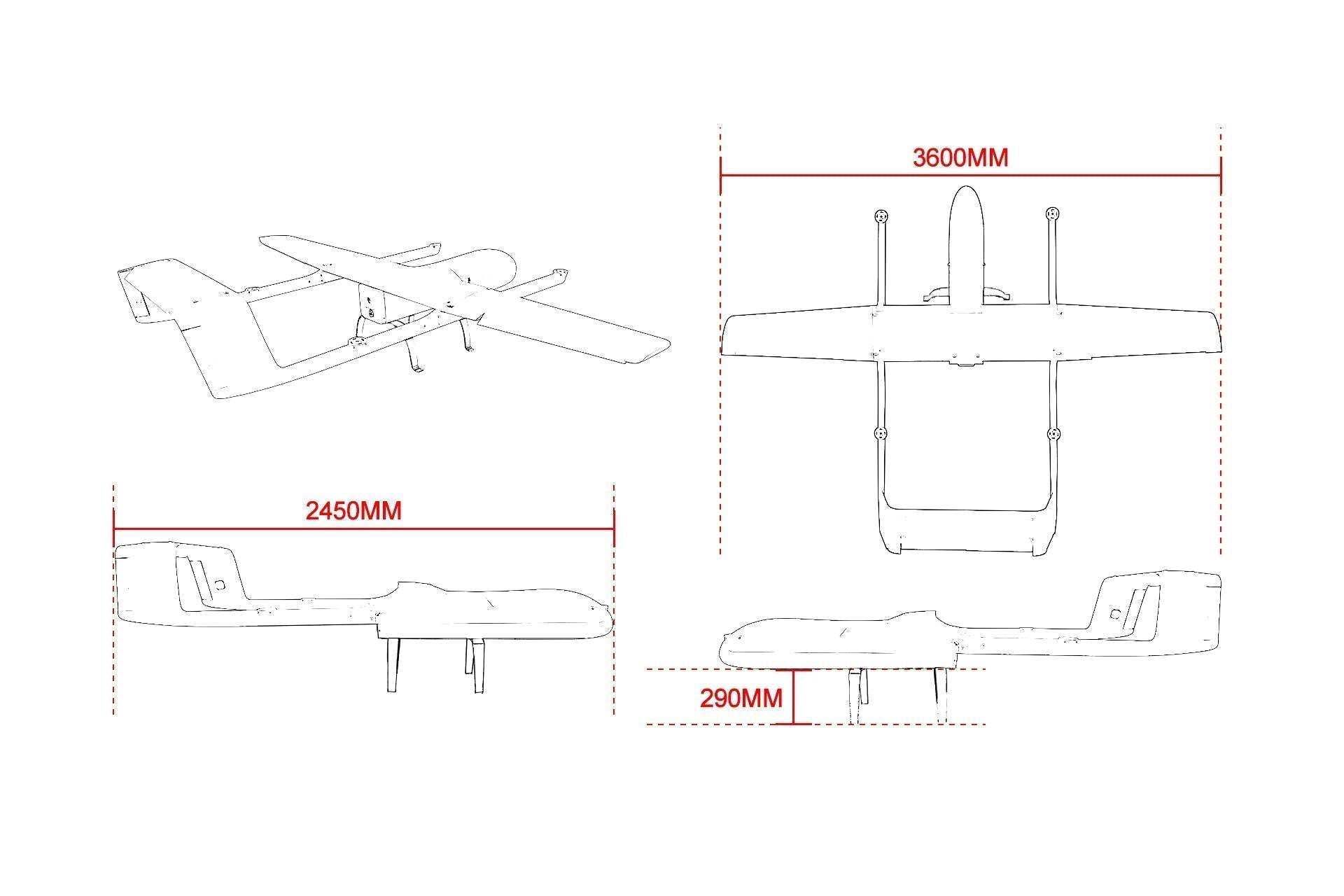

SkyEye SV360 Technical Specifications

PARAMETER & SPECIFICATIONS		VALUE
Physical Specifications	Airframe Material	Full Carbon Fiber
	Wingspan	3600 mm
	Aircraft Length	2420 mm
	Wing Area	132 dm²
	Payload Bay Dimensions (LWH)	560 mm × 260 mm × 270 mm
	Empty Airframe Weight	16 kg
	Max. Payload Capacity	6 kg
	Maximum Takeoff Weight (MTOW)	40 kg
Performance & Power	Fuel Tank Capacity	11 Liters
	Cruising Speed	30 m/s
	Maximum Flight Speed	35 m/s
	Stall Speed	24 m/s
	Maximum Flight Endurance	Up to 6 Hours

SkyEye SV360 Platform Configurations (KIT vs PNP)

Category	Component Description	KIT Package	PNP(E) Package
Flying Platform	SV360 Outer Wing	2	2
	SV360 Mid-Wing	1	1
	SV360 Mainframe Airframe	1	1
	Support Strut (incl. Vertical Stabilizer)	2	2
	Landing Gear (Updated Latest Style)	2	2
	Horizontal Stabilizer	1	1

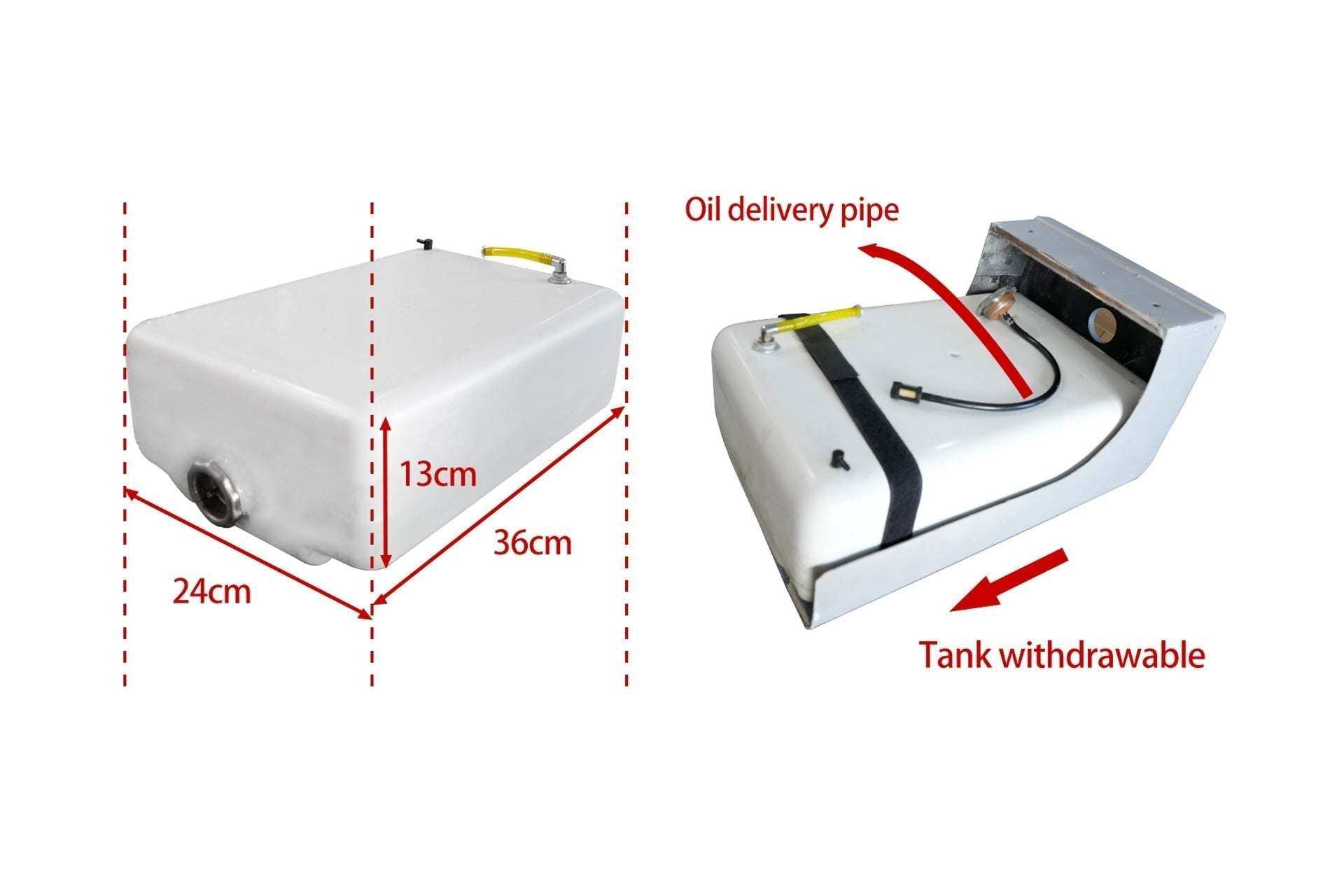

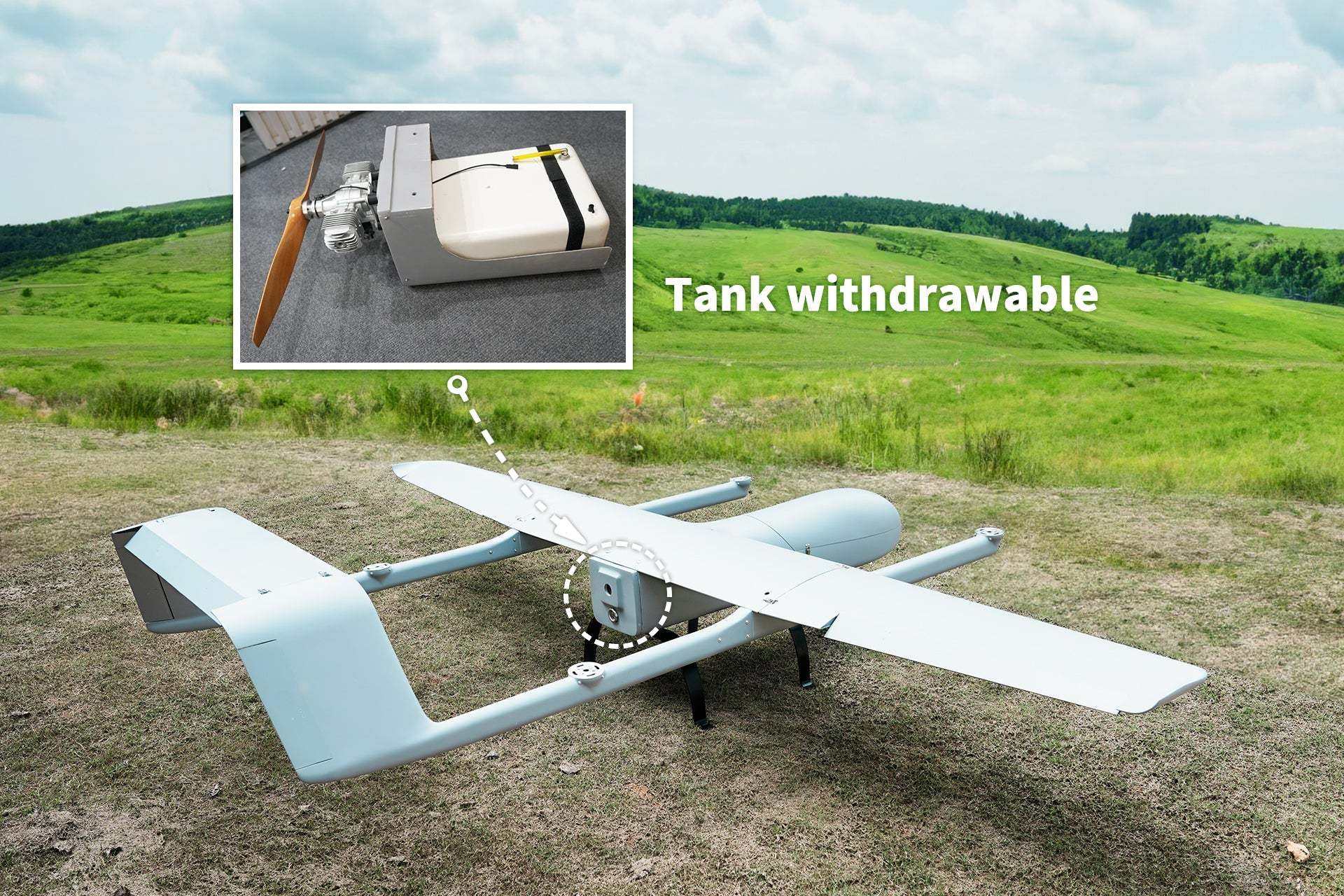

	Fuel Tank (11L)	1	1
	Engine Cowling	1	1
Power System	Tail Thruster Engine	-	1
	Tail Thruster Blades	-	1

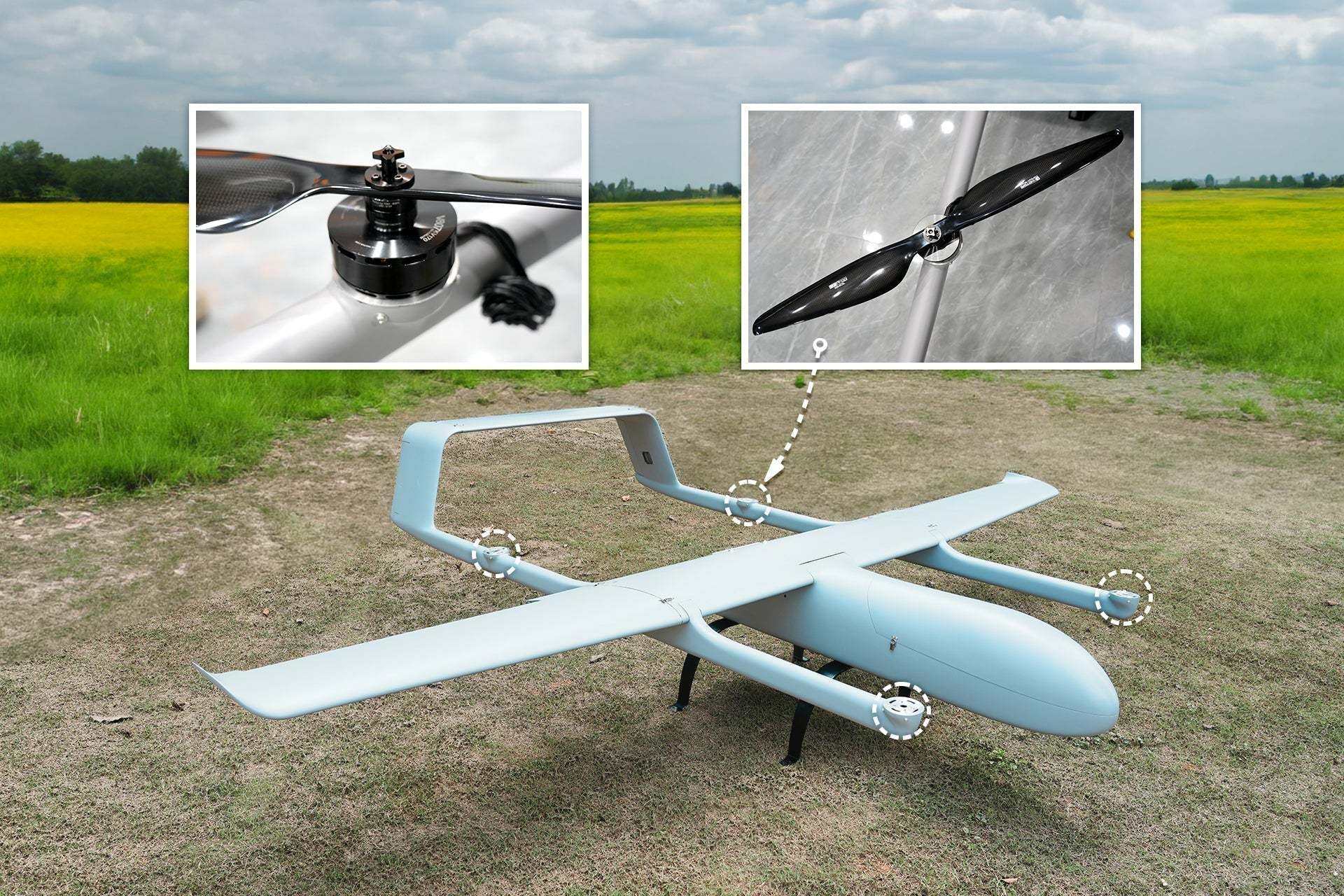

	VTOL Motors	-	4
	VTOL ESCs	-	4
	VTOL Propellers	-	2 Pairs
	Servos	-	7
	Pitot Tube	-	1
	Parts Packaging & Accessories	-	1 Package

* Recommended Battery Configuration for VTOL Operations: 44.4V (12S) LiPo / LiFe Battery System.

Frequently Asked Questions (FAQ)

Q: What payloads can the SkyEye SV360 carry?

A: With a spacious 560x260x270mm payload bay and up to 6kg carrying capacity, the SV360 easily integrates dual-sensor EO/IR optical thermal cameras, high-resolution photogrammetry mapping cameras, airborne LiDAR scanners, or custom sensor suites.

Q: What is the main advantage of a VTOL fixed-wing drone over standard multirotors?

A: VTOL fixed-wing drones offer the efficiency, high speed, and 6-hour long-range endurance of fixed-wing aircraft while retaining the convenience of vertical takeoff and landing from small, unprepared takeoff zones.

Q: What is the difference between the KIT and PNP(E) packages?

A: The KIT package includes the complete carbon fiber flying airframe and structural components. The PNP(E) package includes the airframe plus installed power systems, including VTOL motors, ESCs, propellers, tail thruster engine, pitot tube, and high-torque servos.

Q: What power system is recommended for the VTOL system?

A: We recommend using a high-discharge 44.4V (12S) battery setup dedicated to vertical flight power, ensuring stable launches and landings.

Our products are manufactured both locally and globally. We carefully select our manufacturing partners to ensure our products are high quality and a fair value.
