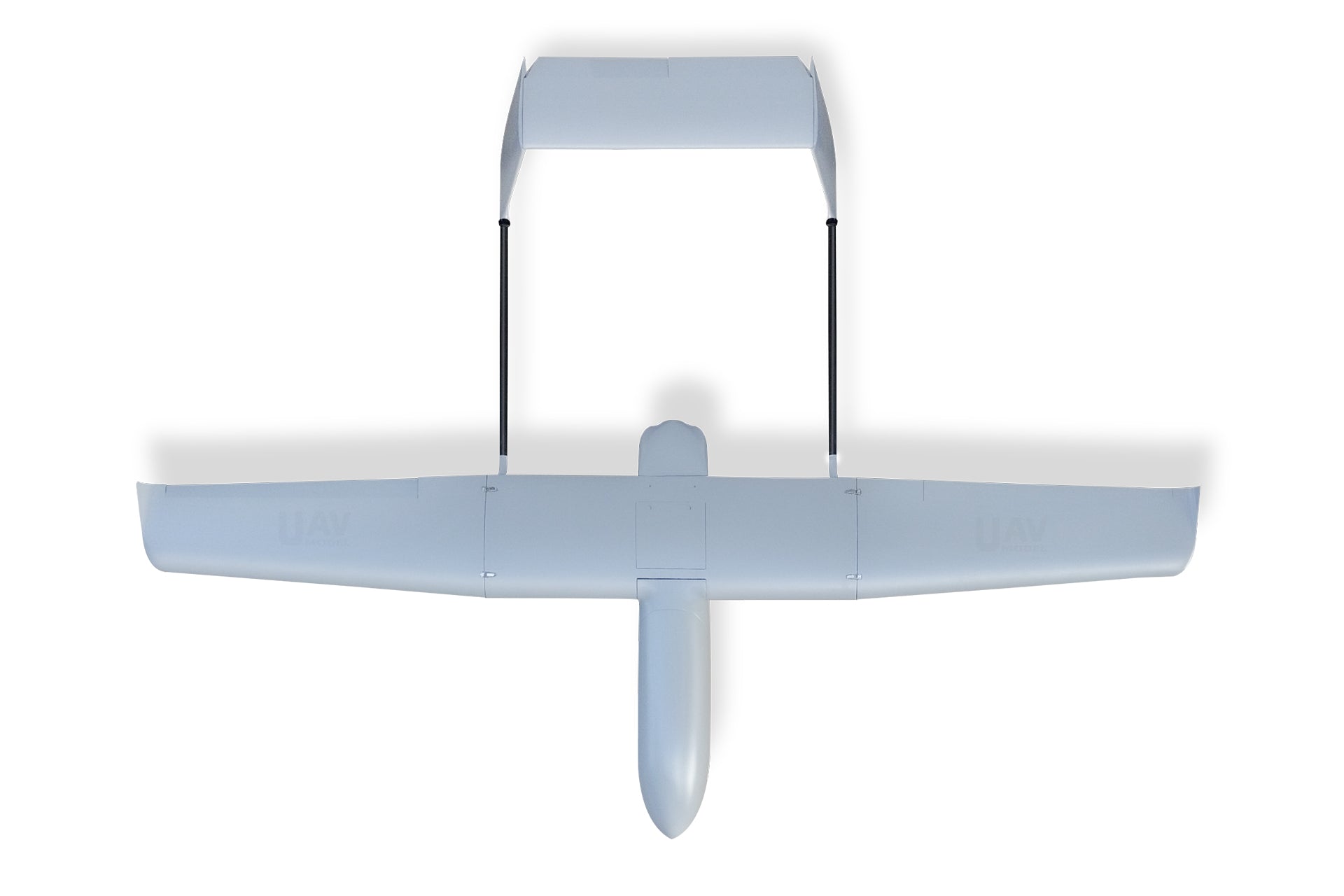

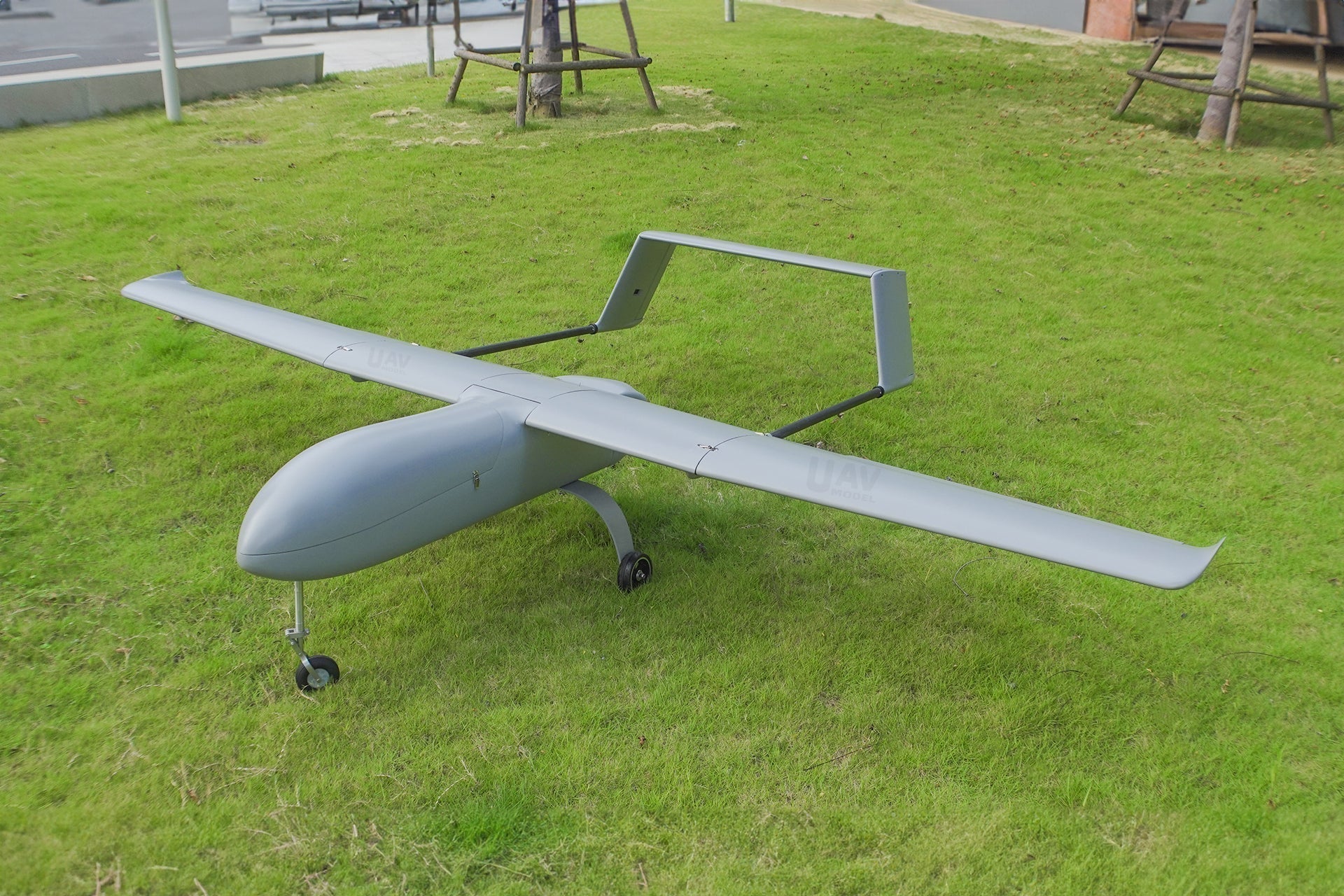

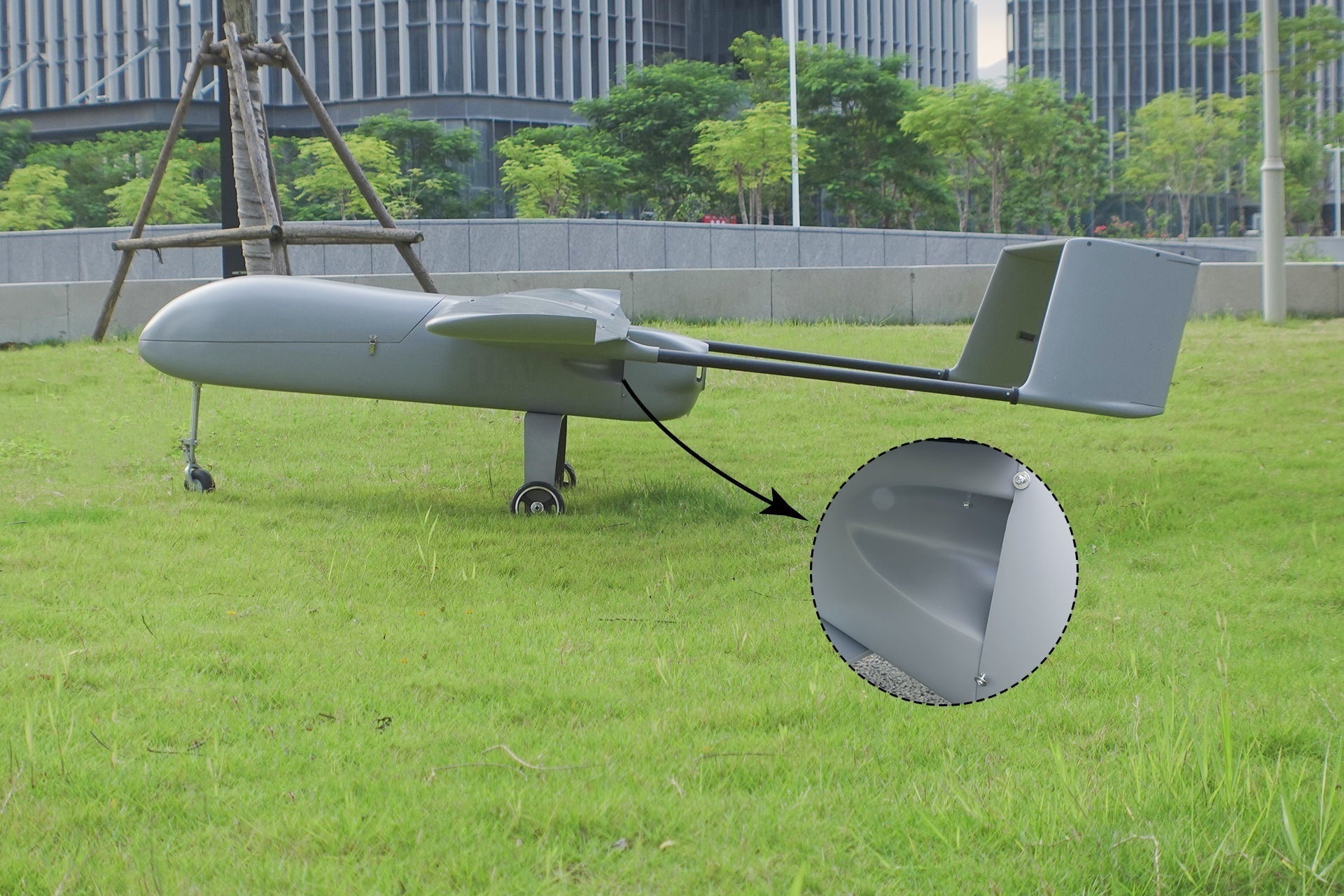

Skyeye UAV SKY36 Fixed Wing Drone Motor H-Tail
Skyeye UAV SKY36 Fixed Wing Drone Motor H-Tail
Product Description
Skyeye UAV SKY36 Fixed Wing Drone Motor H-Tail
Inquiry
| PARAMETER | ||
| Specifications | Material | Glass fiber |

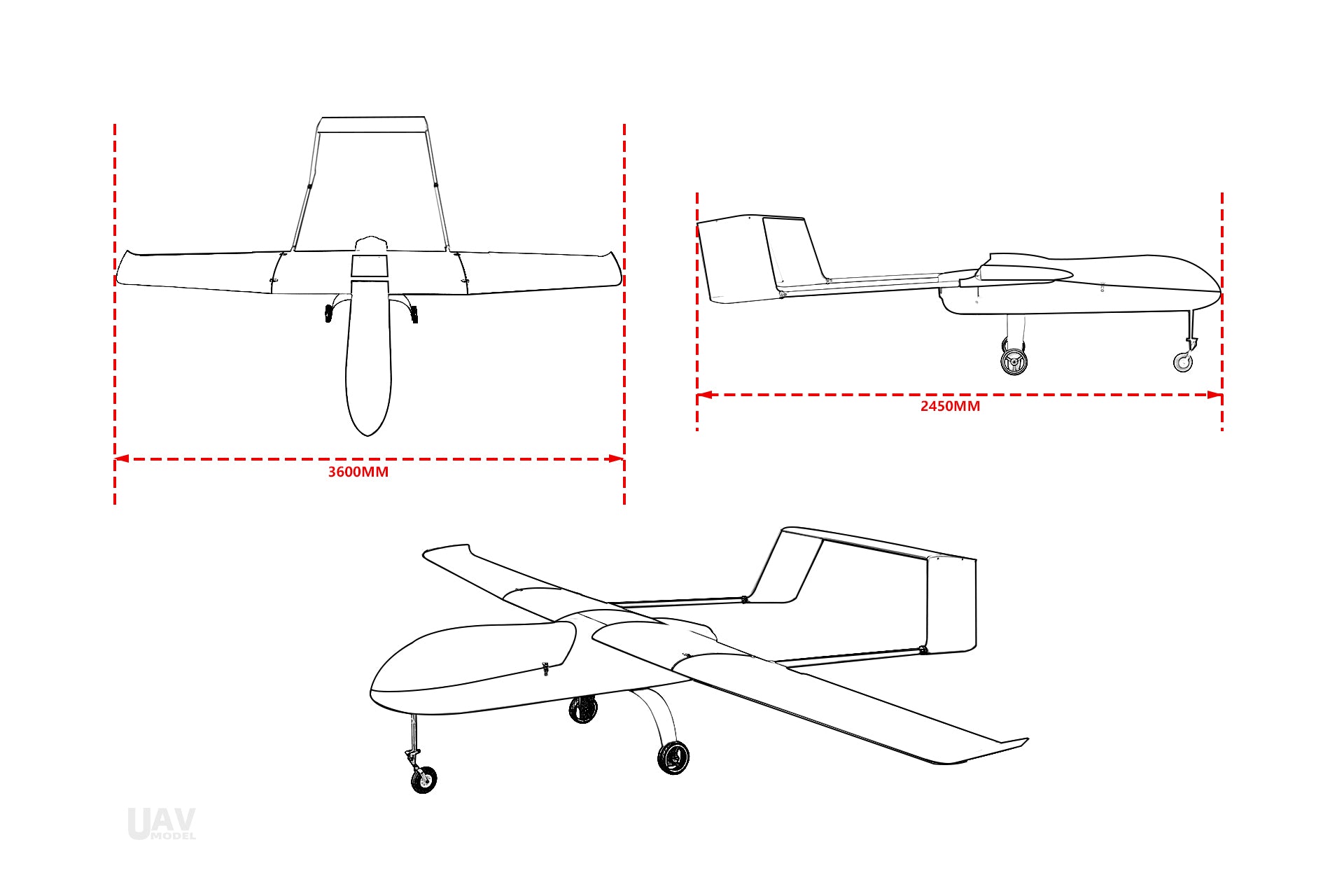

| Wingspan | 3600mm | |
| Length | 2450mm | |

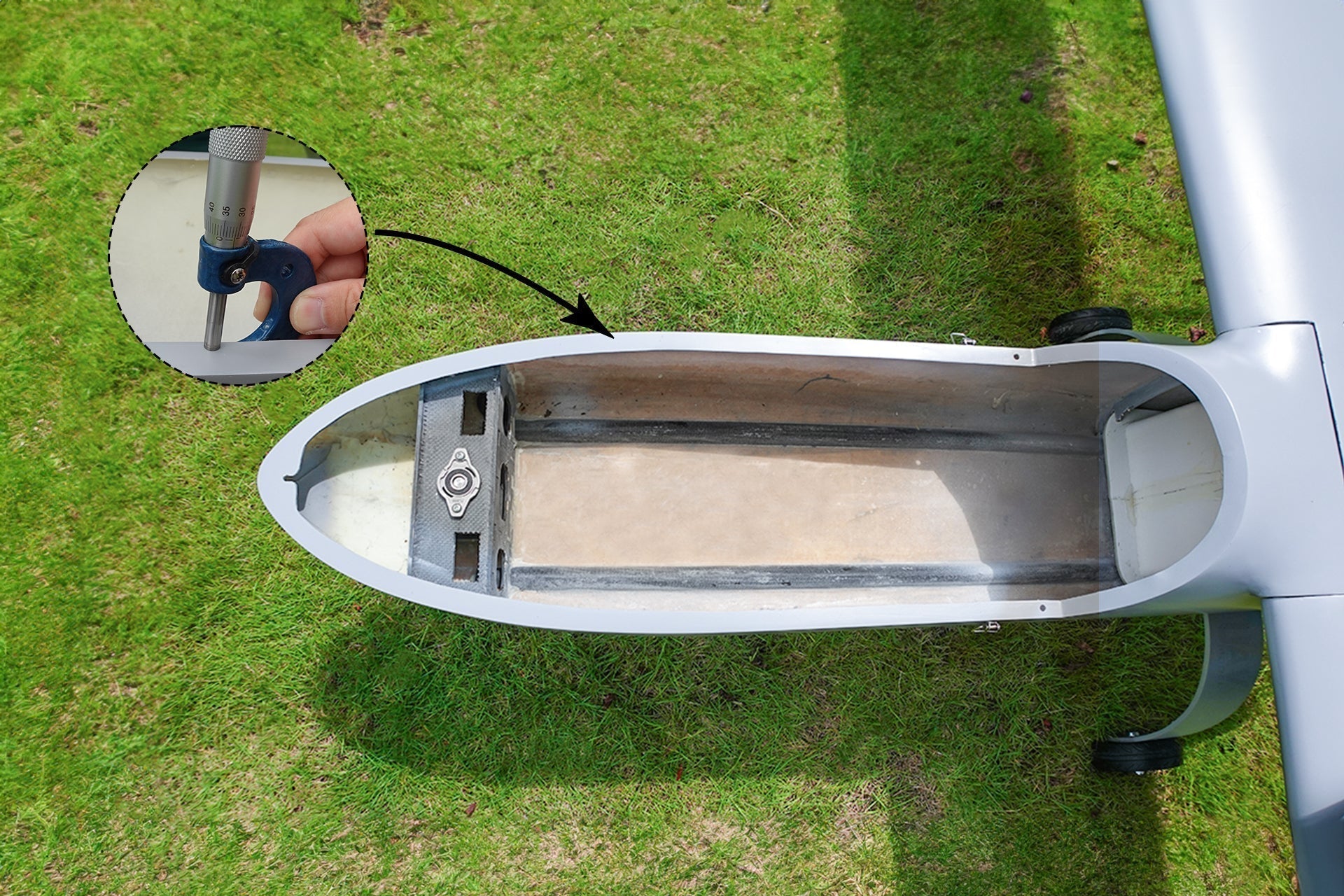

| Payload bay dimensions | 560mm*260mm*270mm(L*W*H) | |
| Wing area | 133dm2 | |
| Empty weight | 15kg | |
| Payload capacity | 8KG | |
| Maximum takeoff weight | 40KG | |
| Fuel tanks | 8L | |
| Performance Characteristics | Cruising speed | 30m/s |
| Maximum speed | 33m/s | |
| Stall speed | 24m/s | |
| Maximum flight time | 6 Hours | |
| Skyeye SKY360 Glass Fiber 3600mm Fixed Wing | |||
| Name | Specification | KIT | PNP(M) |
| Flying platform | SKY360 outer wing | 2 | 2 |
| SKY360 mid-wing | 1 | 1 | |
| SKY360 mainframe | 1 | 1 | |

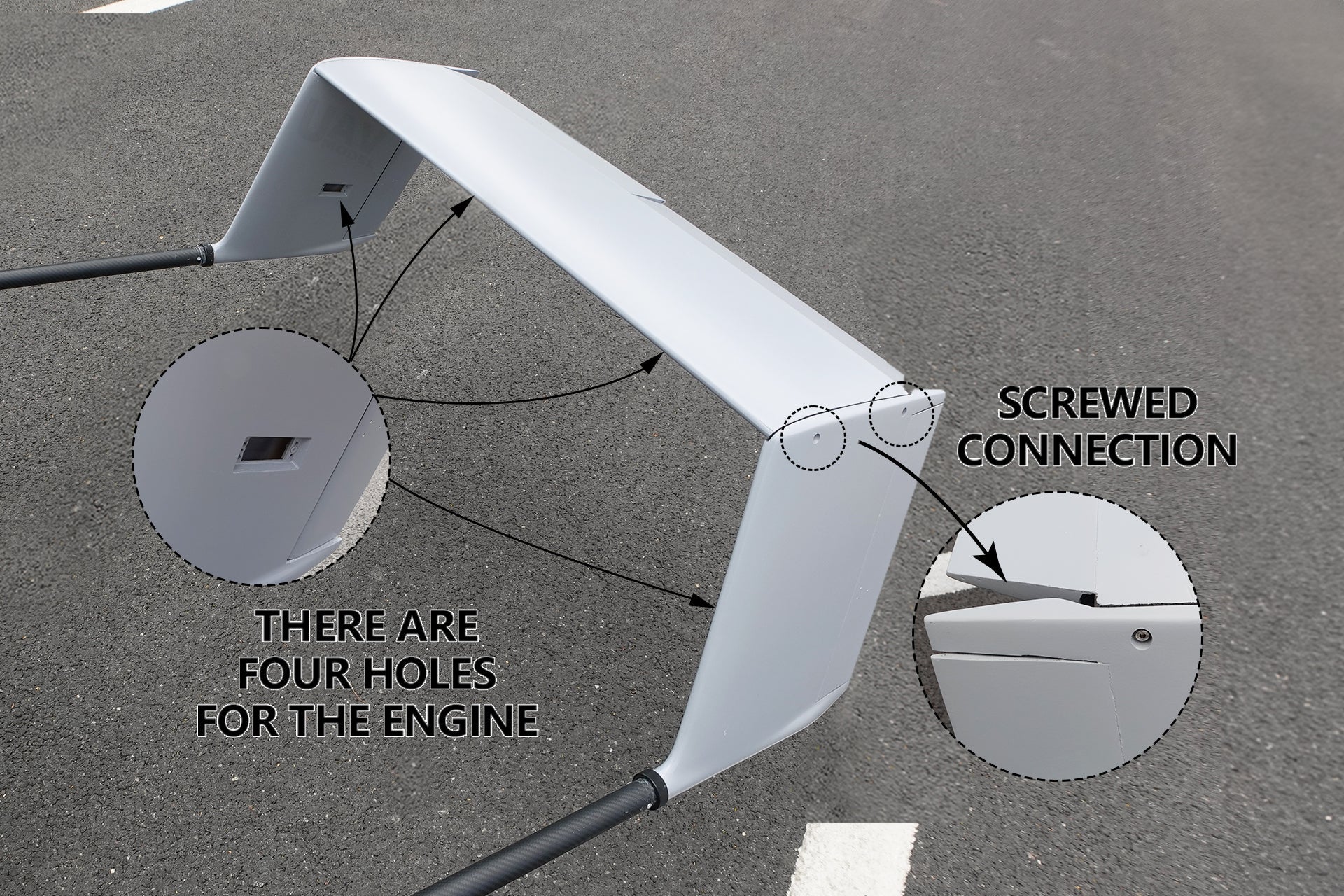

| SKY360 vertical tail | 2 | 2 | |
| SKY360 strut | 2 | 2 | |

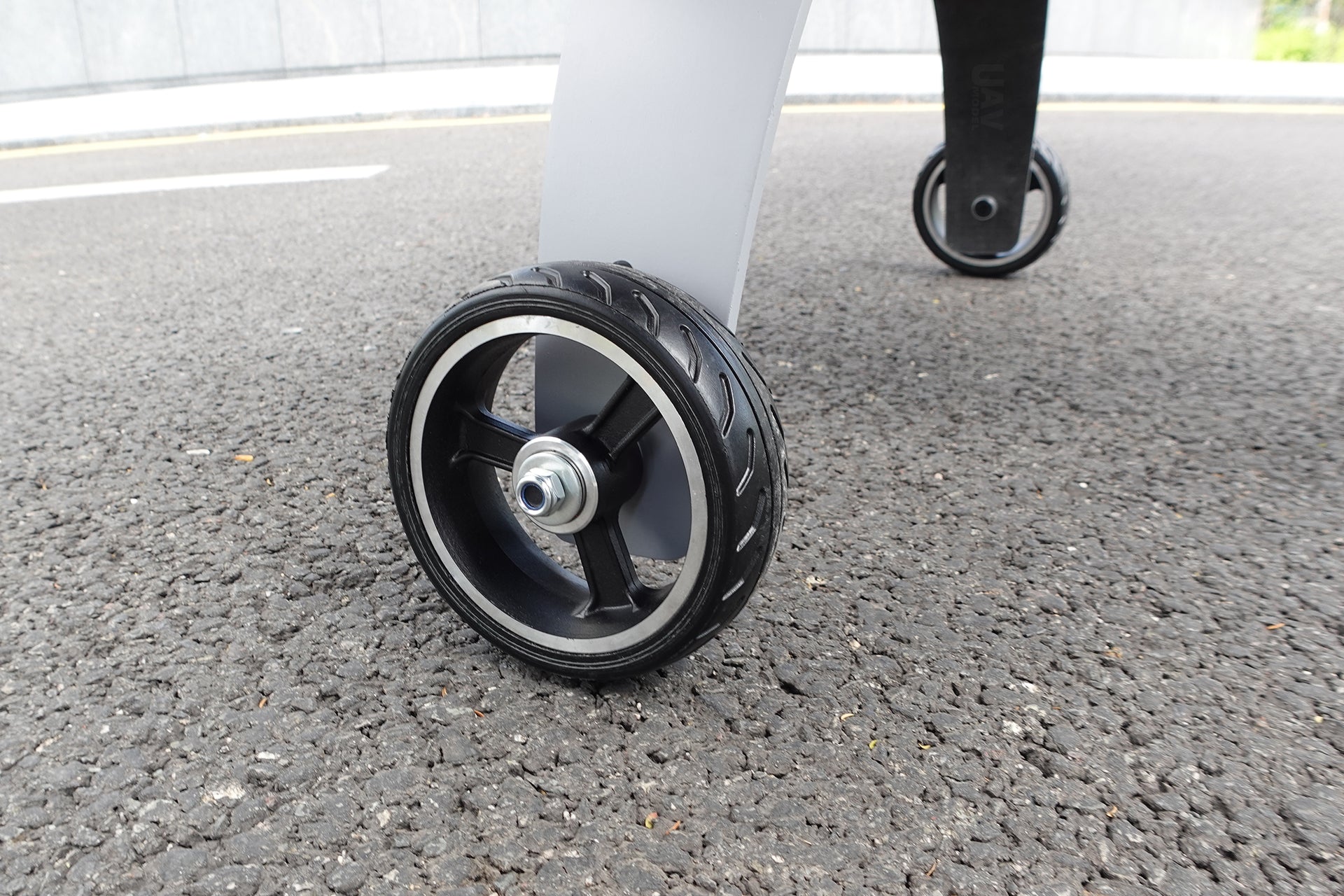

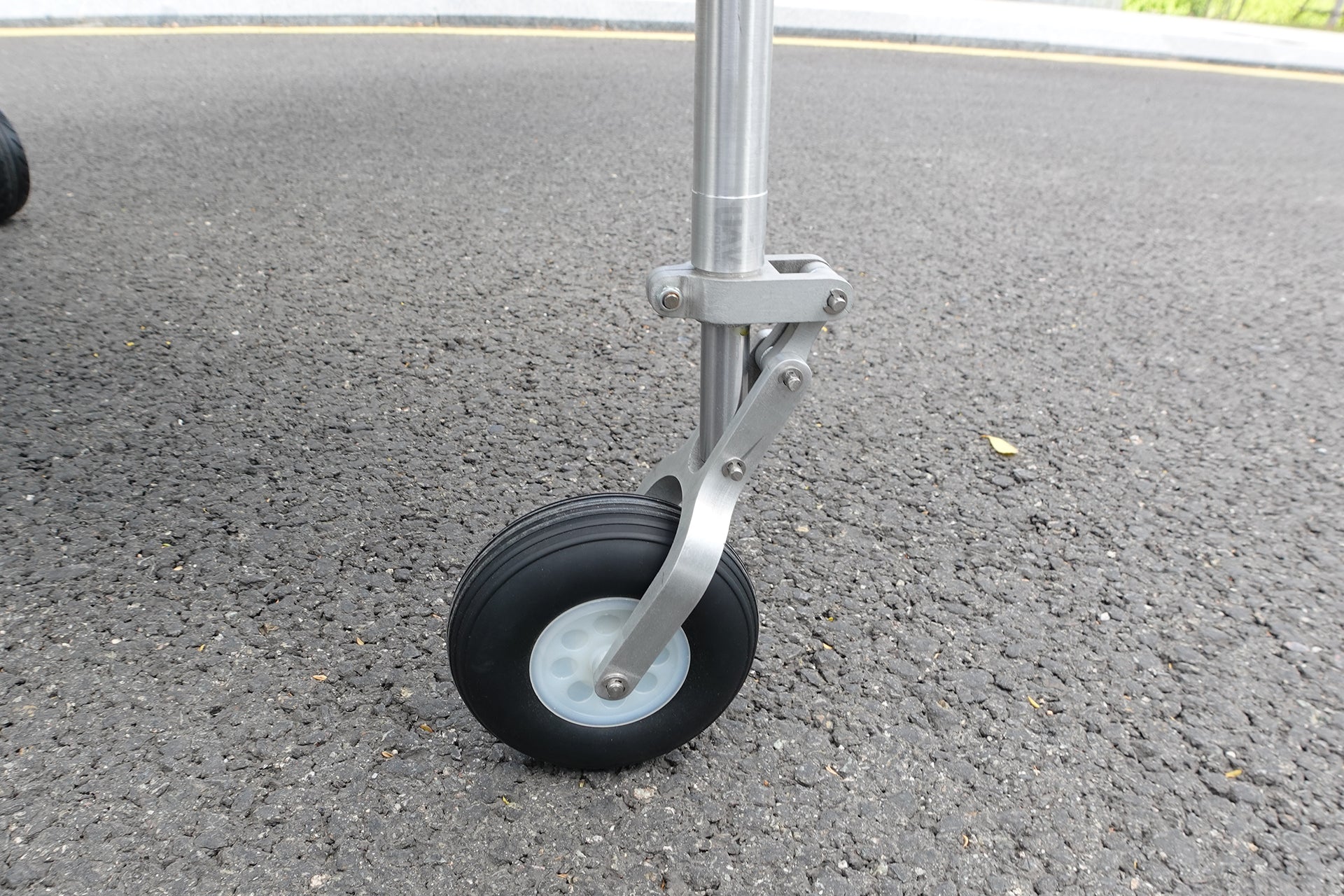

| SKY360 landing gear | 1 | 1 | |
| SKY360 horizontal tail | 1 | 1 | |

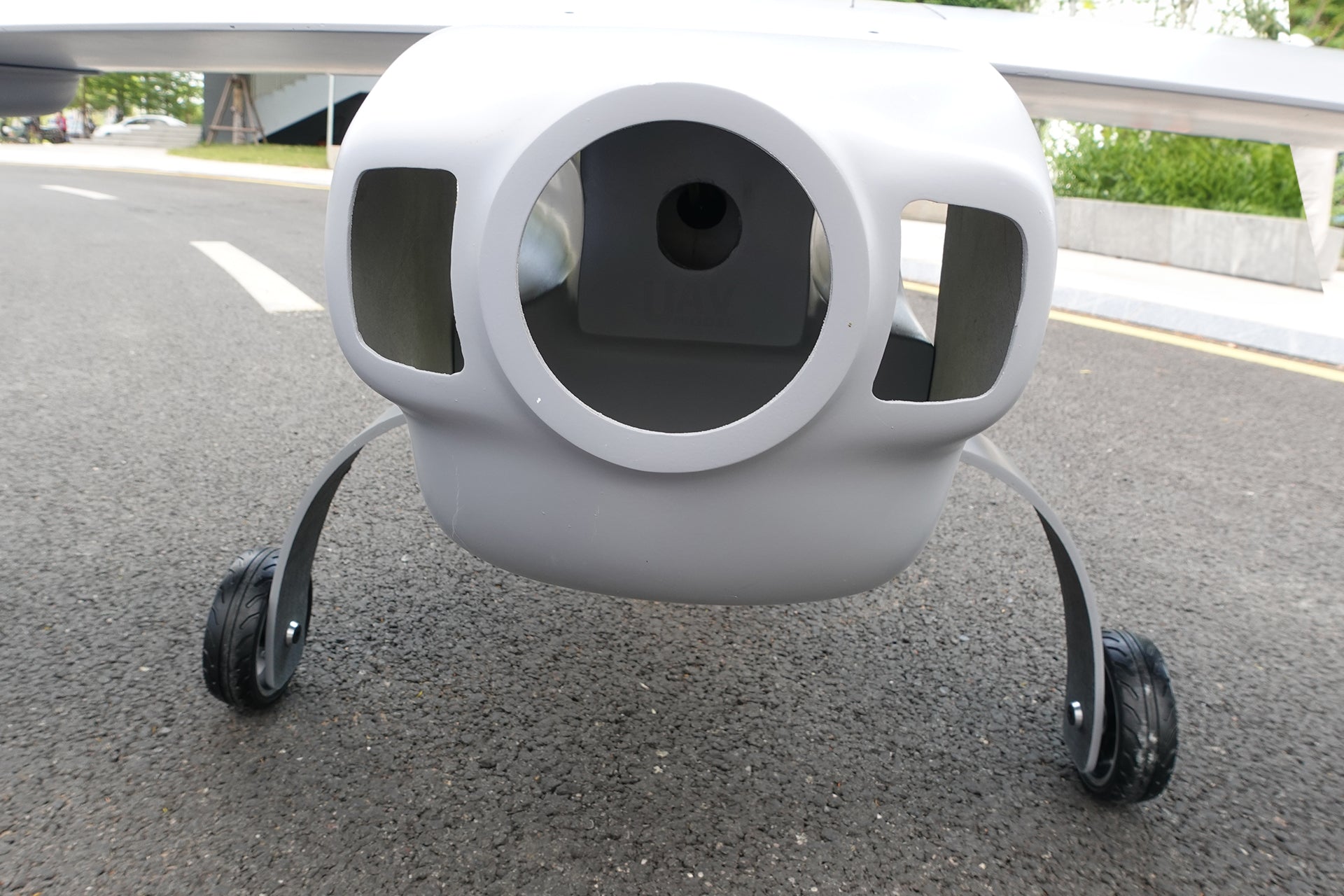

| SKY360 engine cowling | 1 | 1 | |
| Power system(Motor) | Tailthrust motor | 1 | |
| Tailthrust ESC | 1 | ||
| Tailthrust propeller | 1 | ||
| Servos | 7 | ||
| Pitotometer | 1 | ||
| Parts package | 1 | ||
Information Updated version:202508081133
You can also use aluminum box packaging, please consult our sales for details.
Customized aluminum box, contact customer service before customization, product price is an aluminum box price;
The aluminum box is a custom product, the order will be made after payment, and no refund will be accepted.
If the product exceeds the maximum order weight of the system, the logistics cost can consult our customer service staff.
Note:
Total time for Dual-Use Item Export License application and drone production need 45~60 days.
Prices and freight are for reference only, no stock, orders need to wait for production time.
Battery recommendation: 44.4V(12S)
Made-to-order products: Once a customer submits an order, the product will immediately go into production. Given its customized nature and the immediacy of production, such orders become binding upon confirmation and no refunds will be accepted.
