Skyeye UAV SKY36 Fixed Wing Drone Engine H-Tail

SKY36-GWK

The Skyeye SKY360 (SKY36) is a professional-grade, high-endurance 3.6m carbon fiber fixed-wing UAV platform featuring an efficient H-Tail design. Engineered for long-range industrial and commercial surveillance/mapping missions, it offers an outstanding 6-hour endurance, an 8kg payload capacity (40kg MTOW), and a spacious 560x260x270mm payload bay. Constructed with lightweight yet durable high-strength carbon fiber, it achieves cruising speeds up to 30m/s with optimal aerodynamic performance. Available in both KIT frame and PNP(E) ready-to-fly configurations.

✉️ Email Inquiry

Tags:

Skyeye SKY360 (SKY36) 3.6m Carbon Fiber Fixed-Wing UAV Engine H-Tail Drone Platform

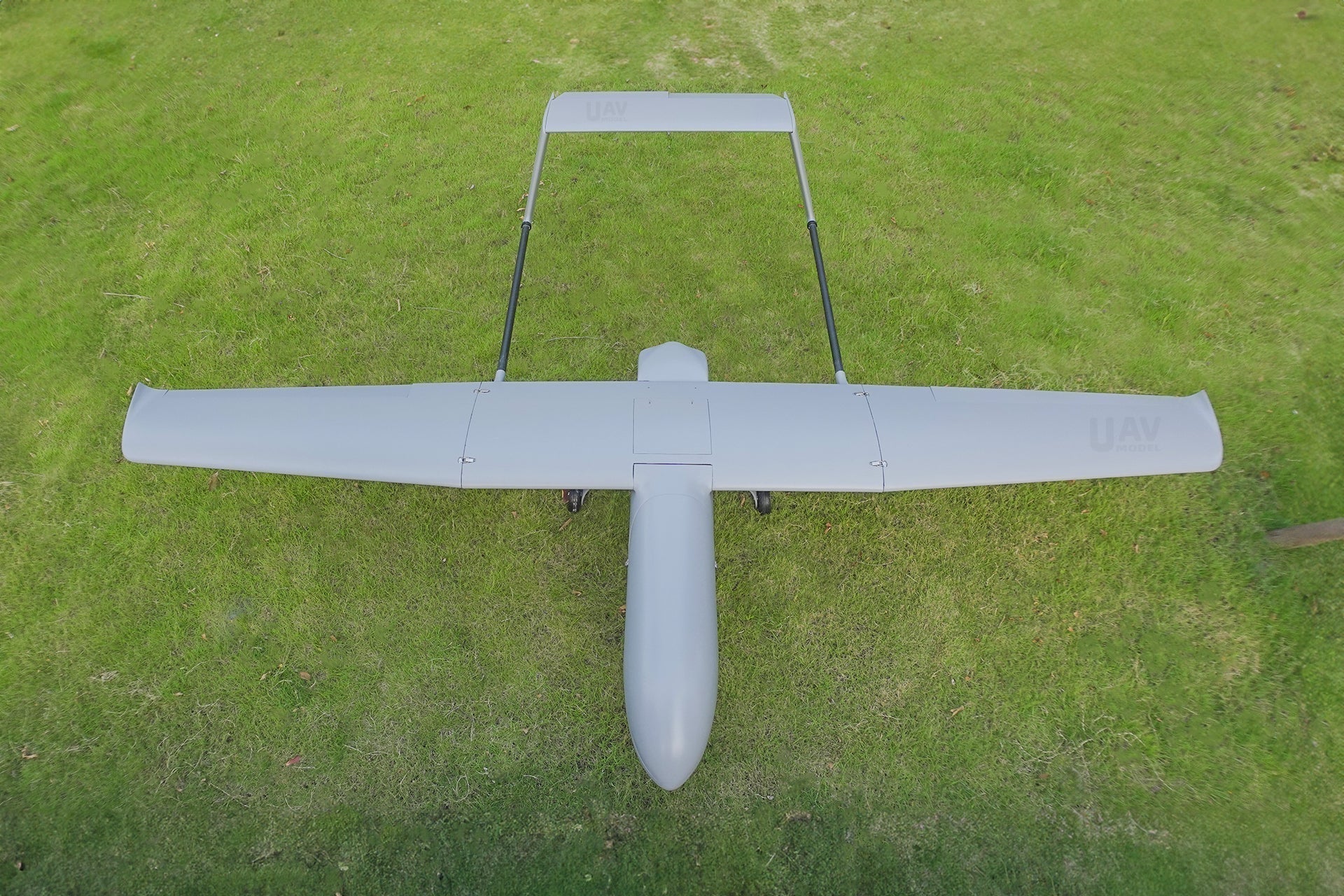

Engineered for demanding long-range reconnaissance, aerial mapping, and industrial surveillance operations, the Skyeye SKY360 represents the peak of fixed-wing UAV technology. Featuring a ultra-lightweight full carbon fiber airframe and a high-stability H-tail configuration, this platform is built to carry substantial payloads over extended flight durations.

Up to 6 Hours Endurance 8kg Heavy Payload Capacity 3600mm Full Carbon Wingspan Spacious 560mm Internal Bay

Key Advantages & Operational Capabilities

Full Carbon Fiber Construction: Delivers superior structural rigidity while keeping empty frame weight at only 15kg, ensuring maximum structural integrity during high-speed cruise maneuvers.
Extended Flight Time: Accommodates up to 8L fuel capacity, enabling up to 6 continuous hours of flight for long-range missions without frequent landing cycles.

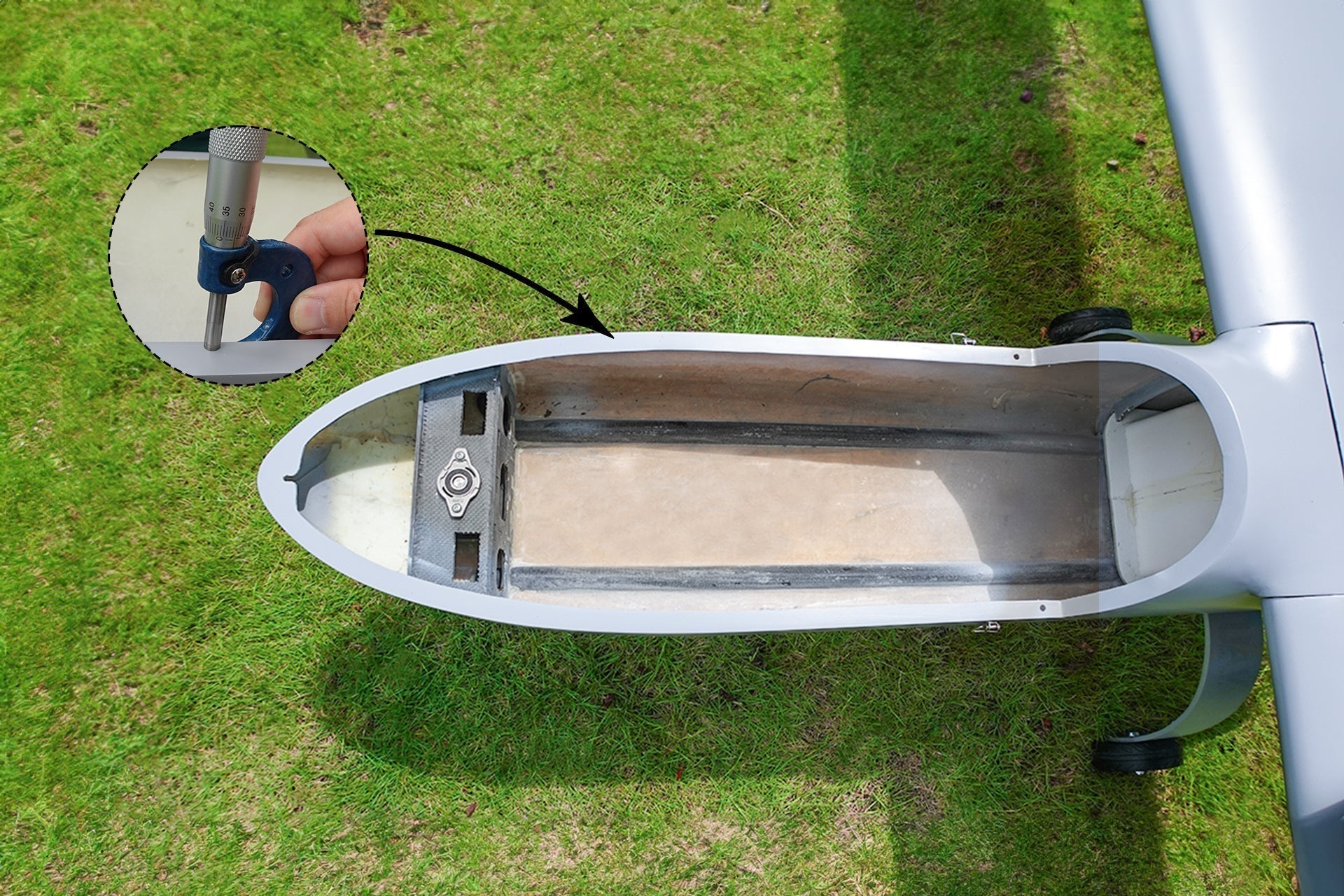

Versatile Equipment Bay: The ultra-large payload bay (560*260*270mm) supports multi-sensor setups including dual-sensor gimbals, LiDAR systems, orthophoto mapping cameras, or custom relay electronics.

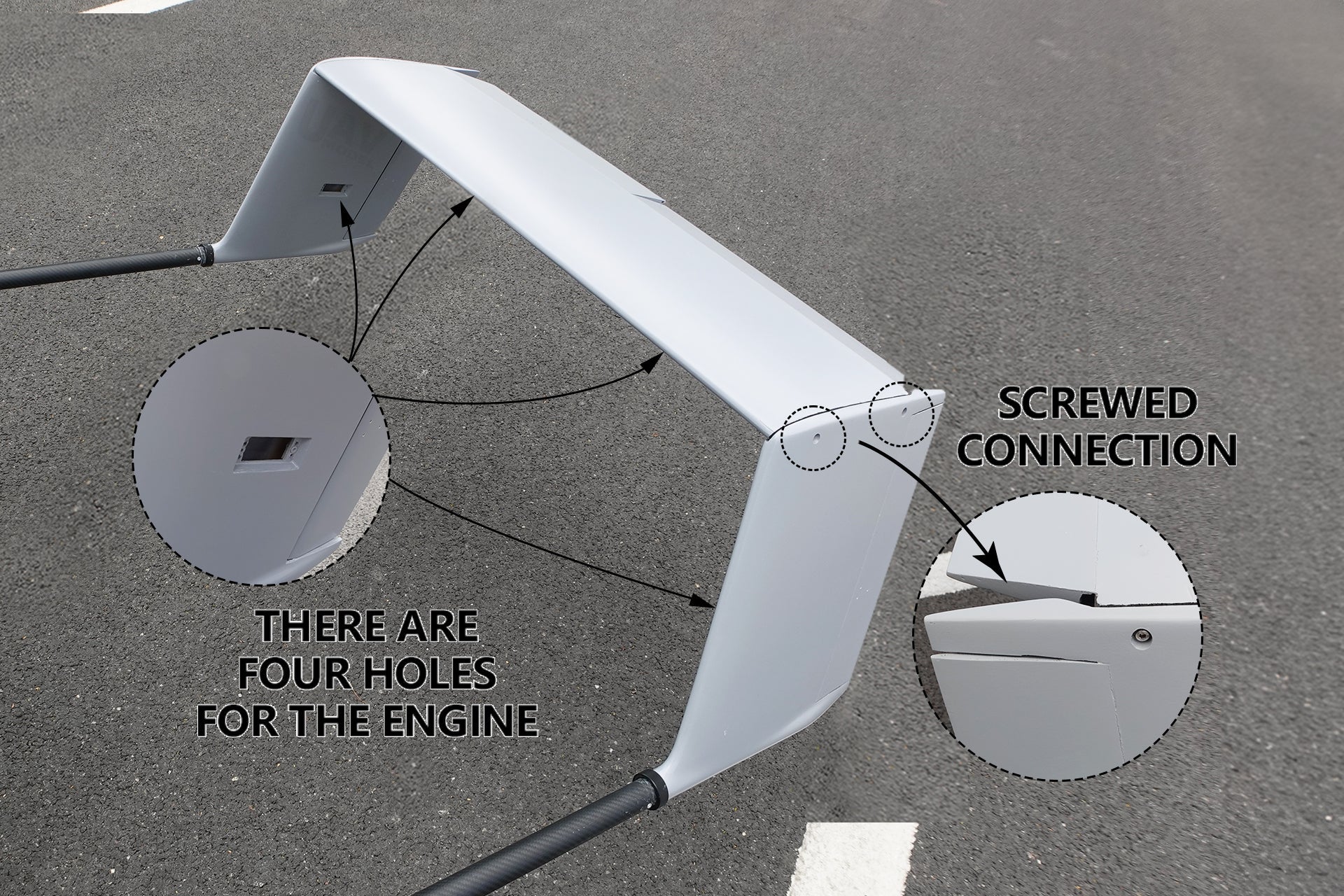

Engineered H-Tail Aerodynamics: Optimized tail design minimizes drag, provides superior directional stability, and offers ideal pusher propeller clearance.

Skyeye SKY360 Technical Specifications

Technical Parameters
Physical Dimensions	Structure Material	High-Grade Carbon Fiber

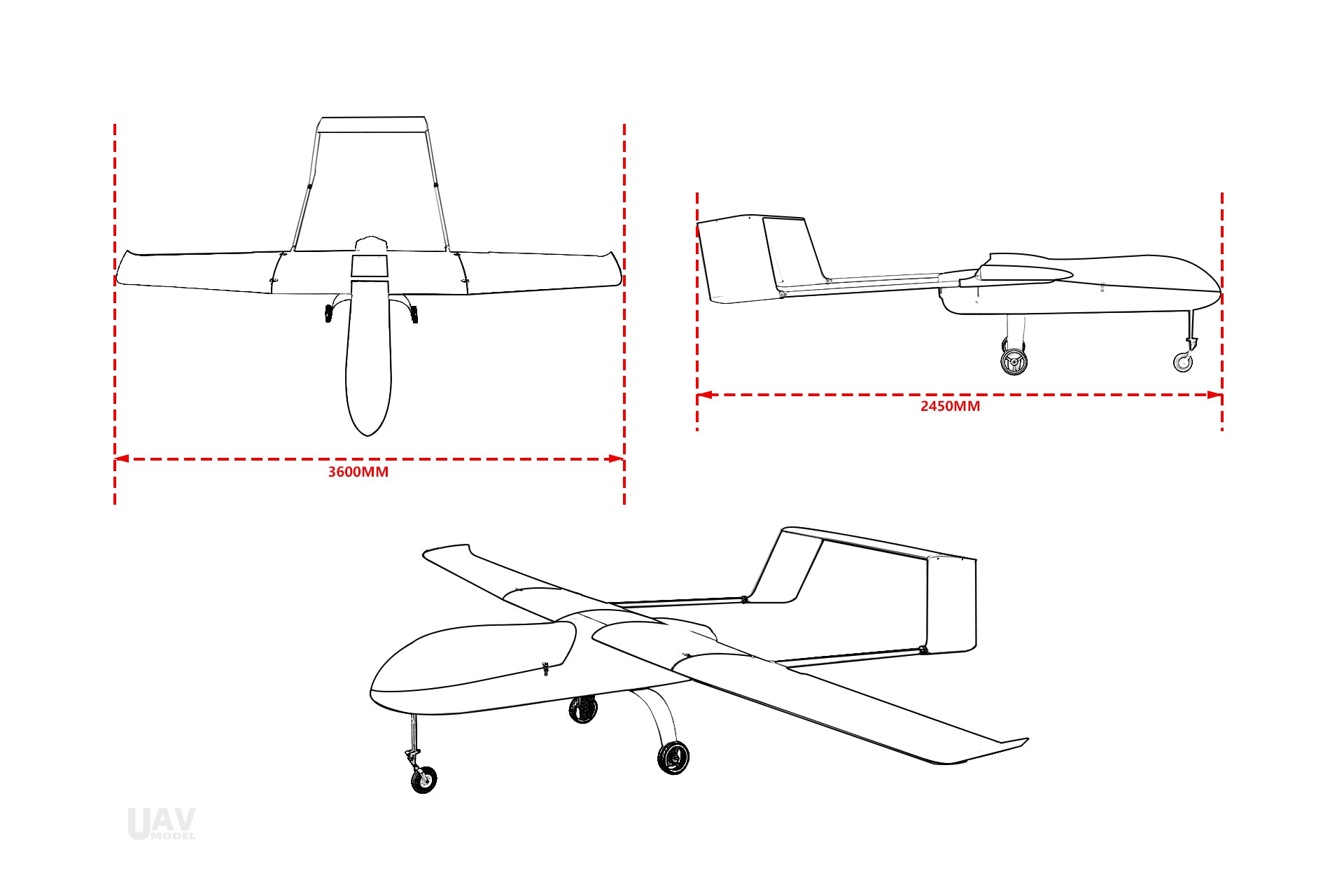

	Wingspan	3600 mm
	Fuselage Length	2450 mm
	Payload Bay Dimensions (LWH)	560 mm * 260 mm * 270 mm
	Wing Area	133 dm²
	Empty Weight	15 kg
	Payload Capacity	8 kg
	Maximum Takeoff Weight (MTOW)	40 kg
	Fuel Tank Capacity	8 L
Performance Metrics	Cruising Speed	30 m/s
	Maximum Airspeed	33 m/s
	Stall Speed	24 m/s
	Maximum Flight Time	Up to 6 Hours

Package Configuration Breakdown: KIT vs. PNP(E)

Category	Component Description	KIT Frame	PNP(E) Ready-to-Fly
Airframe System	SKY360 Outer Wings	2 Pcs	2 Pcs
	SKY360 Mid-Wing Section	1 Pc	1 Pc
	SKY360 Main Fuselage Frame	1 Pc	1 Pc
	SKY360 Vertical Tails	2 Pcs	2 Pcs
	SKY360 Structural Struts	2 Pcs	2 Pcs

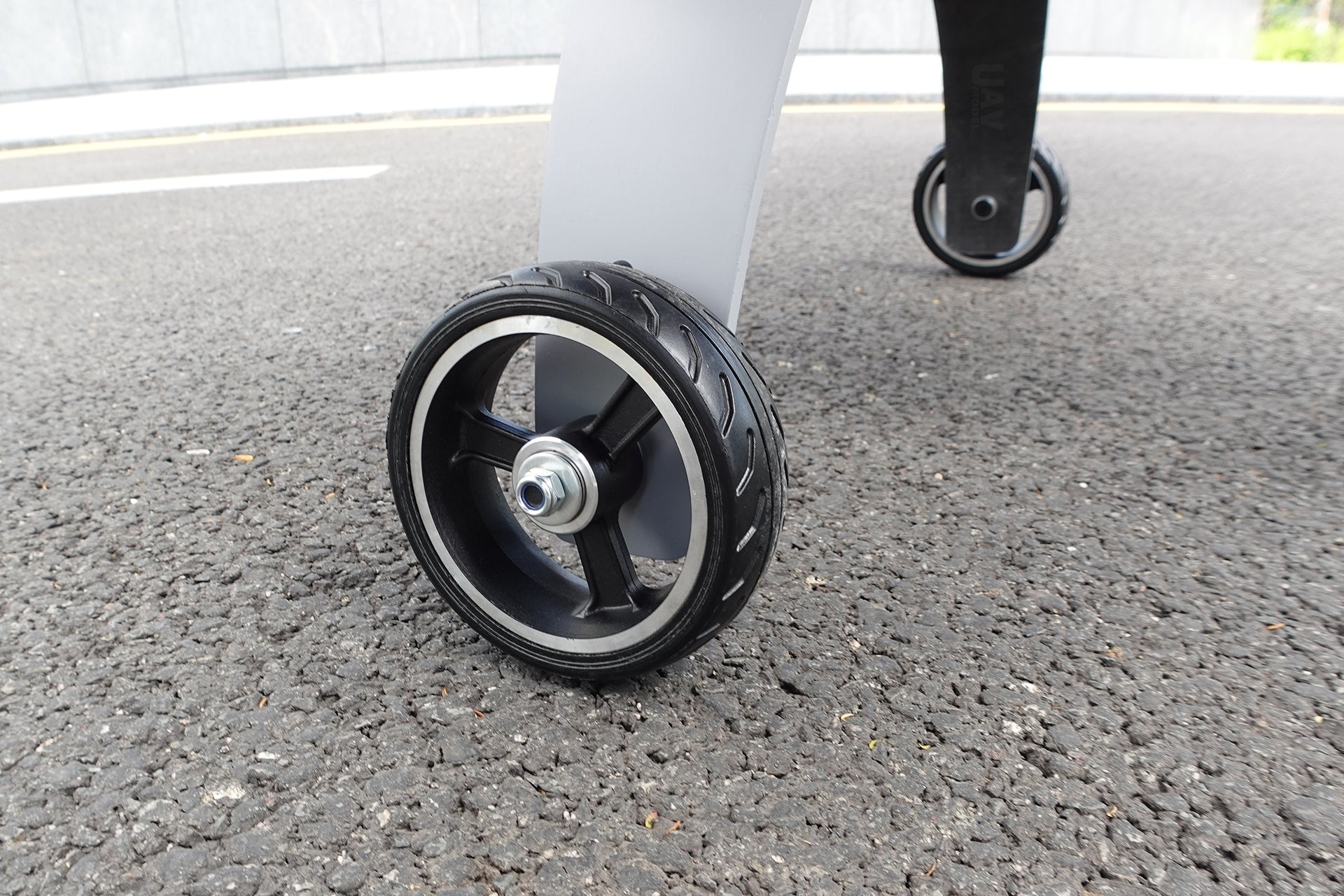

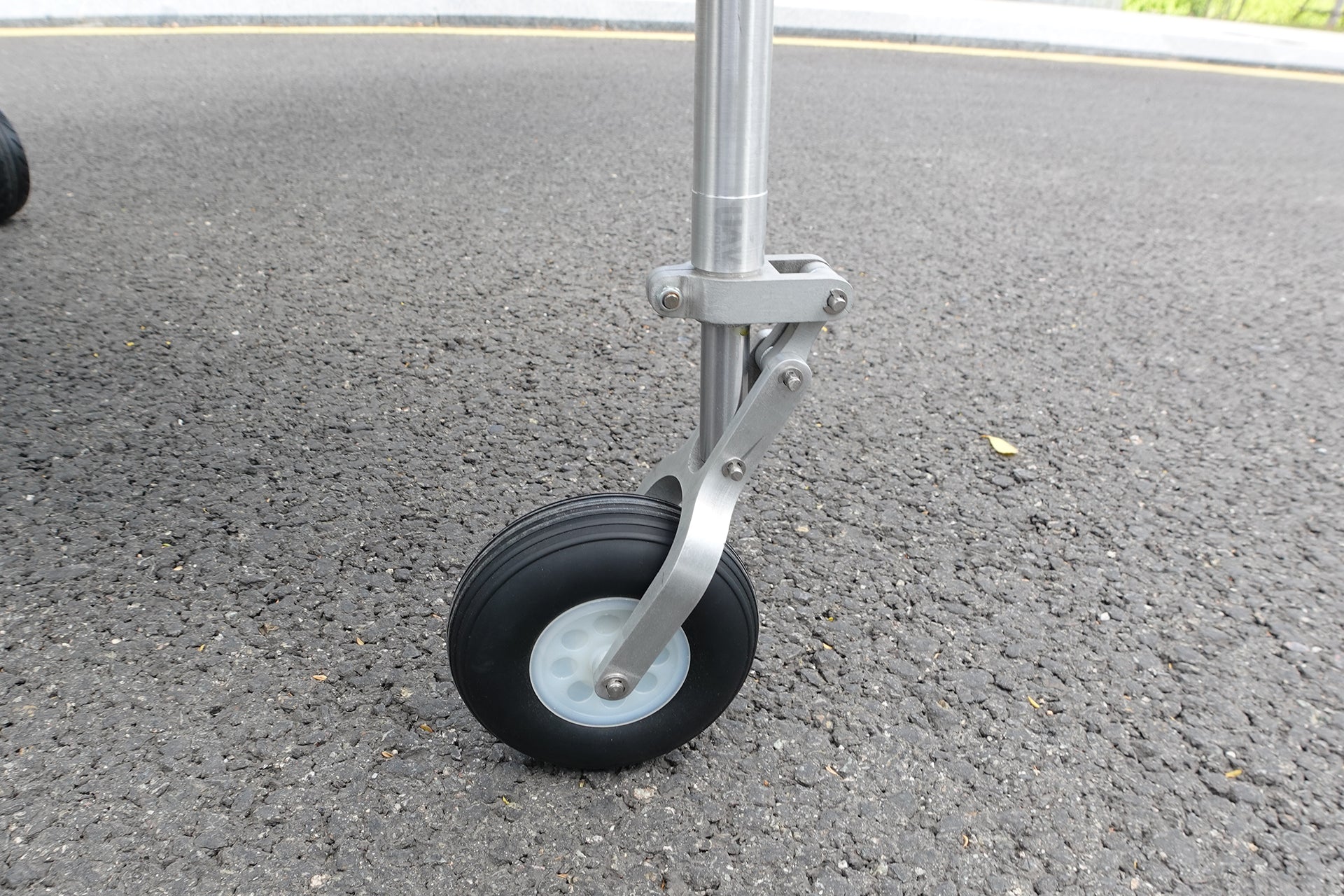

	SKY360 Landing Gear Set	1 Set	1 Set
	SKY360 Horizontal Tail	1 Pc	1 Pc

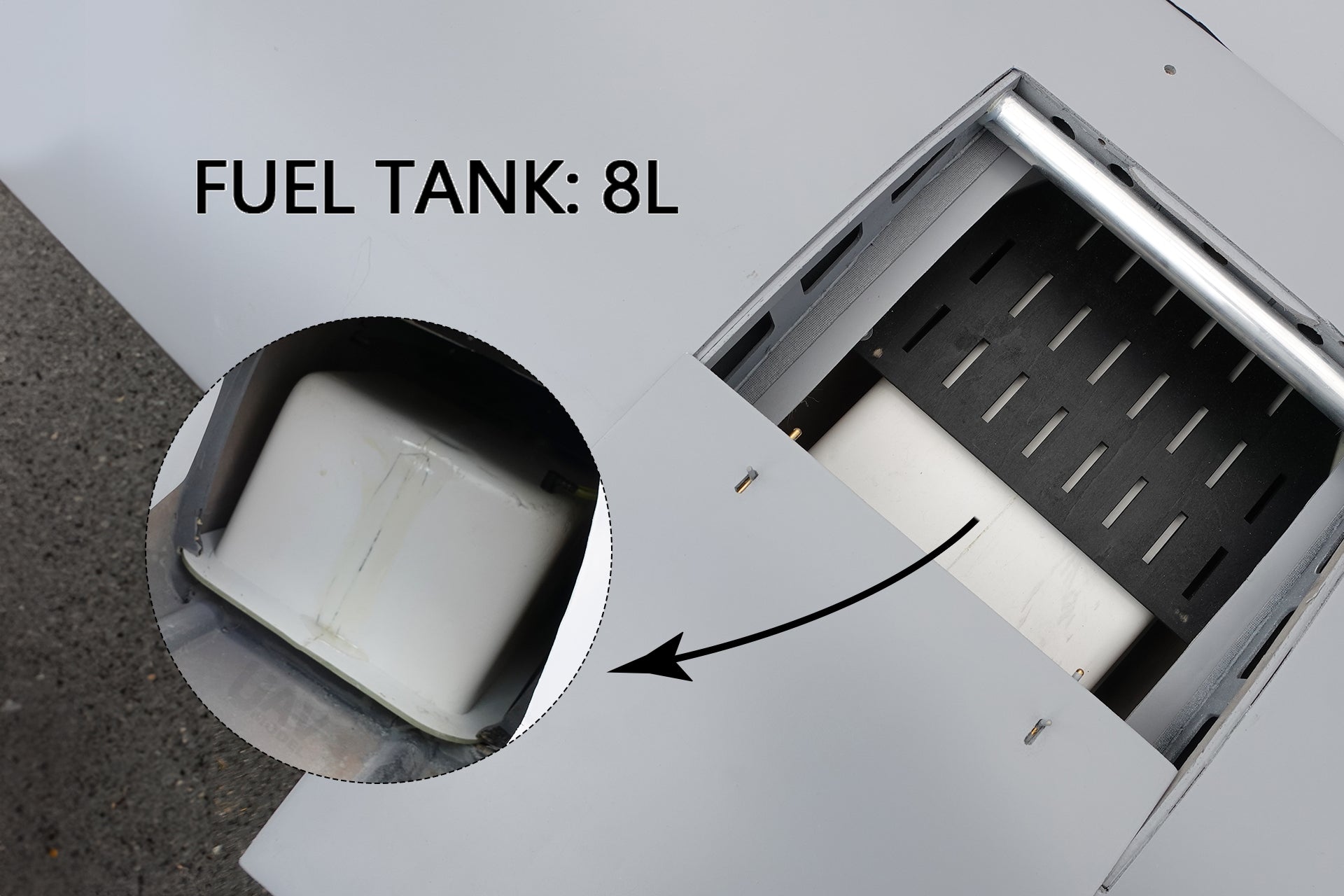

	SKY360 Fuel Tank (8L)	1 Pc	1 Pc

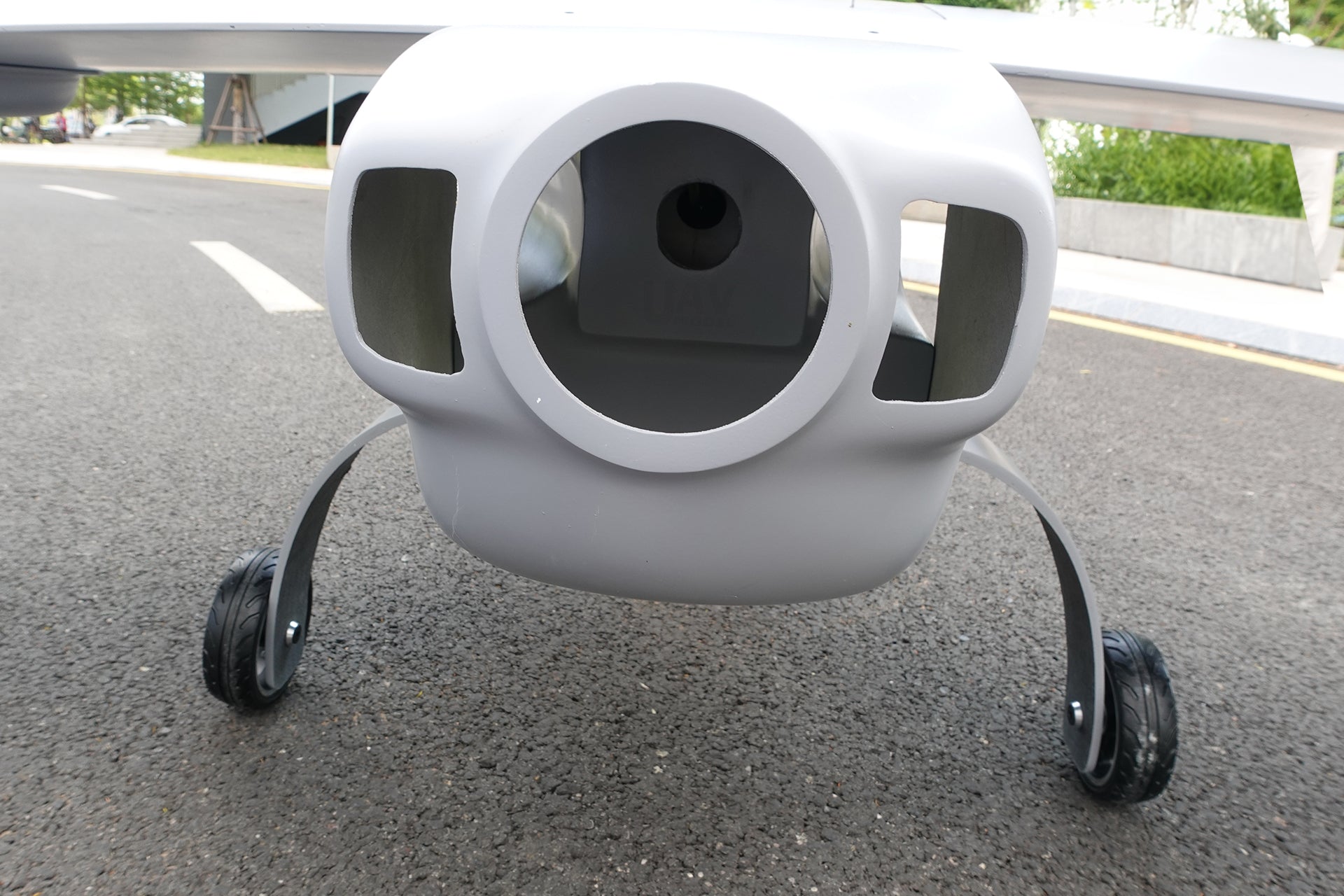

	SKY360 Engine Cowling	1 Pc	1 Pc
Power & Propulsion System	Tailthrust Combustion Engine	-	1 Set
	Matched Tailthrust Propeller	-	1 Pc
	High-Torque Servos	-	8 Pcs
	Airspeed Pitot Tube System	-	1 Set
	Hardware & Cable Accessories Package	-	1 Set

Frequently Asked Questions (FAQ)

Q1: What are the main applications for the Skyeye SKY360 UAV?

A: The Skyeye SKY360 is widely used for industrial aerial mapping, corridor inspection (pipelines, power lines), long-range surveillance, environmental monitoring, and tactical reconnaissance due to its massive 8kg payload capacity and 6-hour endurance.

Q2: What is the difference between the KIT frame and the PNP version?

A: The KIT version includes only the carbon fiber airframe, fuel tank, and structural hardware, allowing custom power and avionics integration. The PNP(E) version includes the pre-installed engine, matched propeller, 8 digital servos, and a pitot tube, requiring only your flight controller and radio system to fly.

Q3: How spacious is the internal payload bay for cameras and sensors?

A: The internal equipment bay measures 560mm * 260mm * 270mm (L*W*H), easily accommodating oblique photogrammetry cameras, multi-sensor EO/IR optical pods, or heavy LiDAR systems alongside custom flight controllers.

Q4: Can the Skyeye SKY360 be customized for specific project requirements?

A: Yes, our engineering team provides custom solutions, including avionics integration, custom payload mounting plates, and specific ground station setups for commercial and defense clients.
