Skyeye UAV SGV322 Fixed Wing Drone Motor V-Tail

SGV322

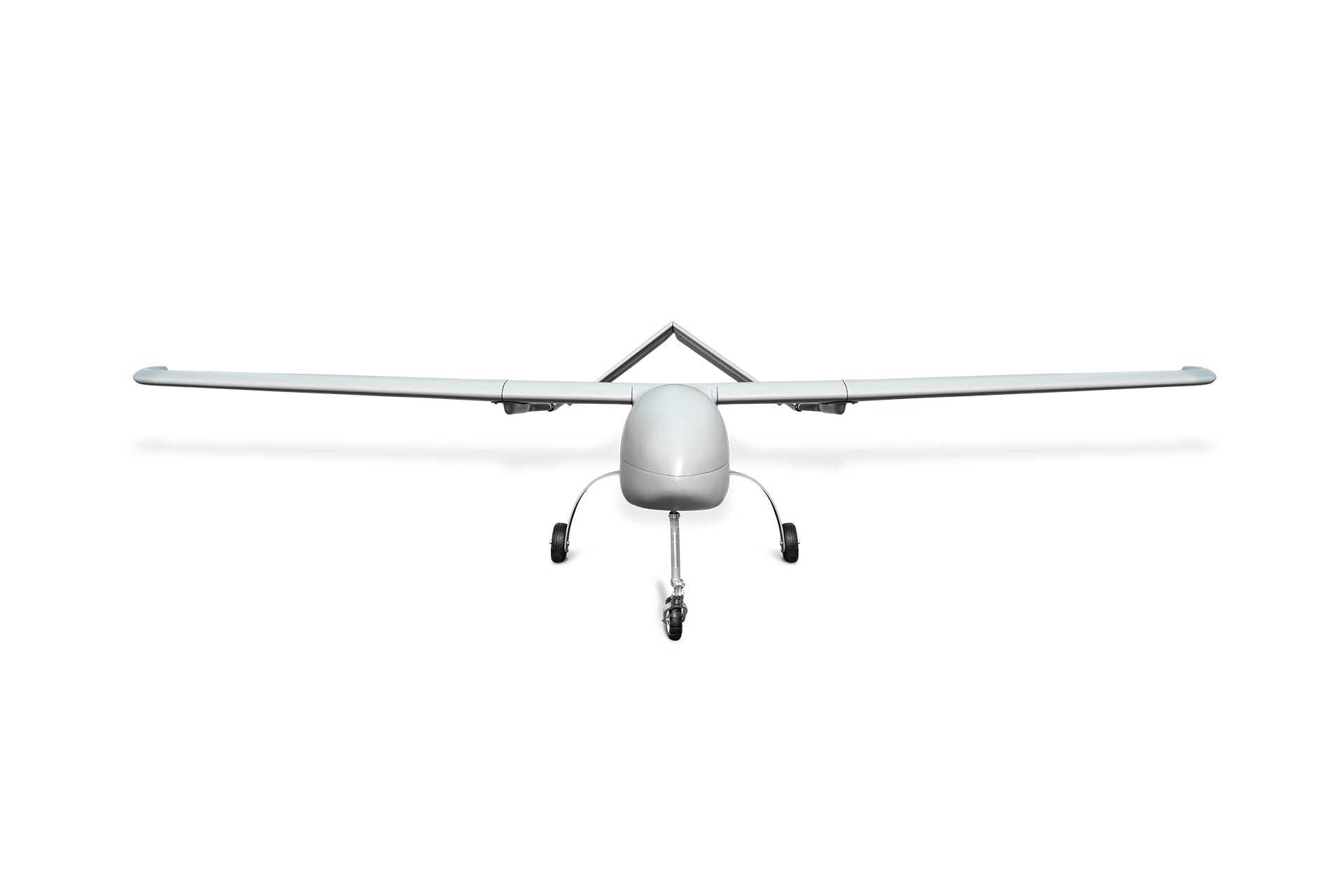

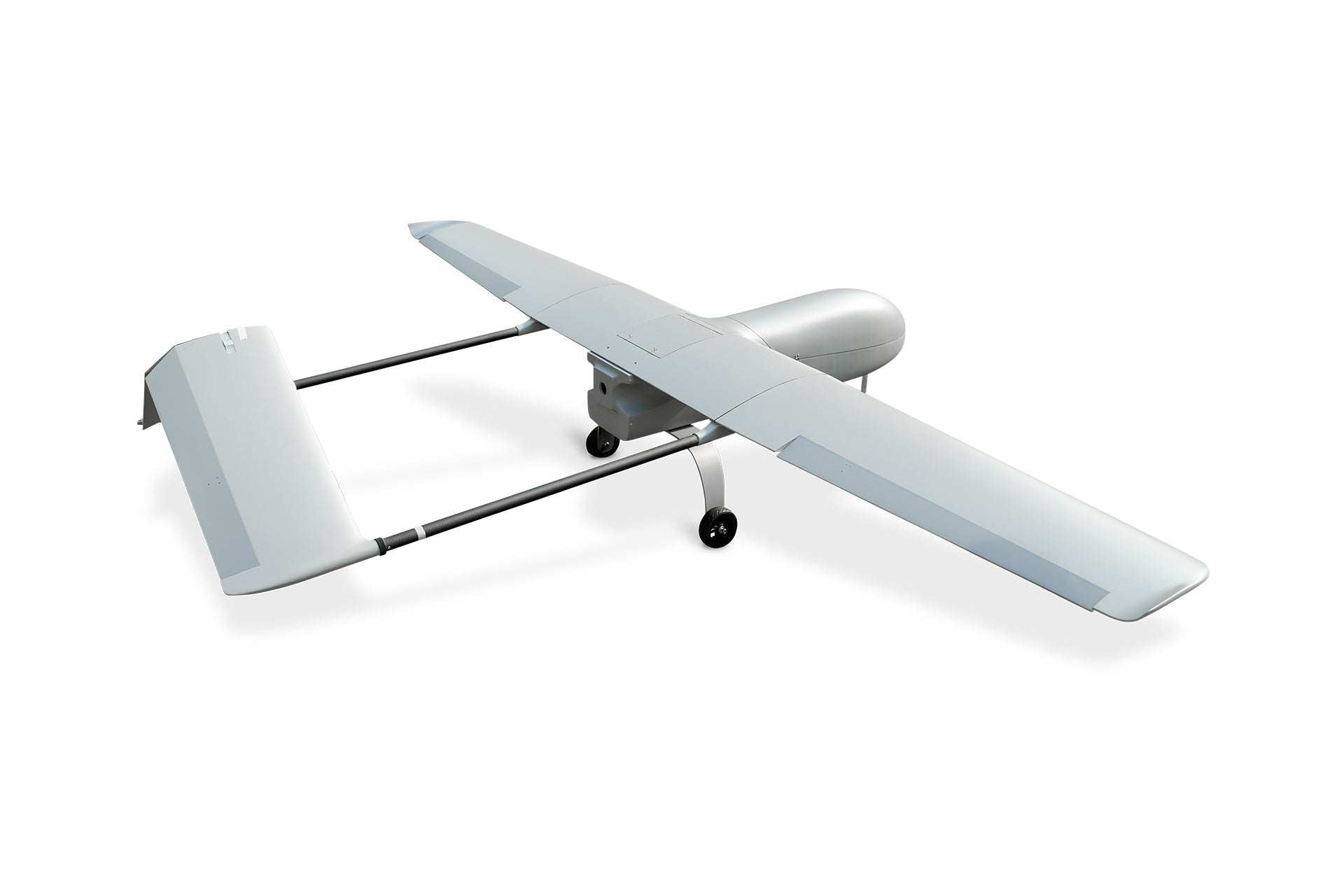

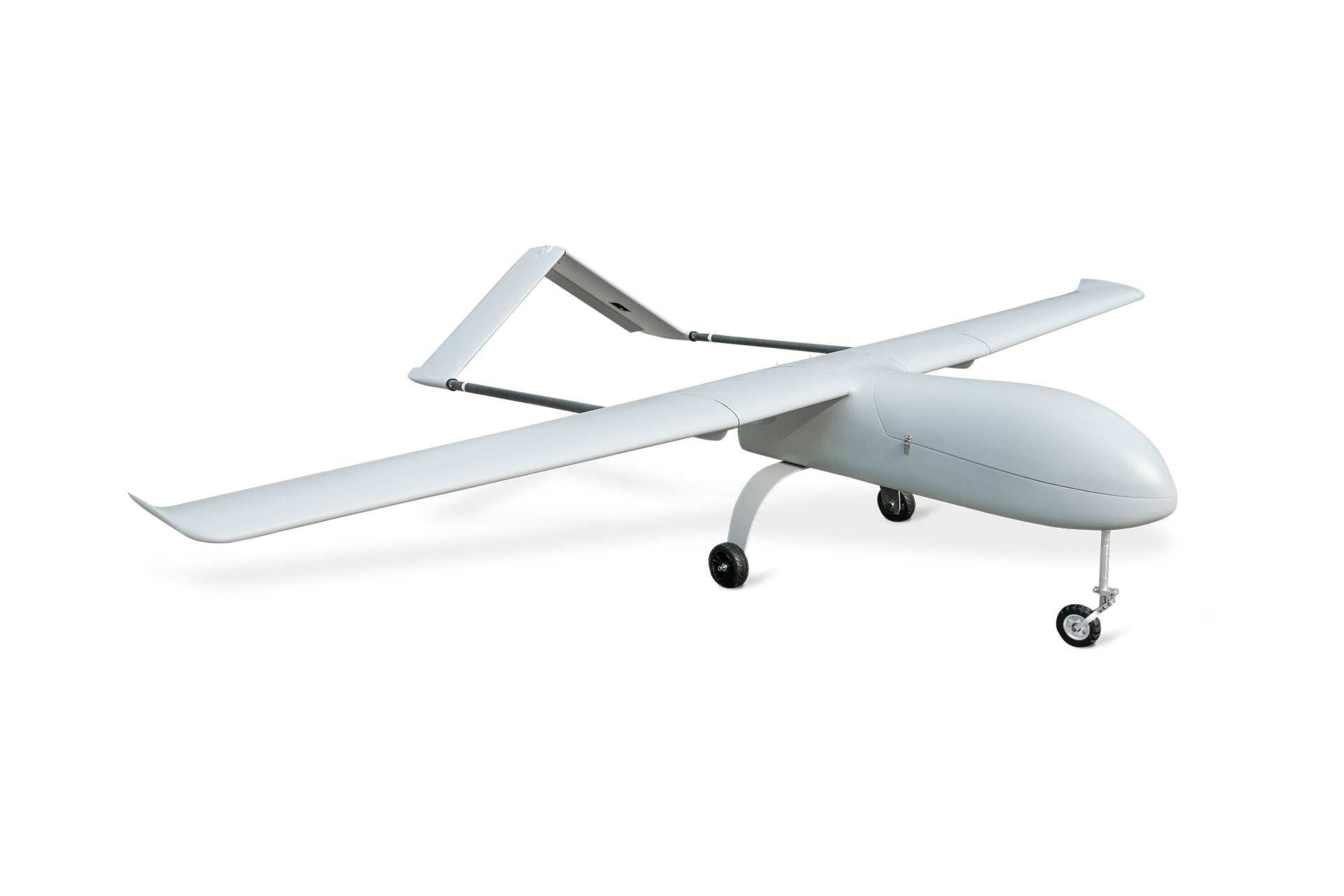

The Skyeye 3220mm Glass Fiber Fixed-Wing UAV Platform is engineered for long-range, heavy-payload aerial operations. Built with a high-rigidity fiberglass airframe, this professional unmanned aerial vehicle features a 3220mm wingspan, 2438mm fuselage length, and a large 132dm² wing area. Capable of supporting up to a 6kg payload with a maximum takeoff weight (MTOW) of 28kg, it delivers up to 3 hours of endurance at a cruising speed of 30m/s. Designed for aerial mapping, surveillance, and industrial applications, the platform is available in both KIT frame and turnkey PNP motor configurations.

✉️ Email Inquiry

Tags:

Skyeye 3220mm Glass Fiber Long-Range Fixed-Wing UAV Platform

Engineered for high-efficiency commercial and industrial mission profiles, the Skyeye 3220mm Fixed-Wing UAV sets the benchmark for heavy-payload endurance platforms. Constructed from high-strength, lightweight fiberglass, this unmanned aerial system delivers superior aerodynamic stability, extended flight times, and massive internal volume required for advanced aerial mapping, long-range surveillance, and multi-sensor payload deployment.

Long-Endurance Flight

Stay airborne for up to 3 hours on a single power charge, allowing extensive linear corridor inspections and wide-area land survey coverage without frequent battery swaps.

6kg Heavy Payload Capability

Generous payload capacity supports dual gimbal cameras, LiDAR systems, multispectral sensors, and long-range communication relays simultaneously.

Industrial Glass Fiber Hull

Built with premium-grade glass fiber for enhanced structural rigidity, durability against wind turbulence, and seamless field operation in rugged environments.

Skyeye 3220mm UAV Technical Specifications & Flight Performance

Category	Parameter Name	Specification Details
Platform Dimensions	Wingspan	3220 mm
	Fuselage Material	High-Rigidity Glass Fiber
	Fuselage Length	2438 mm
Weight & Payload Capacity	Wing Area	132 dm²
	Empty Airframe Weight	14.7 kg
	Maximum Take-off Weight (MTOW)	28 kg
	Maximum Payload Weight	6 kg
Flight Performance	Maximum Flying Time	Up to 3 Hours
	Cruising Speed	30 m/s
	Maximum Speed	35 m/s
	Stall Speed	24 m/s
Packaging & Shipping Specs	Package Dimensions	167 cm × 57 cm × 57 cm
Packaging & Shipping Specs	Total Package Weight	55 kg

Skyeye 3220mm System Configuration Options: KIT vs PNP(M)

Select the ideal configuration tailored to your integration requirements. Choose the base KIT airframe for custom power systems, or the ready-to-integrate PNP(M) package equipped with matched motor, ESC, servos, and essential flight hardware.

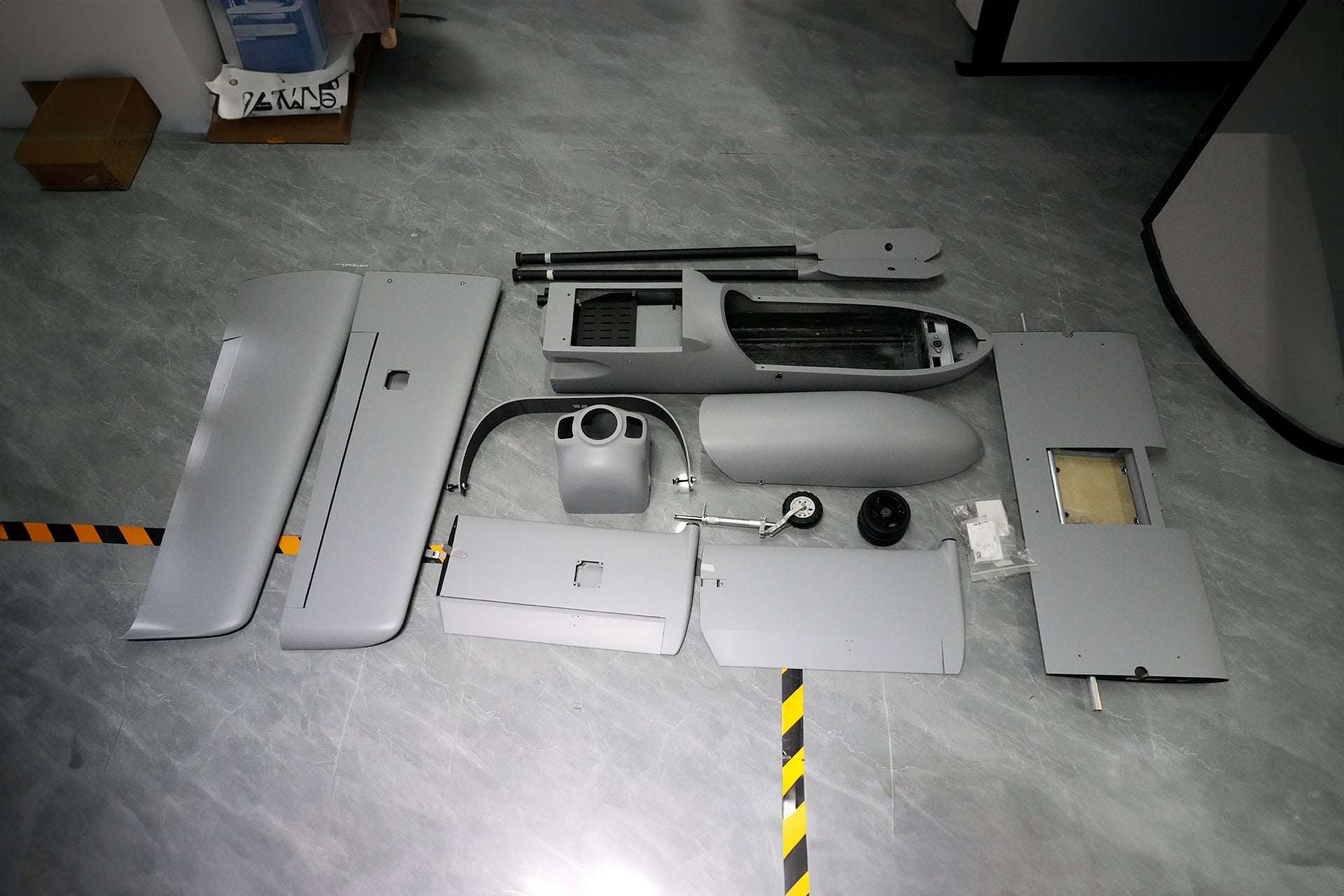

Subsystem	Component Description	KIT Package	PNP(M) Package
Flying Platform Airframe	SF322 Outer Wing	2 Pcs	2 Pcs
	SF322 Center Wing	1 Pc	1 Pc
	SF322 Main Body Fuselage	1 Pc	1 Pc

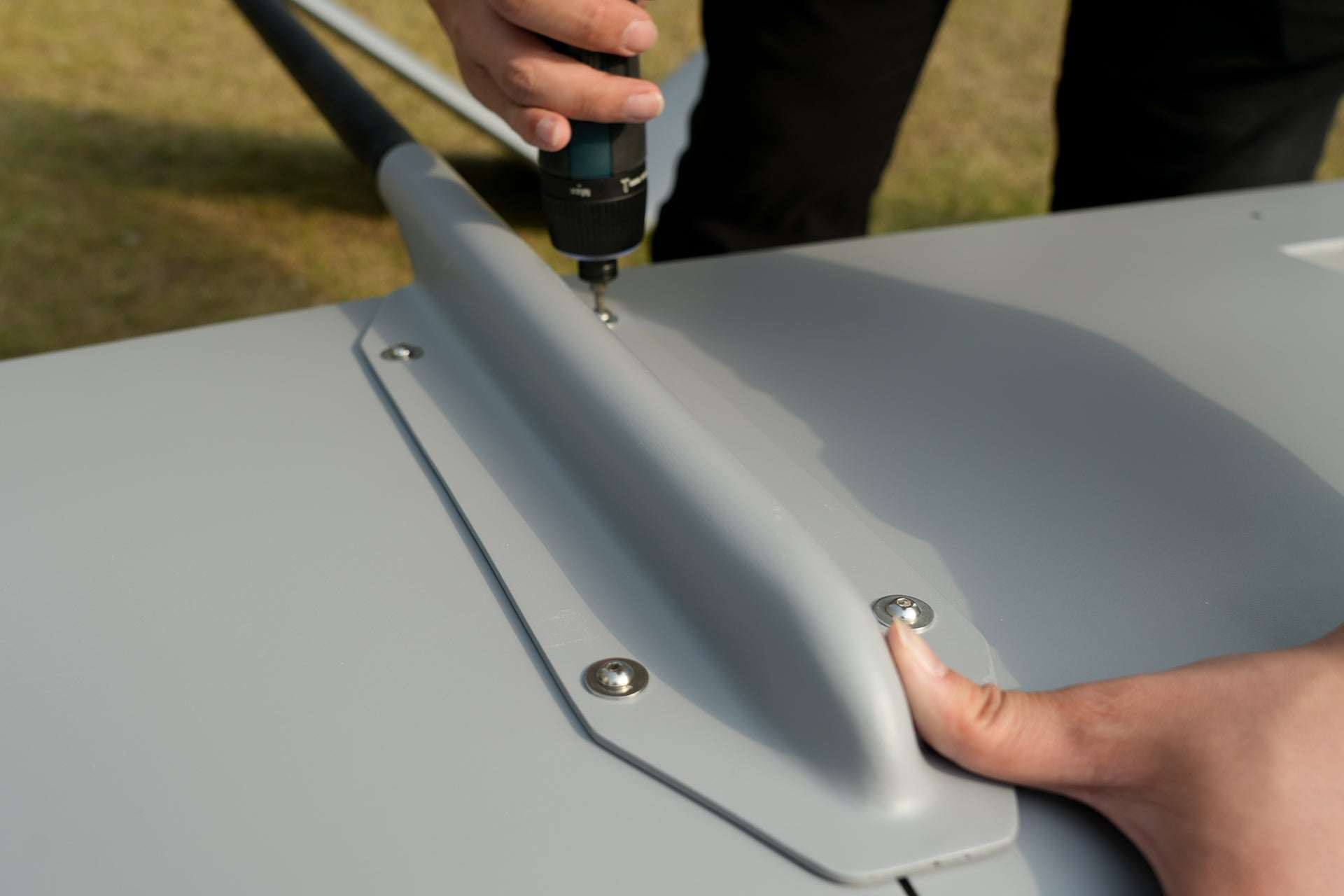

	SF322 Stay Bar	2 Pcs	2 Pcs

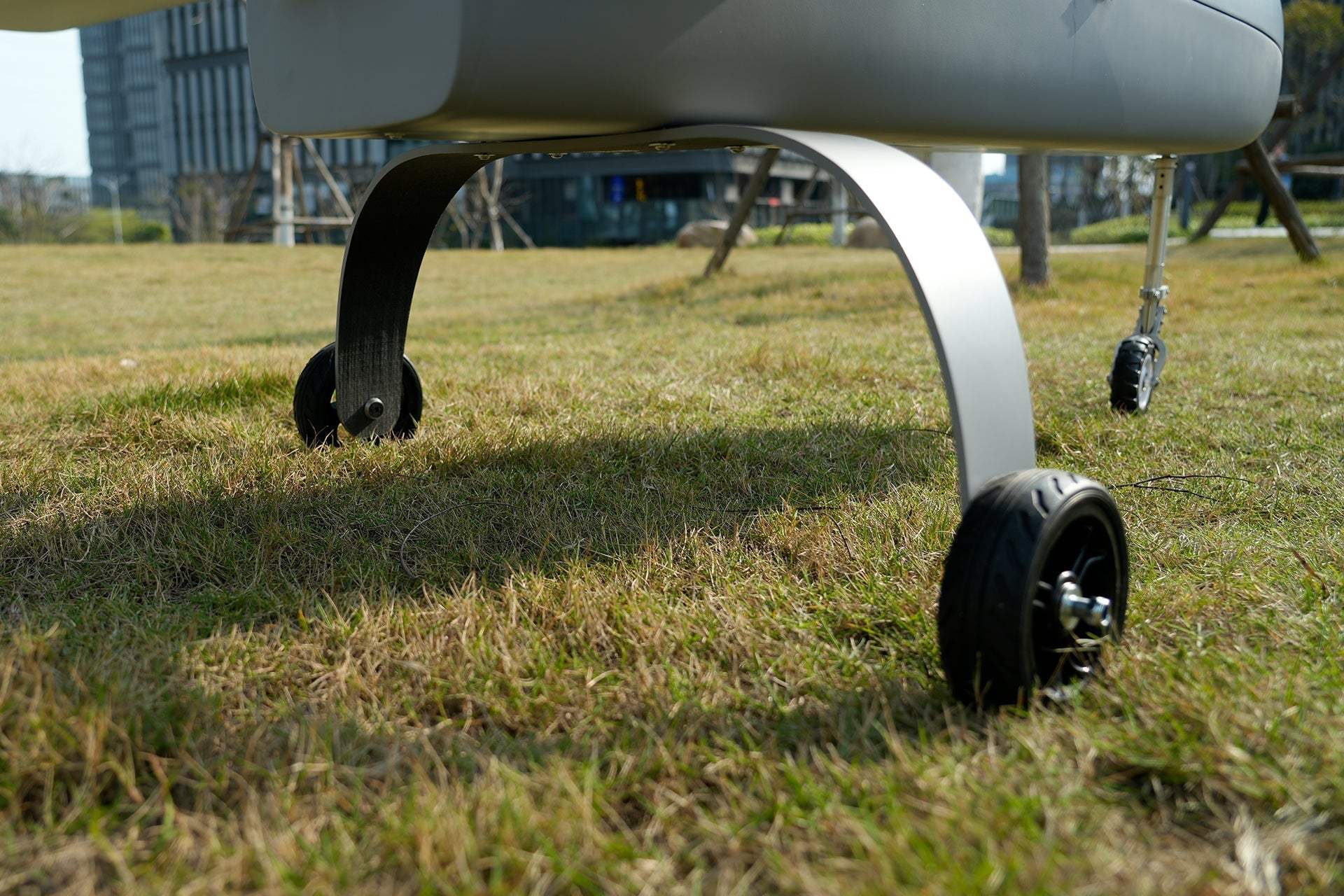

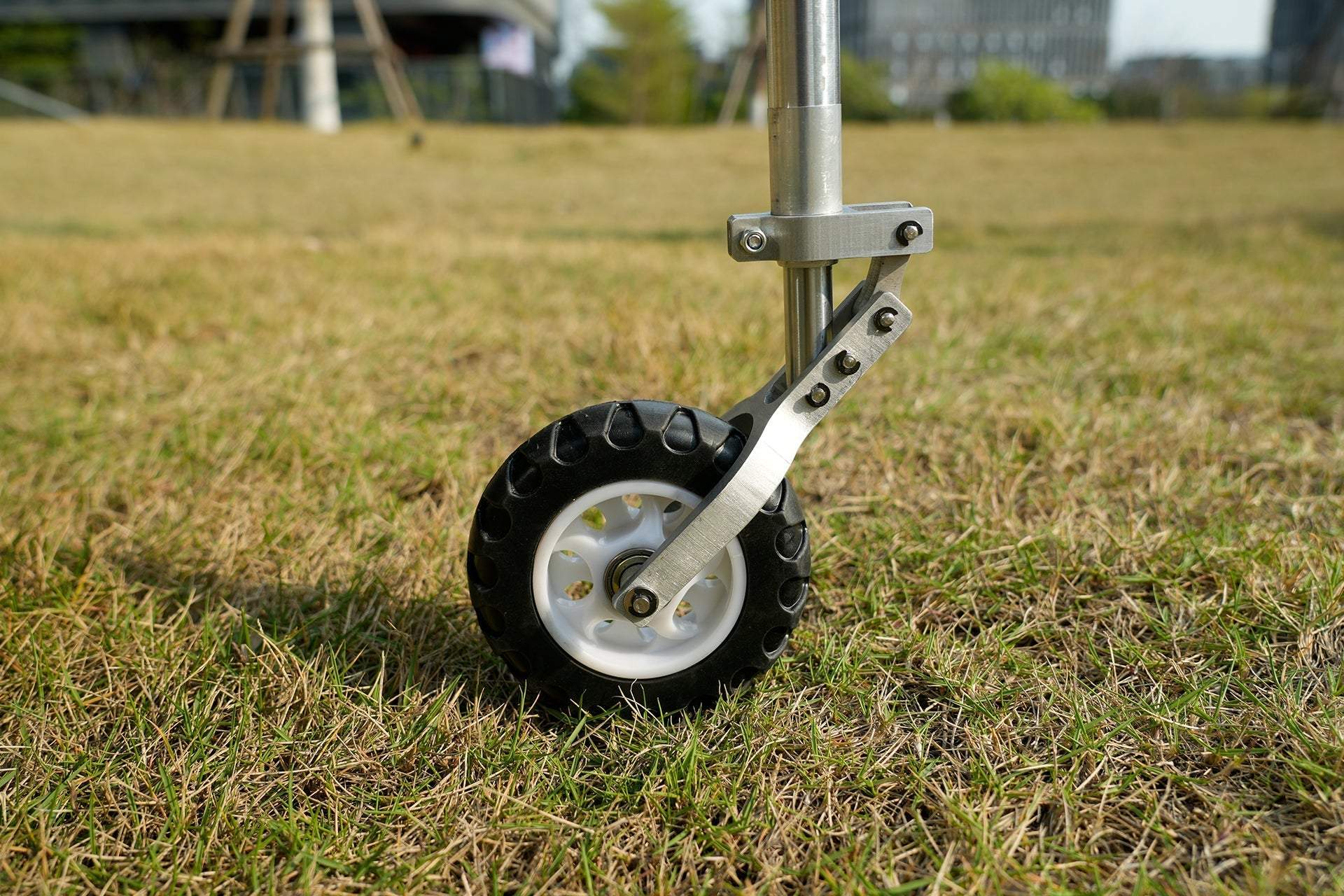

	SF322 Landing Gear System	1 Set	1 Set
	SF322 V-Tail Tailplane	1 Set	1 Set
	SF322 Engine Hood / Cowling	1 Pc	1 Pc
Power & Control Electronics	Brushless Motor	—	1 Pc
	Electronic Speed Controller (ESC)	—	1 Pc
	High-Torque Flight Servos	—	5 Pcs
	Matched Propeller	—	1 Pc
	Airspeed Pitot Tube	—	1 Pc
	Complete Wire Harness / Bale Set	—	1 Set

Frequently Asked Questions (FAQ)

Q: What power system and battery setup is recommended for the Skyeye 3220mm UAV?

A: We recommend a 44.4V (6S) high-capacity LiPo/LiIon battery setup to achieve the optimal power-to-weight ratio and max flight endurance of up to 3 hours.

Q: What is the main difference between the KIT and PNP(M) packages?

A: The KIT package includes the complete fiberglass airframe structure and landing gear, ideal for custom integrators. The PNP(M) package includes the complete airframe plus the factory-matched motor, ESC, 5 servos, propeller, pitot tube, and wiring harness.

Q: What types of payloads can the Skyeye 3220mm handle?

A: With a maximum payload allowance of 6kg, this platform easily accommodates high-resolution mapping cameras, multispectral sensors, thermal imaging gimbals, LiDAR scanners, and radio telemetry equipment.

Q: Is the platform stable in high-wind conditions?

A: Yes, the rigid fiberglass structure combined with a large 132dm² wing area and a cruising speed of 30m/s ensures excellent aerodynamic efficiency and stability during missions.
