Price range: ¥4,299.00 through ¥13,419.00

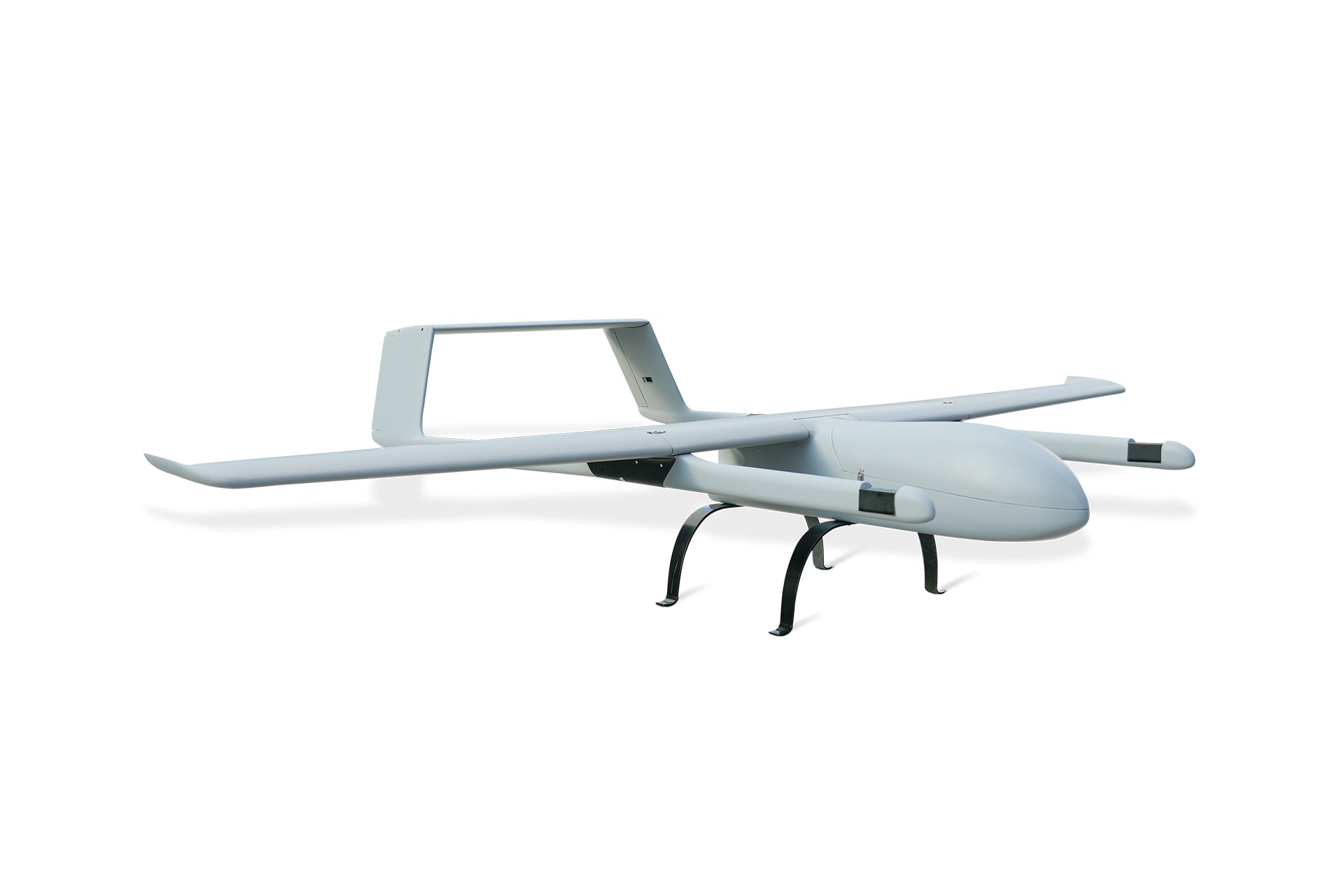

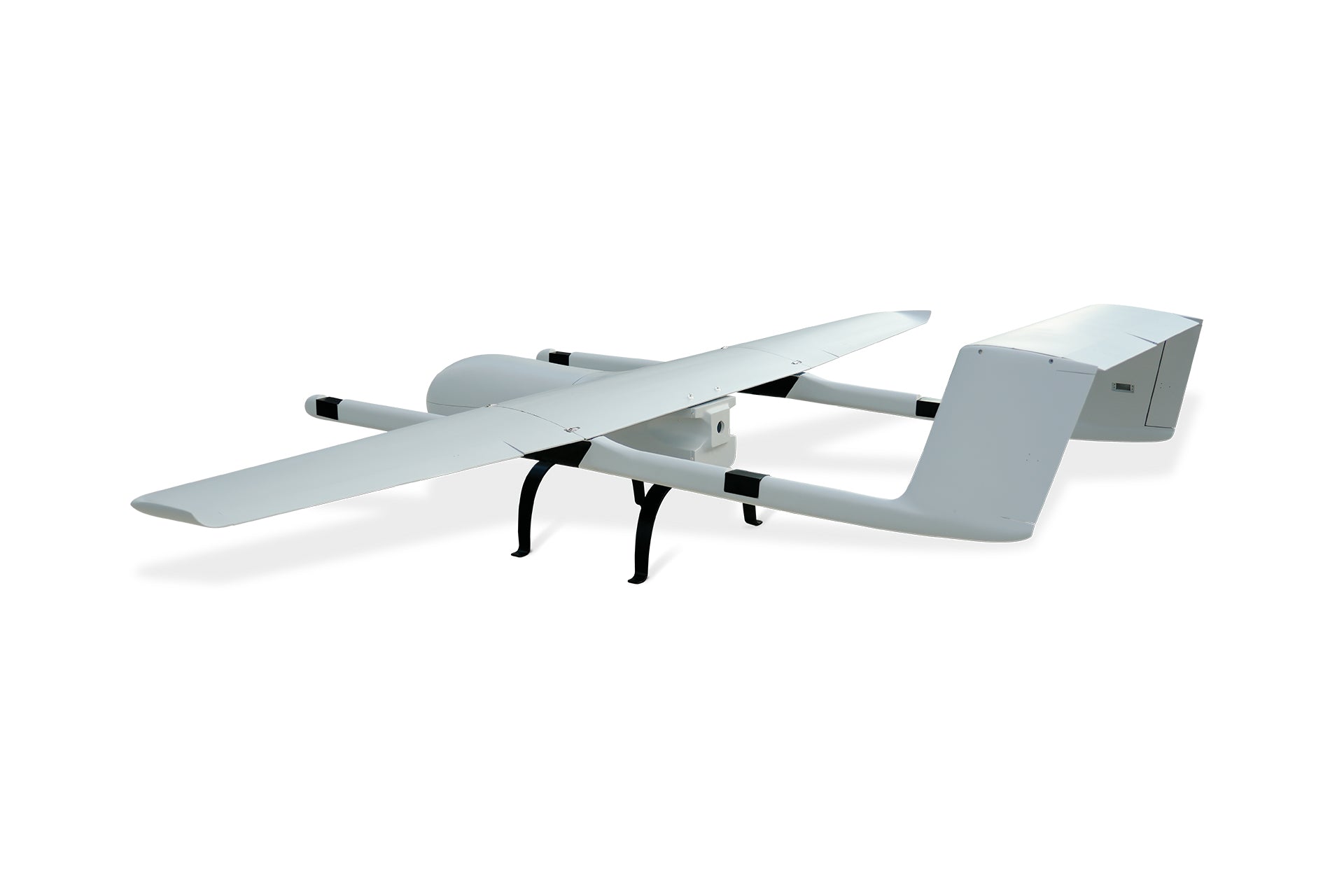

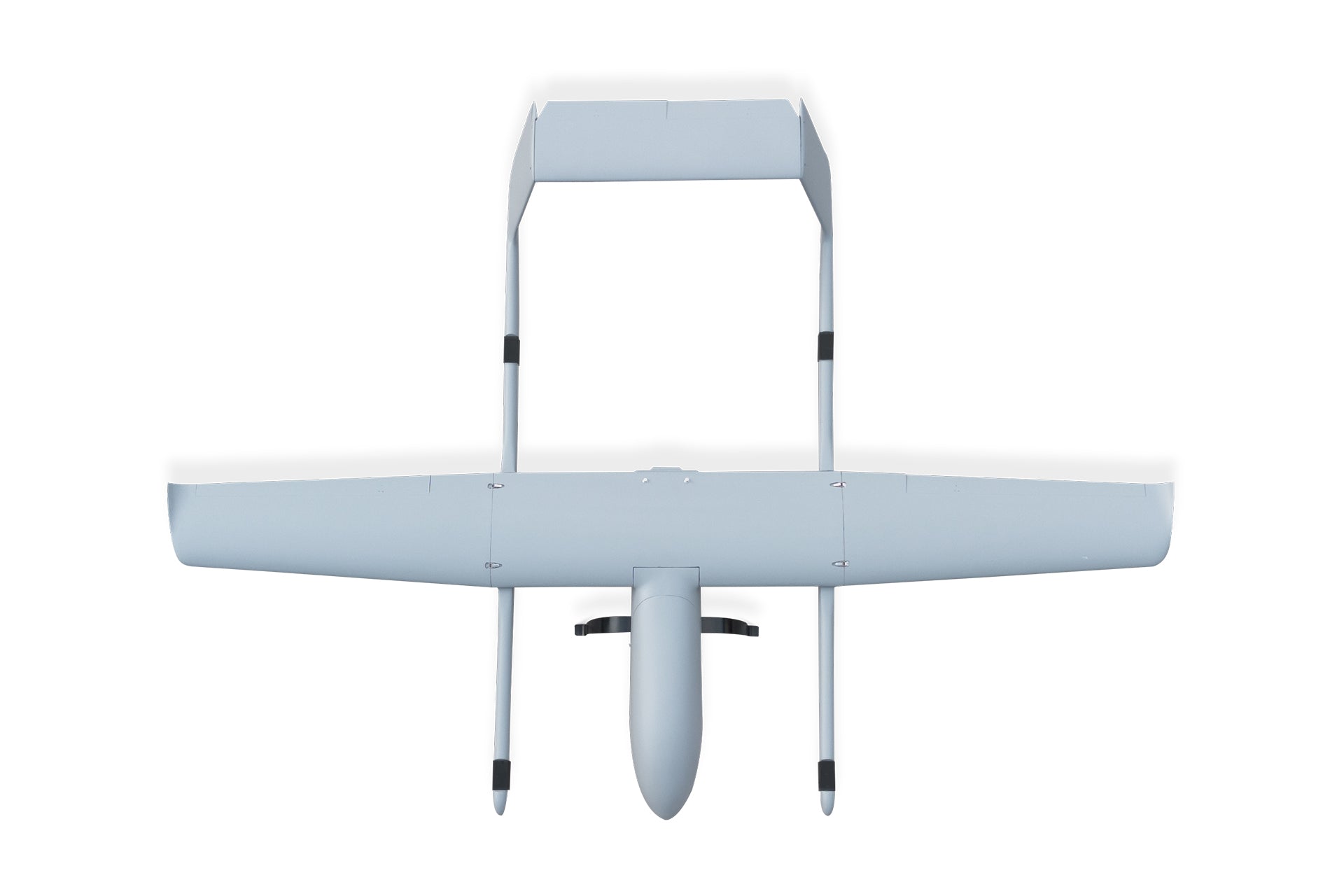

Skyeye SVH360P — 3600mm wingspan carbon fiber VTOL UAV. 5 hours flight time, 40KG MTOW, 6KG payload. Available in KIT, Power System, PNP, and PRO configurations.
Description
table {
width: ; /* 设置表格固定宽度，和原代码中的宽度值对应 */
height: px; /* 设置表格固定高度，和原代码中的高度值对应 */
border-collapse: collapse; /* 合并边框，让线条看起来更整齐 */
border: 1px solid black; /* 给整个表格添加一个清晰的外边框 */
}
table td,
table th {
border: 1px solid black; /* 给每个单元格（表头和普通单元格）添加边框，形成清晰的线条 */
padding: 5px; /* 适当添加内边距，让内容显示更美观，可按需调整 */
text-align: center; /* 添加这行代码，使文字居中显示 */
}
/* 如果想单独设置表头的样式，可以添加以下代码 */
table th {
background-color: #f2f2f2; /* 表头添加浅灰色背景，方便区分，可按需更改颜色 */
font-weight: bold; /* 表头文字加粗，可按需调整 */
}
| PARAMETER | ||
| Specifications | Material | carbon fiber |
| Wingspan | 3600mm | |
| Length | 2420mm | |

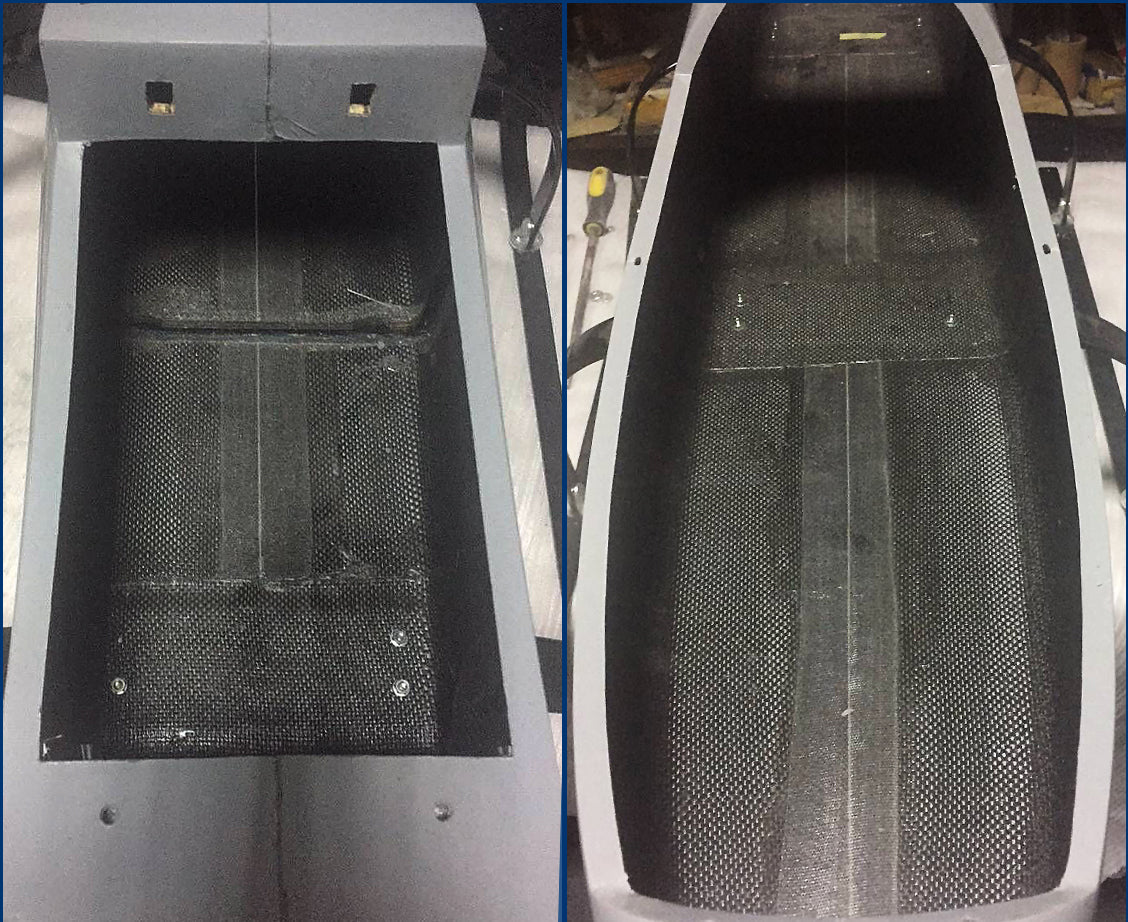

| Payload bay dimensions | 560mm*260mm*270mm(L*W*H) | |
| Wing area | 132dm2 | |
| Empty weight | 16kg | |
| Payload capacity | 6KG | |
| Maximum takeoff weight | 40KG | |
| Fuel tanks | 8L | |
| Performance Characteristics | Cruising speed | 30m/s |
| Maximum speed | 35m/s | |
| Stall speed | 24m/s | |
| Maximum flight time | 5 Hours | |
| Skyeye SVH360VTOL | |||
| Name | Specification | KIT | PNP(E) |

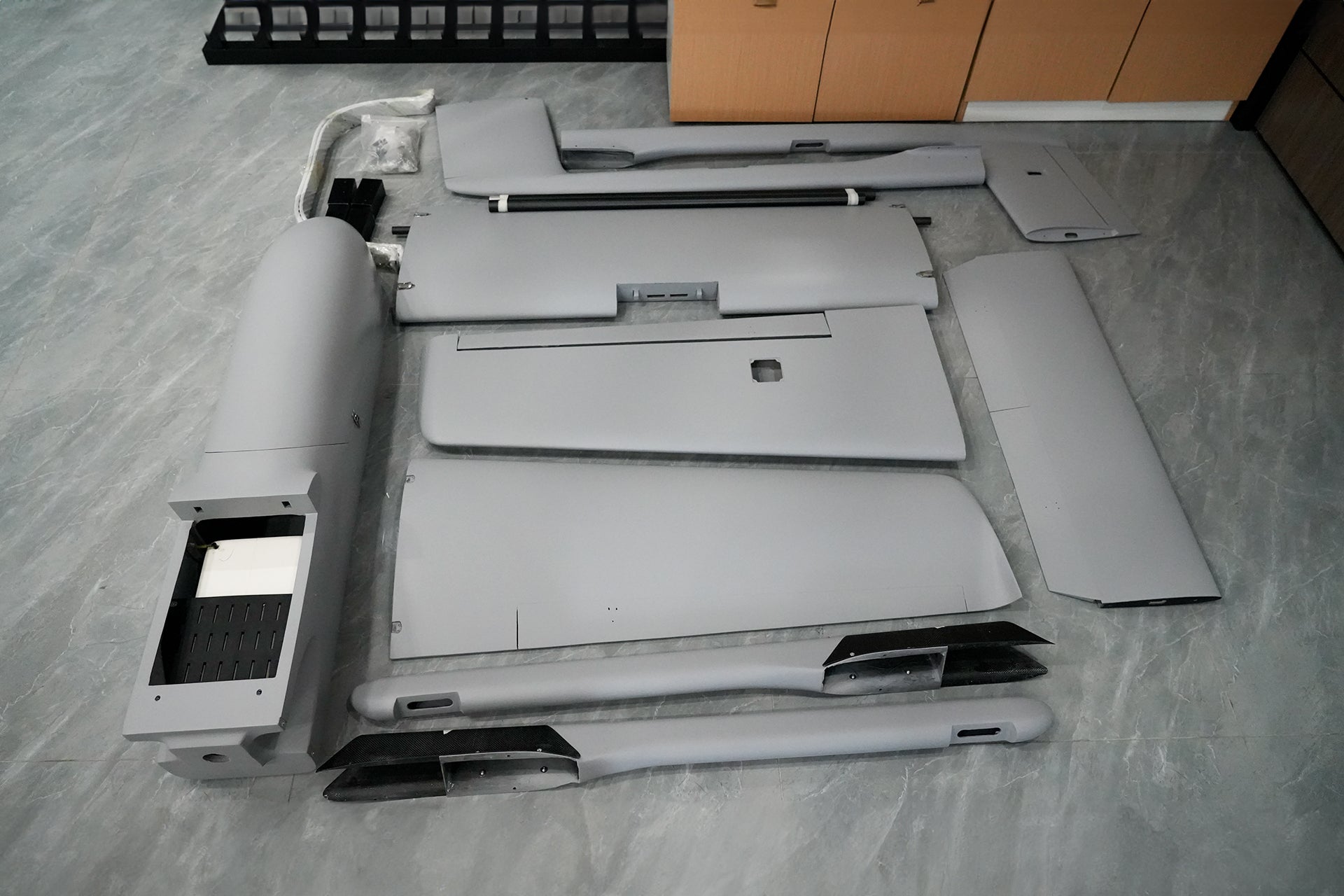

| Flying platform | SVH360 outer wing | 2 | 2 |
| SVH360 mid-wing | 1 | 1 | |
| SVH360 mainframe | 1 | 1 | |
| SVH360 support mast (including vertical stabilizer) | 2 | 2 | |
| SVH360 landing gear | 2 | 2 | |
| SVH360 horizontal stabilizer | 1 | 1 | |
| SVH360 fuel tank | 1 | 1 | |
| SVH360 engine cowling | 1 | 1 | |
| Power system(Engine) | Tailthrust engine | 1 | |
| Tailthrust propeller blades | 1 | ||
| VTOL motor | 4 | ||
| VTOL ESC | 4 | ||
| VTOL propeller blades | 2 | ||
| Servos | 7 | ||
| Pitot | 1 | ||
| Parts package | 1 | ||
Note:
Total time for Dual-Use Item Export License application and drone production need 45~60 days.
Prices and freight are for reference only, no stock, orders need to wait for production time.
Battery recommendation: 44.4V(12S)
Made-to-order products: Once a customer submits an order, the product will immediately go into production. Given its customized nature and the immediacy of production, such orders become binding upon confirmation and no refunds will be accepted.
Additional information
| Style |
|---|
